EPC-BYT2

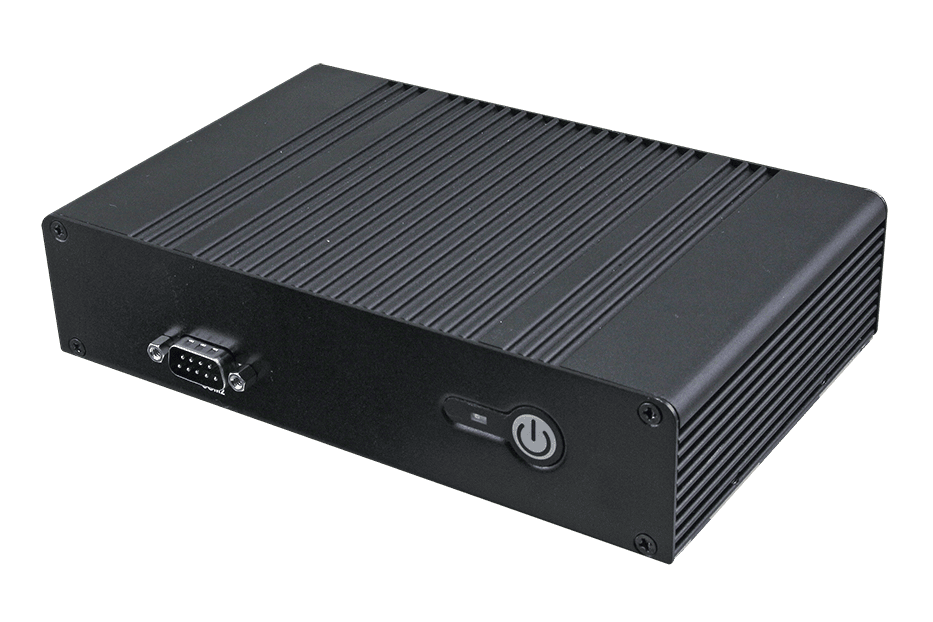

Intel® Atom™ SoC processor J1900 Fanless Tiny System3

Get a Quote

Comparison

数据表

Get a Quote

Comparison

数据表

  • Intel® Celeron® Processor J1900
  • Intel® Valleyview D SoC
  • One 204-pin SODIMM Socket Up to 8GB DDR3L 1333MHz SDRAM
  • Rich I/O, 1 VGA, 1 HDMI,1 COM/2COM, 2 LAN, 4 USB, 2 Antenna mounting
  • Expansion Slot Supports 2 Mini PCIe Slot
  • Wide Range DC Power Input from 12 ~ 26V
  • Fanless Operating from -10 ~ 45°C
  • Compact Size, 175mm x 110mm x 40mm
  • Optional Wall Mount Kit / VESA / DIN-Rail
  • Supports TPM 1.2 (Factory Option)
  • 规格
  • 文档
  • 常见问题

产品规格

System Information

  • Processor

    Intel® Celeron® Processor J1900
    2M Cache, up to 2.42 GHz

  • System Memory

    One 204-pin SODIMM Socket Up to 8GB DDR3L 1333MHz SDRAM

  • BIOS Information

    AMI uEFI BIOS, 64Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec./1sec.step

  • H/W Status Monitor

    Monitoring System Temperature, Voltage with Auto Throttling Control

  • SBC

    ECM-BYT2

Expansion

  • PCIe

    1 x Full Size Mini PCIe (mSATA supported)
    1 x Half Size Mini PCIe

Storage

  • mSATA

    1 x mSATA

  • 2.5 Drive Bay

    1 x 2.5” Drive Bay

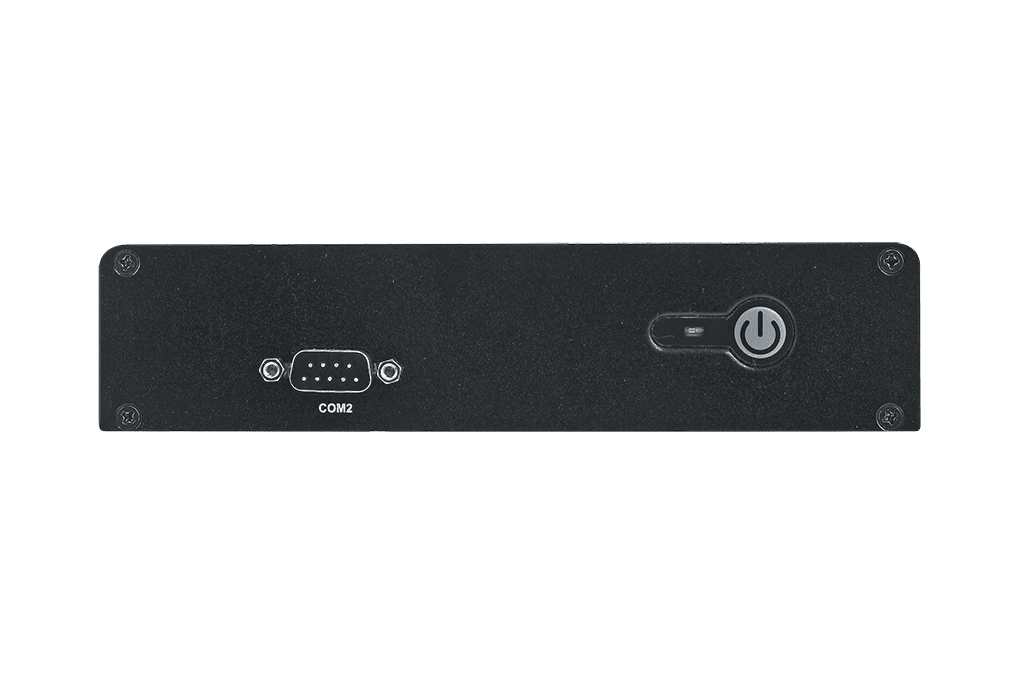

Front I/O

  • Power Button

    1 x Power button, w/LED

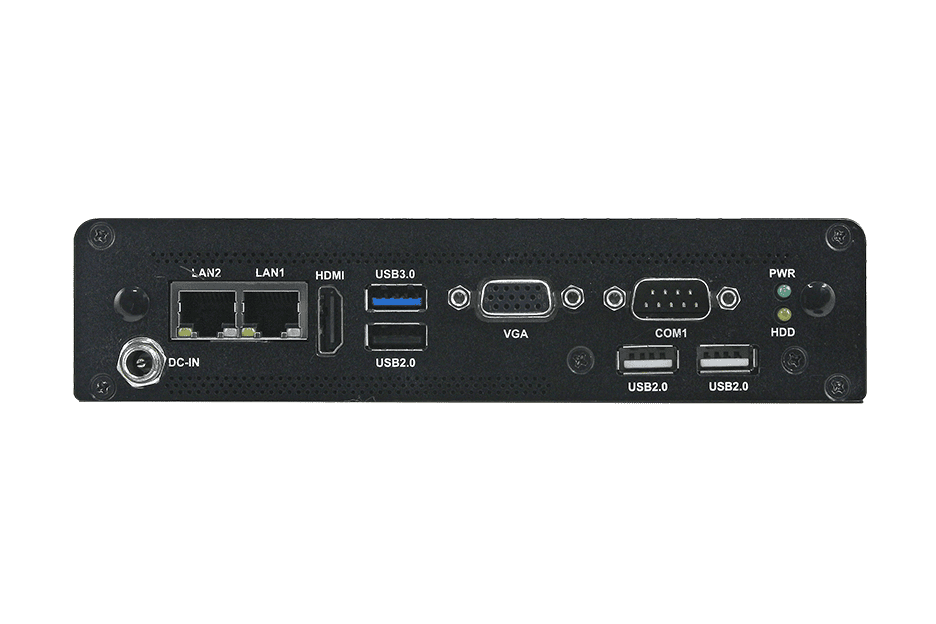

Rear I/O

  • USB

    4 x USB (1 x USB 3.0, 3 x USB 2.0)

  • COM Port

    1 x RS-232/2 x RS232 (by order infomation)

  • LED Indicator

    1 x Power on/off LED
    1 x Storage Access LED

  • LAN Port

    2 x RJ45

  • HDMI

    1 x HDMI

  • VGA

    1 x VGA

  • Antenna

    2 x Antenna Mounting with Dust Protection Cover

  • AC/DC Input

    1 x Lockable DC Jack
    2-Pin Terminal Block (Factory Option)

Display

  • Graphic Chipset

    Intel® HD Graphics

  • Resolution

    VGA Mode: 2560 x 1600 @ 60Hz
    HDMI Mode: 1920 x 1200 @ 60Hz

Ethernet

  • LAN Chipset

    2 x Realtek RTL8111E Gigabit Ethernet

  • Specification

    10/100/1000 Base-Tx Gigabit Ethernet Compatible

Power Requirement

  • ACPI

    Single Power ATX Support S0, S3, S4, S5
    ACPI 3.0 Compliant

  • Power Mode

    AT/ATX (ATX is the default setting)

  • Adapter

    Input: 100 ~ 240Vdc/ 50 ~ 60Hz
    Output: 12V/5A AC-DC 60W Adapter

Certification

  • Certification Information

    CE, FCC Class A, UKCA

Mechanical & Environmental

  • Operating Temp.

    -10 ~ +45°C (w/mSATA & SSD), Ambient w/Air Flow (Factory Option:-10~+50°C)
    0 ~ 40°C (32 ~ 104°F) (w/2.5" Drive Bay), Ambient w/Air Flow

  • Storage Temp.

    -30~70C° (-22°F ~ 158°F)

  • Dimension (W x L x H)

    175mm x 110mm x 40mm (W x D x H)

  • Weight

    960g

  • Vibration Test

    With SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis

  • Shock Test

    With SSD: 10G, IEC 60068-2-27, Half Sine,11ms

  • IP Rating

    40 (Factory Option)

Ordering Information

  • Ordering Information

    Intel® Celeron® Processor J1900

    EPC-BYT2-B1-1R (Fanless Tiny System)
    EPC-BYT2-B1-2R (w/2COM Fanless Tiny System)

  • BIOS
    4
  • Chipset
    2
  • Audio
    2
  • Graphics
    7
  • LAN
    3
  • Manual
    1
  • Other Driver
    9
  • 全部内容
  • Windows 10 64bit
  • Windows 10 32bit
  • Windows 8 64bit
  • Windows 8 32bit
  • Windows 7 64bit
  • Windows CE
  • BIOS

    总计 4 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    (EPCBY2DN)EPC-BYT2(D) BIOS 1.20 CS:A89AH,P/N:E1512CA9104R
    • 不适用
    2023-11-01
    (EPBYA2DM)EPC-BYT2-A2(D) 1.10 CS:7A2EH,E1512CA9103R,for EPC-BYT2-A2-2R
    • 不适用
    2023-11-01
    (EPCBY2DL)EPC-BYT2(D) BIOS 1.10 CS:9B78H,P/N:E1512CA9101R,for EPC-BYT2-A2-1R
    • 不适用
    2023-11-01
    (EPCBY2DH)EPC-BYT2(D) BIOS 1.00 CS:AA6BH,P/N:E1512CA9100R,for EPC-BYT2-A2-1R
    • 不适用

    打开所有文件

    Chipset

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    D1 Stepping Chipset Driver
    • Windows CE
    • Windows 7 64bit
    • Windows 8 32bit
    • Windows 8 64bit
    • Windows 10 32bit
    • Windows 10 64bit
    2023-11-01
    Intel Chipset Win 7 8 10 3264_10.1.1.7
    • Windows CE
    • Windows 7 64bit
    • Windows 8 32bit
    • Windows 8 64bit
    • Windows 10 32bit
    • Windows 10 64bit

    Audio

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Realtek ALC892 Win 7 8 10 64_R279
    • Windows 7 64bit
    • Windows 8 64bit
    • Windows 10 64bit
    2023-11-01
    Realtek ALC892 Win 7 8 32_R279
    • Windows CE
    • Windows 8 32bit
    • Windows 10 32bit

    Graphics

    总计 7 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    D1 Stepping VGA 64bit Driver
    • Windows 8 64bit
    • Windows 10 64bit
    2023-11-01
    D1 Stepping VGA 32bit Driver
    • Windows 8 32bit
    • Windows 10 32bit
    2023-11-01
    Intel HD Graphics Win 10 32_10.18.10.4303
    • Windows 10 32bit
    2023-11-01
    Intel_EMGD_Win 7_64_37.15.0.1097
    • Windows 7 64bit
    2023-11-01
    Intel_EMGD_Win 7_32_36_15_0_1097
    • Windows CE
    2023-11-01
    Intel HD Graphic Win 8 32_15.33.28.3925
    • Windows 8 32bit
    2023-11-01
    Intel HD Graphic Win 8 64_15.33.28.64.3925
    • Windows 8 64bit
    • Windows 10 64bit

    打开所有文件

    LAN

    总计 3 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Realtek LAN Win 8 8.1 3264
    • Windows 8 32bit
    • Windows 8 64bit
    2023-11-01
    Realtek RTL8111E Win 10 32_64
    • Windows 10 32bit
    • Windows 10 64bit
    2023-11-01
    Realtek RTL8111E Win 7 3264_7086.05262014
    • Windows CE
    • Windows 7 64bit

    Manual

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    EPC-BYT2 4th Quick Reference Guide
    • 不适用

    Other Driver

    总计 9 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    D1 Stepping MBI Driver
    • Windows CE
    • Windows 7 64bit
    • Windows 8 32bit
    • Windows 8 64bit
    • Windows 10 32bit
    • Windows 10 64bit
    2023-11-01
    D1 Stepping TXE Driver
    • Windows CE
    • Windows 7 64bit
    • Windows 8 32bit
    • Windows 8 64bit
    • Windows 10 32bit
    • Windows 10 64bit
    2023-11-01
    Intel MBI Win 10 64_1.7.0.304.2655.573
    • Windows 10 64bit
    2023-11-01
    Intel TXE hotfix Win 7 32
    • Windows CE
    2023-11-01
    Intel TXE hotfix Win 7 64
    • Windows 7 64bit
    2023-11-01
    Intel USB3.0 Win 7 32 64
    • Windows CE
    • Windows 7 64bit
    2023-11-01
    SMSC HUB Win7 8 3264_4.1.3.0
    • Windows CE
    • Windows 7 64bit
    • Windows 8 32bit
    • Windows 8 64bit
    • Windows 10 32bit
    • Windows 10 64bit
    2023-11-01
    Intel MBI Win 8 3264_1.70.305.16316
    • Windows 8 32bit
    • Windows 8 64bit
    • Windows 10 32bit
    2023-11-01
    Intel TXE Win 7 8 3264_1.1.0.1064
    • Windows CE
    • Windows 7 64bit
    • Windows 8 32bit
    • Windows 8 64bit
    • Windows 10 32bit
    • Windows 10 64bit

    打开所有文件
