HPM-ERSUA

Single 4th/5th Generation Intel®Xeon® Scalable Processor ATX Server Board with Intel® C741 Chipset and IPMI2.0. Processor supports up to 270W TDP

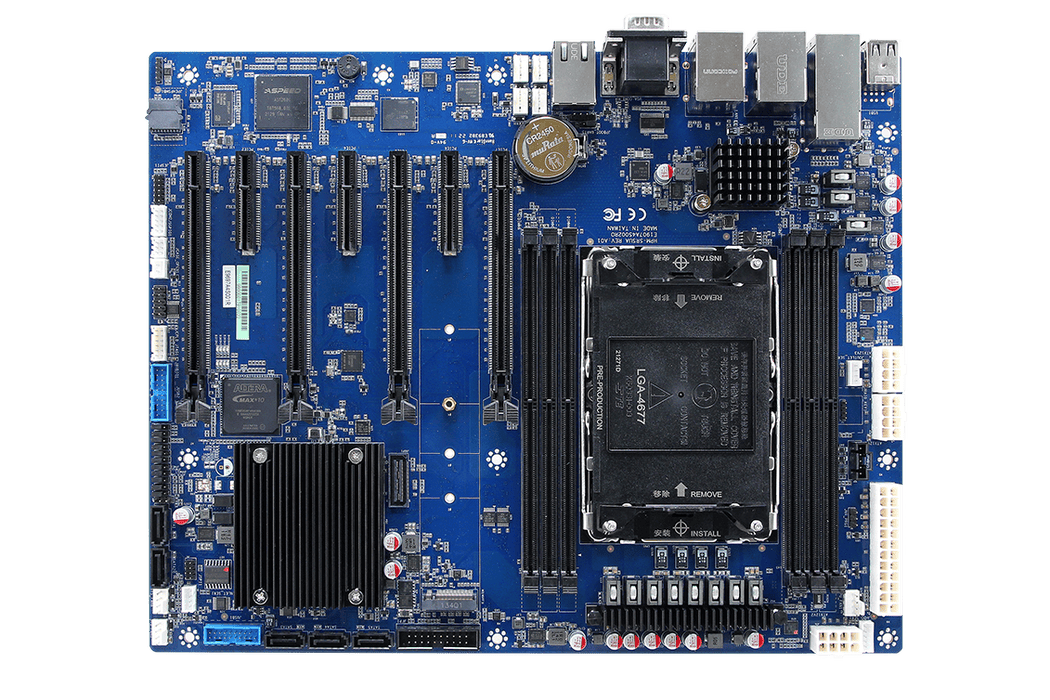

/upload/product/High Performance Computing/HPM-SRSUA/【HPM-SRSUA】Top_V01_220509.png
产品特点
  • Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)
  • Intel® C741 Chipset
  • 6 x DDR5 5600 MHz RDIMM up to 1.5TB
  • TPM 2.0 onboard
  • IPMI 2.0 with AST 2600 BMC controller onboard
  • 1 x Intel I210AT 1GbE controller
  • 1 x Intel I226-LM 2.5GbE controller
  • 1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports
  • 5 x SATA III Support RAID 0,1,5,10
  • 1 x RS232 port
  • 4 x USB 3.2 Gen1 ports & 2 x USB 2.0 ports at Edge I/O
  • 4 x Internal USB 3.2 Gen1 ports
  • 1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor
  • 12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.54mm

规格

System Information

  • Processor

    Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)

  • Processor

    Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)

  • Platform Controller Hub

    Intel® C741 Chipset

  • System Memory

    6 x DDR5 5600 MHz RDIMM up to 1.5TB

  • Watchdog Timer

    System reset event 0 ~ 6553 seconds

  • BIOS

    AMI UEFI BIOS

  • H/W Status Monitor

    CPU temperature
    Fan speed and voltage monitoring
    Fan speed control
    Case open detection

  • TPM

    TPM 2.0 onboard

  • IPMI

    IPMI 2.0 with AST 2600 BMC controller onboard

Rear I/O

  • USB

    4 x USB 3.2 Gen1 ports
    2 x USB 2.0 ports

  • USB

    4 x USB 3.2 Gen1 ports
    2 x USB 2.0 ports

  • COM Port

    1 x RS232 port

  • RJ-45

    5 x RJ45
    MGMT port for dedicated IPMI access only
    LAN1 port for 1GbE shared with IPMI access
    LAN2 port for 2.5GbE
    LAN3 and 4 ports for 10GbE

  • VGA

    1 x VGA port

Display

  • Graphic Chipset

    AST2600 BMC controller

  • Graphic Chipset

    AST2600 BMC controller

  • Resolution

    1 x VGA port
    VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

  • Expansion

    4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots
    Slot 1, PCIe 5.0 x16
    Slot 2, PCIe 5.0 x4
    Slot 3, PCIe 5.0 x16
    Slot 4, PCIe 5.0 x4
    Slot 5, PCIe 5.0 x16
    Slot 6, PCIe 5.0 x4
    Slot 7, PCIe 5.0 x16 (Slot 7 is the slot closest to CPU)

  • Expansion

    4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots
    Slot 1, PCIe 5.0 x16
    Slot 2, PCIe 5.0 x4
    Slot 3, PCIe 5.0 x16
    Slot 4, PCIe 5.0 x4
    Slot 5, PCIe 5.0 x16
    Slot 6, PCIe 5.0 x4
    Slot 7, PCIe 5.0 x16 (Slot 7 is the slot closest to CPU)

Storage

  • M.2

    1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

  • M.2

    1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

I/O

  • USB

    4 x Internal USB 3.2 Gen1 ports

  • USB

    4 x Internal USB 3.2 Gen1 ports

  • SATA

    5 x SATA III
    (Note:SATA 1~4 support RAID 0,1,5,10)

  • Serial

    1 x Internal RS232 port

  • CMOS Battery

    1 x Horizontal Socket Type CMOS Battery Holder with CR2450

Ethernet

  • LAN Chipset

    1 x Intel I210AT 1GbE controller
    1 x Intel I226-LM 2.5GbE controller
    1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

  • LAN Chipset

    1 x Intel I210AT 1GbE controller
    1 x Intel I226-LM 2.5GbE controller
    1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

  • LAN Port

    5 x RJ45
    MGMT port for dedicated IPMI access only
    LAN1 port for 1GbE shared with IPMI access
    LAN2 port for 2.5GbE
    LAN3 and 4 ports for 10GbE

Mechanical & Environmental

  • Operating Temp.

    0 ~ 55°C (32 ~ 131°F)to support up to 250W TDP CPU
    0 ~ 45°C (32 ~ 113°F)to support up to 270W TDP CPU

  • Operating Temp.

    0 ~ 55°C (32 ~ 131°F)to support up to 250W TDP CPU
    0 ~ 45°C (32 ~ 113°F)to support up to 270W TDP CPU

  • Storage Temp.

    -40 ~ 85°C

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    1.19KG

  • Power Connector

    1 x Std. 24 Pin ATX connector
    3 x 8 Pin SSI 12V connectors

  • Dimension (L x W)

    12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.54mm

Software Support

  • OS

    Windows 10 IoT Enterprise LTSC 2021
    Windows 11
    Windows Server 2019
    Windows Server 2022
    Ubuntu 21.10, 22.04 LTS or later
    Red Hat Enterprise Linux (RHEL) 8.2 and later

  • OS

    Windows 10 IoT Enterprise LTSC 2021
    Windows 11
    Windows Server 2019
    Windows Server 2022
    Ubuntu 21.10, 22.04 LTS or later
    Red Hat Enterprise Linux (RHEL) 8.2 and later

Ordering Information

  • Ordering Information

    HPM-ERSUAA-A1R
    ATX 1xLGA4677 Intel 4th/5th Gen.C741/X550 6xDDR5/4xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3
    HPM-ERSUAL-A1R
    ATX 1xLGA4677 Intel 4th/5th Gen.C741 6xDDR5/4xPCIex16/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3

  • Ordering Information

    HPM-ERSUAA-A1R
    ATX 1xLGA4677 Intel 4th/5th Gen.C741/X550 6xDDR5/4xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3
    HPM-ERSUAL-A1R
    ATX 1xLGA4677 Intel 4th/5th Gen.C741 6xDDR5/4xPCIex16/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3

CPU支持列表

Processor
内核数量
线程数量
处理器基本频率
马斯图博频率
TDP
Intel® Xeon® Gold 6548Y+
32
64
2.5 GHz
4.1 GHz
250
Intel® Xeon® Gold 6526Y
16
32
2.8 GHz
3.9 GHz
195
Intel® Xeon® Gold 5515+
8
16
3.2 GHz
4.1 GHz
165
Intel® Xeon® Gold 6530
32
64
2.1 GHz
4.0 GHz
270
Intel® Xeon® Gold 5520+
28
56
2.2 GHz
4.0 GHz
205
Intel® Xeon® Silver 4516Y+
24
48
2.2 GHz
3.7 GHz
185
Intel® Xeon® Silver 4514Y
16
32
2.0 GHz
3.4 GHz
150
Intel® Xeon® Gold 6448Y
32
64
2.1 GHz
4.1 GHz
225
Intel® Xeon® Gold 6426Y
16
32
2.5 GHz
4.1 GHz
185
Intel® Xeon® Gold 6418H
24
48
2.1 GHz
4.0 GHz
185
Intel® Xeon® Gold 5415+
8
16
2.9 GHz
4.1 GHz
150
Intel® Xeon® Gold 5420+
28
56
2.0 GHz
4.1 GHz
205
Intel® Xeon® Gold 5418Y
24
48
2.0 GHz
3.8 GHz
185
Intel® Xeon® Silver 4416+
20
40
2.0 GHz
3.9 GHz
165
Intel® Xeon® Silver 4410Y
12
24
2.0 GHz
3.9 GHz
150
Intel® Xeon® Silver 4410T
10
20
2.7 GHz
4.0 GHz
150
Intel® Xeon® Bronze 3408U
8
8
1.8 GHz
1.9 GHz
125
Intel® Xeon® Gold 6430
32
64
2.10 GHz
3.40 GHz
270
