AVAILABLE

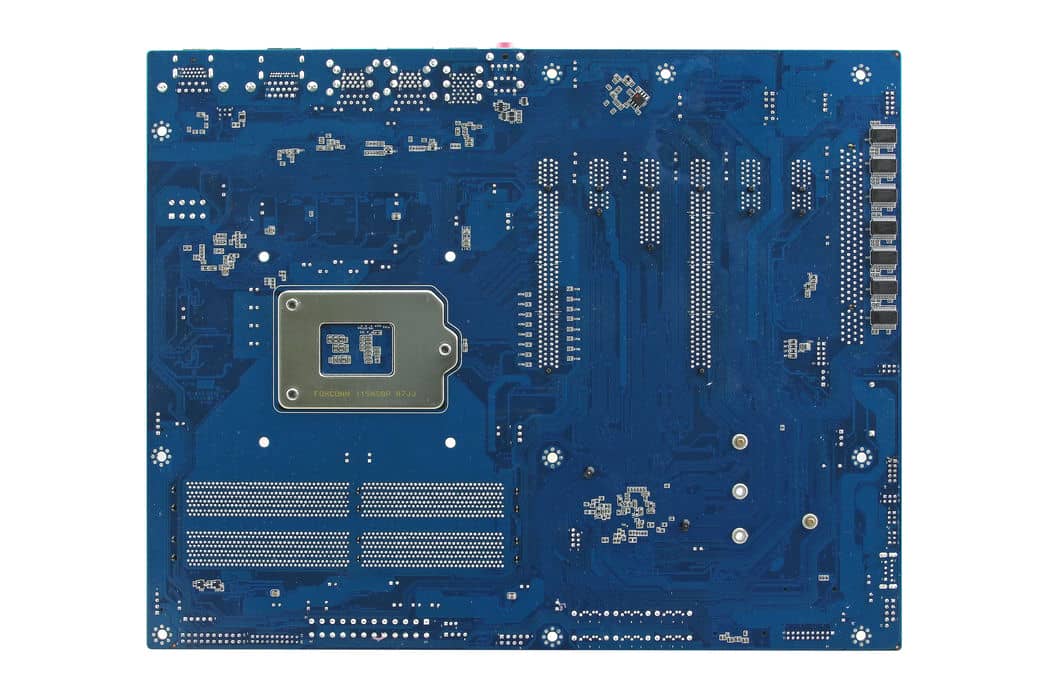

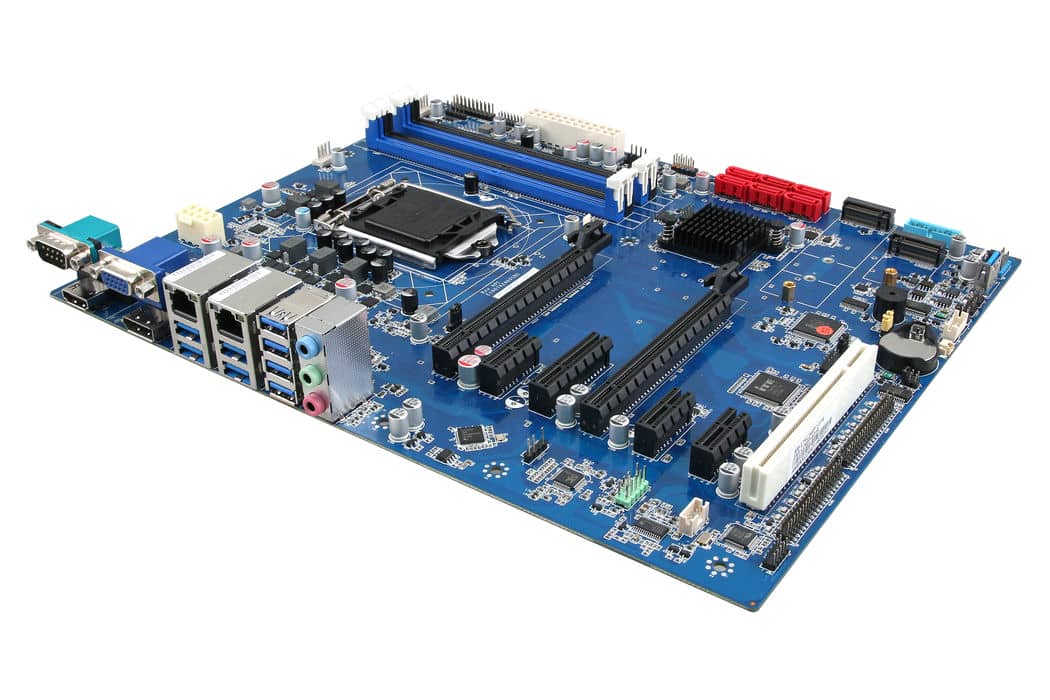

EAX-C246P

8/9th Gen. Intel® Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E-2200/2100 Processors ATX Motherboard With Intel® C246 Chipset

Get a Quote

Comparison

数据表

Get a Quote

Comparison

数据表

  • Intel® 8/9th Generation Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E-2200/2100 Processor with Intel® C246 Chipset
  • 4 x 288-pin DDR4 2400/2666MHz DIMM Socket, Supports Up to 128GB (ECC Memory Supporte by CPU)
  • 1 x VGA, 1 x HDMI, 1 x DP++
  • 2 x PCIe x16 slot for 1 x PCIe x16 or 2 x PCIe x8 (By BOM Option), 1 x PCIe x4, 3 x PCIe x1, 1 x PCI
  • 1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I211AT PCIe Gigabit Ethernet
  • 7 x USB3.0, 4 x USB3.1 Gen2, 2 x USB2.0, 8 x RS232, 2 x RS232/422/485 (COM 2 & 3 by BIOS Selection)
  • 1 x M.2 (2242/2260/2280) M-Key, Support Intel RST, PCIe x4 Mode SSD, 1 x M.2 (2230) A-Key, Support WiFi Module
  • 8 x RS232 2 x RS232/422/485
  • ATX Power
  • 规格
  • 文档
  • 常见问题

产品规格

System Information

  • Processor

    LGA1151 Socket Supports 8/9th Generation Intel® Core™ i7/ i5/ i3 / Pentium® / Celeron® / Xeon® (Workstation) Processors

  • Platform Controller Hub

    Intel® C246 Chipset

  • System Memory

    4 x 288-Pin DDR4 2400/2666MHz DIMM Supports Up to 128GB (ECC Memory Support by CPU)

  • I/O Chipset

    nuvoton NCT6106D

  • Watchdog Timer

    H/W Reset, 5~255 Seconds/5~255 Minutes

  • BIOS

    AMI uEFI BIOS, 256Mbit SPI Flash ROM

  • H/W Status Monitor

    CPU Temperature Monitoring
    Voltage Monitoring
    CPU Fan Speed Control

  • TPM

    Onboard infineon SLB9665 Supports TPM 2.0

  • Board

    ATX

Expansion

  • Expansion

    2 x PCIe x16 slot for 1 x PCIe x16 or 2 x PCIe x8 (By BOM option
    1 x PCIe x4
    3 x PCIe x1
    1 x PCI
    1 x M.2 2230 A-Key, Support WiFi Module

Storage

  • Storage

    1 x M.2 2242/2260/2280 M-Key, Support Intel RST, PCIe x4 Mode SSD

Display

  • Graphic Chipset

    Intel® 8/9th Generation CPU Integrated

  • Spec. & Resolution

    VGA: 2048 x 1536@60Hz
    HDMI: 3840 x 2160@30Hz, 2560 x 1600@30Hz
    DP: 4096 x 2304@60Hz

  • Multiple Display

    Triple Display

Audio

  • Audio Codec

    Realtek ALC888S HD Audio Decoding Controller

  • Audio Interface

    Line-in, Mic-in, Line-out

  • Audio Amplifier

    2 x 2W 4Ω Amplifier

Ethernet

  • LAN Chipset

    1 x Intel® I219LM Gigabit Ethernet PHY
    1 x Intel® I211AT PCIe Gigabit Ethernet

  • LAN Port

    2 x RJ-45

Power Requirement

  • Power Mode

    AT/ATX (Default Setting: ATX)

Software Support

  • OS

    Windows 10, Linux

Certification

  • Certification Information

    CE, FCC Class, RoHS Compliant

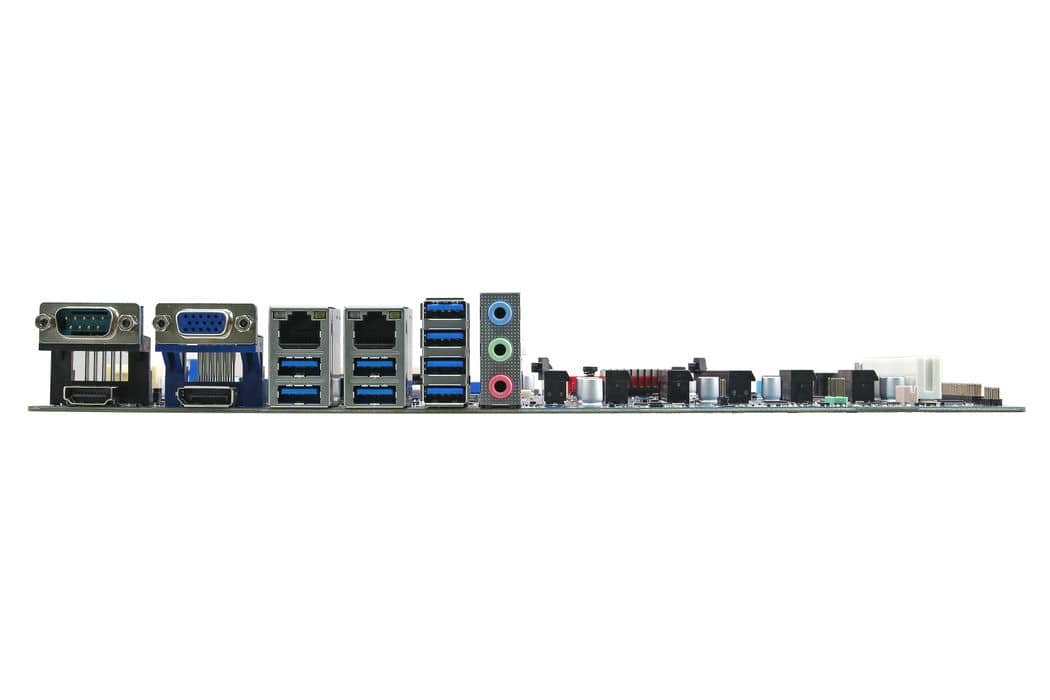

I/O

  • USB

    4 x USB 3.1 Gen2
    6 x USB 3.1 Gen1
    1 x USB 3.1 Gen1 Vertical Type A
    2 x USB 2.0

  • COM Port

    8 x RS232
    2 x RS232/422/485 (COM2 & 3 by BIOS Selection)

  • SATA

    6 x SATA III

  • RAID

    Support RAID 0, 1, 5, 10

  • DIO

    1 x 16-bit GPIO

  • MIO

    1 x PS/2 Keyboard or 1 x PS/2 Mouse

Mechanical & Environmental

  • Operating Temp.

    0~60°C (32~140°F)

  • Storage Temp.

    -40~ +75°C (-40~167°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    1.32lbs (0.6kg)

  • Power Requirement

    +12V/+5V/5VSB/+3.3V/-12V

  • Power Mode

    AT/ATX (Default Setting: ATX)

  • Dimension (L x W)

    12" x 9.6" (304.8mm x 243.84mm)

Ordering Information

  • Ordering Information

    EAX-C246P-B1R
    Intel® 8/9th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processor ATX Motherboard With Intel® C246 Chipset

    Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max.
    Intel® 9th Gen Supports LGA 1151 CPU 4 core & 6 core CPU Up to 95W, but kindly note: with 8 core CPU, only support CPU up to 35W Max.

  • BIOS
    5
  • Chipset
    3
  • Audio
    2
  • Graphics
    3
  • LAN
    2
  • Design Document
    2
  • Manual
    1
  • Other Driver
    6
  • 全部内容
  • Windows 10 64bit
  • BIOS

    总计 5 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    E246PB03)EAX-C246P-B1 BIOS 1.00 CS:0778H,P/N:E1512A24604R
    2023-11-01
    (E246P00K)EAX-C246P BIOS 1.30 CS:003DH,P/N:E1512A24603R
    2023-11-01
    (E246P00J)EAX-C246P BIOS 1.20 CS:0273H,P/N:E1512A24602R
    2023-11-01
    (E246P00G)EAX-C246P BIOS 1.10 CS:3DE4H,P/N:E1512A24601R
    2023-11-01
    (E246P00E)EAX-C246P BIOS 1.00 CS:CD68H,P/N:E1512A24600R

    打开所有文件

    Chipset

    总计 3 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Intel_C246_Chipset_Win10_64 for Ver.B1
    • Windows 10 64bit
    2023-11-01
    Intel_C246_Chipset_Win10-19H1_64 , Support Coffee Lake-R
    • Windows 10 64bit
    2023-11-01
    Intel_C246_Chipset_Win10_64
    • Windows 10 64bit

    Audio

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Realtek_ALC897_ALC888S_Audio_Win10 for Ver.B1
    • Windows 10 64bit
    2023-11-01
    Realtek_ALC892_Audio_Win10_64
    • Windows 10 64bit

    Graphics

    总计 3 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Intel_Coffee Lake_Video_Win10_64 for Ver.B1
    • Windows 10 64bit
    2023-11-01
    Intel_Coffee Lake-R_Video_Win10-19H1_64 , Support Coffee Lake-R
    • Windows 10 64bit
    2023-11-01
    Intel_Coffee Lake_Video_Win10_64
    • Windows 10 64bit

    LAN

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Intel_I219LM_I211_I210_Lan_Win10_64 for Ver.B1
    • Windows 10 64bit
    2023-11-01
    Intel_I219LM_I211_Lan_Win10_64
    • Windows 10 64bit

    Design Document

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    3D_Board_EAX-C246P-B1
    2023-11-01
    3D Model for EAX-C246P

    Manual

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    EAX-C246P 6th Manual

    Other Driver

    总计 6 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Intel_C246_SOL_Win10_64 for Ver.B1
    • Windows 10 64bit
    2023-11-01
    Intel_C246_RST_Win10_64 for Ver.B1
    • Windows 10 64bit
    2023-11-01
    Intel_C246_SOL_Win10-19H1_64 , Support Coffee Lake-R
    • Windows 10 64bit
    2023-11-01
    Intel_C246_RST_Win10-19H1_64 , Support Coffee Lake-R
    • Windows 10 64bit
    2023-11-01
    Intel_C246_SOL_Win10_64
    • Windows 10 64bit
    2023-11-01
    Intel_C246_RST_Win10_64
    • Windows 10 64bit

    打开所有文件
