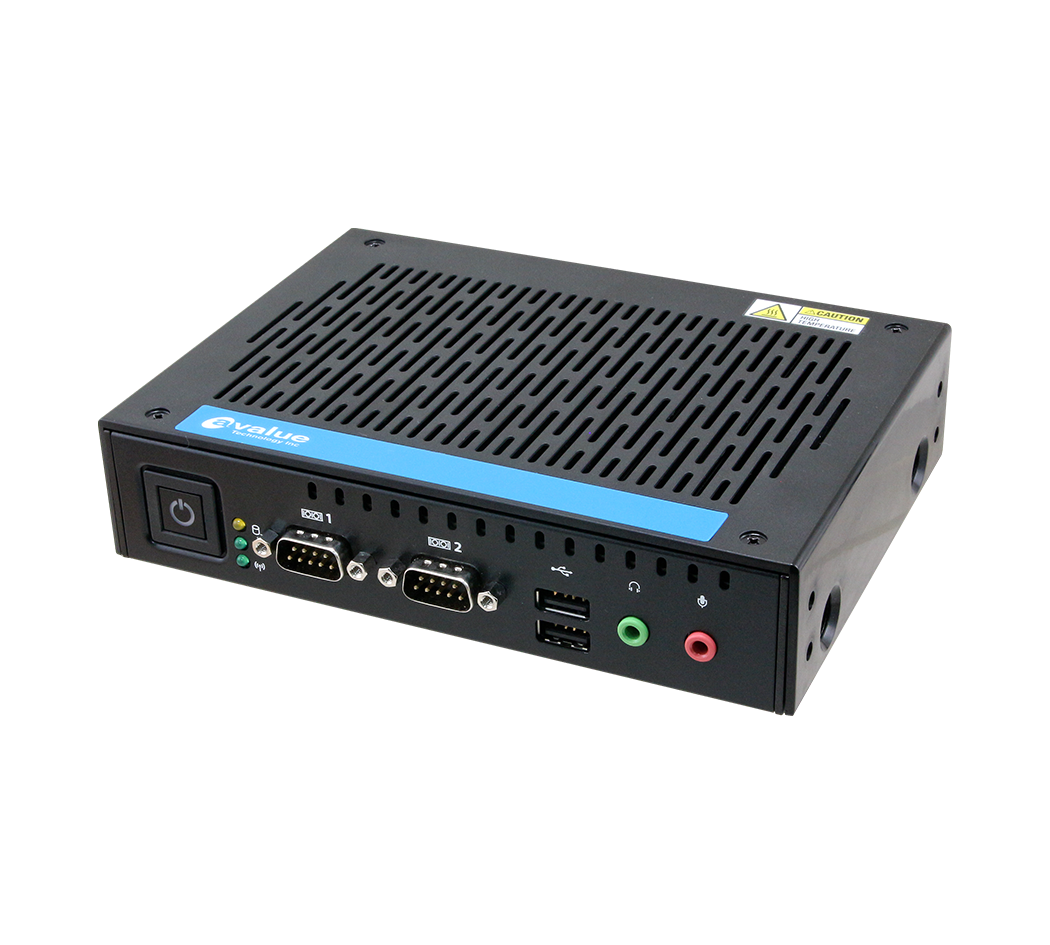

NUC-RPU
13th Generation Intel® Raptor Lake-U Fanless Ultra Slim System
- 13th Gen Intel® Core™ i7/i5/i3 (15W) Processors
- Intel® Iris® Xe/ UHD Graphics
- 1-Memory Socket (Capacity Max. Up to 32GB DDR5 4800)
- 2-COM Port (RS-232/422/485)
- 2-Intel® Ethernet Controller (1GbE, 2.5GbE)
- 2-Audio Jack (Mic-In, Line-Out)
- 3-Expanslot Slot (M.2 Key-E, Key-B, Key-M)
- 4-Display (HDMI 2.0b)
- 8-USB Port (2-USB 2.0, 4-USB 3.2 Gen 2x1. 2-USB 3.0)
- Support Table Stand, VESA, DIN Rail mount
- Support dTPM 2.0, iAMT
Specification
System Information
-
Processor
Embedded (15W)
Intel® Core™ i7-1365UE Processor
Intel® Core™ i5-1345UE Processor
Intel® Core™ i5-1335UE Processor
Intel® Core™ i3-1315UE Processor
Non-Embedded (15W)
Intel® Core™ i7-1355U Processor
Intel® Core™ i5-1335U Processor
Intel® Core™ i3-1315U Processor -
System Memory
1 x 262-Pin SO-DIMM Socket (Capacity Max. Up to 32GB DDR5 4800)
-
BIOS Information
AMI uEFI BIOS, 256Mbit SPI Flash ROM
-
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec
-
H/W Status Monitor
Monitoring CPU Temperature, Voltage with Auto Throttling Control
-
TPM
TPM 2.0
-
iAMT
Above Core i5 (selected SKUs)
-
SBC
NUC-RPU
Expansion
-
M.2
1 x M.2 Key-E 2230 (PCIe, USB 2.0, CNVi)
1 x M.2 Key-B 2242/3042/3052 with internal SIM slot (PCIe, SATA, USB 3.0, USB 2.0)
1 x M.2 Key-M 2280 (PCIe4x4)
Storage
-
M.2
1 x M.2 Key-M 2280 NVMe (PCIe Gen4x4)
1 x M.2 Key-B 2242 SSD (SATA Gen3)
Front I/O
-
USB
2 x USB 2.0
-
Power Button
1 x Power Button with LED
-
COM Port
2 x RS-232/422/485 (Control by BIOS setting)
-
LED Indicator
1 x Storage LED (Yellow)
1 x LTE LED (Green)
1 x Wi-Fi LED (Green) -
Audio
1 x Mic-In
1 x Line-Out
Rear I/O
-
USB
4 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen1 -
LAN Port
2-Intel® Ethernet Controller (1GbE, 2.5GbE)
-
HDMI
4 x HDMI 2.0b
-
AC/DC Input
1 x Lockable DC Jack
Right I/O
-
Antenna
2 x Covered antenna hole
Left I/O
-
Antenna
2 x Covered antenna hole
Display
-
Graphic Chipset
Intel® 13th Gen CPU integrated
-
Resolution
HDMI 2.0 4096x2304@60Hz
Audio
-
Audio Codec
RealTek ALC888S
Ethernet
-
LAN Chipset
1 x Intel® Ethernet Connection I219-LM
1 x Intel® Ethernet Controller I226-V
Power Requirement
-
Voltage Input Spec.
+12Vdc
-
Voltage Input Connector
Lockable DC Jack
-
ACPI
Single power ATX support S0, S3, S4, S5
-
Power Mode
AT/ATX (ATX default)
-
Adapter
AC to DC adapter
Software Support
-
OS
Win10, Win11, Linux
Certification
-
Certification Information
CE FCC Class B
Mechanical & Environmental
-
Operating Temp.
0°C ~ 50°C (32°F ~ 122°F)
-
Storage Temp.
-30~70C° (-22°F ~ 158°F)
-
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
-
Dimension (W x L x H)
170mm x 125mm x 36mm(6.69” x 4.92” x 1.42”)
-
Weight
0.85kg
-
Vibration Test
With SSD: 1.5 Grms, IEC60068-2-64, Random, 5~500 Hz,
30 min/axis -
Shock Test
With SSD: 55Grms, IEC 60068-2-27, IEC 60068-2-27, Half Sine, 11ms
-
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
-
IP Rating
IP40
-
Mounting Kit
Table Stand/Din Rail/VESA
-
Kensington Lock
1 x Kensington Lock
