EQM-EHL

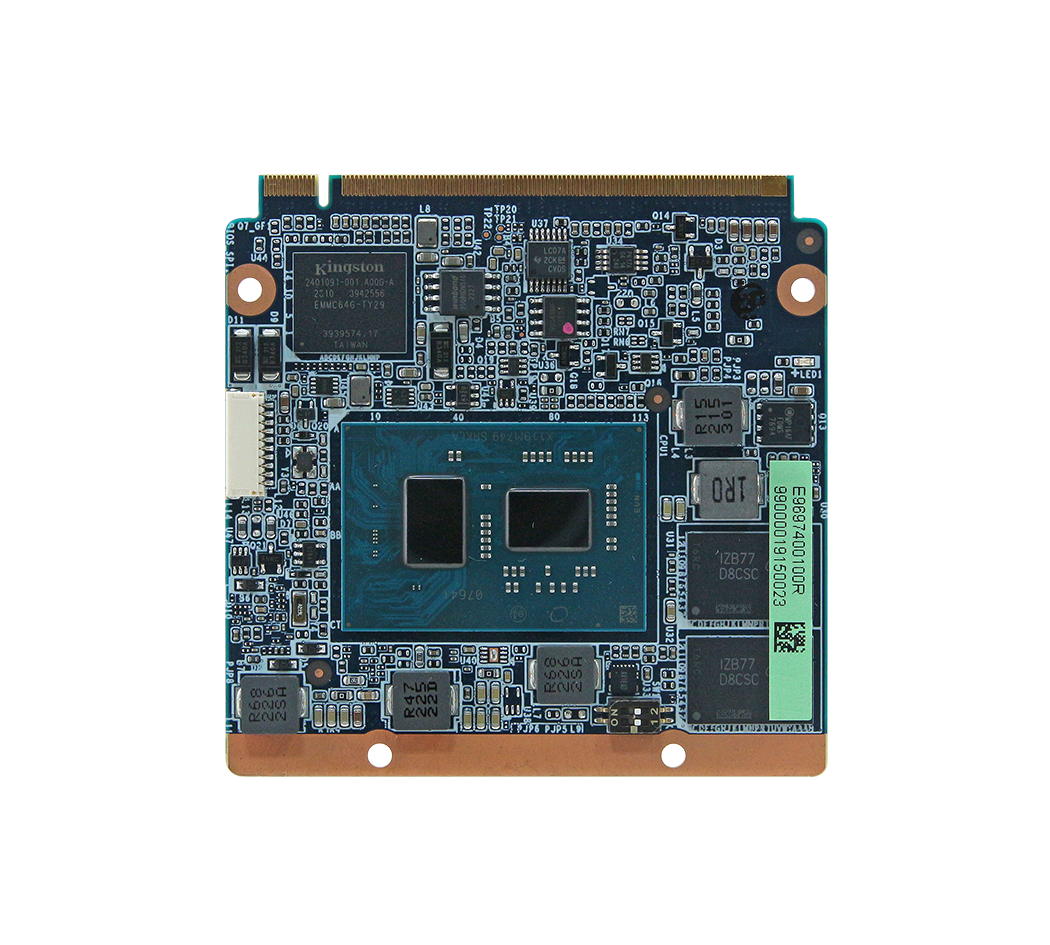

Intel Atom®x6000E Series/Pentium®/Celeron® SoC Processor Qseven Module

/upload/2023_12_20/11_20231220093647gvoqd32Ul2.png
製品機能
  • Intel Atom® x6000E Series/Pentium®/Celeron® SoC processor Qseven Spec. Rev. 2.1 Compliant
  • Onboard Single Channel LPDDR4 4GB Memory Down (8GB for BOM Option) with 3200MT/s
  • 1 x Intel® I226LM/IT
  • Intel® HD Audio Integrated on CPU
  • Onboard eMMC 5.1 64/128GB (Optional)
  • Onboard TPM 2.0
  • Qseven Size: 2.75" x 2.75" (70mm x 70mm)
  • DC in +5V

仕様

System Information

  • Processor

    Intel® Atom™ x6000E Series/Pentium®/Celeron® SoC Processor

  • Processor

    Intel® Atom™ x6000E Series/Pentium®/Celeron® SoC Processor

  • System Memory

    On board Single channel LPDDR4 4GB with 3200MT/s
    (Avalue has verified and defined 4GB as the default. The hardware specification can support up to 8GB. Verification can be arranged according to customer needs.)

  • I/O Chipset

    EC iTE IT5571

  • BIOS

    AMI uEFI BIOS, 256 Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

  • H/W Status Monitor

    Monitoring System Temperature, Voltage with Auto Throttling Control

  • TPM

    Onboard TPM 2.0

Expansion

  • Expansion

    4 x PCIe x1 (Gen 3)

  • Expansion

    4 x PCIe x1 (Gen 3)

Storage

  • Storage

    Onboard eMMC 5.1 64GB / 128 GB (Optional)

  • Storage

    Onboard eMMC 5.1 64GB / 128 GB (Optional)

Display

  • Graphic Chipset

    Intel® SoC Processor Integrated Gen11 LP Graphics

  • Graphic Chipset

    Intel® SoC Processor Integrated Gen11 LP Graphics

  • Spec. & Resolution

    DP 1.4 Max Resolution 4096x2160 @60Hz or HDMI 2.0b Max Resolution 4096x2160 @60Hz
    eDP 1.3 Max Resolution 4096x2160 @60Hz Only
    or LVDS Max Resolution 1920 x 1080@60Hz Dual Channel 18/24-bits LVDS (Chrontel CH7511A-BF eDP to LVDS)
    *By BOM Option Via HW/BIOS, Refer to Block Diagram for Detail.

  • Multiple Display

    Up to 2 Independent Display
    HDMI
    DP
    eDP
    LVDS

  • LVDS

    CH7511B(eDP to LVDS)

Audio

  • Audio Interface

    Intel® HD Audio Integrated on CPU

  • Audio Interface

    Intel® HD Audio Integrated on CPU

Ethernet

  • LAN Chipset

    1 x Intel® I226LM/IT

  • LAN Chipset

    1 x Intel® I226LM/IT

  • Ethernet Interface

    10/100/1000/2500 Base-Tx GbE Compatible

Software Support

  • OS

    Windows 10, Windows 11 IoT Enterprise (64-bit)
    Linux

  • OS

    Windows 10, Windows 11 IoT Enterprise (64-bit)
    Linux

Certification

  • Certification Information

    CE, FCC Class, RoHS Compliant

  • Certification Information

    CE, FCC Class, RoHS Compliant

I/O

  • USB

    1 x USB 3.2 Gen1
    8 x USB2.0

  • USB

    1 x USB 3.2 Gen1
    8 x USB2.0

  • COM Port

    1 x UART

  • PCIe

    4 x PCIe x1 (Gen 3)

  • SATA

    2 x SATA III

  • MIO

    1 x SMBus
    1 x LPC
    1 x I2C
    1 x SDIO
    1 x SD
    1 x SPI

Mechanical & Environmental

  • Operating Temp.

    Standard 0°C ~ 60°C (32°F ~ 140°F)
    Extended -40°C ~ 85°C (-40°F ~ 185°F)

  • Operating Temp.

    Standard 0°C ~ 60°C (32°F ~ 140°F)
    Extended -40°C ~ 85°C (-40°F ~ 185°F)

  • Storage Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    0.095lbs (0.043Kg)

  • Power Requirement

    +5V

  • Power Mode

    ATX

  • Dimension (L x W)

    2.75" x 2.75" (70mm x 70mm)

Ordering Information

  • Ordering Information

    EQM-EHL-N6211-A1R
    Intel®Celeron® N6211 Q7/4G LPDDR4

    EQM-EHL-N6415-A1R
    Intel®Pentium® N6415 Q7/4G LPDDR4

    EQM-EHL-X11E-A1R
    Intel® Atom® X6211E Q7/4G LPDDR4

    EQM-EHL-X13E-A1R
    Intel® Atom® X6413E Q7/4G LPDDR4

  • Ordering Information

    EQM-EHL-N6211-A1R
    Intel®Celeron® N6211 Q7/4G LPDDR4

    EQM-EHL-N6415-A1R
    Intel®Pentium® N6415 Q7/4G LPDDR4

    EQM-EHL-X11E-A1R
    Intel® Atom® X6211E Q7/4G LPDDR4

    EQM-EHL-X13E-A1R
    Intel® Atom® X6413E Q7/4G LPDDR4
