AVAILABLE

FPC-1736

17" 8th Generation Intel® Core™/i3/ i5/ i7 Processors Full-falt Rugged Multi-touch Panel PC With Active Cooling and Expansion Slot

Get a Quote

Comparison

データシート

Get a Quote

Comparison

データシート

  • 8th Generation Intel® Core™/i3/ i5/ i7 Processors
  • 2 x Memory socket, max. up to 64GB DDR4 2133/2400/2666 MHz
  • 4 x USB3.0, 1 x USB2.0(internal for dongle)
  • 3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
  • 1 x Storage, 2.5” drive bay, 1 x M.2 SSD
  • 1 x M.2 Key-E for Wi-Fi, bluetooth
  • Support 1 x PCIex4 expansion slot (option for 2 x PCI slot)
  • Wide voltage DC input +12V ~ +24V
  • Front IP65, panel mounting kits
  • CE / FCC Class A / CCC
  • 紹介
  • 仕様
  • ドキュメント
  • FAQ

製品紹介

The FPC-1736 showcases a full-flat rugged design, leveraging the power of the Intel® H310 chipset. This robust multi-touch panel PC is equipped to support 8th/9th Generation CoreTM i7/i5/i3 processors with a TDP of up to 65W, utilizing an active cooling design. Its die-casting front bezel and rear metal aesthetic enclosure not only contribute to an appealing design but also ensure system reliability and facilitate easy maintenance across diverse industrial applications.

For enhanced connectivity, the FPC-1736 features high-speed internet access via 2.5G and Gigabit Ethernet ports. The inclusion of a specially designed internal Type A USB 2.0 connector, dedicated for encryption dongle use, adds an extra layer of security. Additionally, it incorporates a PCIex4 expansion slot (with the option for 2x PCI slots), offering increased flexibility for the integration of general industrial equipment. This combination of cutting-edge features positions the FPC-1736 as a versatile and reliable solution for industrial settings.

製品仕様

System Information

  • Processor

    8th Generation Intel® Core™/i3/ i5/ i7 Processors
    Intel® Core™ i3-8100T Processor, 6M Cache, 3.1 GHz
    Intel® Core™ i5-8500T Processor, 9M Cache, 2.1 GHz
    Intel® Core™ i7-8700T Processor, 12M Cache, 2.4 GHz

  • Platform Controller Hub

    Intel® H310 express chipset

  • System Memory

    2 x 260-pin DDR4 2666 MHz SO-DIMM socket, supports up to 64GB Max

  • I/O Chipset

    ITE8786E

  • BIOS

    AMI uEFI BIOS, 128Mbit SPI Flash ROM

  • SBC

    EMX-H3102C

  • CPU Cooler (Type)

    Cooler with fan

Expansion

  • Expansion

    1 x M.2 E-Key, support Wi-Fi module (optional)
    1 x PCIex4 slot (option for 2 x PCI slot)

Storage

  • Storage

    1 x SATA III for SSD expansion
    1 x M.2 B-key 2242 slot support SATA

Display

  • Graphic Chipset

    Intel® 8/9th generation CPU integrated

  • Spec. & Resolution

    1 x VGA: 2048 x1536 @ 50 Hz
    1 x HDMI 1.4b: 4096x2160@30Hz

Audio

  • Audio Codec

    Realtek ALC888S

  • Audio Interface

    Line-out
    Mic-in

  • Speaker Output

    2 x 5W

Ethernet

  • LAN Chipset

    1 x Intel i219-V Gigabit Ethernet
    1 x Intel i225-V 2.5 Gigabit Ethernet

  • Ethernet Interface

    Intel i219-V: 10/100/1000 Base-Tx GbE compatible
    Intel i225-V: 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

  • DC Input

    +12V ~ +24V

  • DC Input Connector

    Lockable DC Jack (default)
    Optional for phoenix connector

  • ACPI

    Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

  • OS

    Win 10 / Linux

Certification

  • Certification Information

    CE / FCC Class A / CCC

Panel

  • LCD Size

    17", 4:3

  • Display Type

    SXGA

  • Resolution

    1280 x 1024

  • Pixel pitch

    0.264mm(H) x 0.264mm(V)

  • Luminance

    250 cd/m2

  • Contrast ratio

    1000

  • Viewing angle

    80 (U), 80 (D), 85 (L), 85 (R)

  • Response time

    5 ms

  • Backlight

    LED

  • Touch Type

    Projective capacitive multi-touch up to 10 points

  • Touch Light Transmission

    89%

  • Touch Controller

    ILLITEK ICI2510P

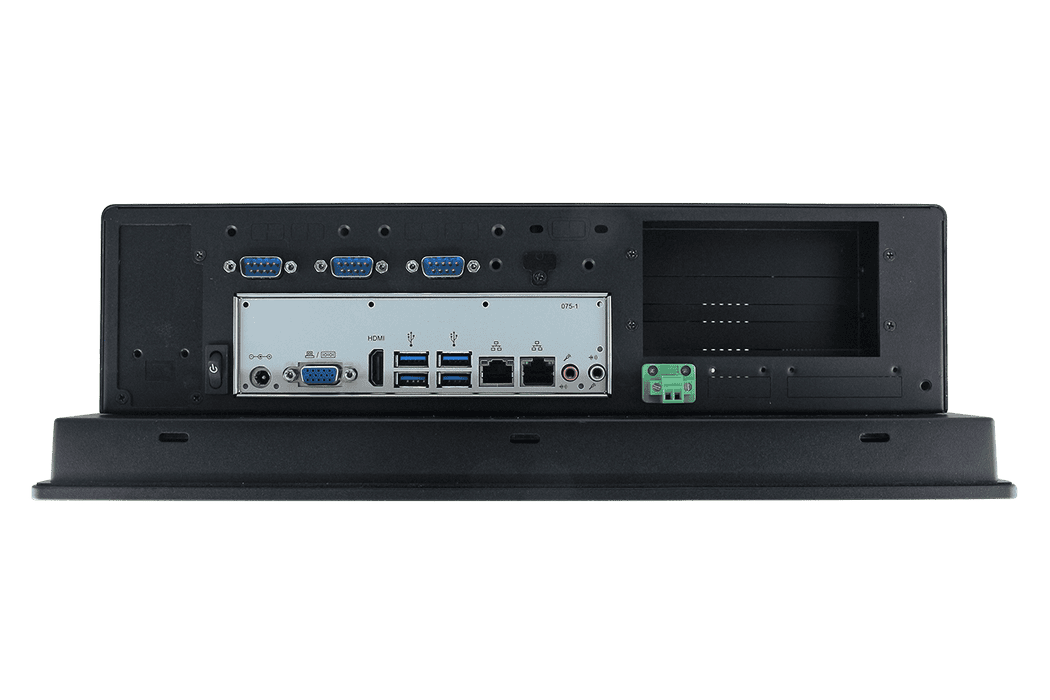

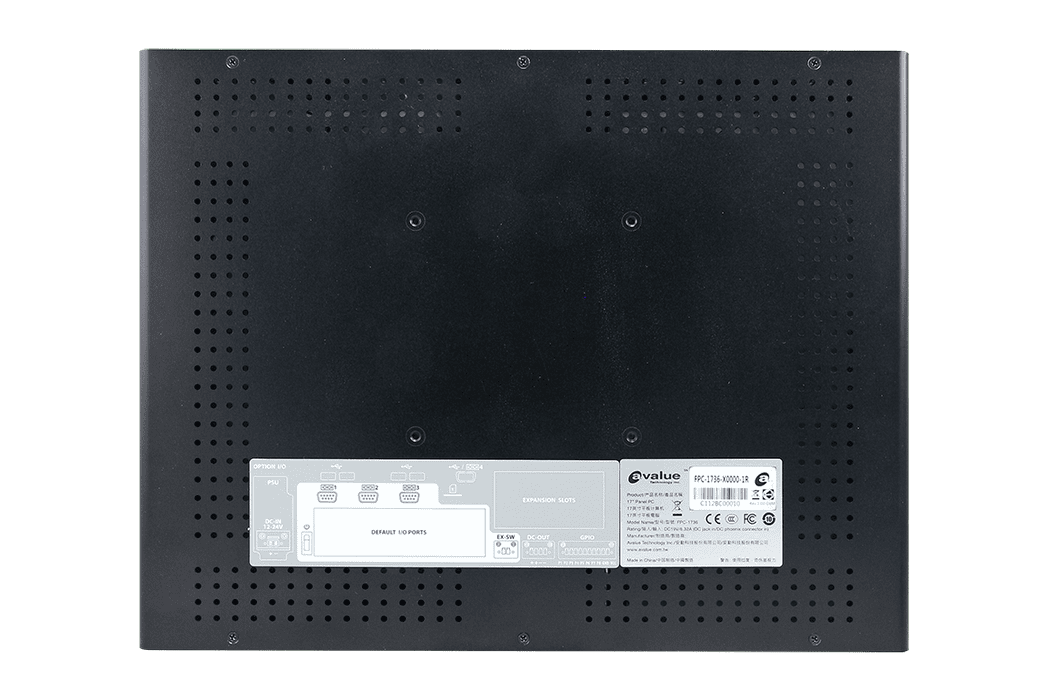

External I/O

  • USB

    4 x USB3.0, 1 x USB2.0(internal type A for dongle)
    4 x USB2.0(option)

  • LAN Port

    2 x RJ-45

  • COM Port

    3 x RS232,1 x RS232(option)

  • Antenna

    Reserved for WIFI6 2.4GHz~7.1GHz antenna

Internal I/O

  • PCIe

    1 x PCI-ex4 (Option for 2 x PCI slot by module)

  • GPIO

    8 bit GPIO (option)

  • SATA

    1 x SATA III

System Control

  • LED Indicator

    HDD LED, power LED

Data Communication

  • WLAN

    IEEE802.11 ax/ac/a/b/g/n 2.4 GHz,5GHz,6GHz (option)

  • Bluetooth

    BT5.2 (option)

Mechanical & Environmental

  • Operating Temp.

    0 ~ 45°C

  • Storage Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Operating Humidity

    40°C @ 95% Relative humidity, non-condensing

  • Dimension (W x L x H)

    392.72 x 325.32 x 121.55mm

  • Weight

    7.5 Kg

  • Vibration Test

    With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

  • Shock Test

    With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test:Ed

  • IP Rating

    Front panel IP65

  • Mounting Kit

    Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
    Panel mount with mounting kits

  • Power Mode

    AT/ATX (ATX is default)

  • System Fan

    2 x 12V

  • Construction - Front

    Die casting

  • Construction - Rear

    Metal black

Component

  • Adapter

    Input: 100 ~ 240Vac/ 50 ~ 60Hz
    Output: 120W (24V @ 5A ) AC-DC power adapter

Ordering Information

  • Ordering Information

    FPC-1736-X0000-1R
    17 1280x1024 250nits Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC897) Intel w/H310/2LAN/4USB3/HDMI/VGA/DCin/Line out/Mic in/Barebone/120W Power adapter
    w/PCIex4 expansion slot

    ACC-CPU-8700TR
    Intel Core i7-8700T 2.4GHz Processor

    ACC-CPU-8500TR
    Intel Core i5-8500T 2.1GHz Processor

    ACC-CPU-8100TR
    Intel Core i3-8100T 3.1GHz Processor

    C971XFP1736000R
    Double USB KIT For FPC-1736

    C971XFP1736001R
    Single USB KIT For FPC-1736

    C971XFP1736002R
    Internal Single USB KIT For FPC-1736

    C971XFP1736003R
    4Terminal Block DC IN KIT For FPC-1736

    C971XFP1736004R
    Terminal Block GPIO KIT For FPC-1736

    C971XFP1736005R
    WiFi module KIT for FPC-1736 Intel AX210

    C971XFP1736006R
    Riser card KIT For FPC-1736 PCIex1 to 2PCI Riser Card

    C971XFP1736007R
    WiFi module KIT for FPC-1736 IntelAC8265

    C971XFP1736008R
    WiFi module KIT for FPC-1736 IntelAC9260

    C971XFP1736008R
    CPU cooler 4P/12V/Fan/84*84*28/AL/65W

    C971XFP1736008R
    CPU Cooler for LGA1155 Package 4-Pin/12V

    C170P060040R
    US Power Cord SM001/3P+SM006/3P 1.83M

    C170P060050R
    EU Power Cord SH005/3P+SH006/3P 1.83M

    C170P060060R
    JP Power Cord SH001/3P+SH006/3P 1.83M

    C170P060070R
    UK Power Cord YP61A/3P+YC12/3P 1.83M

    C170P060080R
