Processor

Intel® Core™ i5-6300U Processor, 3M Cache, up to 2.4 GHz

System Memory

Two 260-pin DDR4 SODIMM (non ECC) support up to 32GB (non ECC only)

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step

BIOS

AMI uEFI BIOS, 128Mbit SPI Flash ROM

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

EBM-SKLU

CPU Cooler (Type)

Fanless heatsink

Other

1 x HDMI output
1 x Knockouts for antenna mounting

Expansion

1 x Mini PCIe support mSATA
1 x Mini PCIe supports SIM card

Storage

1 x 2.5 Drive bay
1 x mSATA

Graphic Chipset

Intel® Skylake SoC integrated graphics supports dual display

Spec. & Resolution

HDMI: Max. Resolution 4096x2160 @ 24Hz

Audio Codec

Realtek ALC233

Audio Interface

Line-out

Speaker Output

2 x 2W

LAN Chipset

1 x Intel® I210AT 1 x Intel® I219LM

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win 7 / Win 8 / Linux

Certification Information

CE / FCC Class B

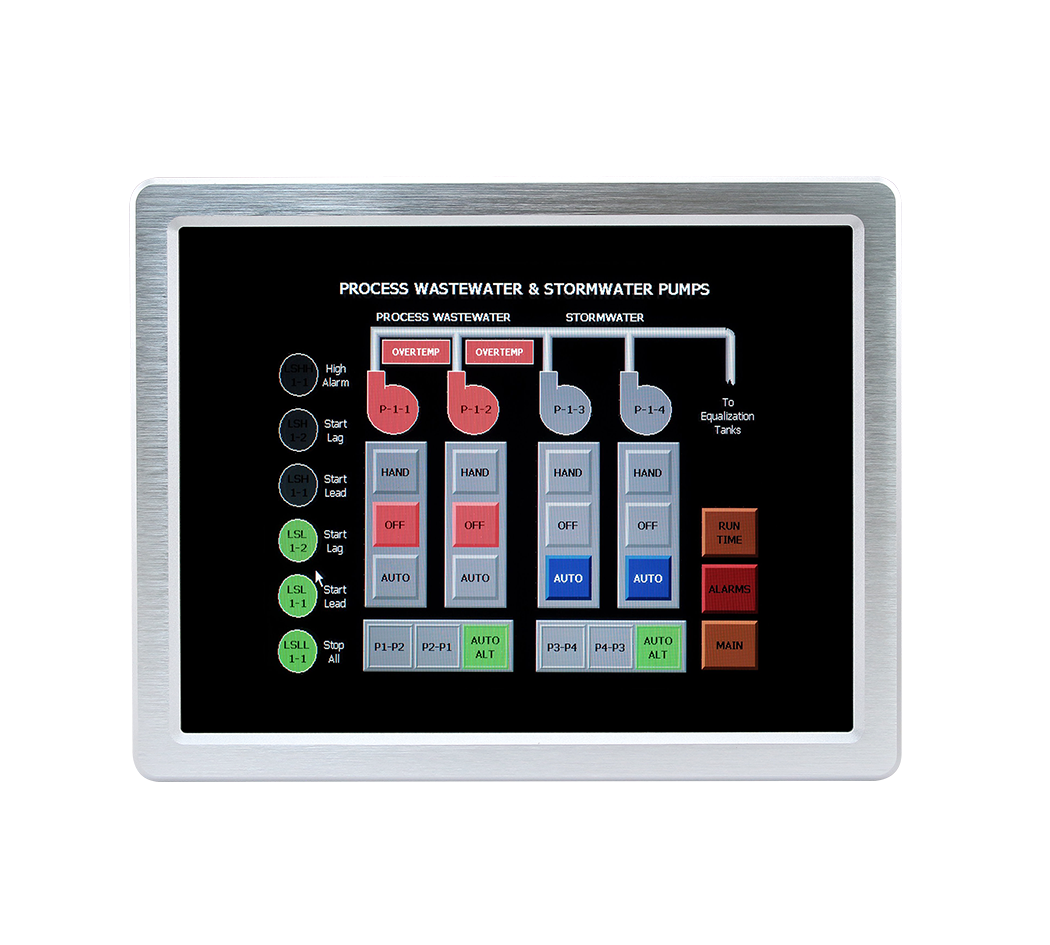

LCD Size

12.1", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.240mm(H) x 0.240mm(V)

Luminance

600 cd/m2

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

13 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

Onboard USB touch (EETI)

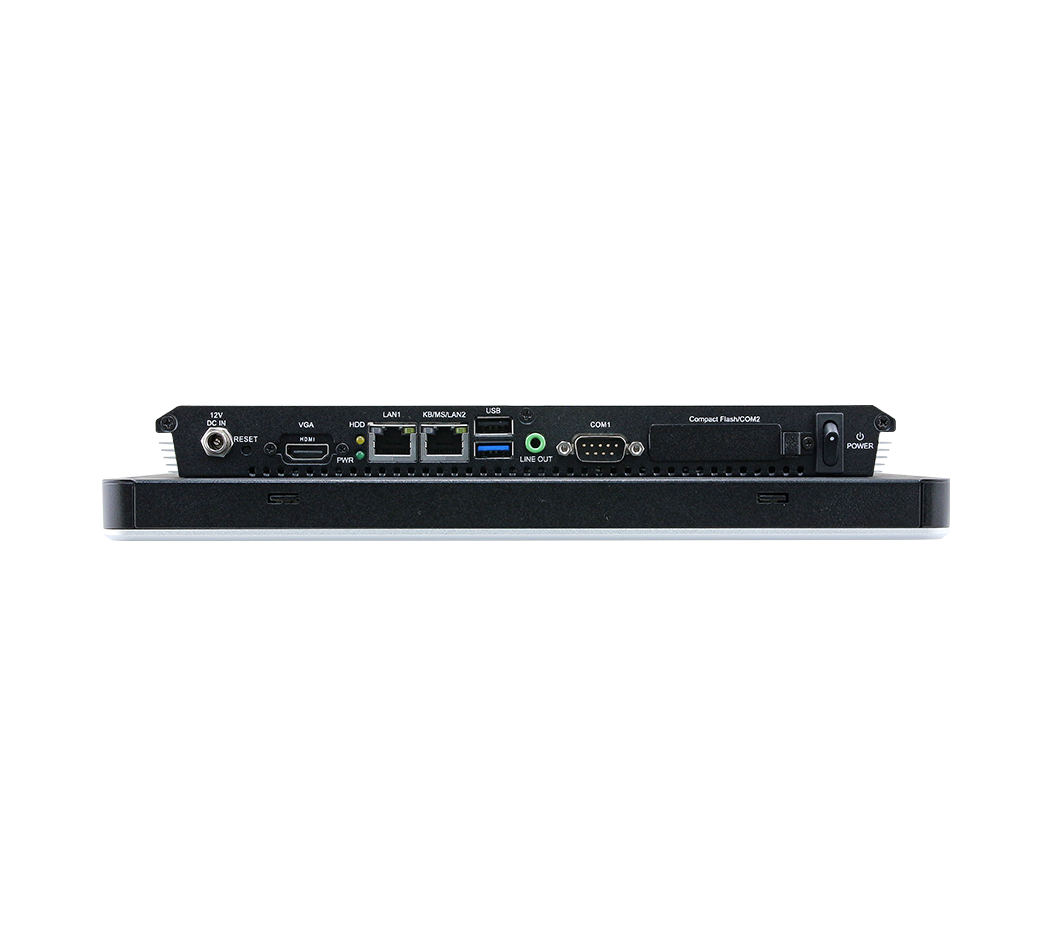

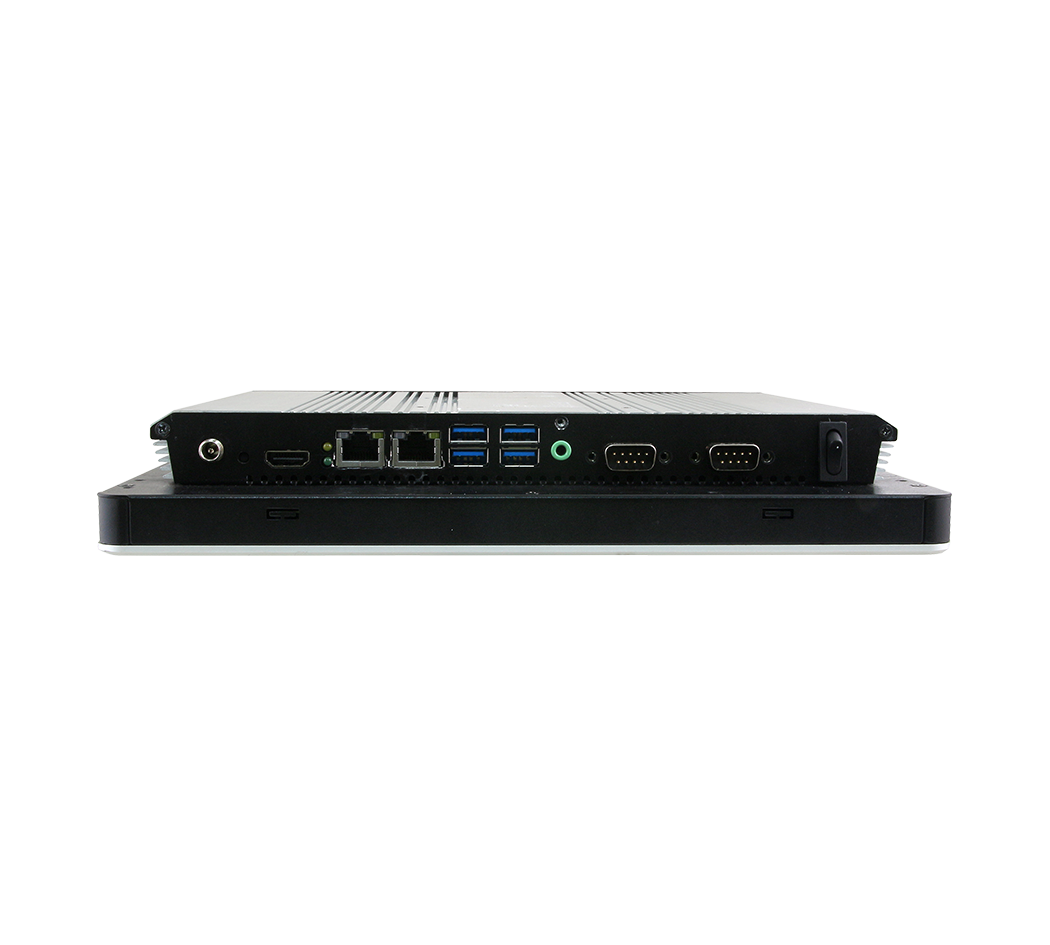

USB

4 x USB 3.0

LAN Port

2 x RJ-45

COM Port

2 x RS-232/422/485

LED Indicator

HDD LED, power LED

Operating Temp.

-10°C ~ 50°C (14°F ~ 122°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

283 x 222 x 45mm

Weight

2.84 Kg

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Silver alloy

Ordering Information

LPC-1232-630-B1R
6th Gen Intel Core i5 6300U 2.4GHz CPU/4G DDR4/2GLAN/2COM/12~26V input/12V Adapter

ACC-LPC-WIFI-01R
MPCIE WIFI-Kit for LPC Series(half-card) Antenna/Cable/BT4.0/802.11a/b/g/n/ac

ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm

ACC-ARM-D29R
ARM A800B VESA standard 75*75 & 100*100mm

ACC-LPC-12-PMT-01R
Front Panel Mount Kit for LPC-12 Series, w/o IP-65

ACC-LPC-12-PMT-02R
Back Panel Mount Kit for LPC-12 Series, w/IP-65

E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
