Motherboard: HPM-SRSUA

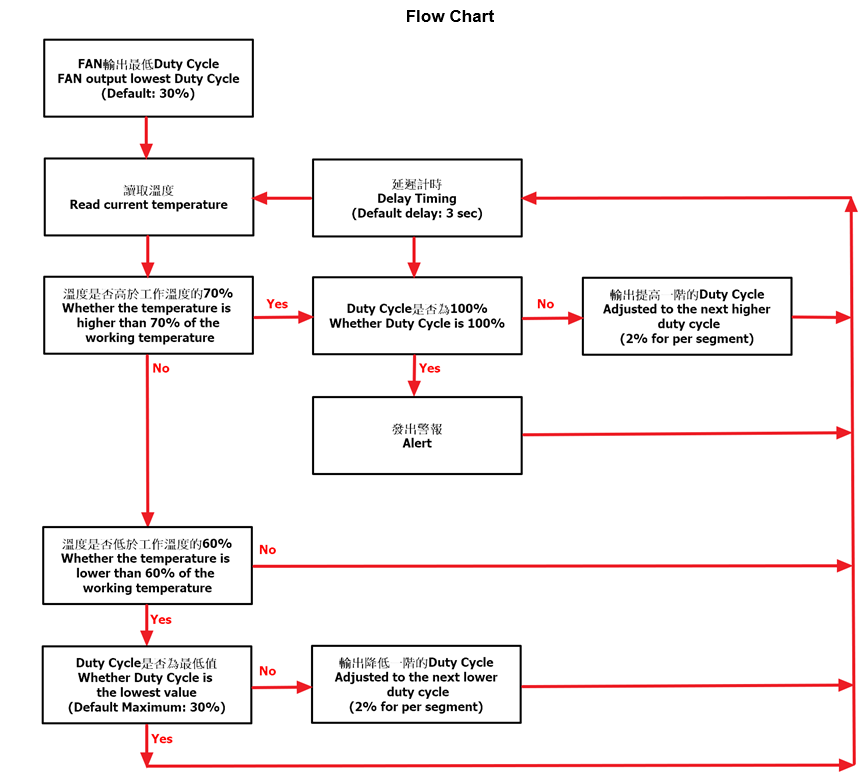

Control Point & Flow Chart:
2023081638
Auto FAN Speed Control for HPS 4U series
-
ドキュメント番号
-
カテゴリー
ソフトウェアアプリケーション -
改訂
A2
-
更新日
2023-09-20
モデル名
HPS-SRSU4A
HPS-SRSUTA
目的
Automatic fan speed control is a feature that assists the cooling system, which is controlled and modified through the BMC firmware.
Environment:
- Mainly to detect and control system fan.
- This function is only applicable to HPS systems and single boards.
- This function be programed by BMC firmware, and cannot be set in BIOS Setup, or their setting values can be seen.
- If the graphics card is not on the list, the default value of Auto FAN Speed is 30%.

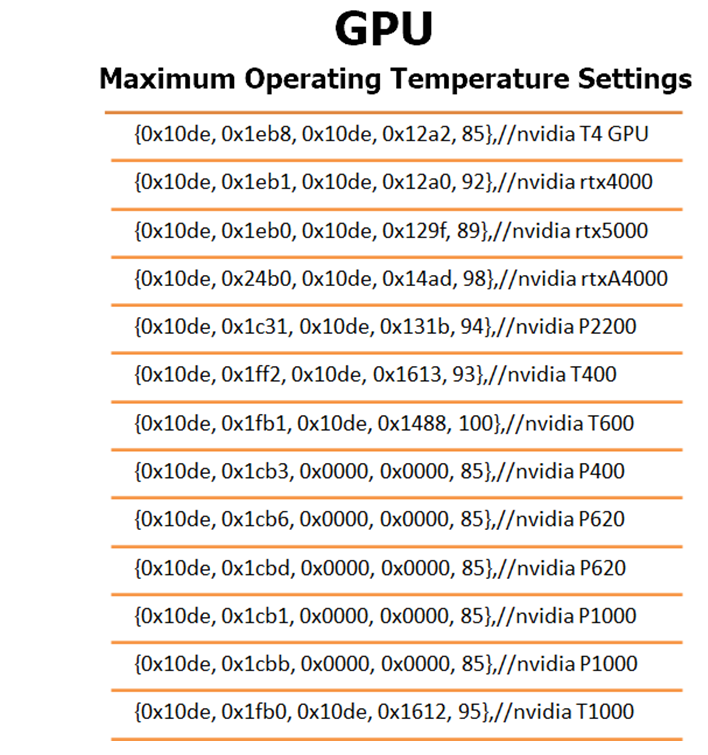

1. This function will refer to the maximum operating temperature of the CPU and GPU of the BMC firmware.

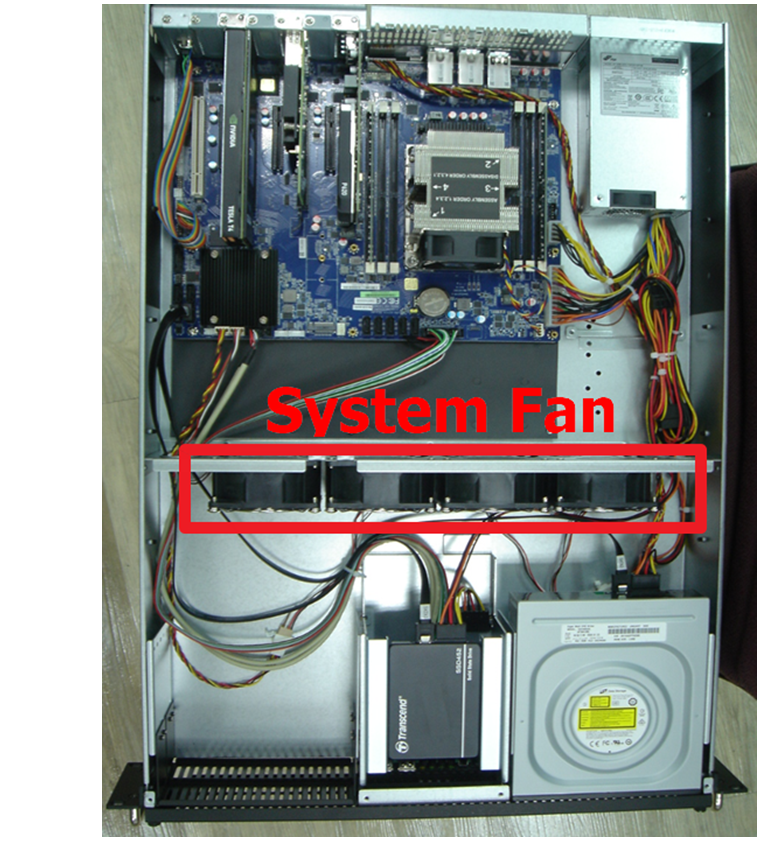

2. Used on HPS system: (To control system fan speed)
