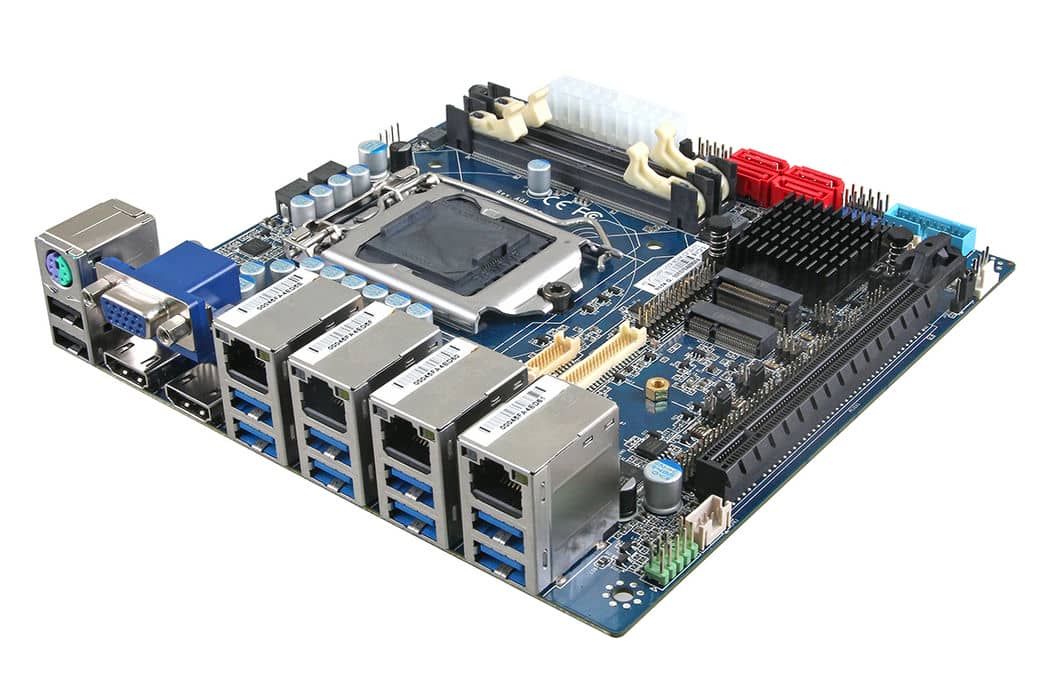

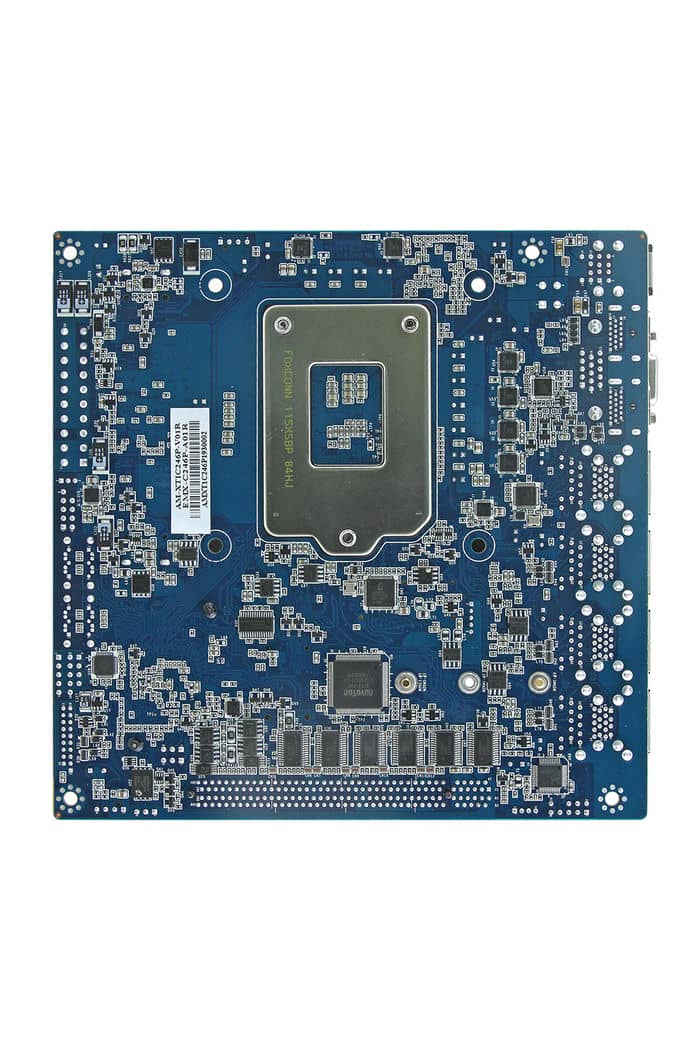

EMX-C246P

8/9th Gen. Intel® Core™ i7/i5/i3 / Pentium® / Celeron® / Xeon® E-2200/2100 Processors, Mini ITX Motherboard With Intel® C246 Chipset

Get a Quote

Comparison

資料表

Get a Quote

Comparison

資料表

  • 8/9th Gen. Core™/Pentium®/Celeron®/Xeon® E-2200/2100 Processor with Intel® C246 Chipset
  • 2 x 260-pin DDR4 2400/2666 MHz SO-DIMM Socket, Supports Up to 64GB (ECC Memory Supported by CPU)
  • 2 x HDMI, VGA, LVDS Co-lay eDP(By BOM Option)
  • 1 x PCIe x16
  • 1 x Intel® I219LM, 3 x Intel® I210AT
  • 8 x USB3.0 at I/O, PS2 KB/MS + 2 x USB 2.0 at I/O, 1 x 2 x 10 Pin for 2 x USB3.0, 3 x USB2.0 by Pin Header
  • 1 x M.2 (2242/2260/2280) M-Key, 1 x M.2 (2230) E-Key
  • 6 x COM
  • ATX Power
  • 規格
  • 檔案
  • 常見問題

產品規格

System Information

  • Processor

    LGA1151 Socket Supports 8/9th Generation Intel® Core™ / Pentium® / Celeron® / Xeon® (Workstation) Processors

  • Platform Controller Hub

    Intel® C246 Chipset

  • System Memory

    2 x 260-Pin DDR4 2400/2666MHz SO-DIMM Socket Supports Up to 64GB (ECC Memory Support by CPU)

  • I/O Chipset

    nuvoton NCT6106D

  • Watchdog Timer

    H/W Reset, 5~255 Seconds/5~255 Minutes

  • BIOS

    AMI uEFI BIOS, 256Mbit SPI Flash ROM

  • H/W Status Monitor

    CPU Temperature Monitoring
    Voltage Monitoring
    CPU Fan Speed Control

  • TPM

    Onboard infineon SLB9665 supports TPM 2.0

  • Board

    Mini ITX

Expansion

  • Expansion

    1 x PCIe x16 (Support 2 x PCIe x8 Riser Card for C246 PCH By Jumper)
    1 x M.2 (2242/2260/2280) M-Key, Supports Intel RST, PCIe x4 NVMe SSD
    1 x M.2 (2230) E-Key, Supports WiFi Module

Display

  • Graphic Chipset

    Intel® 8/9th Generation CPU Integrated

  • Spec. & Resolution

    VGA: 2048 x 1536@60Hz
    HDMI: 3840 x 2160@30Hz, 2560 x 1600@30Hz
    Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) by BOM Option

  • Multiple Display

    Triple Display

  • LVDS

    Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
    eDP By BOM Optional

Audio

  • Audio Codec

    Realtek ALC888S HD Audio Decoding Controller

  • Audio Interface

    Support Line-out & Mic-in & Front Audio Pin-header

  • Audio Amplifier

    2 x 2W 4Ω Amplifier

Ethernet

  • LAN Chipset

    1 x Intel® I219LM Gigabit Ethernet PHY
    3 x Intel® I210AT PCIe Gigabit Ethernet

  • Ethernet Interface

    10/100/1000 Base-Tx GbE compatible

  • LAN Port

    4 x RJ-45

Software Support

  • OS

    Windows 10, Linux

Certification

  • Certification Information

    CE, FCC, RoHS Compliant

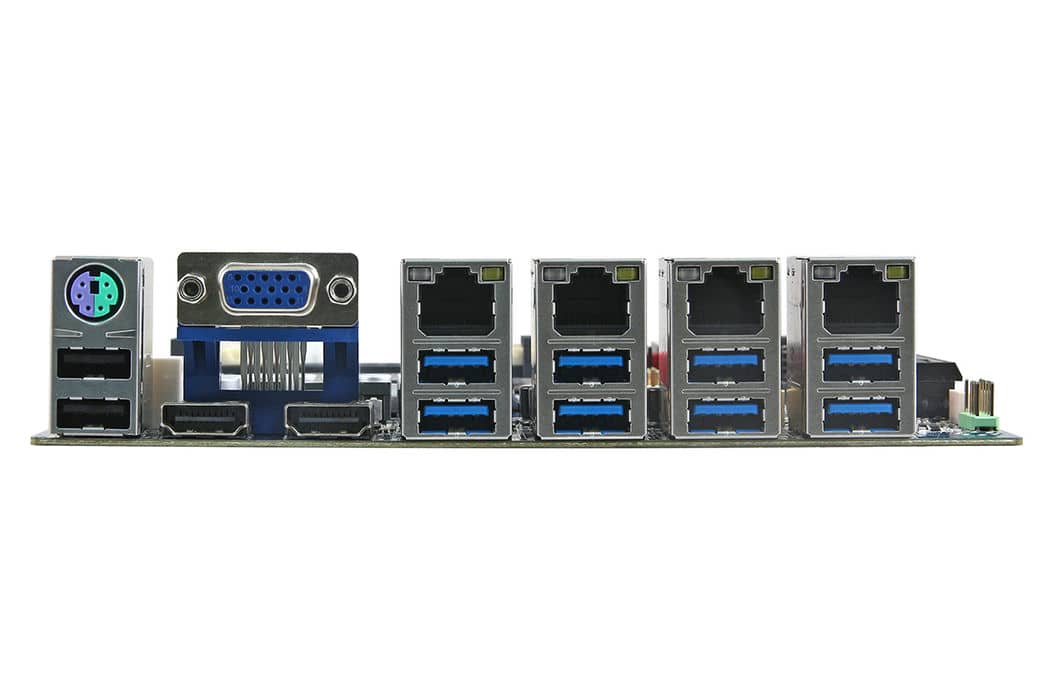

I/O

  • USB

    8 x USB 3.0
    2 x USB 2.0

  • COM Port

    4 x RS232
    2 x RS232/422/485

  • SATA

    4 x SATA III

  • RAID

    Support RAID 0, 1, 5, 10

  • DIO

    1 x 16-bit GPIO

  • MIO

    1 x PS/2 Keyboard or 1 x PS/2 Mouse

Mechanical & Environmental

  • Operating Temp.

    0~60°C (32~140°F)

  • Storage Temp.

    -40 ~ 75°C (-40 ~ 167°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    0.88lbs (0.4Kgs)

  • Power Requirement

    +12V/+5V/5VSB/+3.3V/-12V

  • Power Mode

    AT/ATX (Default Setting: ATX)

  • Dimension (L x W)

    6.7" x 6.7" (170mm x 170mm)

Ordering Information

  • Ordering Information

    EMX-C246P-B1R
    Intel® 8/9th Gen. Core™ /Pentium®/Celeron®/Xeon® E-2200/2100 Processor Mini ITX Motherboard With Intel® C246 Chipset

    Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max.
    Intel® 9th Gen Supports LGA 1151 CPU 4 core & 6 core CPU Up to 95W, but kindly note: with 8 core CPU, only support CPU up to 35W Max.

    Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max.
    Intel® 9th Gen Supports LGA 1151 CPU 4 core & 6 core CPU Up to 95W, but kindly note: with 8 core CPU, only support CPU up to 35W Max.


  • BIOS
    2
  • Chipset
    2
  • Audio
    2
  • Graphics
    2
  • LAN
    2
  • Design Document
    3
  • Manual
    1
  • Other Driver
    5
  • 全部內容
  • Windows 10 64bit
  • BIOS

    總計 2 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    EM246B03)EMX-C246P-B1 BIOS 1.00 CS:8ABAH,P/N:E1512M24602R
    2023-11-01
    (EM24600B)EMX-C246P BIOS 1.10 CS:EF2FH,P/N:E1512M24601R

    Chipset

    總計 2 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    Intel_Chipset_Win10_64_10.1.18019.8144_for B1
    • Windows 10 64bit
    2023-11-01
    Intel_C246_Chipset_Win10_64
    • Windows 10 64bit

    Audio

    總計 2 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    Realtek_ALC897_ALC888S_Audio_Win10_64_6.0.9071.1_for B1
    • Windows 10 64bit
    2023-11-01
    Realtek_Audio_Win10_64
    • Windows 10 64bit

    Graphics

    總計 2 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    Intel_Video_Win10_64_26.20.100.6911_for B1
    • Windows 10 64bit
    2023-11-01
    Intel_Coffee Lake_Graphics_Win10_64
    • Windows 10 64bit

    LAN

    總計 2 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    Intel_Lan_Win10_64_26.0_for B1
    • Windows 10 64bit
    2023-11-01
    Intel_Lan_Win10_64
    • Windows 10 64bit

    Design Document

    總計 3 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    3D_Board_ EMX-C246P-B1
    2023-11-01
    3D_Board_ EMX-C246P-B1
    2023-11-01
    3D Model for EMX-C246P

    Manual

    總計 1 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    EMX-C246P-B1 2nd Manual

    Other Driver

    總計 5 檔案

    編號
    發佈日期
    標題、描述
    作業系統
    檔案
    下載
    2023-11-01
    Intel_Serial IO_30.100.1915.1_for B1
    • Windows 10 64bit
    2023-11-01
    Intel_RST_Win10_64_17.5.0.1017_for B1
    • Windows 10 64bit
    2023-11-01
    Intel_CSME_12.0.40.1433_for B1
    • Windows 10 64bit
    2023-11-01
    Intel_C246_SOL_Win10_64
    • Windows 10 64bit
    2023-11-01
    Intel_C246_RST_Win10_64
    • Windows 10 64bit
