Processor

LGA1151 Socket Supports 8/9th Generation Intel® Core™ / Pentium® / Celeron® Processors

Platform Controller Hub

Intel® H310 Chipset

System Memory

2 x 260-Pin DDR4 2400/2666MHz SO-DIMM Socket Supports Up to 64GB

I/O Chipset

nuvoton NCT6106D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

Board

Mini ITX

Expansion

1 x PCIe x16
1 x M.2 (2242/2260/2280) B-Key, Supports WWAN+GNSS with SIM Card Slot & SSD (SATA)
1 x M.2 (2230) E-Key, Supports WiFi Module

Graphic Chipset

Intel® 8/9th Generation CPU Integrated

Spec. & Resolution

VGA: 2048 x 1536@60Hz
HDMI: 3840 x 2160@30 Hz, 2560 x 1600@30Hz
DP++: 4096x2160@30Hz
Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) by BOM Option

Multiple Display

Dual Display

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
eDP By BOM Optional

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

2 x 2W 4Ω Amplifier

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY
3 x Intel® I210AT PCIe Gigabit Ethernet

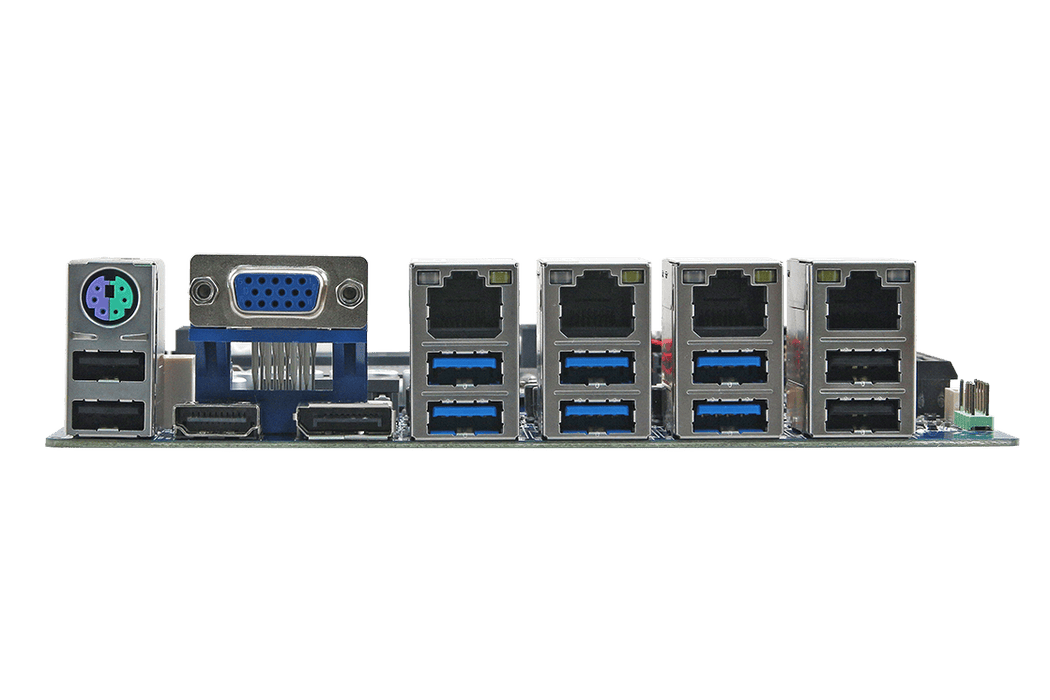

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

LAN Port

4 x RJ-45

OS

Windows 10, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

6 x USB 3.1 Gen1
4 x USB 2.0

COM Port

4 x RS232
2 x RS232/422/485

SATA

3 x SATA III

DIO

1 x 16-bit GPIO

MIO

1 x PS/2 Keyboard or 1 x PS/2 Mouse

Operating Temp.

0~60°C (32~140°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.88lbs (0.4Kgs)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-H310P-A1-02R

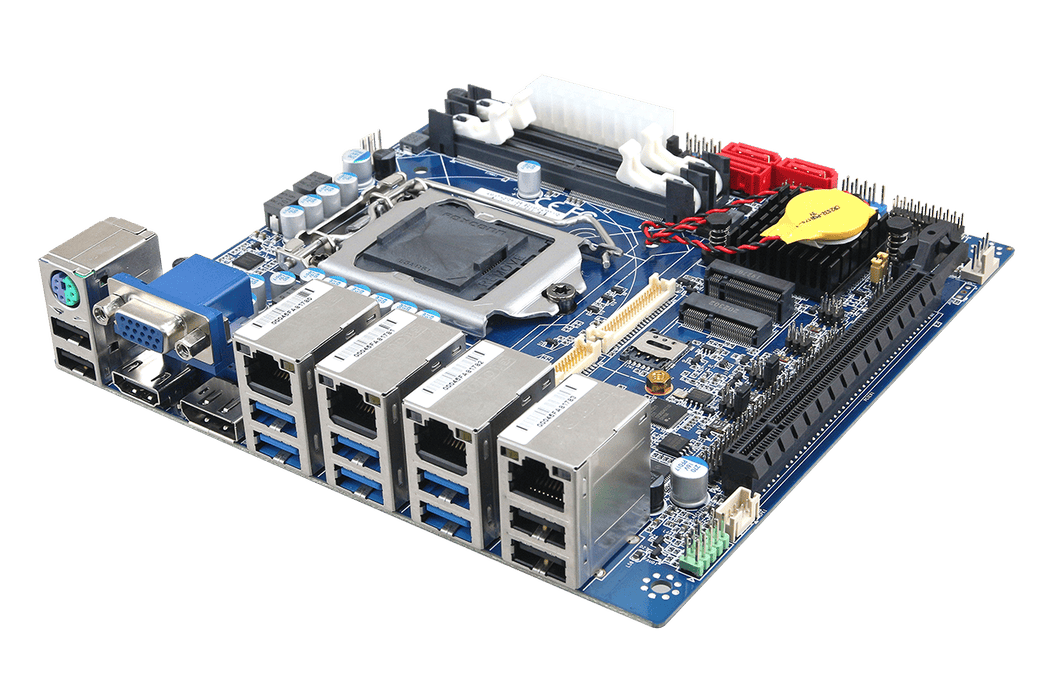

Intel® 8/9th Gen. Core™/Pentium®/Celeron® Processor Mini ITX Motherboard With Intel® H310 Chipset
(No Audio Function)

Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max.
Intel® 9th Gen Supports LGA 1151 CPU 4 core & 6 core CPU Up to 95W, but kindly note: with 8 core CPU, only support CPU up to 35W Max.
