Processor

Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz

System Memory

2GB DDR4 on board

CPU Cooler (Type)

Fanless

Storage

32GB eMMC on board

DC Input

Default+12V~24V DC in
(+19V~24V for M12 model by option)

OS

Android 14 / Debian 11

Certification Information

CE, FCC Class B

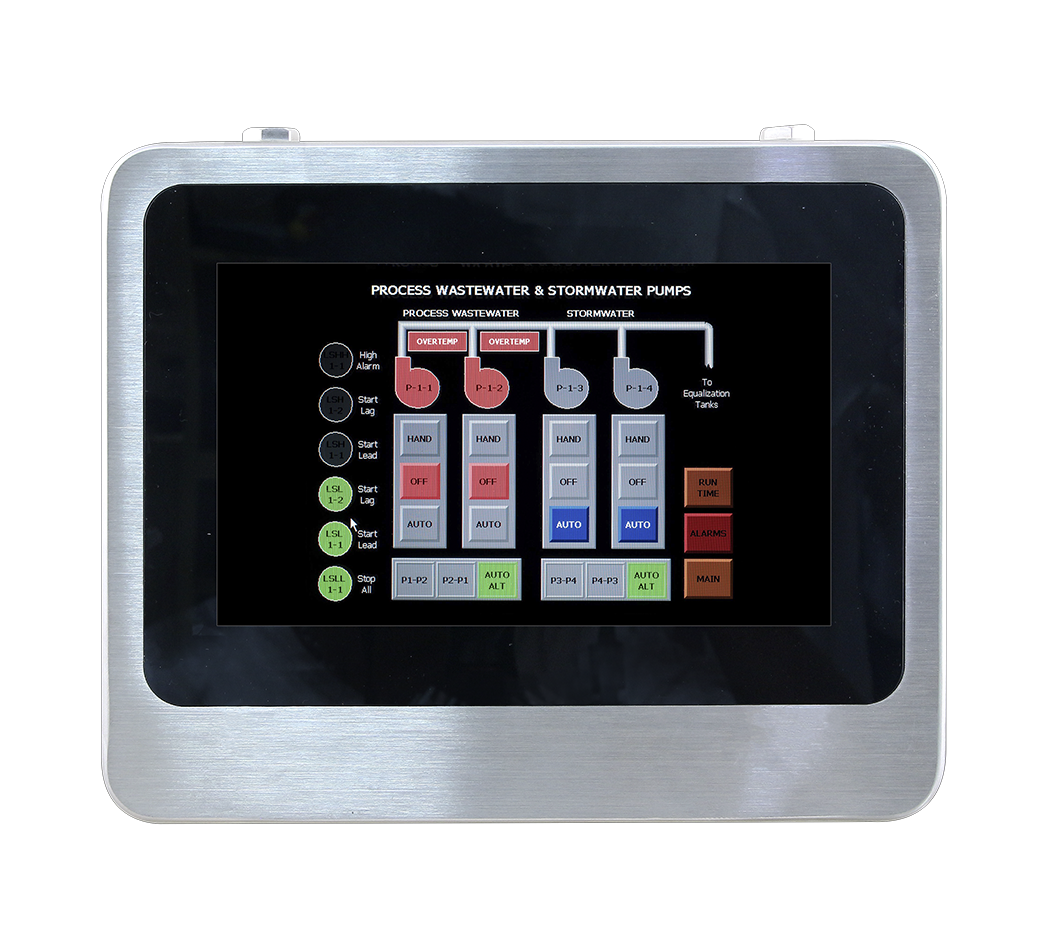

LCD Size

7"

Display Type

WSVGA

Resolution

600 x 1024

Pixel pitch

0.1488(H) x 0.1488(V) mm

Luminance

350 cd/m2

Contrast ratio

800

Viewing angle

85 (U), 85 (D), 85 (L), 85 (R)

Response time

25 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

86%

Touch Controller

EETI

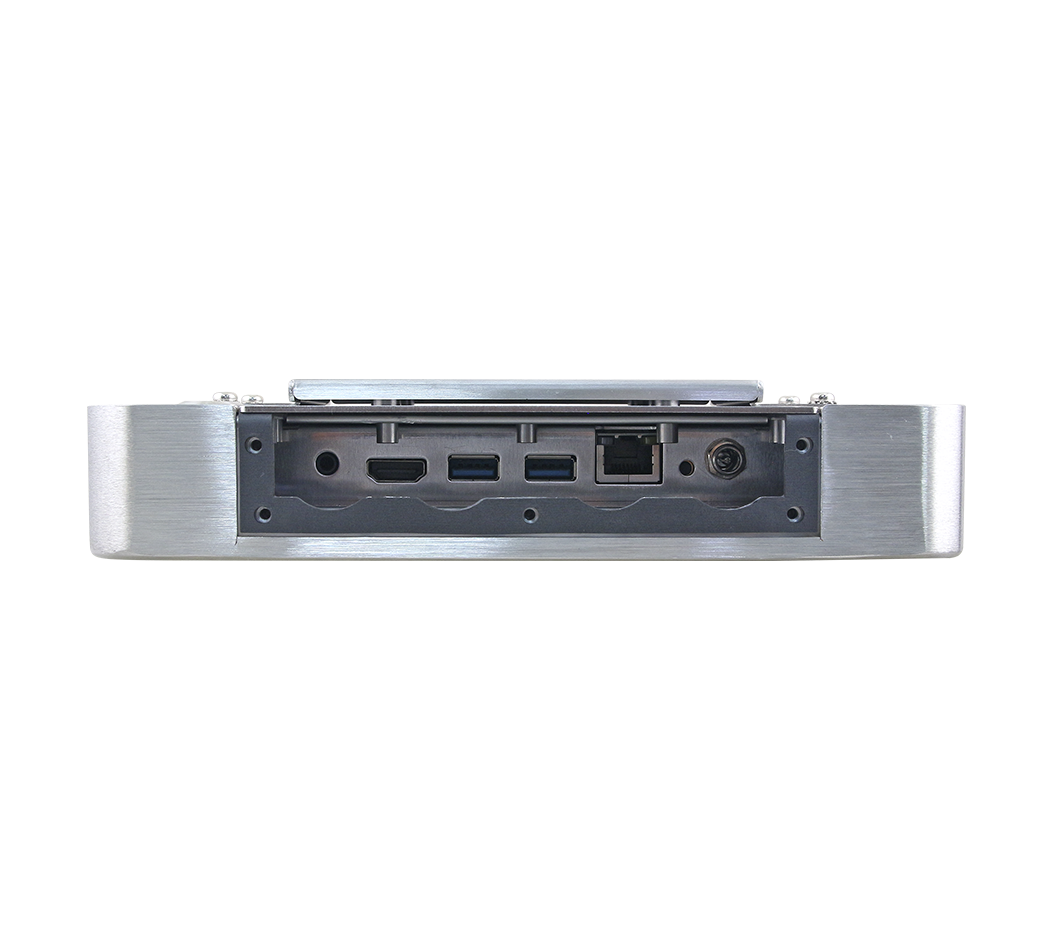

USB Port

2 x USB 3.0 Type A

Video Port

1 x HDMI 1.4 Out

Audio Port

1 x Headphone Jack for Line Out

LAN Port

1 x RJ45 10/100/1000 Lan port

Switch

1 x Power button

DC input

1 x DC Jack
1 x Reset

Other

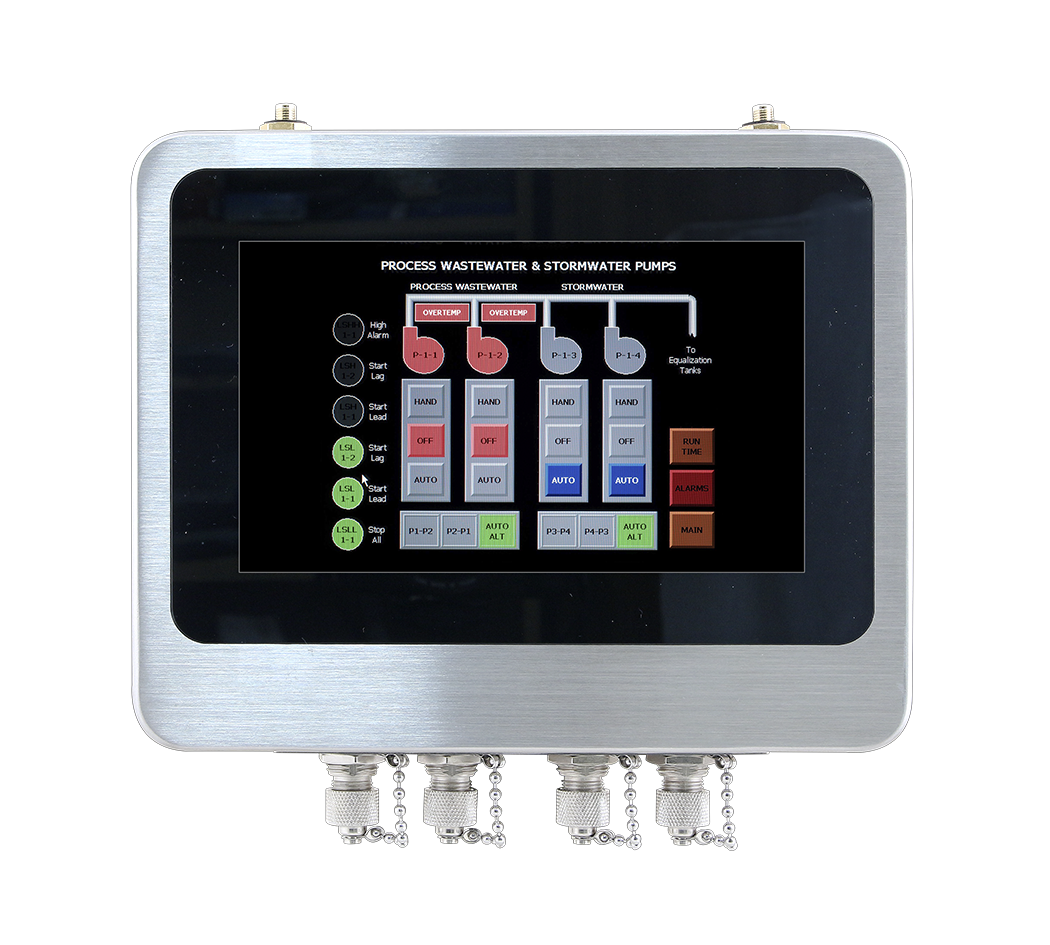

Option for M12 connector:
1 x RJ45
1 x DC Jack
1 x USB
1 x COM
1 x Vent Vale

WLAN

Optional Wi-Fi with waterproof antenna

Bluetooth

Optional BT 5.0

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

212.6 x 171.6 x 36.9mm

Weight

2.9 kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Default 5-Sides IP65
Option for whole system IP66/69K

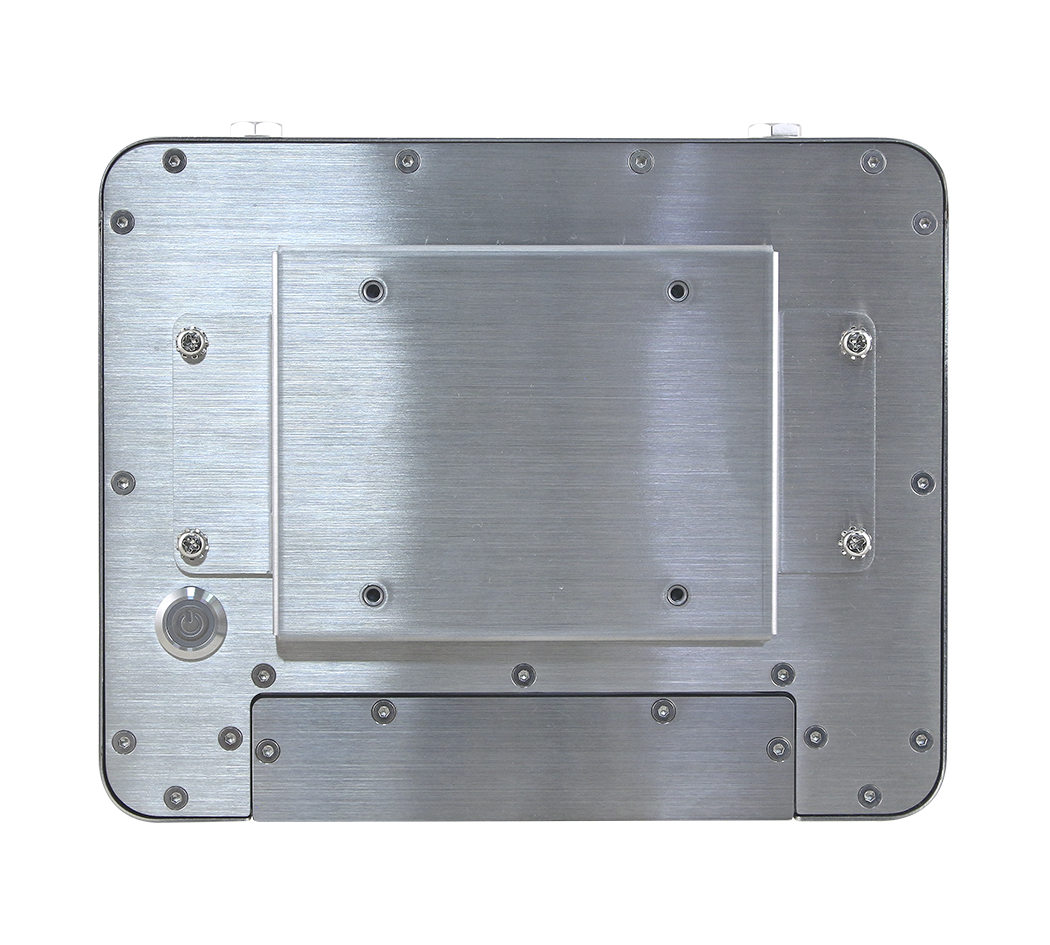

Mounting Kit

VESA 75 x 75mm

Power Mode

AT/ATX (AT is default)

System Fan

Fanless

Construction - Front

Stainless steel

Construction - Rear

Stainless steel

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter screw type

For optional M12 model: 60W adapter (24V @ 2.5A adapter) AC-DC adapter plug type
(need waterproof M12/4pin-D2.5 DC Jack-plug 200cm cable for M12 DC in connector --> E170W060030R)

Ordering Information

SPC-07WR2-568-A1R
7" 600 x 1024 IP-65 Stainless Steel panel PC/PCap/RK3568/2GR/32G eMMC/Android 14/LAN/2x2USB/HDMI/Line Out/Reset/DCin/Power Button/without Adapter/without M12

SPC-07WR2-568-B1R
7" 600 x 1024 IP-66/69K Stainless Steel panel
PC/PCap/RK3568/2GR/32G eMMC/Android 14/LAN(M12)/USB(M12)/COM(M12)/DCin(M12)/Power Button/VentVale/without Adapter

ACC-ARM-D1R
VESA STAND, 75mm & 100 mm

ACC-ARM-D23R
VESA STAND, 75mm & 100 mm

E971XSP7WR2000R
WiFi module Kit for SPC-XXWR2

******************************************************************************************
For KDS model:

ACC-ADP-072N-02R
AC/DC adapter 19V/3.78A Screw Type

E1702031835R
USA Power Cord

E170203183DR
EU Power Cord

E170203183BR
Japan Power Cord

E170P060370R
UK Power Cord

E170P060392R
Australia Power Cord

******************************************************************************************
For M12 model:

ACC-ADP-060N-09R
AC/DC adapter 24V/2.5A Plug Type
*(Suggest DC Jack to M12 cable E170W060030R (Waterproof M12 DC Cable) when adapter needed)

E170W060030R
Waterproof M12 DC Cable

E170W160030R
Waterproof M12 USB Cable

E170W160040R
Waterproof M12 Lan Cable

E170W170010R
Waterproof M12 COM Cable

E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
