AVAILABLE

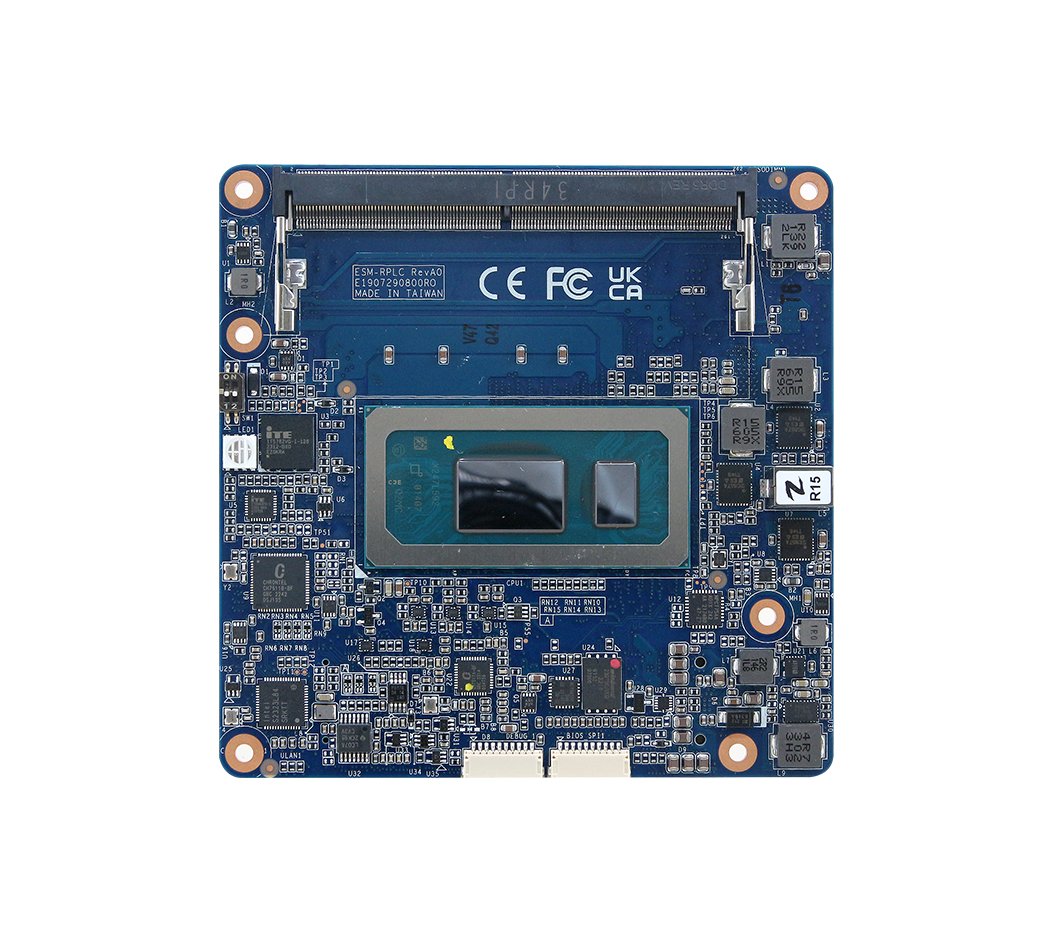

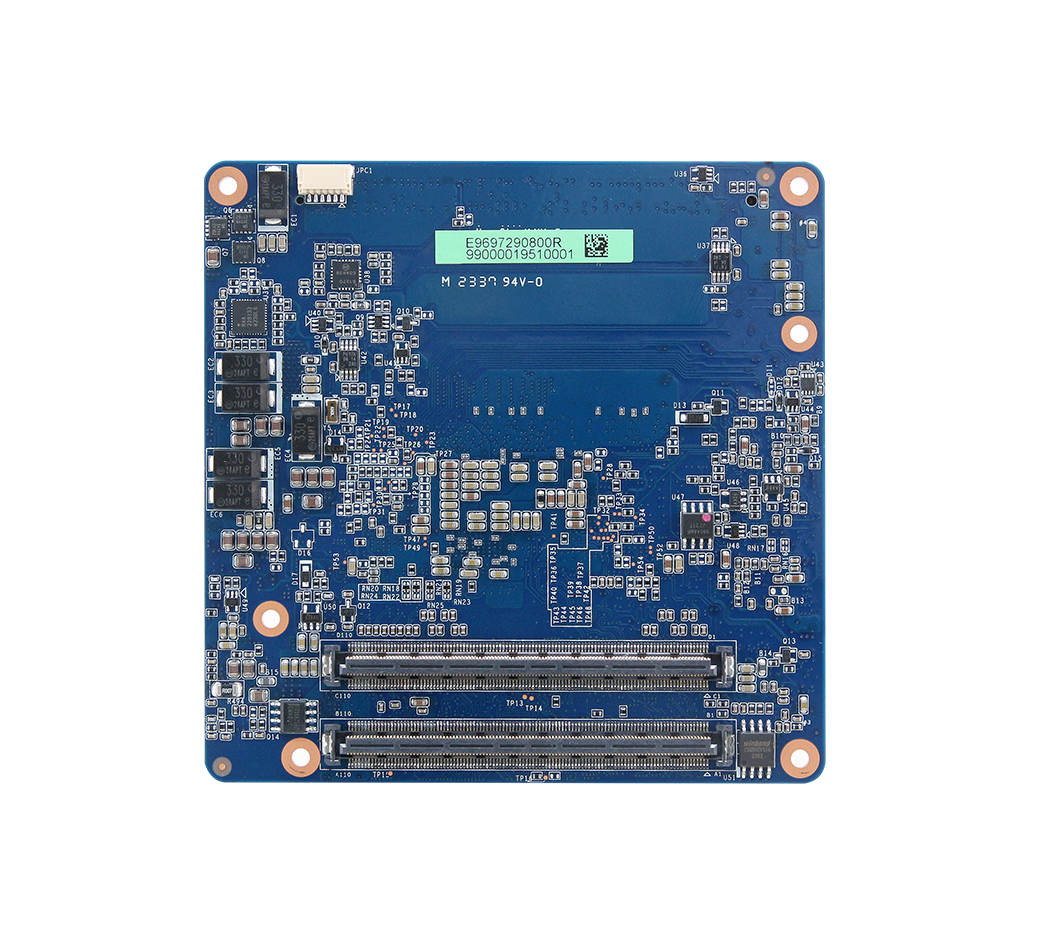

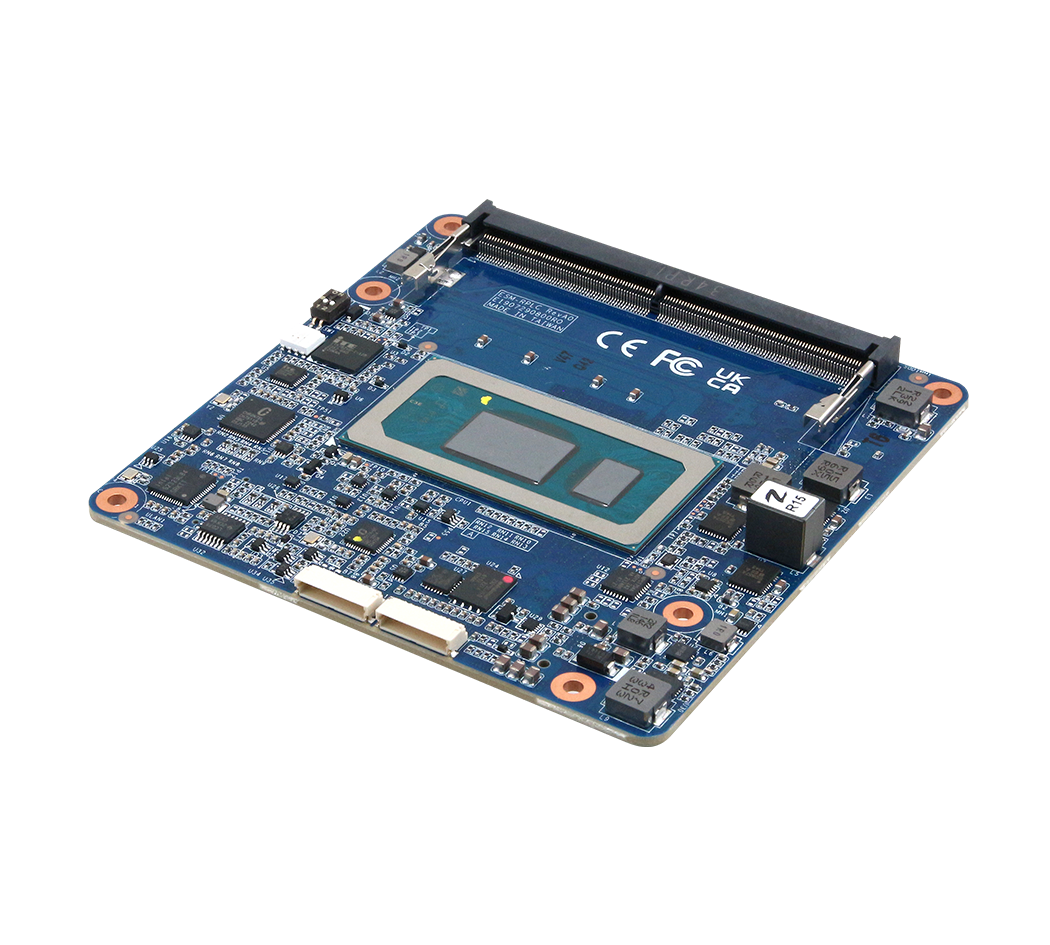

COM Express Rev. 3.1 Intel®13th Generation Core™ Embedded Mobile Processor Type6 COMe Compact Module
产品规格
System Information
Processor
13th Gen. Intel® P-Series Embedded / Industrial (28W) U-Series Embedded / Industrial (15W)
System Memory
1 x 262-Pin DDR5 4800MT/s SO-DIMM Up to 32GB
I/O Chipset
EC iTE IT5782
Watchdog Timer
H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step
BIOS
AMI uEFI BIOS, 256 Mbit SPI Flash ROM
H/W Status Monitor
Monitoring System Temperature Voltage and FAN Status with Auto Throttling Control
TPM
Onboard nuvoTon_NPCT754AADYX TPM 2.0
Expansion
2 x PCIe x4 (Gen4), Only for SSD, (From CPU) Default: 5 x PCIe x1 (Gen3), 2 x SATA (2 Lanes Shares with SATA)
Display
Graphic Chipset
Intel® Iris® Xe Graphics on i7/i5 Processor Intel® UHD Graphics on i3/Celeron® Processor Intel® Gfx Up to 96 EU
Spec. & Resolution
3 x DDI, VGA, eDP/LVDS (BOM Optional) VGA Supported by Build Option Via DP-to-VGA IC, Max. Resolution 1920x1200@60Hz VDS Single/Dual Channel 18/24-bit LVDS from eDP-to-LVDS IC, Max. Resolution 1920x1200@60Hz in Dual Mode or eDP Build Option in Place of LVDS, 4 lanes, eDP 1.4b (by BOM) USB4 Max. 2 x USB4 in Place of DDI 1/2, Supports DP 1.4a by DP Alternative Mode DDI3 for Avalue EX-EX26 Carrier HDMI 2.1 or DP 1.4a Select by BIOS, Support Feature Depend on Carrier Board.
Multiple Display
Four Display Support, Up to 4K (3DDI+eDP)
LVDS
CH7511B(eDP to LVDS)
DDI
3 x DDI, VGA, eDP/LVDS (BOM Optional) HDMI/DP(Default) VGA Supported by Build Option Via DP-to-VGA IC (In Place of DDI 3)
Audio
Audio Interface
Intel® HD Audio Integrated on CPU
Ethernet
LAN Chipset
1 x Intel® I226LM/IT
Ethernet Interface
10/100/1000/2500 Base-Tx GbE Compatible
Software Support
OS
Windows 10 Enterprise 2021 LTSC Ubuntu 22.04 (Kernel 5.15) above
Certification
Certification Information
CE, FCC Class, RoHS Compliant
I/O
USB
2 x USB 4 by TCP Ports (Optional by BIOS) 4 x USB 3.2 Gen2 8 x USB 2.0
COM Port
2 x UART (RX/TX Only)
SATA
2 x SATA III
DIO
1 x 8-bit GPIO
MIO
1 x SMBus 1 x LPC (Via ESPI-to-LPC Bridge IC) 1 x GP_SPI(TBC) 1 x I2C
Mechanical & Environmental
Operating Temp.
Standard 0°C ~ 60°C (32°F ~ 140°F) Extend: -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temp.
-40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
0.44lbs (0.2Kg)
Power Requirement
+9V ~ +19V
Power Mode
AT/ATX
Dimension (L x W)
3.74” x 3.74” (95 x 95 mm)
Ordering Information
ESM-RPLC-S65-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i7-1365UE CPU ESM-RPLC-S35-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i5-1335UE CPU ESM-RPLC-S15-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i3-1315UE CPU ESM-RPLC-S70-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i7-1370PE CPU ESM-RPLC-S40-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i5-1340PE CPU ESM-RPLC-S20-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i3-1320PE CPU ESM-RPLC-300-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -U300E CPU ESM-RPLC-W65-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1365URE CPU ESM-RPLC-W35-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1335URE CPU ESM-RPLC-W15-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1315URE CPU ESM-RPLC-W70-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1370PRE CPU ESM-RPLC-W40-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1340PRE CPU ESM-RPLC-W20-A1R Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1320PRE CPU
