EPC-TGU

11th Gen Intel® Tiger Lake UP3 Fanless Compact System

Get a Quote

Comparison

数据表

Get a Quote

Comparison

数据表

  • 11th Gen Intel® Core™ i7/i5/i3/Celeron® Processor
  • Intel® Iris® Xe/UHD Graphics
  • Single Memory Socket, Max. Up to 32GB DDR4 3200MT/s
  • Dual Display, DP++ 1.4
  • Dual Intel® Gigabit Ethernet, Dual 2.5GbE
  • Triple Storage, 2.5” Drive Bay, 2-M.2 SSD
  • Triple M.2 Slot, Key-E/B/M for Wi-Fi, LTE, SSD and I/O module
  • Support iAMT, SATA RAID 0/1
  • Default dTPM 2.0, Wall Mount Kit
  • 规格
  • 文档
  • 常见问题

产品规格

System Information

  • Processor

    Intel® Core™ i7-1185G7E Processor (15W)
    Intel® Core™ i5-1145G7E Processor (15W)
    Intel® Core™ i3-1115G4E Processor (15W)
    Intel® Celeron® 6305E Processor (15W)

  • System Memory

    1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MTs

  • I/O Chipset

    EC ITE IT8882

  • BIOS Information

    AMI uEFI BIOS 256 Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec.

  • H/W Status Monitor

    System temperature monitoring and Voltages monitoring

  • RAID

    RAID 0/1 (SATA)

  • TPM

    TPM 2.0

  • iAMT

    Above Core i5 (selected SKUs)

  • SBC

    ECM-TGU

Expansion

  • M.2

    1 x M.2 Key-M 2242 NVMe (PCIe Gen4 x 4)
    1 x M.2 Key-B 2242/3042 (SATA3)

Storage

  • M.2

    1 x M.2 Key-M 2242 NVMe (PCIe Gen4 x 4)

    1 x M.2 Key-B 2242/3042 (SATA3)

  • 2.5 Drive Bay

    1 x Internal 2.5 Drive Bay (7mm)

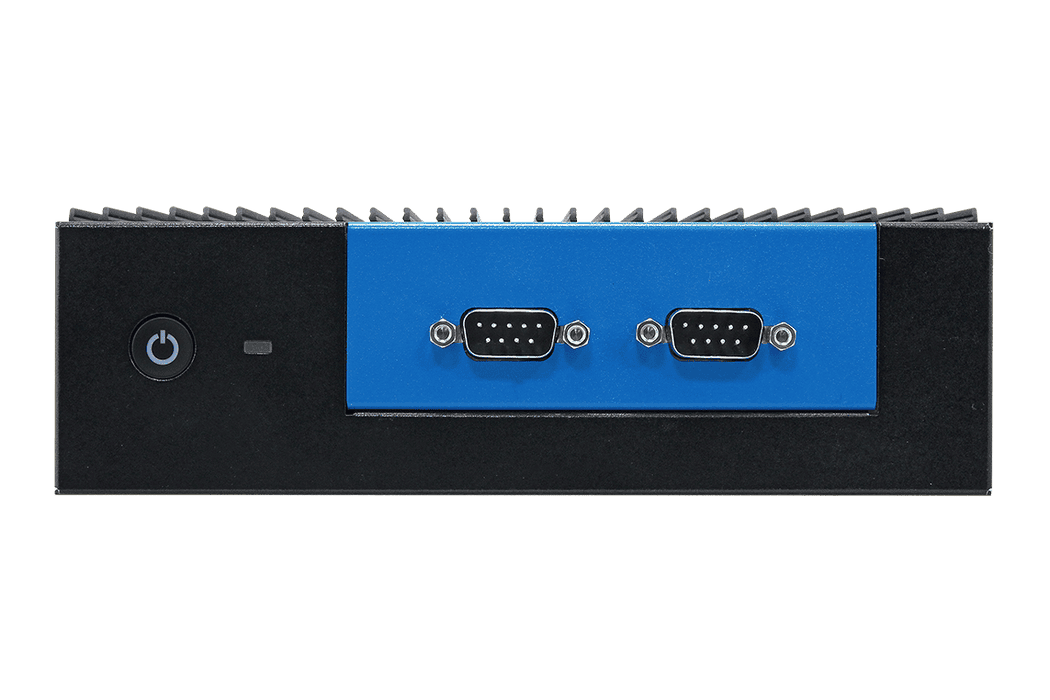

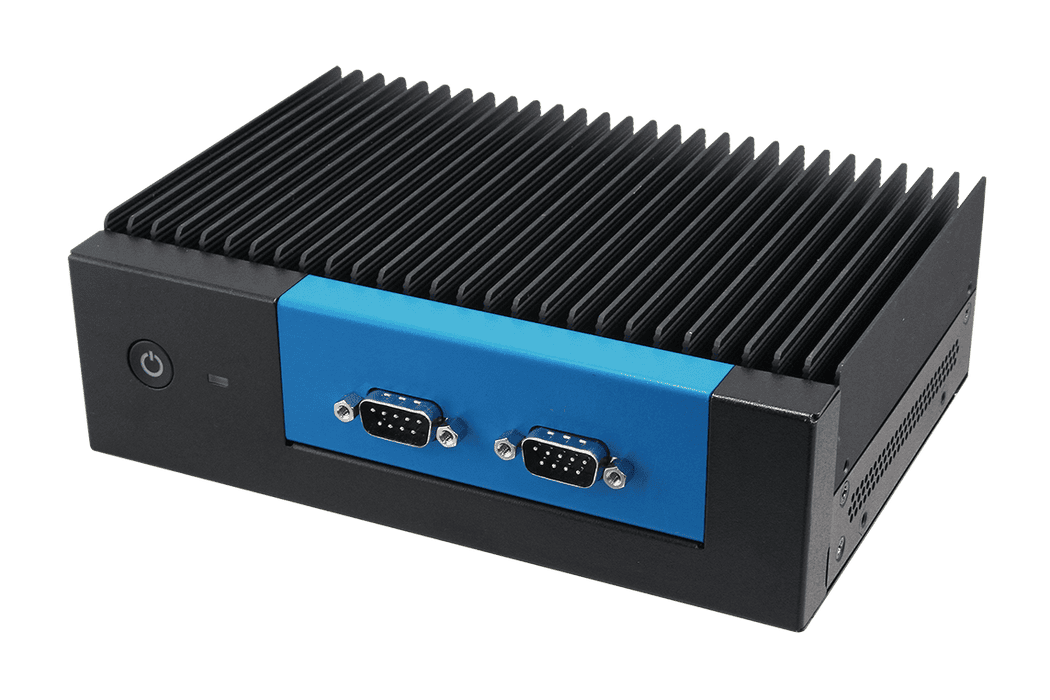

Front I/O

  • Power Button

    1 x Power Button

  • COM Port

    2 x RS232/422/485 (BIOS)

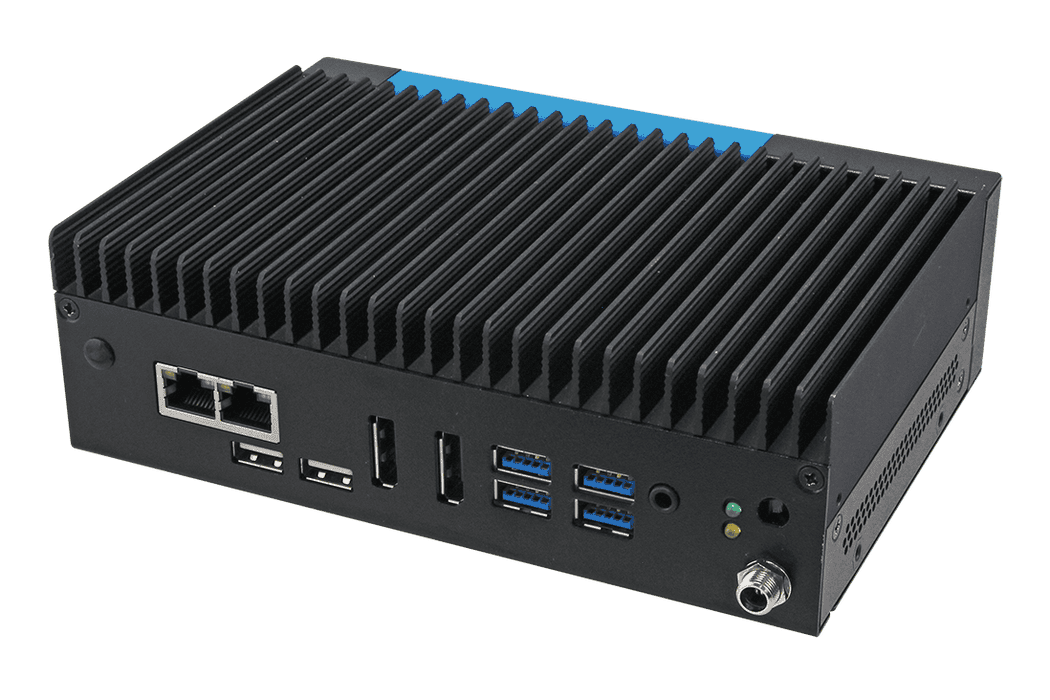

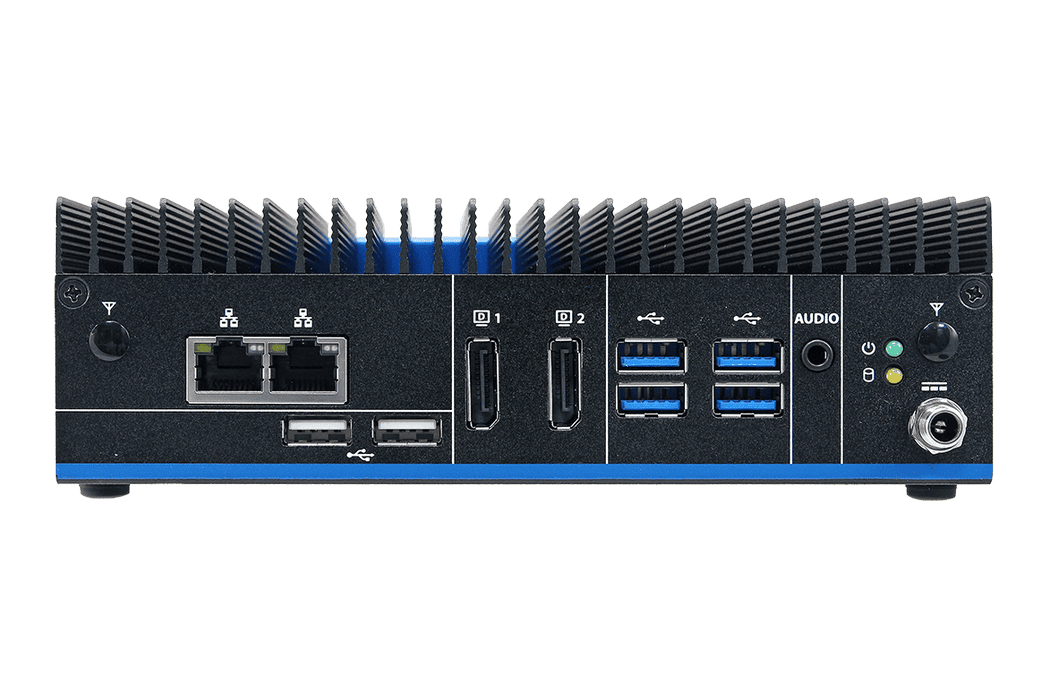

Rear I/O

  • USB

    4 x USB 3.2 Gen.2 (10Gbp/s)
    2 x USB 2.0

  • LED Indicator

    1 x Power On/Off
    1 x Storage Access

  • LAN Port

    2 x RJ45 (Max. Up to 3-RJ45 in project base)

  • Audio

    1 x Combo Jack (Mic-In, Line-Out)

  • DP

    2 x DP++

  • Antenna

    2 x Antenna Mounting with Dust Protection Cover

  • AC/DC Input

    Lockable DC Jack

Display

  • Graphic Chipset

    Intel® Iris® Xe Graphics (i7-1185G7E/i5-1145G7E)
    Intel® Iris® UHD Graphics (i3-1115G4E/6305E)

  • Resolution

    DP++ 1.4: 4096x2304@60Hz
    DP1+DP2 (DP1.4): Max: 7680 x 4320@60 Hz

Audio

  • Audio Codec

    Realtek ALC888S

Ethernet

  • LAN Chipset

    2 x Intel® I226LM

  • Specification

    2 x 10/100/1000/2.5 Gigabit (I225-LM)

Power Requirement

  • ACPI

    Single power ATX Support S0, S3, S4, S5
    ACPI 5.0 Compliant

  • Power Mode

    AT/ATX (ATX is default setting)

  • Adapter

    60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option)
    Note1: 60W for general mode (storage, communication, display, USB port, room temp.)
    Nore2: 120W for full load mode (general mode pluses max. workload and operating temp.)

Software Support

  • OS

    Win10, Linux

Certification

  • Certification Information

    CE, FCC Class B, UKCA

Mechanical & Environmental

  • Operating Temp.

    With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow

  • Storage Temp.

    -30~70C° (-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    177mm x 123mm x 55mm (7” x 4.8” x 2.2")

  • Vibration Test

    With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

  • Shock Test

    With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

  • Mounting Kit

    Stand
    Wall Mount kit

Ordering Information

  • Ordering Information

    Intel® 11th Gen Core™ i7/i5/i3/Celeron Processor

    EPC-TGU-85-B1-1R (i7-1185G7E)
    EPC-TGU-45-B1-1R (i5-1145G7E)
    EPC-TGU-15-B1-1R (i3-1115G4E)
    EPC-TGU-05-B1-1R (6305E)

  • BIOS
    3
  • Chipset
    2
  • Audio
    3
  • Graphics
    2
  • LAN
    2
  • Manual
    1
  • Other Driver
    6
  • 全部内容
  • Windows 10 64bit
  • BIOS

    总计 3 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    (PCTGU-07)ECM-TGU/EPC-TGU 1.20 CS:169AH,P/N:E1512CAO002R
    • 不适用
    2023-11-01
    (PCTGU-06)ECM-TGU/EPC-TGU 1.10 CS:A7C1H,P/N:E1512CAO001R
    • 不适用
    2023-11-01
    (PCTGU-05)ECM-TGU/EPC-TGU 1.00 CS:5430H,P/N:E1512CAO000R
    • 不适用

    Chipset

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Intel_Tiger Lake_Chipset_Win10_64_10.1.18698.8258(For B1)
    • Windows 10 64bit
    2023-11-01
    Intel_Tiger Lake_Chipset_Win10_64_10.1.18698.8258
    • Windows 10 64bit

    Audio

    总计 3 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Realtek Audio control Win10_64_1.36.273.0(For B1)
    • Windows 10 64bit
    2023-11-01
    Realtek_ALC888S_ALC897_Audio_Win10_64_6.0.9420.1(For B1)
    • Windows 10 64bit
    2023-11-01
    Tempo 92HD73C_20210713
    • Windows 10 64bit

    Graphics

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Intel_Tiger Lake_Video_Win10_64_30.0.100.9653(For B1)
    • Windows 10 64bit
    2023-11-01
    Intel_Tiger Lake_Video_Win10_64_30.0.100.9653
    • Windows 10 64bit

    LAN

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    Intel I225LM_I226LM Lan_Win10_64_27.4(For B1)
    • Windows 10 64bit
    2023-11-01
    Intel_I219LM_I210_I255_Lan_Win10_64_26_4
    • Windows 10 64bit

    Manual

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-12-14
    EPC-TGU-B1 1st Quick Reference Guide
    • 不适用

    Other Driver

    总计 6 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    SerialIO_30.100.2104.1_PV_TGL_PCH(For B1)
    • Windows 10 64bit
    2023-11-01
    Intel_RST_PV_18.6.1.1016.2_Win64_21H2(For B1)
    • Windows 10 64bit
    2023-11-01
    Intel_ME_Win10_64_ME_15.0.23.1706 v5(For B1)
    • Windows 10 64bit
    2023-11-01
    Intel_RST_PV_18.6.1.1016.2_Win64_20H2_21H2
    • Windows 10 64bit
    2023-11-01
    SerialIO_30.100.2104.1_PV_TGL_PCH_20H2
    • Windows 10 64bit
    2023-11-01
    Intel_ME_Win10_64_ME_15.0.23.1706 v5
    • Windows 10 64bit
