AVAILABLE

NUC-EHL

Intel® Elkhart Lake Fanless NUC Slim System

Get a Quote

Comparison

数据表

Get a Quote

Comparison

数据表

  • Intel® Celeron® Processor J6412
  • Single DRAM Socket, Max. Up to 32GB DDR4 3200MHz
  • Rich I/O, 2-COM, 2-HDMI, 2-LAN (2.5GbE), 6-USB3.0, Micro SD slot, Kensington Lock
  • Fanless operating from 0~60°C
  • On Board TPM 2.0, Default Table Stand
  • IP40, HDMI2.0b, Wi-Fi (CE/FCC) certificated
  • 规格
  • 文档
  • 常见问题

产品规格

System Information

  • Processor

    Intel® Celeron® Processor J6412
    1.5M Cache, up to 2.60 GHz

  • System Memory

    1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz

  • I/O Chipset

    EC ITE IT5571VG

  • BIOS Information

    AMI BIOS, 128Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

  • H/W Status Monitor

    Monitoring CPU Temperature, Voltage with Auto Throttling Control

  • TPM

    TPM2.0

  • SBC

    NCM-EHL

Expansion

  • M.2

    1 x M.2 Key-B 2242/3042 with Internal SIM Slot (PCIe, USB 2.0)
    1 x M.2 Key-E 2230 (PCIe, USB 2.0)

Storage

  • M.2

    1 x M.2 Key-B, 2242 (SATA3)

  • MicroSD Card

    1 x Micro SD card slot

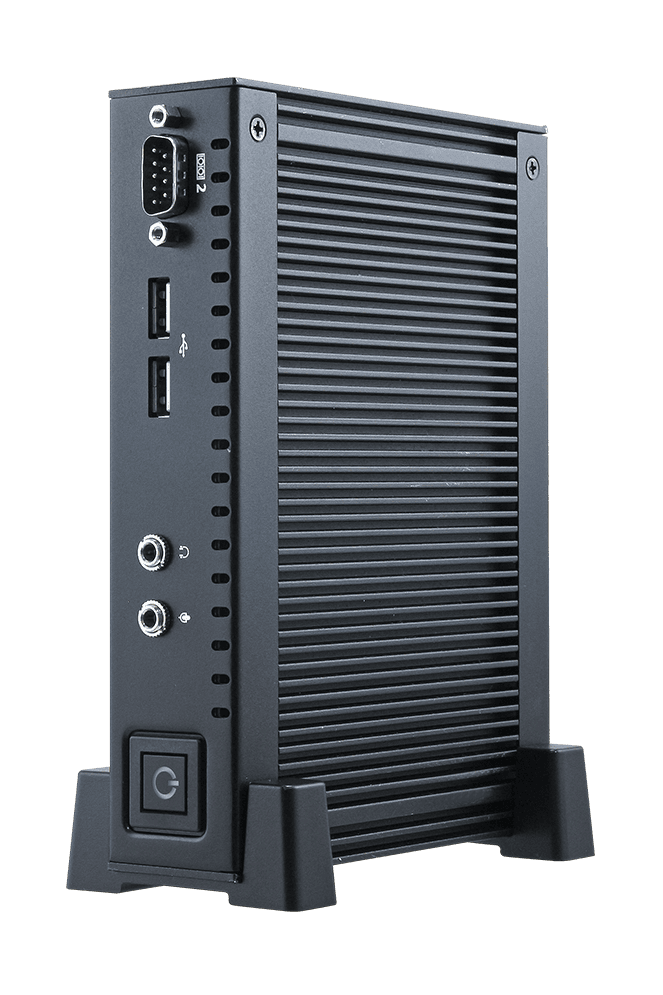

Front I/O

  • USB

    2 x USB 2.0

  • Power Button

    1 x Power On/Off w/ LED

  • COM Port

    1 x RS232/422/485 (BIOS)

  • Audio

    1 x Line-Out, 1 x Mic-In

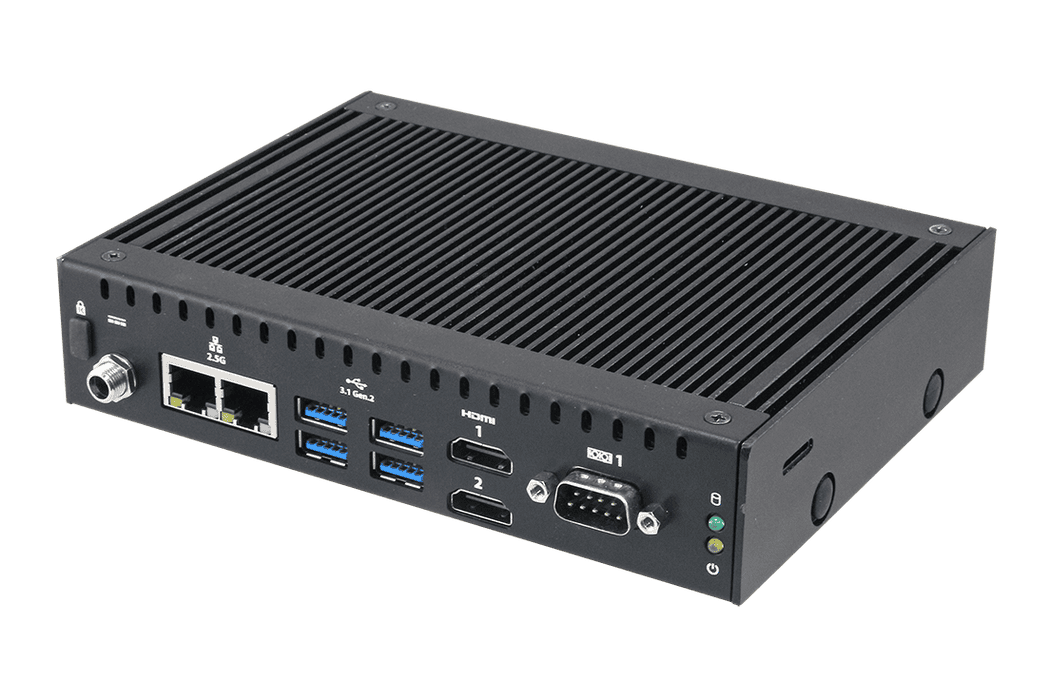

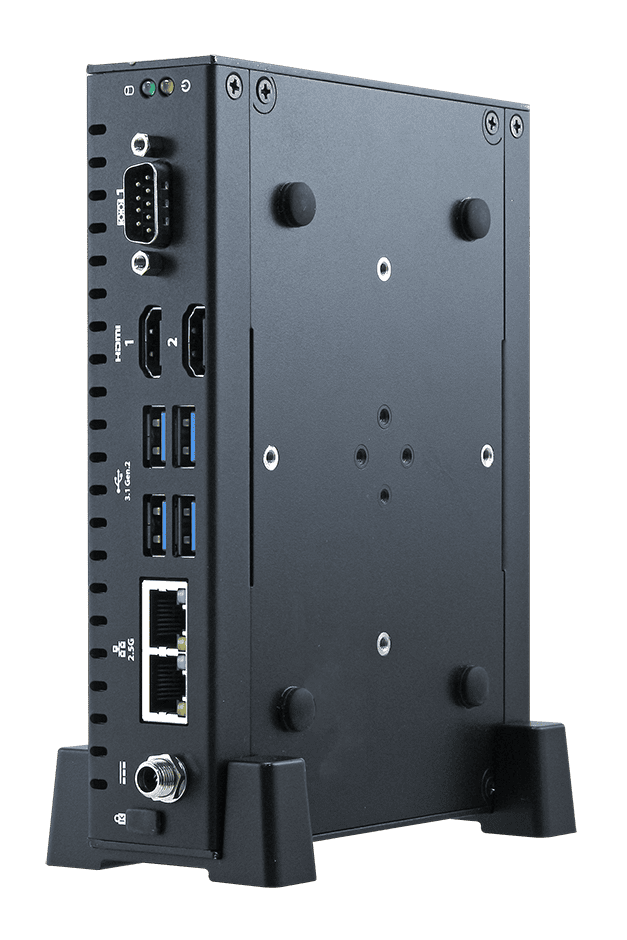

Rear I/O

  • USB

    4 x USB 3.2 Gen.2 (10Gbp/s)

  • COM Port

    1 x RS232/422/485 (BIOS)

  • LED Indicator

    1 x Power on/off LED
    1 x Storage Access LED

  • LAN Port

    2 x RJ45

  • HDMI

    2 x HDMI 2.0b

  • AC/DC Input

    1 x Lockable DC Jack

Right I/O

  • Antenna

    2 x Antenna Mounting with Dust Protection Cover

Left I/O

  • Antenna

    2 x Antenna Mounting with Dust Protection Cover
    1 x Micro-SD Card Slot

Display

  • Graphic Chipset

    Intel® UHD Graphics for 10th Gen Intel® Processors

  • Resolution

    2 x HDMI 2.0b: 4096x2304@60Hz

Audio

  • Audio Codec

    RealTek ALC888S

Ethernet

  • LAN Chipset

    2 x Intel® I225-LM

  • Specification

    10/100/1000/2.5 Gigabit

Power Requirement

  • ACPI

    Single power ATX Support S0, S3, S4, S5
    ACPI 5.0 Compliant

  • Power Mode

    AT/ATX (ATX is default setting)

  • Adapter

    Input: 100 ~ 240Vdc/ 50 ~ 60Hz
    Output: 12V/5A AC-DC 60W Adapter

Software Support

  • OS

    Win10, Win11, Linux

Certification

  • Certification Information

    CE, FCC Class B, UKCA
    Wi-Fi 6E RF certified

Mechanical & Environmental

  • Operating Temp.

    With extended temperature peripherals: 0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow

  • Storage Temp.

    -30°C~70°C(-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    170mm x 125mm x 36mm(6.69” x 4.92” x 1.42”)

  • Vibration Test

    With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis

  • Shock Test

    With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

  • IP Rating

    40

  • Mounting Kit

    Table Stand (Default)
    Din Rail/VESA (Optional)

  • Kensington Lock

    1 x Kensington Lock

Ordering Information

  • Ordering Information

    NUC-EHL-J12-A1-1R:Intel® Celeron® J6412 Fanless NUC Slim System

  • BIOS
    2
  • Chipset
    1
  • Audio
    1
  • Graphics
    1
  • LAN
    1
  • Manual
    1
  • Other Driver
    4
  • 全部内容
  • Windows 11 64bit
  • Windows 10 64bit
  • BIOS

    总计 2 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2024-01-05
    NUC-EHL
    (NUCEHL07)NUC-EHL BIOS 1.10 CS:CE69H,P/N:E1512JAQ001R
    2023-11-01
    (NUCEHL05)NUC-EHL BIOS 1.00 CS:21F8H,P/N:E1512JAQ000R

    Chipset

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2024-09-18
    Intel Chipset_10.1.18768.8273_Win10 64
    • Windows 10 64bit
    • Windows 11 64bit

    Audio

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2024-09-18
    Realtek Audio
    • Windows 10 64bit
    • Windows 11 64bit

    Graphics

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2024-09-18
    Intel VGA 30.0.101.1340
    • Windows 10 64bit
    • Windows 11 64bit

    LAN

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2024-09-18
    Intel LAN Wired driver
    • Windows 10 64bit
    • Windows 11 64bit

    Manual

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2023-11-01
    NUC-EHL 1st Quick Reference Guide

    Other Driver

    总计 4 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2024-01-18
    SD card driver 5.123.1.1023
    SD card driver 5.123.1.1023
    • Windows 11 64bit
    • Windows 10 64bit
    2024-09-18
    Intel ME 15.40.10.2252
    • Windows 10 64bit
    • Windows 11 64bit
    2024-09-18
    Realtek Audio control panel
    • Windows 10 64bit
    • Windows 11 64bit
    2024-09-18
    HIDEventFilterDriver-2.2.1.384
    • Windows 10 64bit
    • Windows 11 64bit
