Processor

Onboard Intel® Processor N97, and Intel® Core™ i3-N305 Processor, Intel Atom® x7000RE series processors

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max.

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

BIOS

AMI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU temperature monitoring
Voltages monitoring
CPU fan speed control

TPM

Onboard NuvoTon_NPCT754AABYX supports TPM 2.0

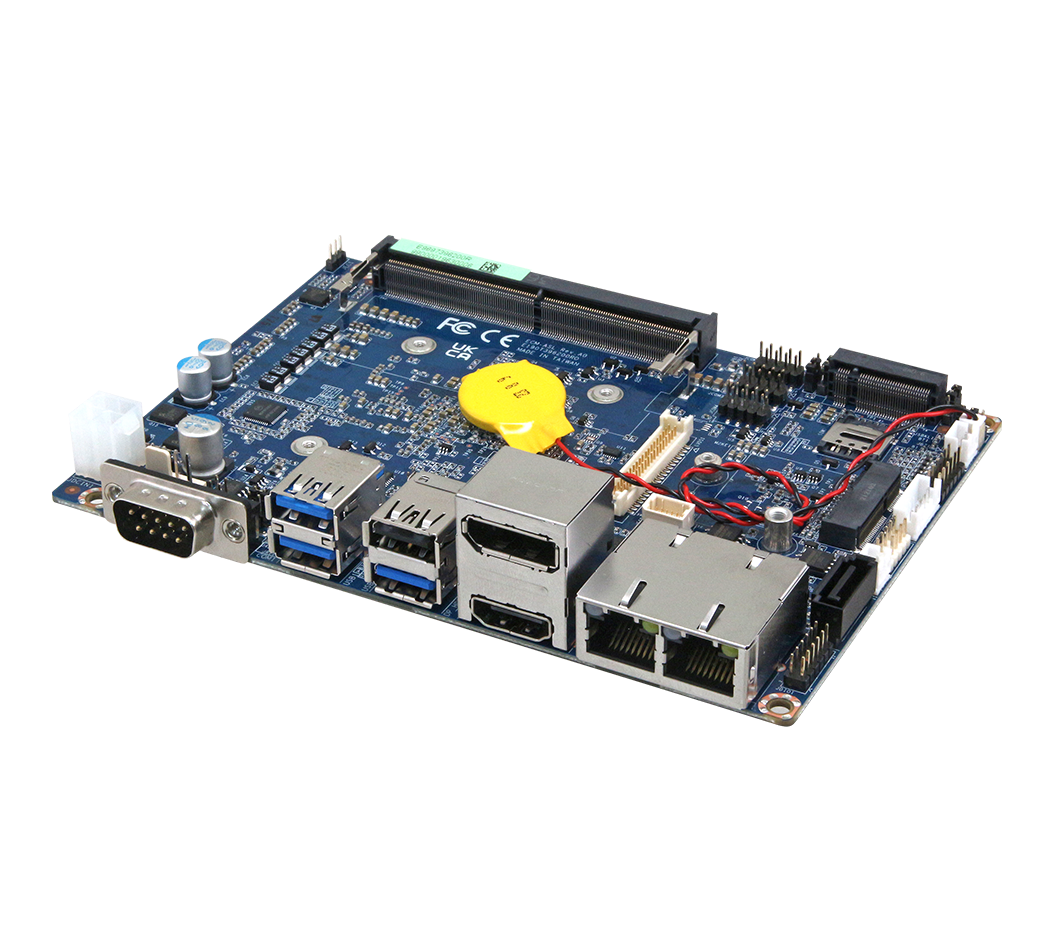

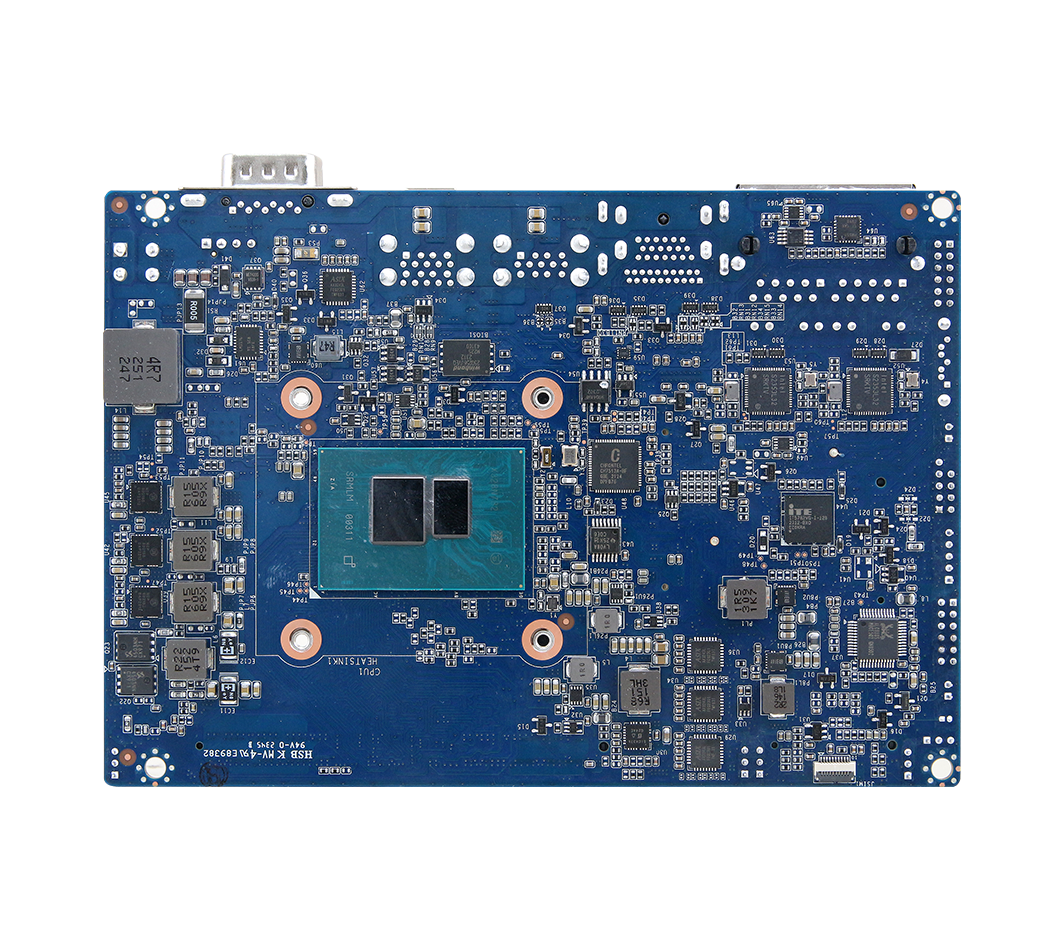

Board

3.5"

Expansion

1 x M.2 Type B slot for 3042/3052/2242 size(PCIe x1+USB 3.2 GEN1 + USB 2.0)
1 x M.2 Type E 2230 support CNVi WiFi module (1 x PCI-e x1 & USB 2.0 Signal)

Storage

1 x M.2 (Type B)
1 x SATA III

Graphic Chipset

Intel® UHD Graphics

Spec. & Resolution

HDMI 2.0b Max resolution 4096 x 2160@60Hz
DP 1.4a Max resolution 4096 x 2160@60Hz
LVDS 1920 x 1080 Dual channel 18/24-bits or eDP 1920 x 1080@60Hz (2 Lanes)

Multiple Display

Triple Display

LVDS

1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-in, Mic-in, Line-out

LAN Chipset

2 x Intel® I226LM/I226IT

Ethernet Interface

10/100/1000/2.5G Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Mode

AT/ATX (Default Setting: AT)

OS

Windows 11, Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

3 x USB 3.2 Gen2, 1 x USB 2.0 at IO
2 x USB2.0 by Pin header

COM Port

3 x RS-232
1 x RS-232/422/485

SATA

1 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x eSPI
1 x SIM Card Slot

Operating Temp.

Standard Temperature: 0°C ~ 60°C (-4~140°F) with 0.5m/s Air Flow
Extend Temperature: -40°C ~ 80°C (-40°F ~ 176°F) with 0.5m/s Air Flow for Wide Temp CPU SKU

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs (0.2kg)

Power Requirement

DC in +9V ~ +36V

Dimension (L x W)

5.7" x 4" (146mm x 101mm)

Ordering Information

ECM-ASL-N97-A1R
ECM-ASL/N97/2COM/6USB/2LAN/A1

ECM-ASL-N305-A1R
ECM-ASL/I3N305/2COM/6USB/2LAN/A1

ECM-ASL-7433-A1R
ECM-ASL/X7433RE/2COM/6USB/2LAN/A1

ECM-ASL-7835-A1R
ECM-ASL/X7835RE/2COM/6USB/2LAN/A1
