AVAILABLE

ECM-RPL

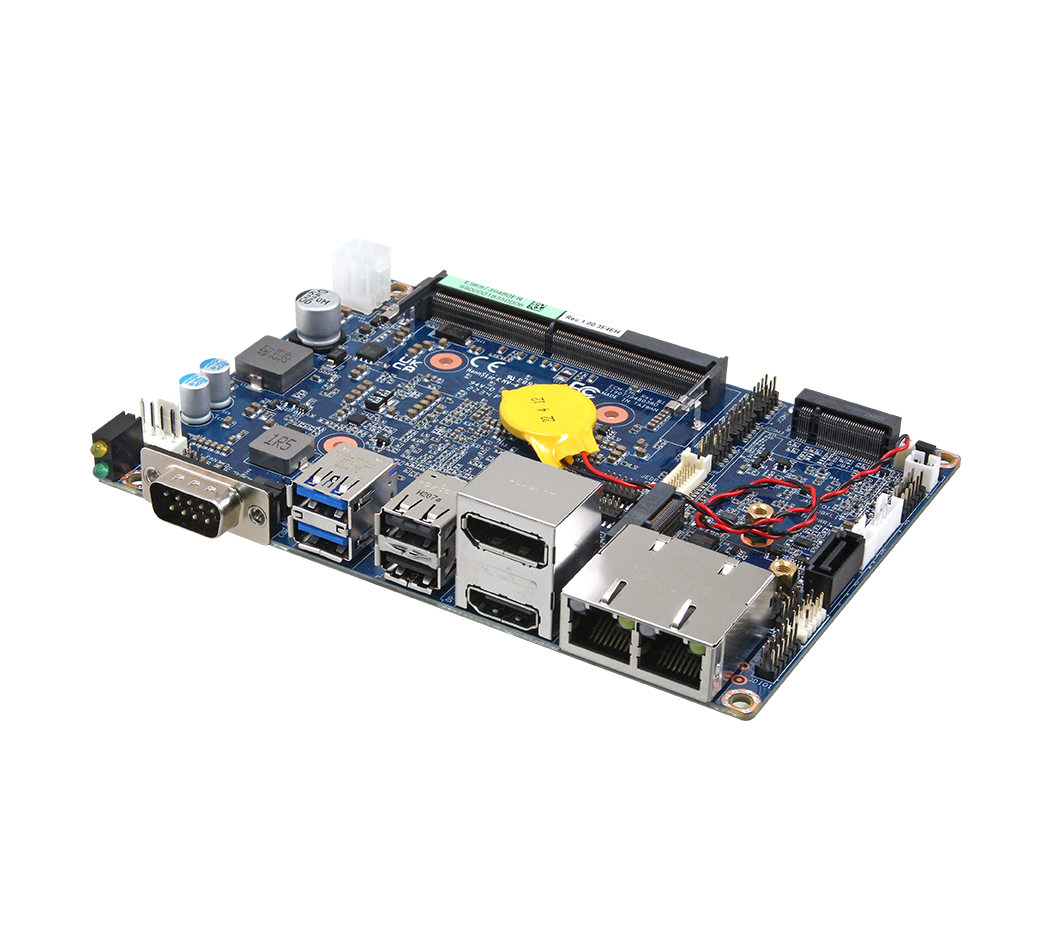

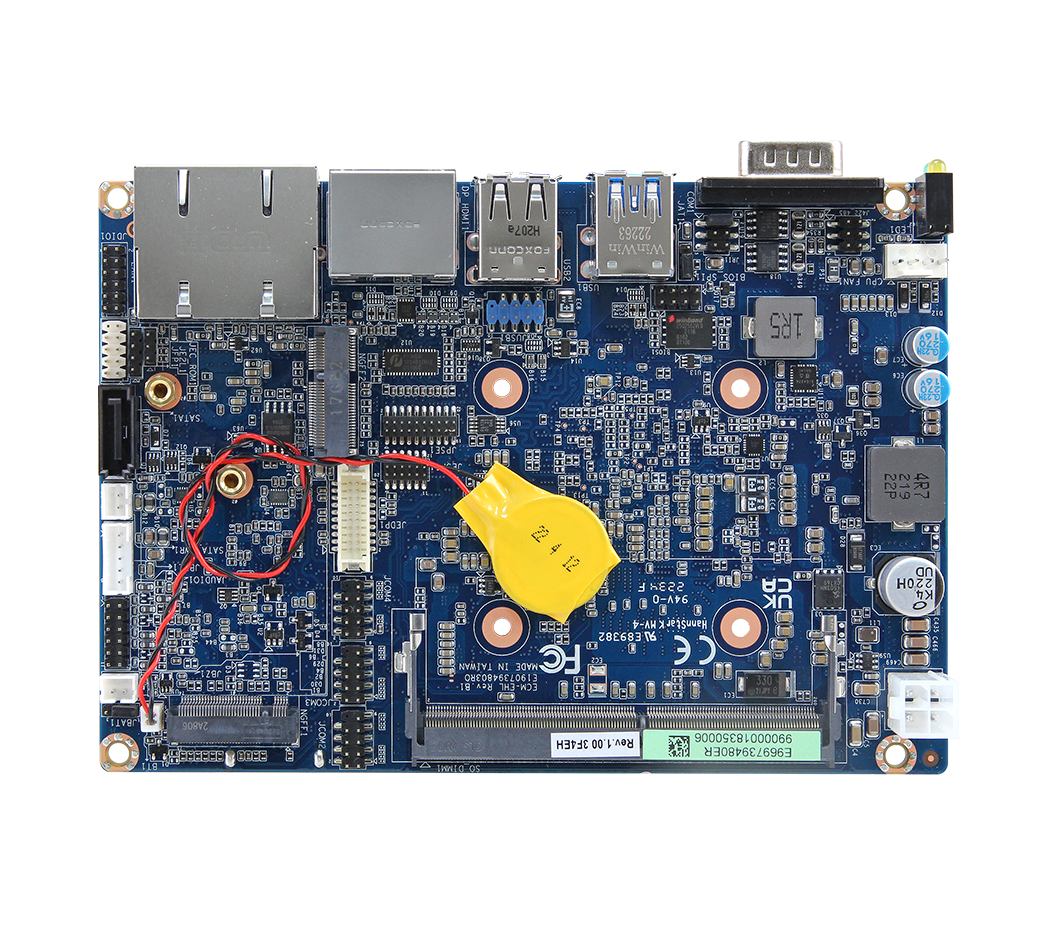

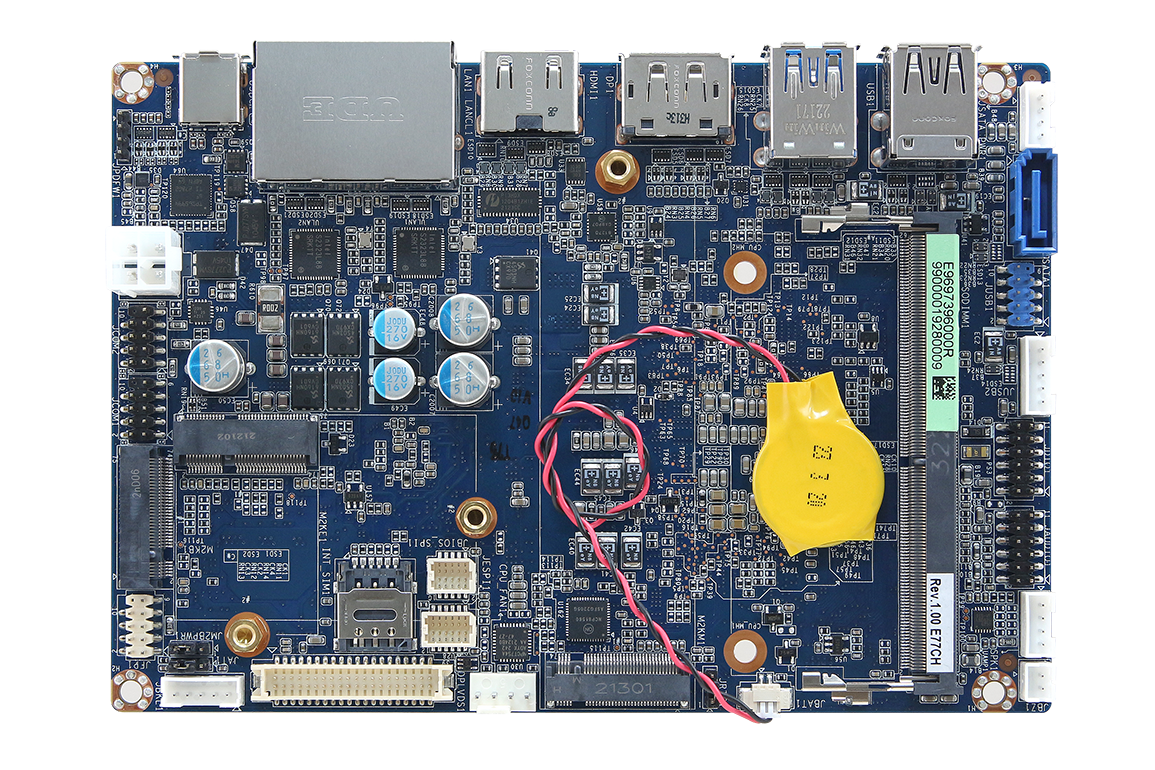

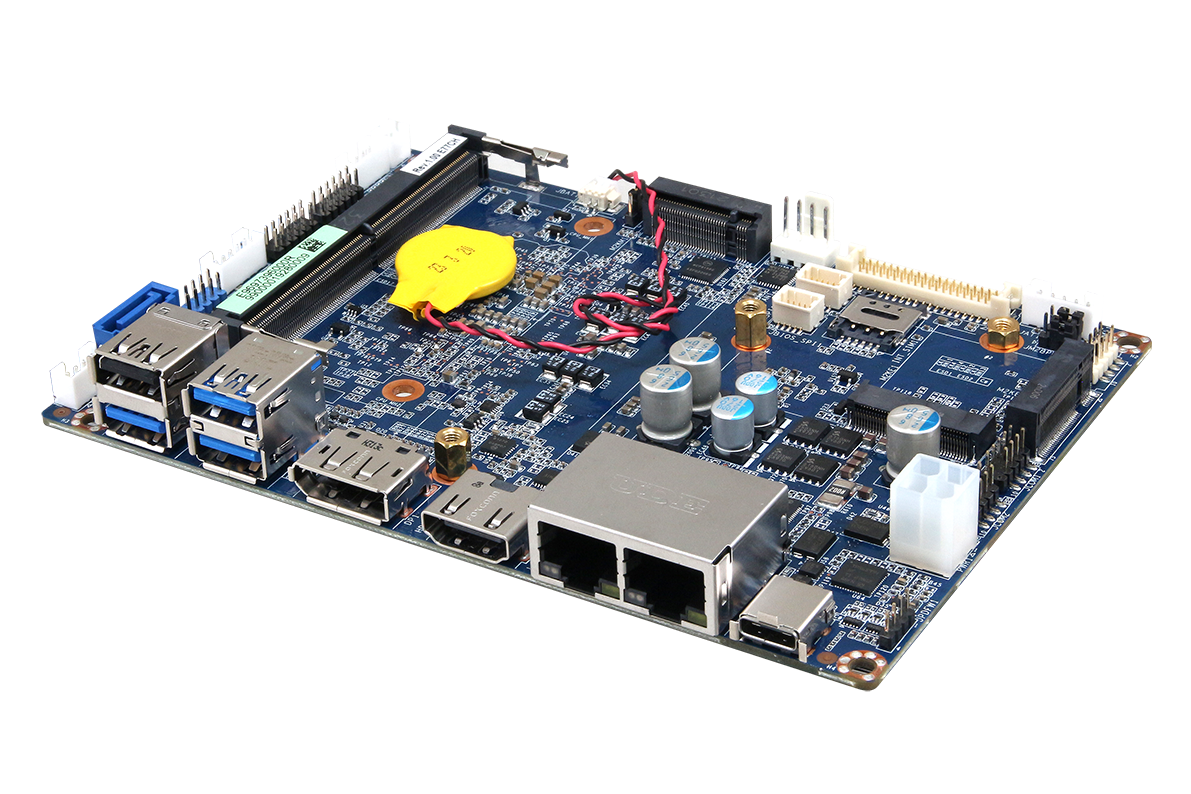

13th Gen Intel® Core™ SoC i7/i5/i3/Pentium® BGA Processor 3.5” Micro Module

Get a Quote

Comparison

数据表

Get a Quote

Comparison

数据表

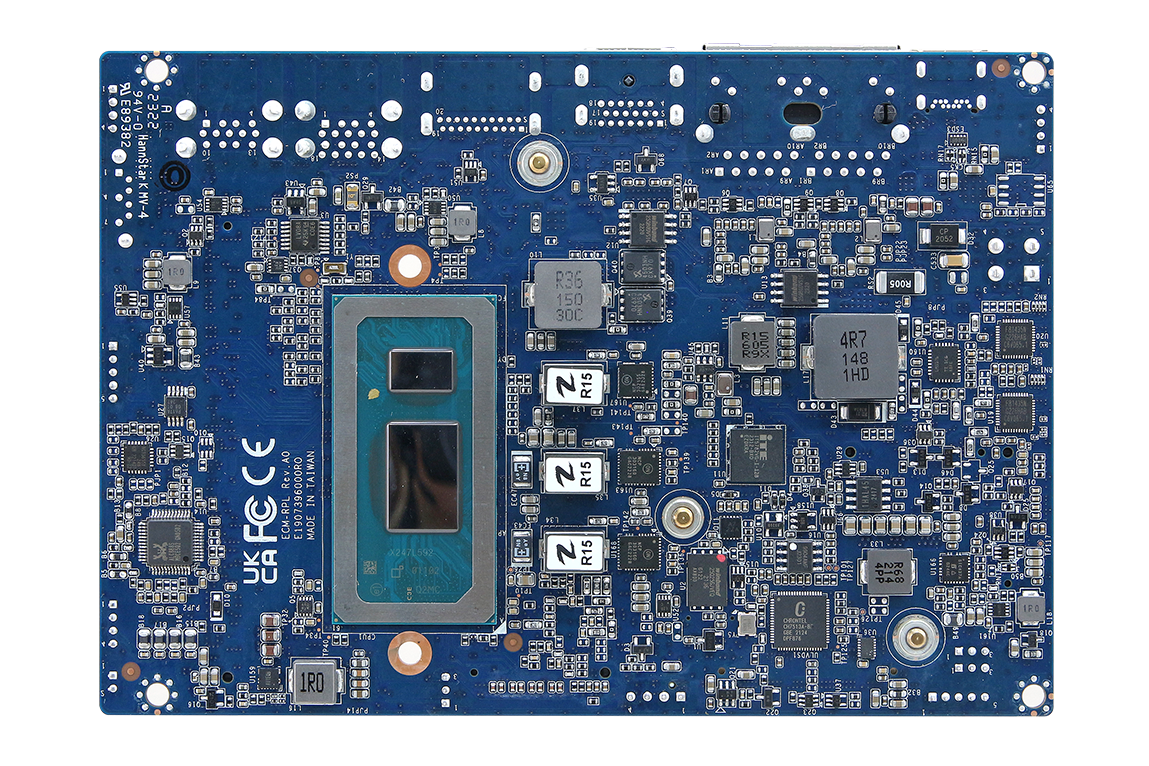

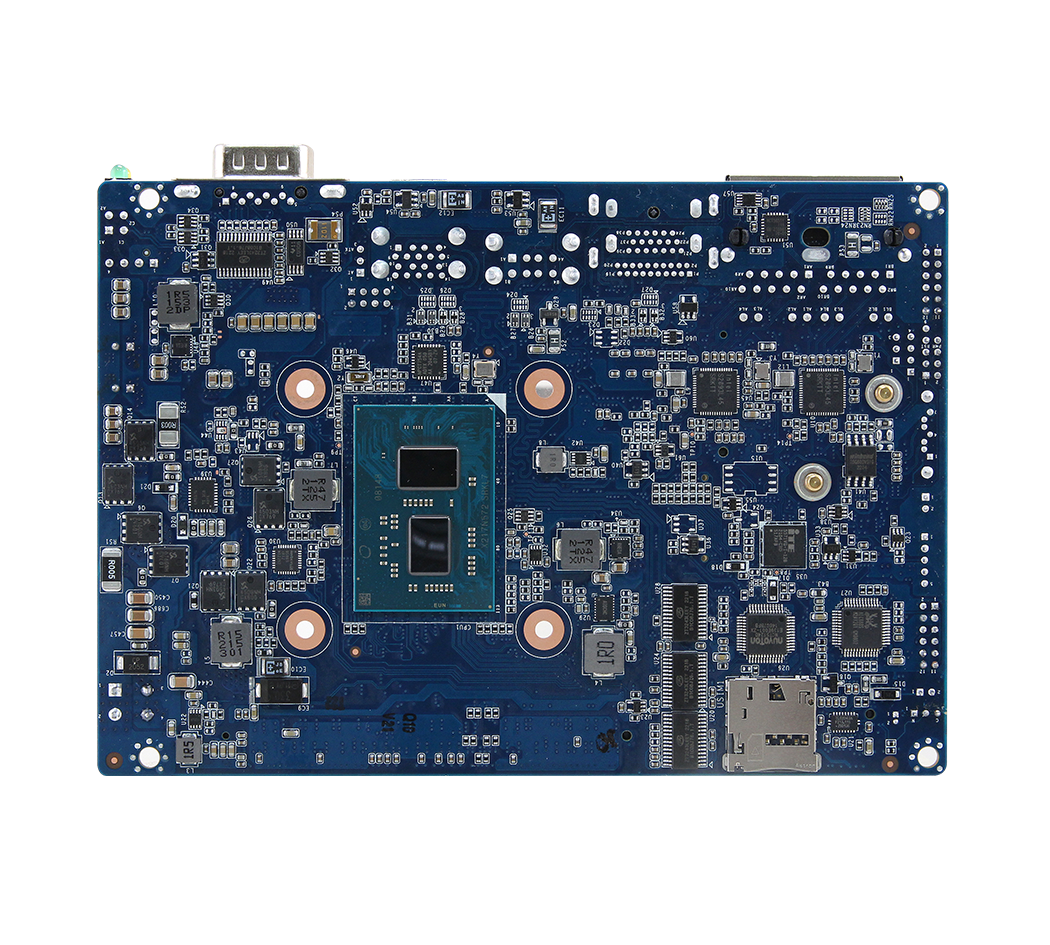

  • Bottom Layer Soldered Processor
  • One 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max. (non ECC only)
  • Four Display, 1 x DP++, 1 x HDMI, 1 x 2CH LVDS or eDP, 1 x USB Type C support DP
  • Expansion Slot, M.2 Key-B, M.2 Key-E, M.2 Key-M
  • Two Gigabit Ethernet, 2 x 2.5GbE
  • DC in +9V ~ +36V or USB Type C Adapter (20V) Note: DCIN & USB Type C Adapter Can Only Use Either One
  • 规格
  • 文档
  • 常见问题

产品规格

System Information

  • Processor

    13th Gen. Intel® Core™ i7/i5/i3/Pentium® BGA Processor, support Up to 15/28W Max

  • System Memory

    1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max. (non ECC only)

  • I/O Chipset

    EC iTE IT5782VG

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

  • BIOS

    AMI BIOS, 256Mbit SPI Flash ROM

  • H/W Status Monitor

    CPU & system temperature monitoring Voltages monitoring

  • TPM

    by BOM option: Onboard NuvoTon NPCT760AABYX/NPCT754AADYX (for extend temperature) supports TPM 2.0

  • Board

    3.5"

Expansion

  • Expansion

    1 x M.2 Type M 2280 (with 1 x PCIe Gen4 x4)
    1 x M.2 Type B 3042/3052/2242 (with SATA and USB 2.0, USB 3.0, with 1 x SIM card slot, supports WWAN+GNSS or SSD)
    * Only supports one SIM card (co-lay 1 x 10pin FPC connector for uSIM card adapter) support 5G (3.3V & 3.8V)
    1 x M.2 Type E 2230 support CNVi and WiFi 6E module (1 x PCIe x1 & USB 2.0 Signal)

Storage

  • Storage

    1 x M.2 (Type M, 2280)
    1 x M.2 (Type B, 3042/3052/2242)
    1 x SATA III

Display

  • Graphic Chipset

    Intel® UHD Graphics or Iris® Xe Graphics CPU integrated

  • Spec. & Resolution

    1 x DP 2.1 : Max 7680 x 4320@60Hz
    1 x HDMI 2.0b 4096 x 2160@30Hz 24bbp
    1 x USB Type C support DP: 4096 x 2304@60Hz 36bbp ,5120 x 3200@60Hz 24bbp
    1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP: 1920 x 1080@60Hz (2 Lanes), default LVDS
    Note: JLVDS1 Support 1 x LVDS or 1 x eDP

  • Multiple Display

    Four Display

  • LVDS

    1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP: 1920 x 1080@60Hz (2 Lanes) Default LVDS.
    Note: JLVDS1 Support 1 x LVDS or 1 x eDP

Audio

  • Audio Codec

    Realtek ALC888S HD Audio Decoding Controller

  • Audio Interface

    Line-in, Mic-in, Line-out

  • Audio Amplifier

    2 x 2W 4Ω Amplifier

Ethernet

  • LAN Chipset

    2 x Intel® I226LM for standard temperature/Intel® I226IT for extend temperature

  • Ethernet Interface

    10/100/1000/2.5G Base-Tx GbE compatible

  • LAN Port

    2 x RJ-45

Power Requirement

  • Power Mode

    AT/ATX (Default Setting: AT)

Software Support

  • OS

    Windows 11, Linux

Certification

  • Certification Information

    CE, FCC Class, RoHS Compliant

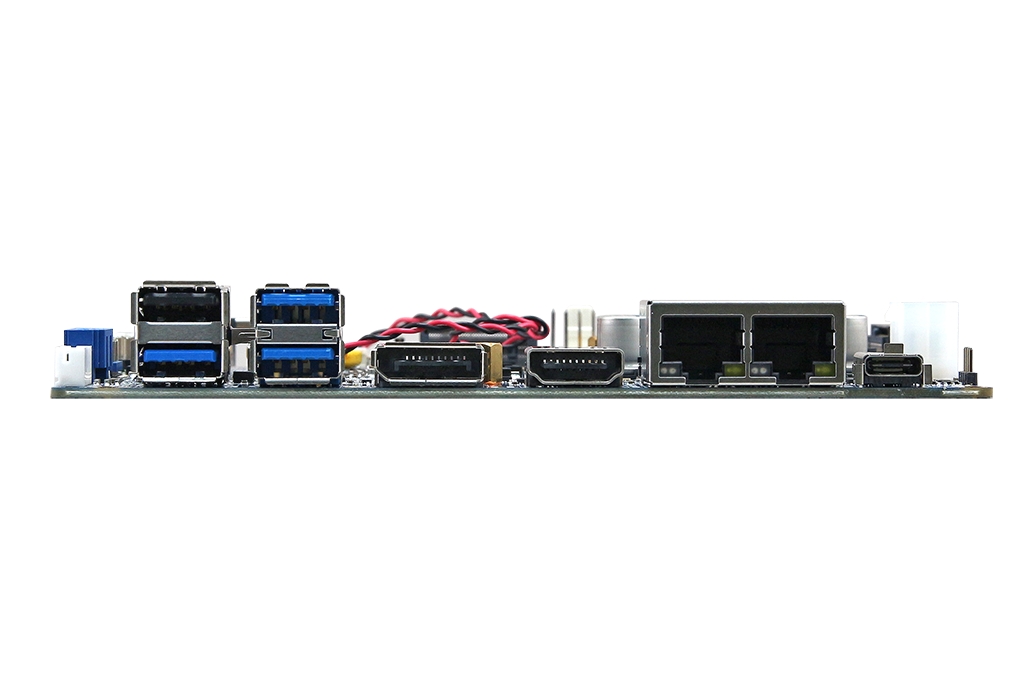

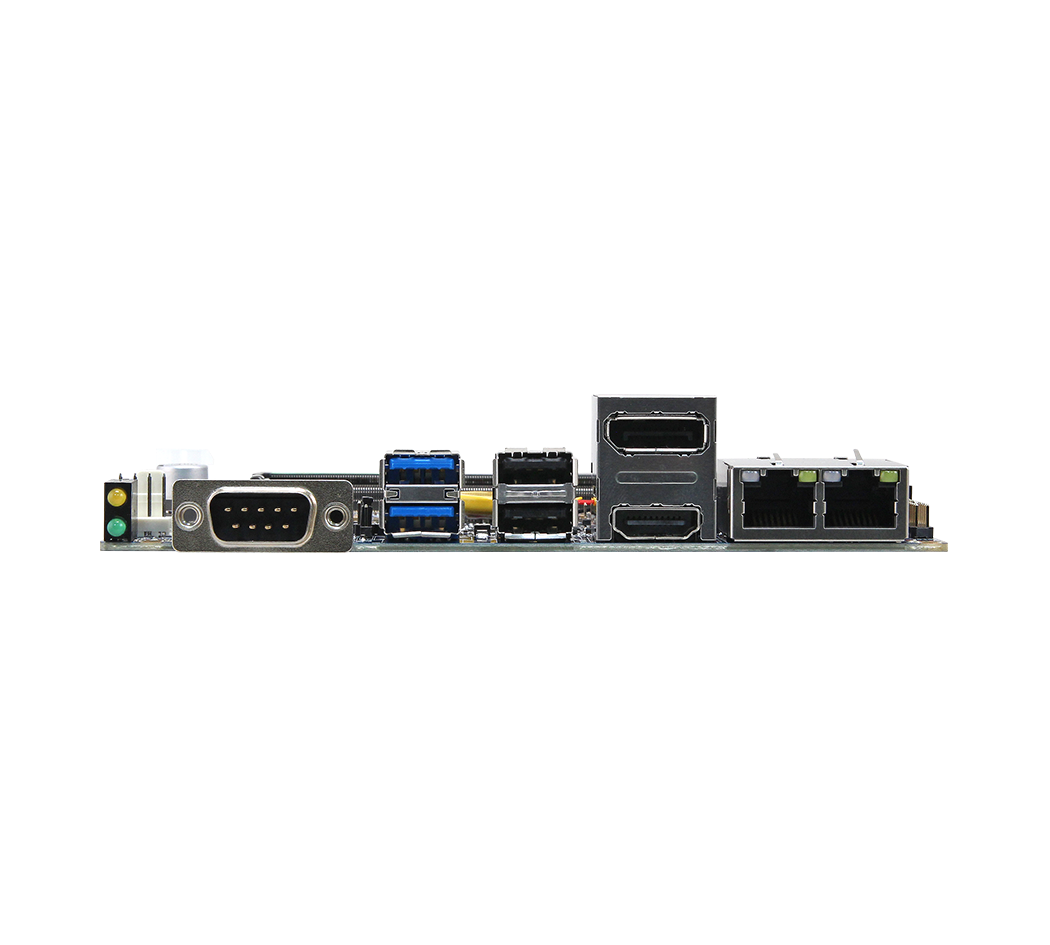

I/O

  • USB

    3 x USB 3.2 Gen2
    4 x USB 2.0
    1 x USB Type C support DP/USB 3.2 Gen 1, 5V x 3A

  • COM Port

    2 x RS-232/422/485

  • SATA

    1 x SATA III

  • DIO

    1 x 8-bit GPIO

  • MIO

    1 x eSPI
    1 x SIM Card Slot

Mechanical & Environmental

  • Operating Temp.

    Standard Temperature CPU SKU: 0°C ~ 60°C (-4~140°F) with 0.5m/s Air Flow
    Extend Temperature CPU SKU: -40°C ~ 70°C(-40~°158F) with 0.5m/s Air Flow for Wide Temp CPU SKU

  • Storage Temp.

    -40°C ~ 75°C (-40°F ~ 167°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    0.44lbs (0.2kg)

  • Power Requirement

    DC in +9V ~ +36V or USB type C Adapter (20V) Note: DCIN & USB type C Adapter can only use either one.

  • Dimension (L x W)

    5.7" x 4" (146mm x 101mm)

Ordering Information

  • Ordering Information

    ECM-RPL-300-A1R
    3.5" w/U300E/2COM/8USB/I226/15W/A1

    ECM-RPL-15S-A1R
    3.5" w/i3-1315UE/2COM/8USB/I226/15W/A1

    ECM-RPL-35S-A1R
    3.5" w/i5-1335UE/2COM/8USB/I226/15W/A1

    ECM-RPL-65S-A1R
    3.5" w/i7-1365UE/2COM/8USB/I226/15W/A1

    ECM-RPL-20S-A1R
    3.5" w/i3-1320PE/2COM/8USB/I226/28W/A1

    ECM-RPL-40S-A1R
    3.5" w/i5-1340PE/2COM/8USB/I226/28W/A1

    ECM-RPL-70S-A1R
    3.5" w/i7-1370PE/2COM/8USB/I226/28W/A1

    ECM-RPL-15W-A1R
    3.5" w/i3-1315URE/2COM/8USB/I226/15W/A1

    ECM-RPL-45W-A1R
    3.5" w/i5-1345URE/2COM/8USB/I226/15W/A1

    ECM-RPL-65W-A1R
    3.5" w/i7-1365URE/2COM/8USB/I226/15W/A1

    ECM-RPL-20W-A1R
    3.5" w/i3-1320PRE/2COM/8USB/I226/28W/A1

    ECM-RPL-50W-A1R
    3.5" w/i5-1350PRE/2COM/8USB/I226/28W/A1

    ECM-RPL-70W-A1R
    3.5" w/i7-1370PRE/6COM/8USB/28W/I226/B1
