Processor

NXP i.MX8M Cortex-A53 Quad Core 1.3GHz; Cortex-M4 core processor

System Memory

2GB DDR4/ (expandable to 4GB Max)

Storage

16GB eMMC / (expandable to 64GB Max)

Multiple Display

HDMI / LVDS / MIPI DSI

LAN Chipset

LAN 1: Intel I210
LAN 2: RTL8211

LAN Port

2 x RJ45

DC Input

DC 12 ~ 24V(for MIPI DSI)

OS

Android 9.0/ 10
Yocto 2.5

Certification Information

CE
FCC Class B

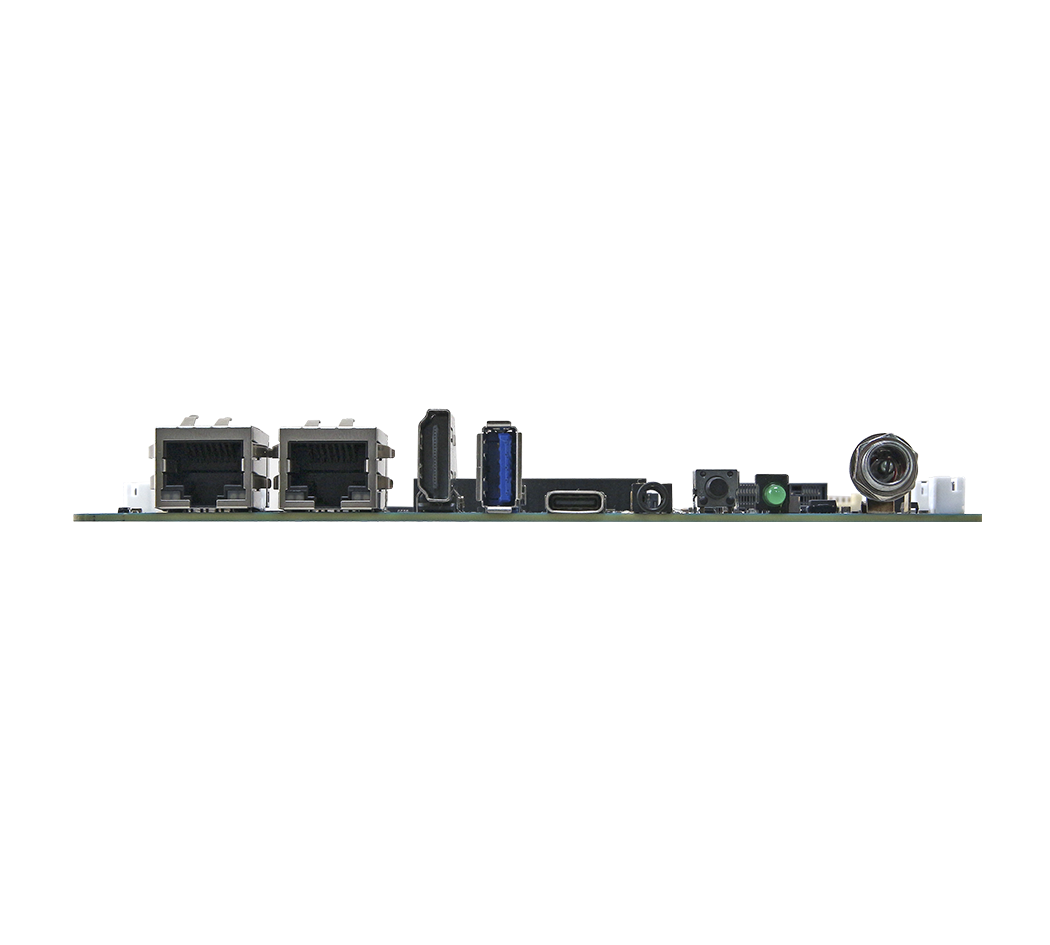

External I/O Connector

1 x USB 3.0 Type A
2x Gigabit LAN
1 x HDMI 2.0 In
1 x USB 3.0 Type C (Data only)
1 x Micro SD Slot
1 x Headphone Jack
1 x Reset
1 x Power LED
1 x DC Jack + 1 x 1x2P connector Power Connector Type

Internal I/O Connector

1 x Front Panel
1 x Backlight
1 x TAG
1 x MIPI CSI
1 x LVDS
1 x I2C
1 x USB2.0 (1x5P Header)
2 x M.2 Key E Socket (For WIFI/BT)/ M.2 Key B Socket + SIM Socket (For LTE)
2 x Speaker out (1x2P Header )
1 x Line-Out
1 x Power LED
1 x RTC battery
1 x SIM card slot
1 x Mic-In
1 x Extend connector(for option Expansion I/O board for RS232/485/GPIO/CAN)

Operating Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Dimension (L x W)

146 x 102 mm

Weight

0.15 kg

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Ordering Information

RSC-IMX8M-3W-A300R : 3.5" NXP i.MX8MQ, 2GB LPDDR4, 16GB eMMC, GLANx2, A03 (-40~85 Degree)
RSC-IMX8M-9W-A300R : Expansion I/O board RS232/485/GPIO, A02(-40~85 Degree)
