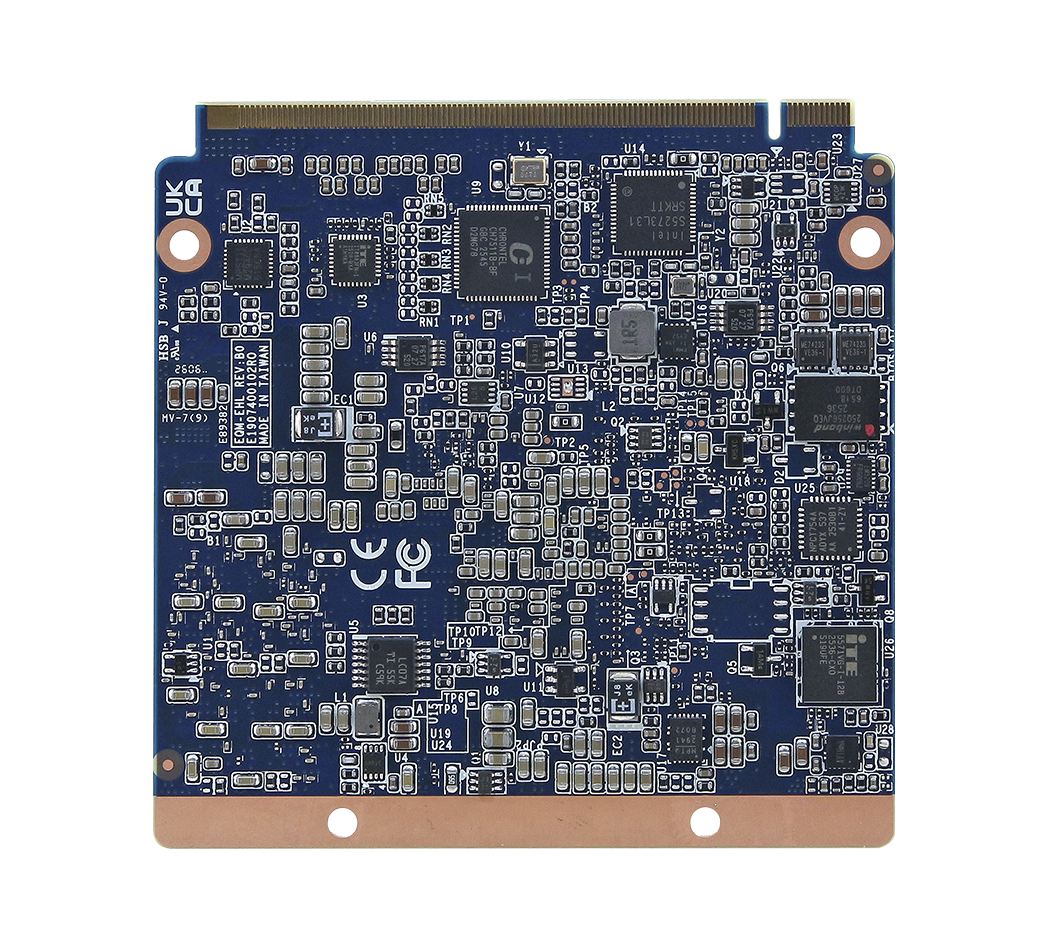

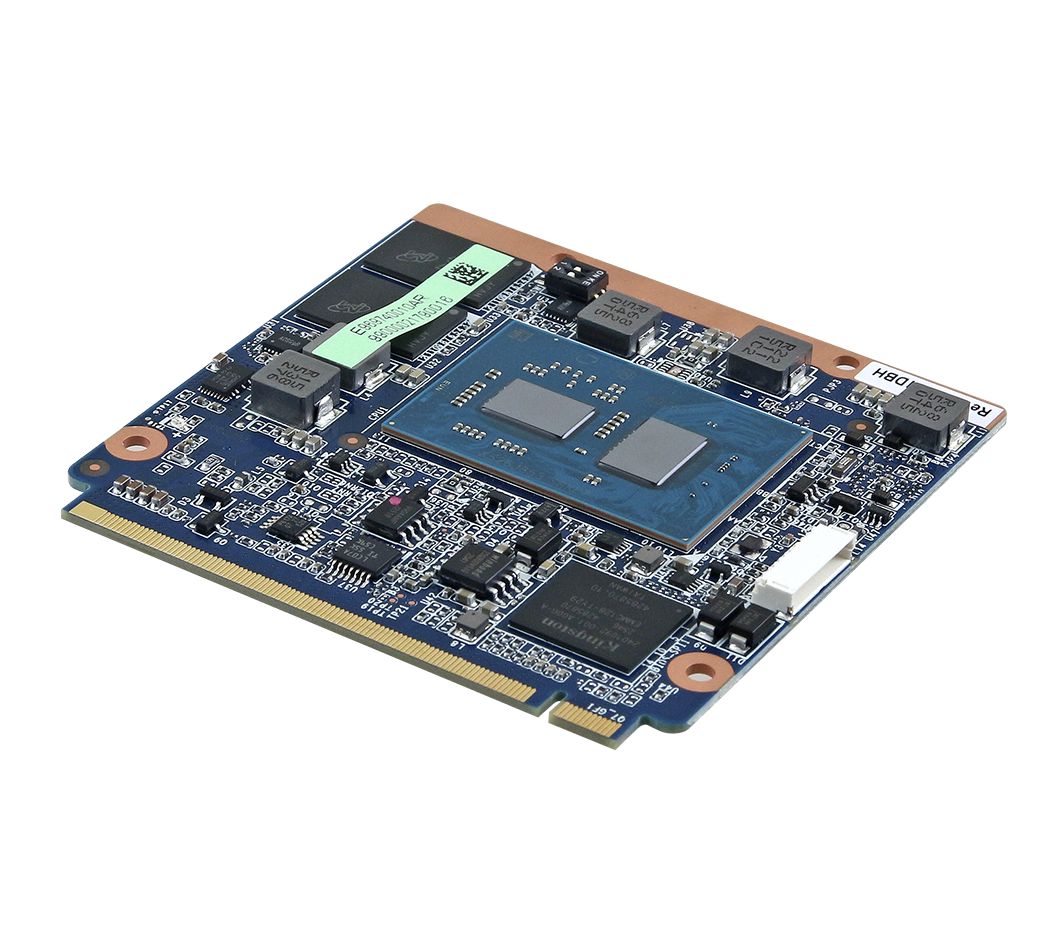

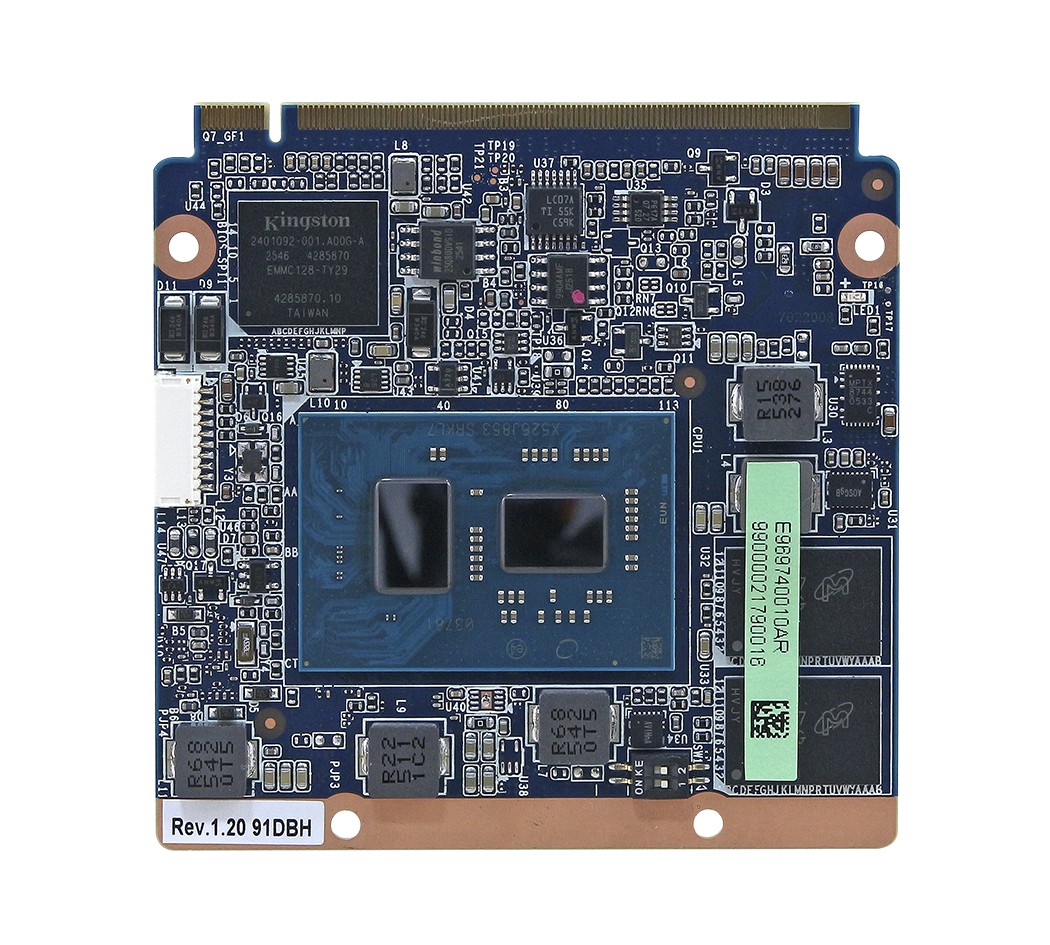

Processor

Intel® Celeron® SoC Processor

System Memory

On board Single channel LPDDR4 8GB with 3200MT/s

I/O Chipset

EC iTE IT5571

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

H/W Status Monitor

Monitoring System Temperature, Voltage with Auto Throttling Control

TPM

Onboard TPM 2.0

Expansion

4 x PCIe x1 (Gen 3)

Storage

Onboard eMMC 5.1 128 GB

Graphic Chipset

Intel® SoC Processor Integrated Gen11 LP Graphics

Spec. & Resolution

DP 1.4 Max Resolution 4096x2160 @60Hz or HDMI 2.0b Max Resolution 4096x2160 @60Hz
eDP 1.3 Max Resolution 4096x2160 @60Hz Only
or LVDS Max Resolution 1920 x 1080@60Hz Dual Channel 18/24-bits LVDS (Chrontel CH7511A-BF eDP to LVDS)
*By BOM Option Via HW/BIOS, Refer to Block Diagram for Detail.

Multiple Display

Up to 2 Independent Display
HDMI
DP
eDP
LVDS

LVDS

CH7511B(eDP to LVDS)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I226LM

Ethernet Interface

10/100/1000/2500 Base-Tx GbE Compatible

OS

Windows 10, Windows 11 IoT Enterprise (64-bit)
Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

1 x USB 3.2 Gen1
8 x USB2.0

COM Port

1 x UART

PCIe

4 x PCIe x1 (Gen 3)

SATA

2 x SATA III

MIO

1 x SMBus
1 x LPC
1 x I2C
1 x SDIO
1 x SD
1 x SPI

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.095lbs (0.043Kg)

Power Requirement

+5V

Power Mode

ATX

Dimension (L x W)

2.75" x 2.75" (70mm x 70mm)

Ordering Information

EQM-EHL-N6211-B1R Intel®Celeron® N6211 Q7/ 8G LPDDR4/ 128GB eMMC/ 0°C ~ 60°C
EQM-EHL-J6413-B1R Intel®Celeron® J6413 Q7/ 8G LPDDR4/ 128GB eMMC/ 0°C ~ 60°C
REV-Q703-B1-01R Mini ITX Evaluation Carrier Board for Q7 Rev.2.1 B1 (For EQM-TWL, EQM-EHL, EQM-EHL-B1 & EQM-APL)
E1961211065012R Heatsink for EQM-EHL-B1 w/o Fan, H=20mm, Standard Temp. SKUs (N6211, J6413)
