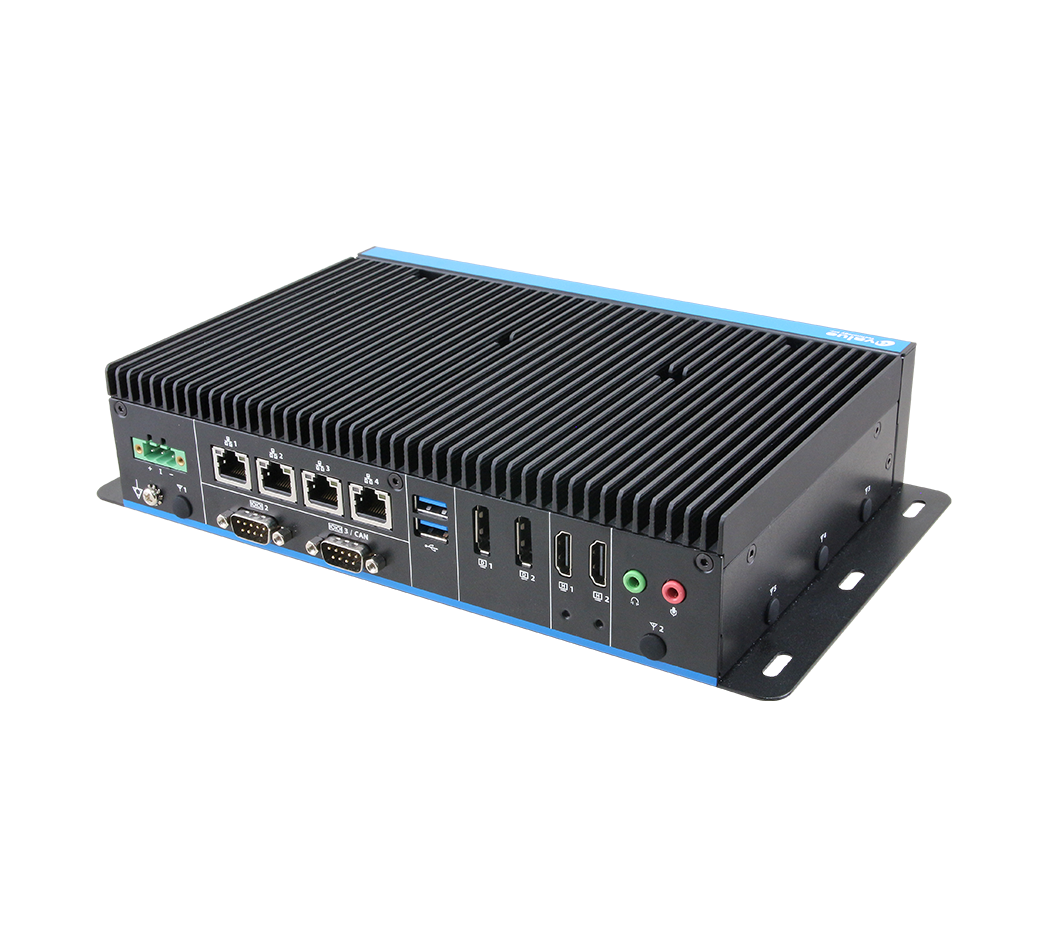

Processor

Intel® 13th Rapter Lake/12th Alder Lake PS-series Core i7/i5/i3/Celeron® Processor

System Memory

2 x 262-Pin SODIMM Socket Max. Up to 64GB DDR5 4800MHz (non ECC only)

BIOS Information

AMI UEFI BIOS, 256Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

CPU & System Temperature monitoring
Voltage monitoring

RAID

Support RAID 0/1

TPM

TPM 2.0

iAMT

Depends on sku

M.2

1 x M.2 Key-E 2230 (1 x PCIex1 + USB2.0) supports Wi-Fi & BT Module
1 x M.2 Key-B 3042/3052 (1 x PCIex1 + USB3.2) w/ SIM slot2(external)

mPCIe

1 x Full Size Mini PCIe (1 x PCIex1 + USB2.0) w/ SIM slot2(external)

M.2

1 x M.2 Key-M 2280 (1 x PCIex4) NVMe

2.5 Drive Bay

2 x 2.5” Drive Bay (SATA III, Max. up to 15mm Height Storage), RAID 0/1 supported

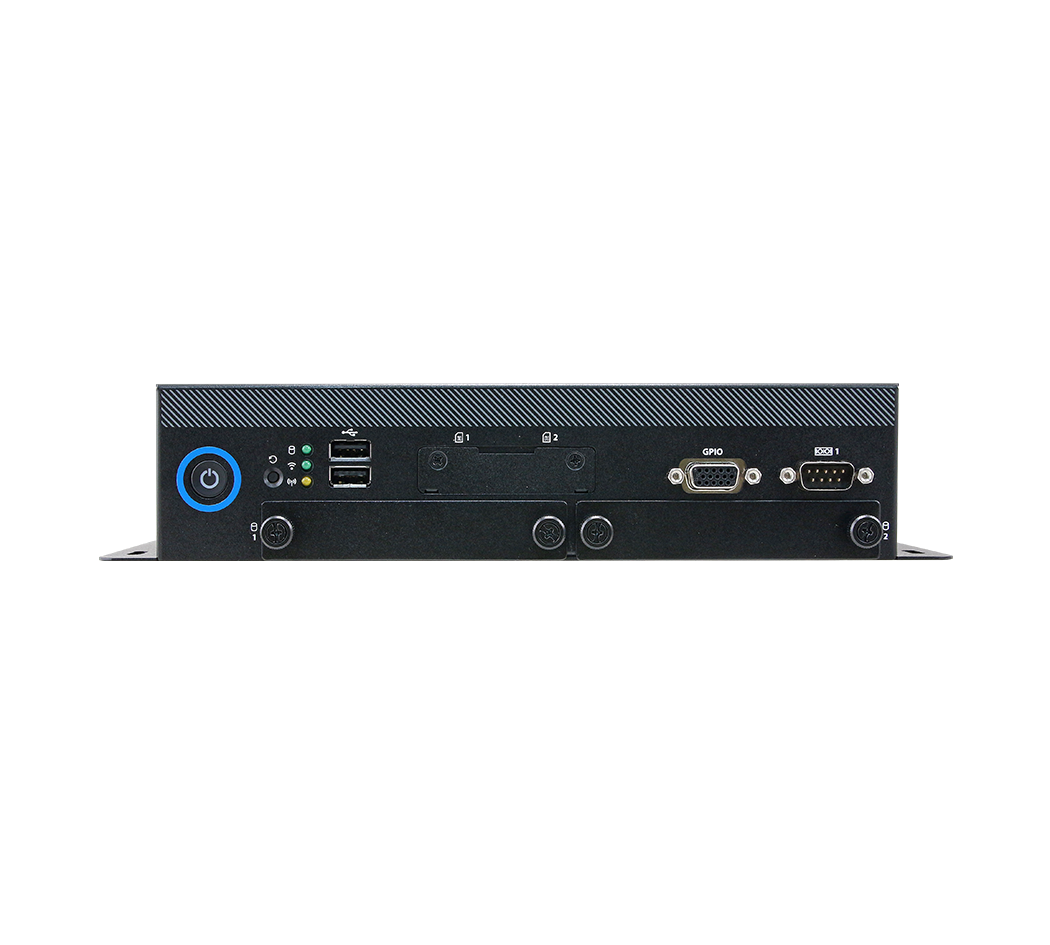

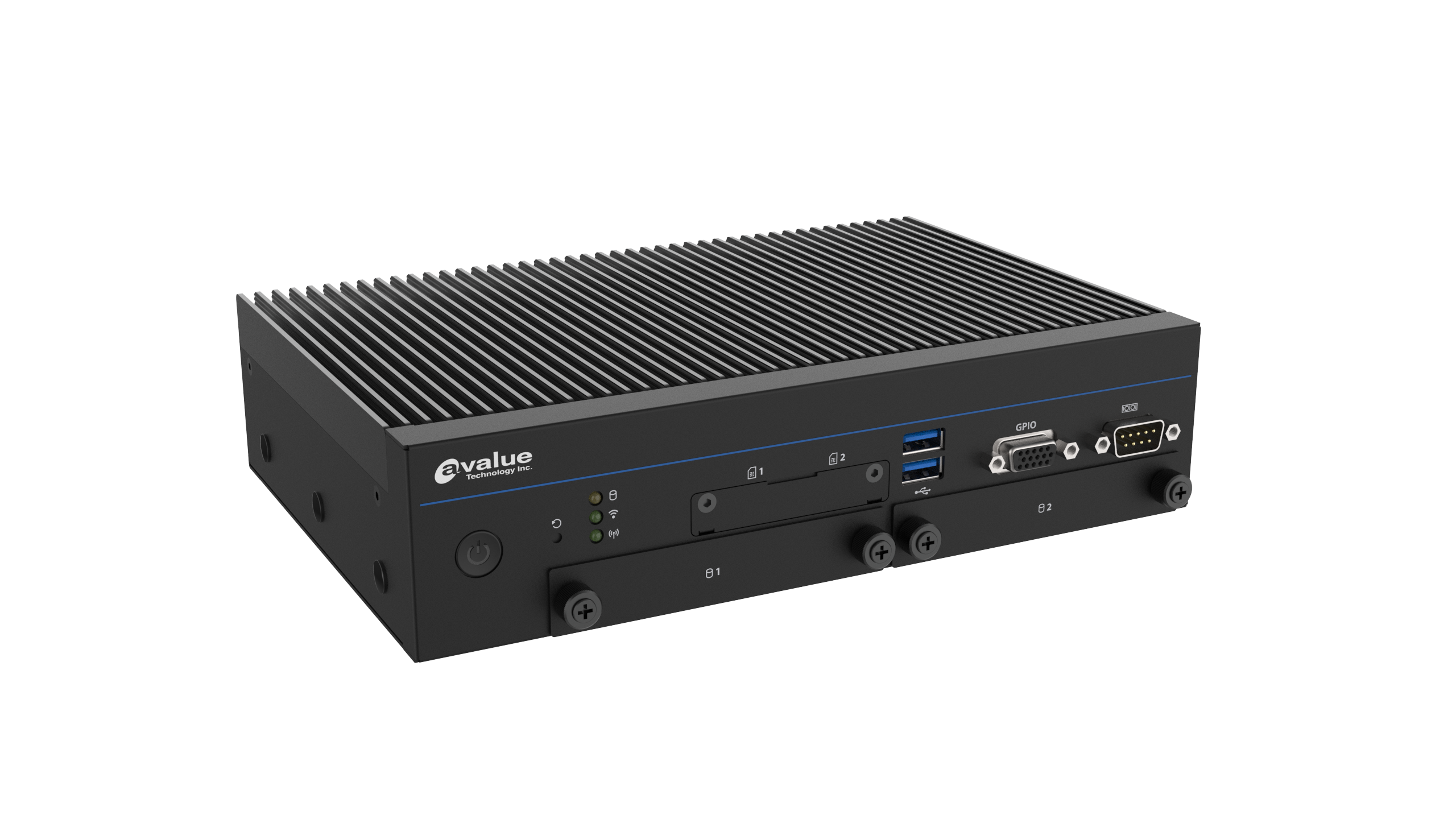

USB

2 x USB 2.0

Power Button

1 x Push Button for Power on/off w/ LED(Blue)

Reset Button

1 x Push Button for Reset in hiding

COM Port

1 x RS232/422/485(Jumper + DIP switch), support auto-flow

LED Indicator

1 x LED indicators for Storage (Yellow) - M.2 M-key PCIe Storage
1 x LED indicators for LTE (Green) - M.2 B-key
1 x LED indicators for Wi-Fi (Green) - M.2 E-key

SIM Slot

2 x SIM Card Slot (External Accessible w/Dust Protection Cover)

Digital I/O

1 x 10-bits GPIO
(5 x DI (9~60V) and 5 x DO (30V/200mA)), SW control

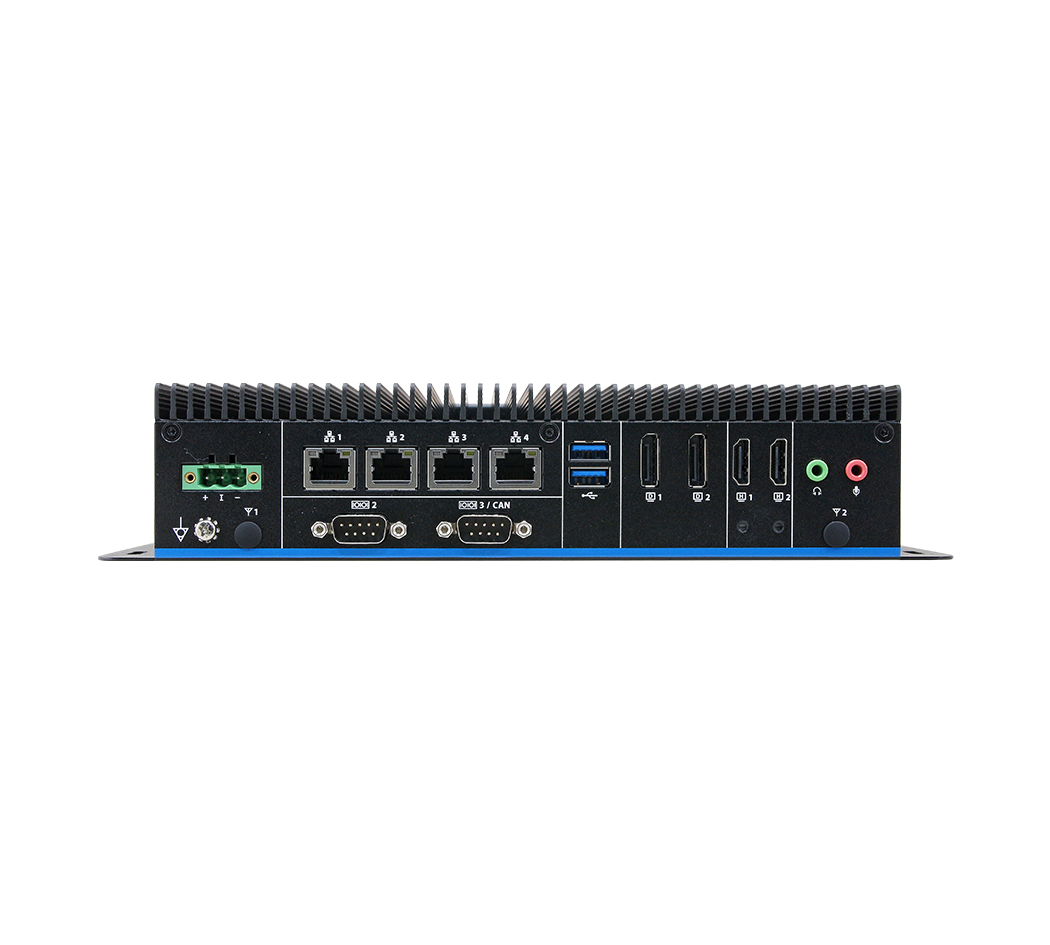

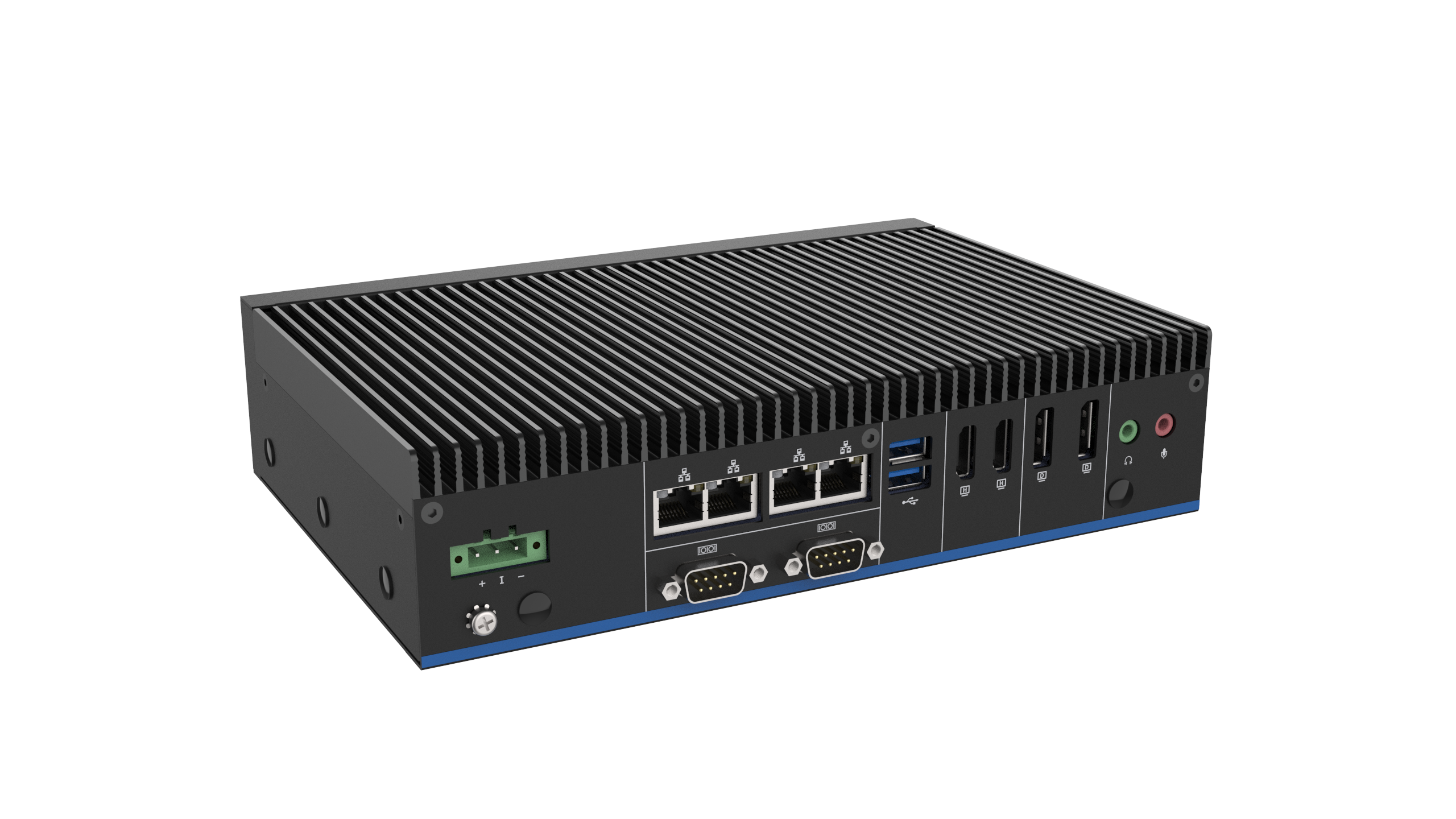

USB

2 x USB 3.2 Gen.2

COM Port

2 x RS232/422/485(Jumper + DIP switch), support auto-flow (COM2/3 via Cable)

LAN Port

4 x RJ-45 (4 x PoE Available for BOM option)

Audio

1 x Line-Out
1 x Mic-In

DP

2 x DP++ 1.4

HDMI

2 x HDMI 2.0

Antenna

2 x Antenna Mounting w/Dust Protection Cover

Antenna

3 x Antenna Mounting w/Dust Protection Cover

Antenna

3 x Antenna Mounting w/Dust Protection Cover

Chipset

u-blox NEO-M9N GNSS LCC module with Untethered Dead Reckoning and onboard sensors.

Protocol

BeiDou, Galileo, GLONASS, GPS / QZSS

Graphic Chipset

Intel® Iris® Xe Graphics (i7-1265UL/ i5-1245UL)
Intel® UHD Graphics (i3-1215UL/Celeron® 7305L)

Resolution

HDMI 2.0: Max. resolution 4096 x 2304 @ 60Hz
DP++ 1.4a: 4096x2304 @ 60Hz (DP to HDMI cable can’t support 4K @ 60Hz, Max. up to 1920x1080 (60Hz))

Audio Codec

Realtek ALC888S co-lay ALC897 (Default: ALC888S)

LAN Chipset

4 x Intel® I226IT 2.5 Gigabit Ethernet

Specification

4 x 10/100/1000/2.5G Base-Tx GbE compatible

Voltage Input Spec.

Typical 12/24/48 Vdc ( +9 ~ 60Vdc )

Voltage Input Connector

1 x 3-Pin Terminal Block for DC Power Input

ACPI

Single Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant

Power Mode

Vehicle Power Mode (Default Setting)/Industrial PC Power Mode
AT / ATX mode Switchable Through Jumper

OS

Win 10/Win 11/Linux

Certification Information

CE, FCC Class A, E24 Mark, ISO 7637-2, IP50

Operating Temp.

Standard System: -40°C ~ 70°C (-40°F ~ 158°F) with 0.5m/S air flow, extended temperature peripherals (Factory option)
System with PoE: -40°C ~ 60°C (-40°F ~ 140°F) with 0.5m/S air flow, extended temperature peripherals (Factory option)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 185°F)

Operating Humidity

5% ~ 90% Relative Humidity, Non-condensing

Dimension (W x L x H)

239.4 x 160 x 55 mm (TBD)

Weight

3kg (TBD)

Vibration Test

Operating with SSD : MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
Storage with SSD : MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock Test

Operating with SSD : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G
Non-Operating with SSD : MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75G

Drop Test

Package drop test
Reference ISTA 2A, Method : IEC-60068-2-32 Test : Ed
Test phase : One corner, three edges, six faces

IP Rating

IP50

Mounting Kit

Wall mount kit (Standard)
