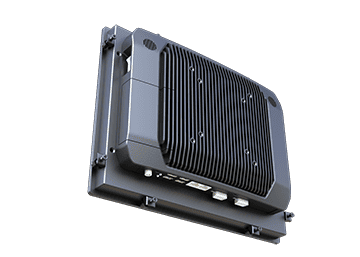

Processor

11th Generation Intel® Core™ i3/i5/i7 Processors
Intel® Core™ i3-1115G4E Processor, 6M Cache, up to 3.00 GHz
Intel® Core™ i5-1145G7E Processor, 8M Cache, up to 2.60 GHz
Intel® Core™ i7-1185G7E Processor, 12M Cache, up to 2.80 GHz

System Memory

1 x 260-pin SODIMM socket max. up to 32GB DDR4 3200MT/s

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

TPM

Onboard NuvoTon NPCT754AABYX support TPM 2.0

SBC

ARC-TGL

CPU Cooler (Type)

Fanless heatsink

Other

7 x Knockouts for antenna mounting
*5 from rear cover + 2 from IET bracket

Expansion

1 x M.2 Key-B 2242/3042/3052 with SIM card slot
Support SATA3 / PCIe & USB for LTE(4/5G) / NVMe(BOM option for PCIex 2)

1 x M.2 Key-E 2230
Support PCIe/USB/CNVi Wi-Fi/BT module

1 x 80-pin IET interface

Storage

1 x 2.5 Drive bay (7mm HDD restricted)

Graphic Chipset

Intel® Tiger Lake UP3 SoC integrated graphics
supports optional dual display

Spec. & Resolution

HDMI: Max. Resolution 4096x2160 @ 24Hz (optional by IET module)

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® I225LM 2.5 Gigabit Ethernet

Ethernet Interface

Intel® I219LM : 10/100/1000 Base-Tx GbE compatible
Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win10 / Win11 / Linux

Certification Information

CE / FCC Class B / VCCI

LCD Size

12.1", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.240mm (H) x 0.240mm (V)

Luminance

600 cd/m2

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

13 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89%

Touch Controller

USB touch (EETI)

USB

4 x USB 3.2

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485
1 x RS-232

SATA

1 x SATA III

LED Indicator

HDD LED, power LED

Operating Temp.

-10°C ~ 50°C (14°F ~ 122°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

292.86 x 225.4 x 51.5mm

Weight

2.4 Kg

Vibration Test

With SSD/mSATA : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30 mins/axis

Shock Test

Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65
Back cover IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Die cating with cover lens

Construction - Rear

Black die casting

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 72W adapter (19V @ 3.78A adapter) AC-DC adapter

Ordering Information

ARC-1238-57E-B1-1R
12.1 1024x768 Industrial PCAP Touch Panel PC, ErP Design, (ALC888S)
11th Gen Intel Core i5-1145G7E 1.50 GHz CPU/ 2GLAN/2COM/4USB/SPK/12~24V input/19V Adapter

Optional IET Module list:

ACC-ARC-USB-01R
4 x USB 3.0 IET module for ARC-1535/1538

ACC-ARC-AUDIO-01R
HDMI + 5.1 CH audio IET module for ARC-1535/1538

ACC-ARC-MPCIE-02R
HDMI + MPCIE w/SIM IET module for ARC-1535/1538

ACC-ARC-COM-01R
2 x Isolated RS-232 IET module for ARC-1535/1538

ACC-ARC-COM-02R
3 x RS-232 IET module for ARC-1535/1538

ACC-ARC-COM-03R
2 x RS-232 + USB IET module for ARC-1535/1538

ACC-ARC-COM-04R
2 x RS-232 + LAN IET module for ARC-1535/1538

ACC-ARC-GPIO-01R
12-bit GPIO + 2-pin CAN bus IET module for ARC-1535/1538

ACC-ARC-OBDII-01R
OBDII - CAN bus IET module for ARC-1535/1538 (OBDII/EOBD for small vehicle)

ACC-ARC-OBDII-02R
OBDII - CAN bus IET module for ARC-1535/1538 (J1939J1708 for large vehicle)

ACC-ARC-OBDII-03R
OBDII - CAN bus IET module for ARC-1535/1538 (ISO15765-4 for special large vehicle)


E1702031835R
USA Power Cord

E170203183DR
EU Power Cord

E170203183BR
Japan Power Cord

E170203183ER
UK Power Cord

E1702031800R
Australia Power Cord
