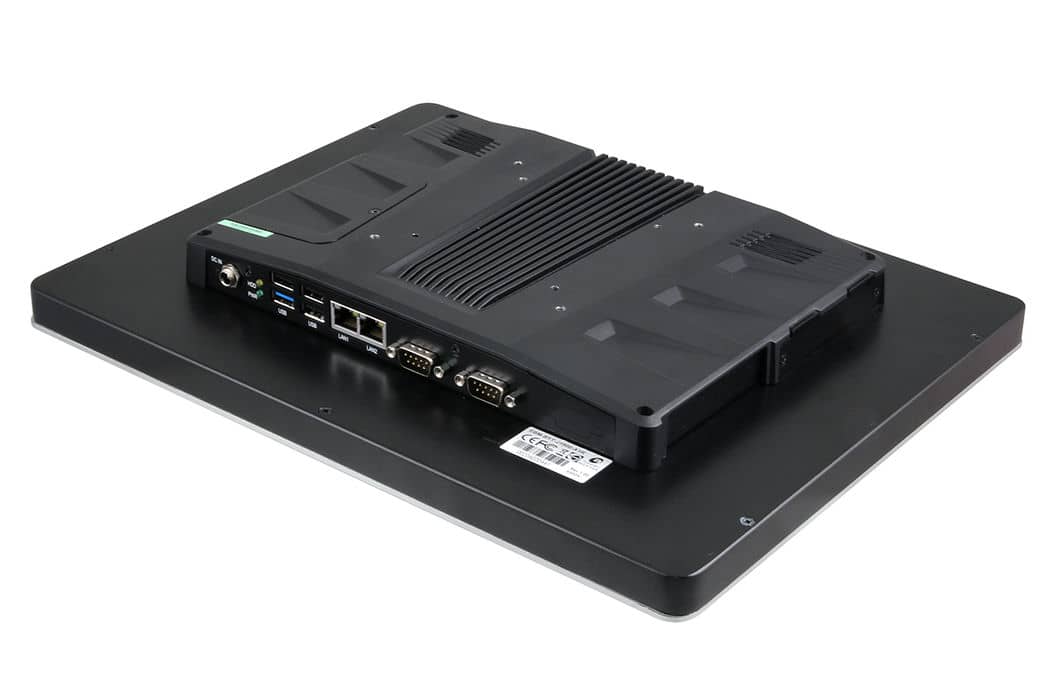

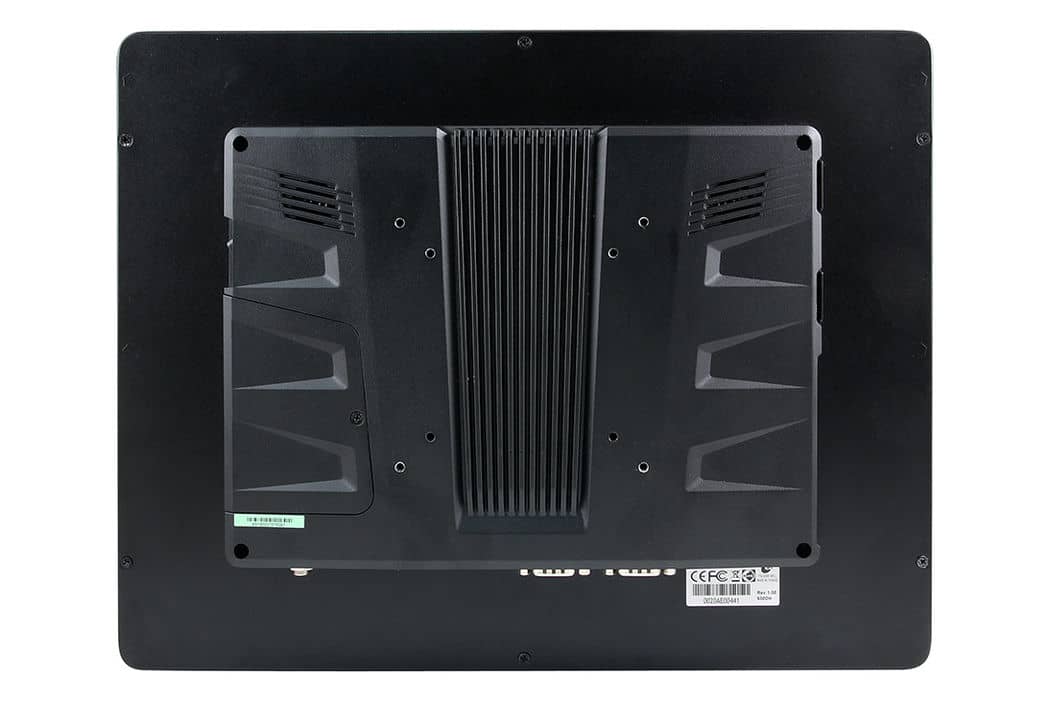

Processor

Intel Atom® Processor E3845, 2M Cache, 1.91 GHz

System Memory

1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

ARC-BYT

CPU Cooler (Type)

Fanless heatsink

Other

3 x Knockouts for antenna mounting

Expansion

1 x Mini PCIe support mSATA
1 x 80-pin IET interface

Storage

1 x 2.5 Drive bay(7mm HDD restricted)

Graphic Chipset

Intel® Valleyview SoC integrated graphics
supports optional dual display

Spec. & Resolution

HDMI: Max. Resolution 1920x1200 @ 60Hz
(optional by IET module)

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

LAN Chipset

2 x Intel® I210IT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win 7/ Win10 / Linux / Android 8.1

Certification Information

CE / FCC Class B

LCD Size

15", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

500 cd/m2

Contrast ratio

2500

Viewing angle

88 (U), 88 (D), 88 (L), 88 (R)

Response time

16 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80 %

Touch Controller

Onboard USB touch (PenMount)

USB Port

1 x USB 3.0
3 x USB 2.0

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485
1 x RS-232

SATA

1 x SATA II

LED Indicator

HDD LED, power LED

Operating Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

350 x 274 x 49.8mm

Weight

3.7 Kg

Vibration Test

With SSD/mSATA : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

Shock Test

Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65
Back cover IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Black die casting

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter

Ordering Information

ARC-1509-384-A3R
Intel Atom SoC E3845 1.91GHz/4G DDR3L/2GLAN/2COM/4USB/12~26V Input/12V Adaptor/D1-stepping

ARC-1509-WMB-A3R
15 1024x768 Industrial Touch Panel PC, ErP Design/ Back panel Mount (D1 stepping CPU)
Intel Atom SoC E3845 1.91GHz CPU/4G DDR3L/2GLAN/2COM/4USB/SPK/12~26V input/12V Adapter

Optional IET Module list:

ACC-ARC-USB-1R
4 x USB 3.0 Kit for ARC Series

ACC-ARC-AUDIO-1R
HDMI + 5.1 CH Audio Kit for ARC Series

ACC-ARC-MPCIE-1R
HDMI + MPCIE w/SIM Kit for ARC Series

ACC-ARC-COM-1R
2 x Isolated RS-232 Kit for ARC Series

ACC-ARC-COM-2R
3 x RS-232 Kit for ARC Series

ACC-ARC-COM-3R
2 x RS-232 + USB Kit for ARC Series

ACC-ARC-COM-4R
2 x RS-232 + LAN Kit for ARC Series

ACC-ARC-GPIO-1R
12-bit GPIO + 2-pin CAN Bus Kit for ARC Series

ACC-ARC-OBDII-1R
OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)

ACC-ARC-OBDII-2R
OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)

ACC-ARC-OBDII-3R
OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)


E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
