AVAILABLE

ARC-1509-B

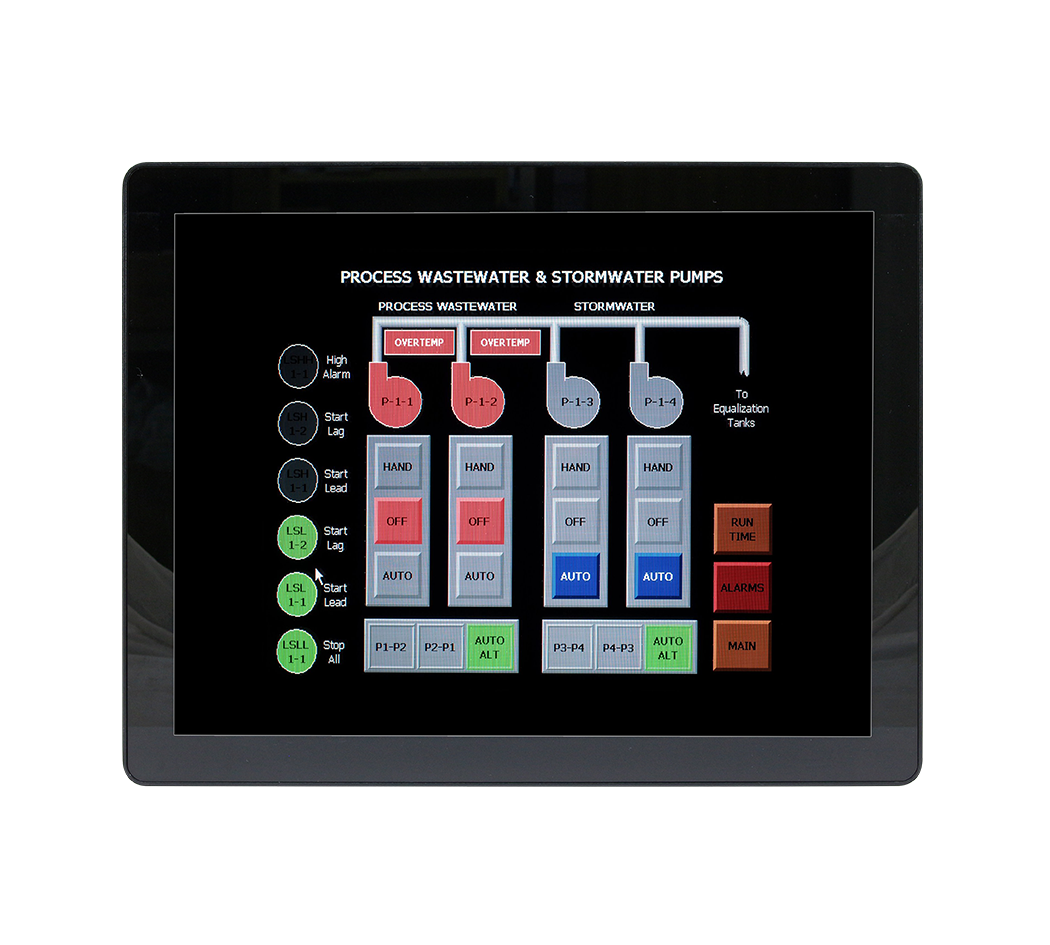

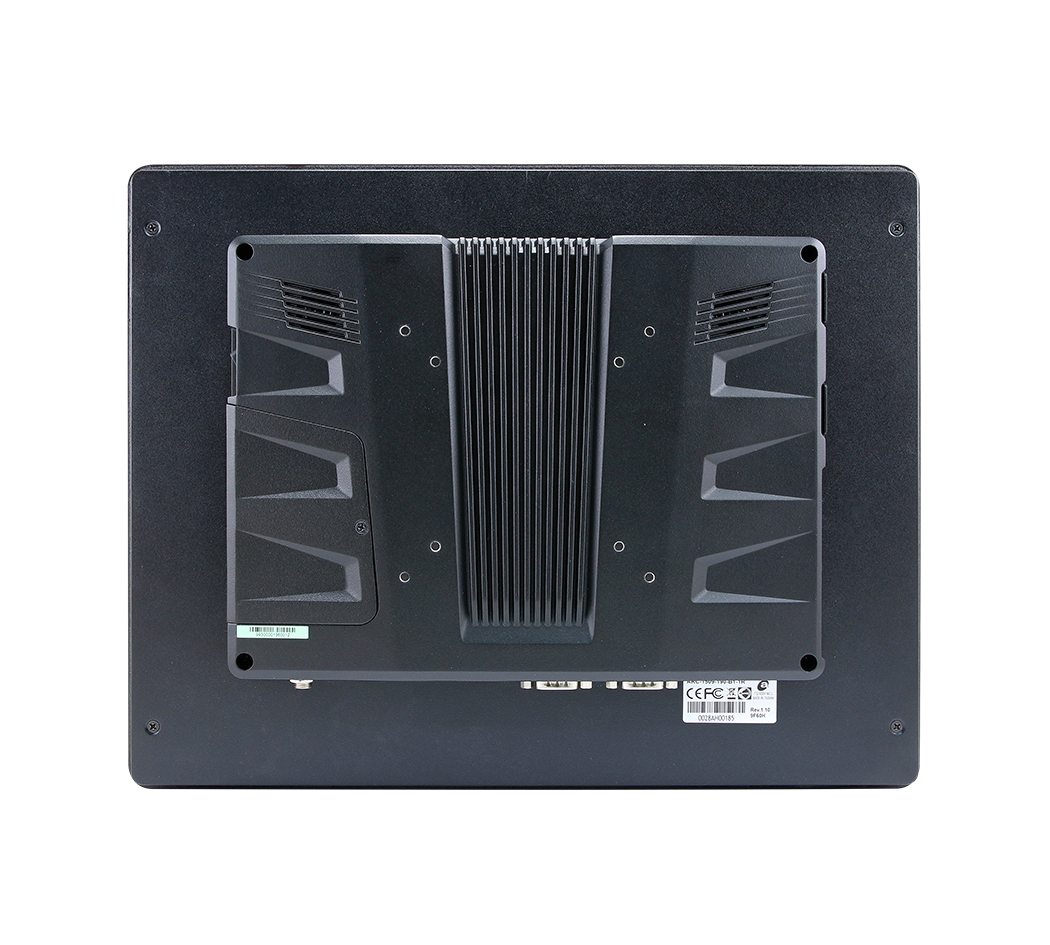

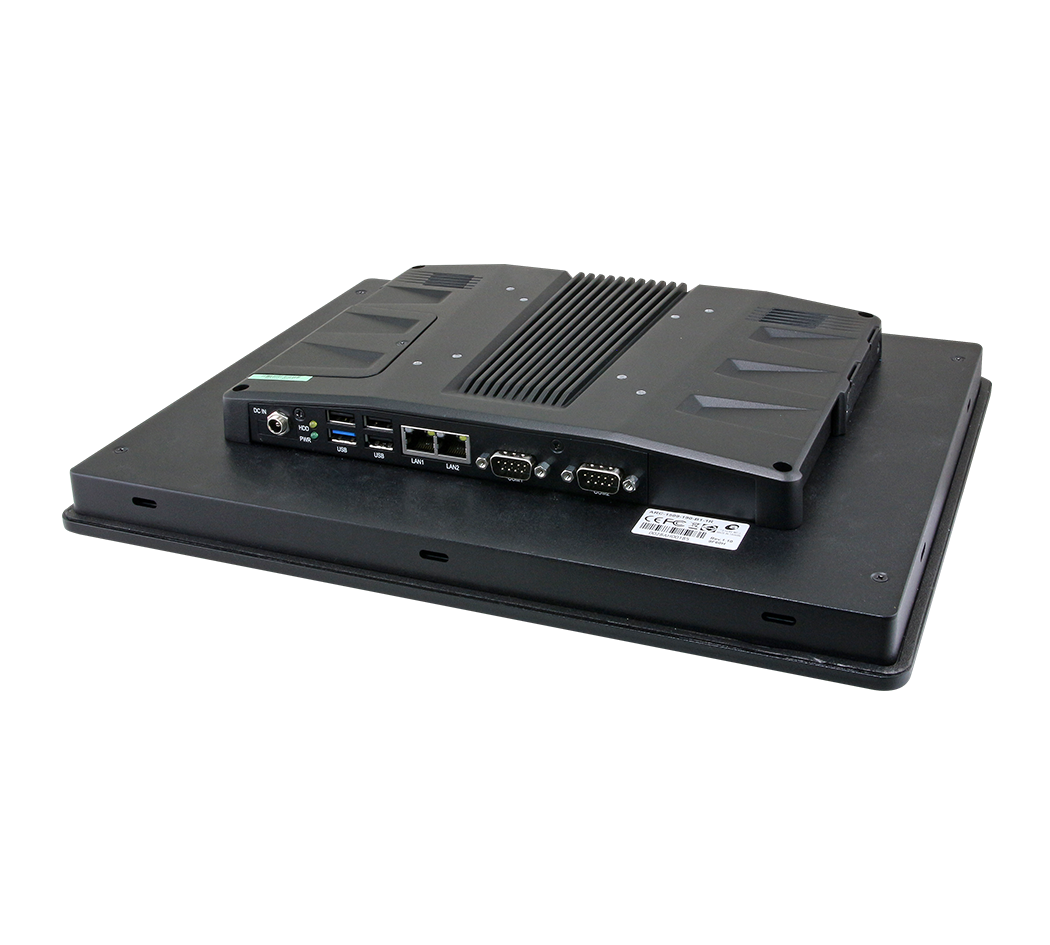

15" Intel® Celeron® Processor J1900 Fanless Rugged Touch Panel PC with IET Expansion

Get a Quote

Comparison

データシート

Get a Quote

Comparison

データシート

  • Intel® Celeron® Processor J1900
  • Full flat front panel with projected capacitive touch supports multi touch
  • One 204-pin DDR3L SODIMM socket supports up to 8GB DDR3L 1333 SDRAM
  • 4 USB, 2 COM
  • Dual Intel I210AT Gigabit LAN
  • Wide voltage +12V ~ +26V input, ErP power
  • Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
  • IP65 compliant front panel, IP41 rear box
  • With panel mount kits included
  • TPM 1.2 function (optional)
  • 仕様
  • ドキュメント
  • FAQ

製品仕様

System Information

  • Processor

    Intel® Celeron® Processor J1900, 2M Cache, up to 2.0 GHz

  • System Memory

    1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB

  • I/O Chipset

    EC ITE IT8528E

  • Watchdog Timer

    H/W reset, 1sec. ~ 65535sec. and 1sec./step

  • H/W Status Monitor

    Monitoring CPU & system temperature and voltage

  • SBC

    ARC-BYT

  • CPU Cooler (Type)

    Fanless heatsink

  • Other

    3 x Knockouts for antenna mounting

Expansion

  • Expansion

    1 x Mini PCIe support mSATA
    1 x 80-pin IET interface

Storage

  • Storage

    1 x 2.5 Drive bay (7mm HDD restricted)

Display

  • Graphic Chipset

    Intel® Valleyview SoC integrated graphics
    supports optional dual display

  • Spec. & Resolution

    HDMI: Max. Resolution 1920x1200 @ 60Hz
    (optional by IET module)

Audio

  • Audio Codec

    Realtek ALC888S

  • Speaker Output

    2 x 2W

Ethernet

  • LAN Chipset

    2 x Intel® I210AT

  • Ethernet Interface

    10/100/1000 Base-Tx GbE compatible

Power Requirement

  • DC Input

    +12V ~ +26V

  • DC Input Connector

    Lockable DC Jack (default)
    Optional for phoenix connector

  • ACPI

    Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

  • OS

    Win 7/ Win10 / Linux / Android 8.1

Certification

  • Certification Information

    CE / FCC Class B

Panel

  • LCD Size

    15", 4:3

  • Display Type

    XGA

  • Resolution

    1024 x 768

  • Pixel pitch

    0.297mm(H) x 0.297mm(V)

  • Luminance

    300 cd/m2

  • Contrast ratio

    2000

  • Viewing angle

    88 (U), 88 (D), 88 (L), 88 (R)

  • Response time

    16 ms

  • Backlight

    LED

  • Touch Type

    Projective capacitive multi-touch up to 10 points

  • Touch Light Transmission

    89 %

  • Touch Controller

    USB touch (EETI)

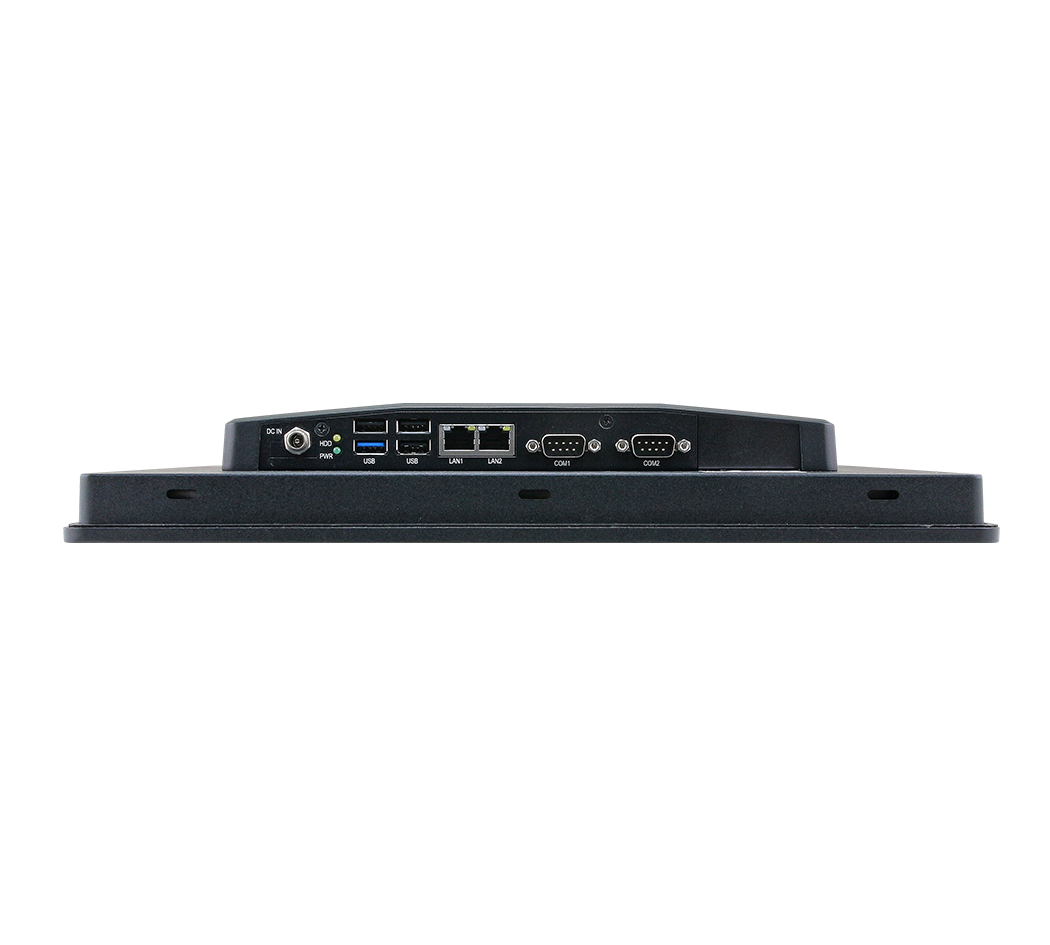

External I/O

  • USB Port

    1 x USB 3.0
    3 x USB 2.0

  • LAN Port

    2 x RJ-45

  • COM Port

    1 x RS-232/422/485
    1 x RS-232

Internal I/O

  • SATA

    1 x SATA II

System Control

  • LED Indicator

    HDD LED, power LED

Mechanical & Environmental

  • Operating Temp.

    -10°C ~ 50°C (-14°F ~122°F)

  • Storage Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Operating Humidity

    0% ~ 90% Relative humidity, non-condensing

  • Dimension (W x L x H)

    350 x 274.5 x 53mm

  • Weight

    3.7 Kg

  • Vibration Test

    With SSD/mSATA : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

  • Shock Test

    Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test:Ed

  • IP Rating

    Front panel IP65
    Back cover IP41

  • Mounting Kit

    Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
    Panel mount with mounting kits

  • Power Mode

    AT/ATX (ATX is default)

  • System Fan

    Fanless

  • Construction - Front

    Die casting with cover lens

  • Construction - Rear

    Black die casting

Component

  • Adapter

    Input: 100 ~ 240Vac/ 50 ~ 60Hz
    Output: 60W adapter (12V @ 5A adapter) AC-DC adapter

Ordering Information

  • Ordering Information

    ARC-1509-190-B4-1R
    15 1024x768 Industrial Touch Panel PC, ErP Design (D1 stepping CPU) Intel Celeron SoC J1900 2.0GHz CPU/2GLAN/2COM/4USB/SPK/12~26V input/12V Adapter

    Optional IET Module list:

    ACC-ARC-USB-1R
    4 x USB 3.0 Kit for ARC Series

    ACC-ARC-AUDIO-1R
    HDMI + 5.1 CH Audio Kit for ARC Series

    ACC-ARC-MPCIE-1R
    HDMI + MPCIE w/SIM Kit for ARC Series

    ACC-ARC-COM-1R
    2 x Isolated RS-232 Kit for ARC Series

    ACC-ARC-COM-2R
    3 x RS-232 Kit for ARC Series

    ACC-ARC-COM-3R
    2 x RS-232 + USB Kit for ARC Series

    ACC-ARC-COM-4R
    2 x RS-232 + LAN Kit for ARC Series

    ACC-ARC-GPIO-1R
    12-bit GPIO + 2-pin CAN Bus Kit for ARC Series

    ACC-ARC-OBDII-1R
    OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)

    ACC-ARC-OBDII-2R
    OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)

    ACC-ARC-OBDII-3R
    OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

    E1702031833R
    USA Power Cord

    E1702031000R
    EU Power Cord

    E1702031834R
    Japan Power Cord

    E1702031830R
    UK Power Cord

    E1702031831R
    Australia Power Cord

  • Drawing
    1
  • Manual
    1
  • すべて
  • Drawing

    合計 1 ファイル

    No.
    リリース日
    タイトル、説明
    オペレーティングシステム
    ドキュメント
    ダウンロード
    2023-11-01
    ARC-1509 B Model system drawing

    Manual

    合計 1 ファイル

    No.
    リリース日
    タイトル、説明
    オペレーティングシステム
    ドキュメント
    ダウンロード
    2023-11-01
    ARC-1209_1509 6th Quick Reference Guide
