ARC-1535

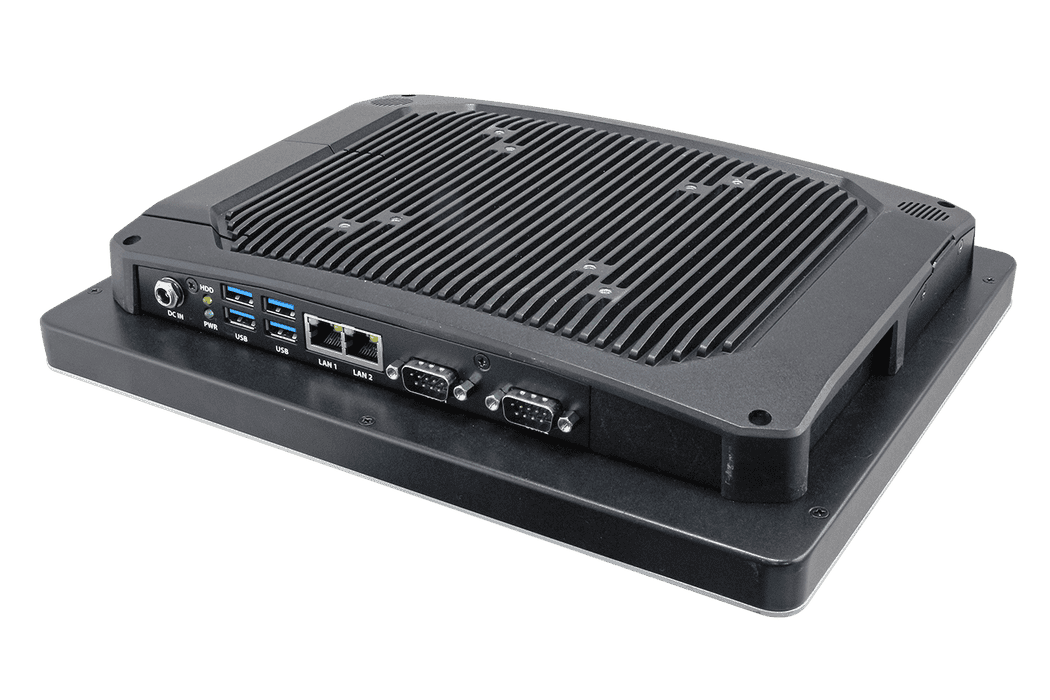

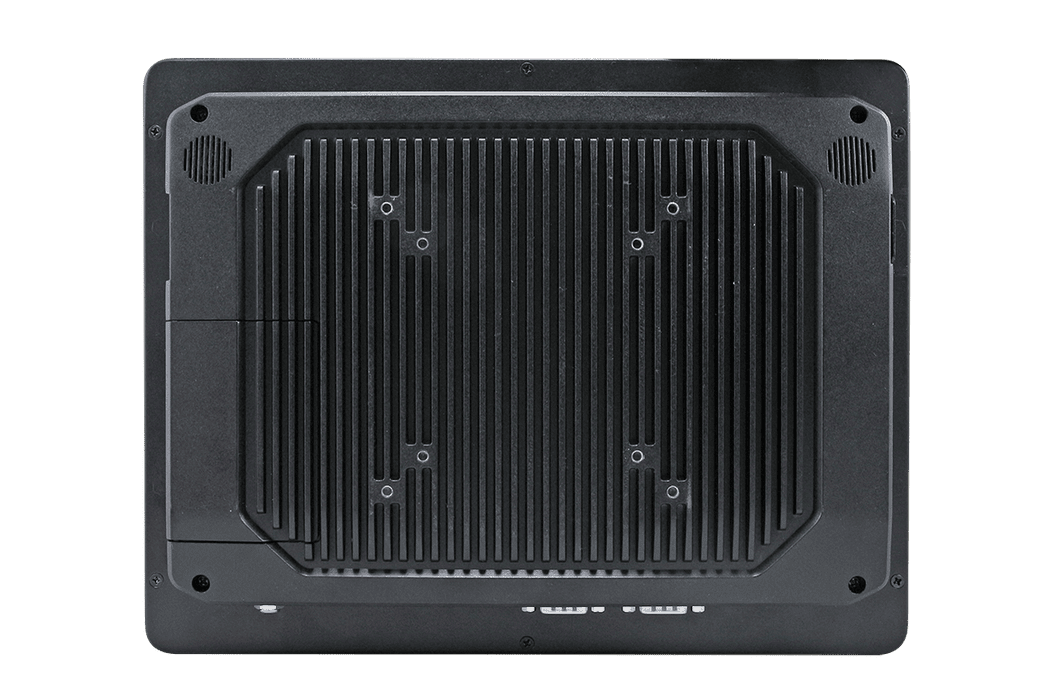

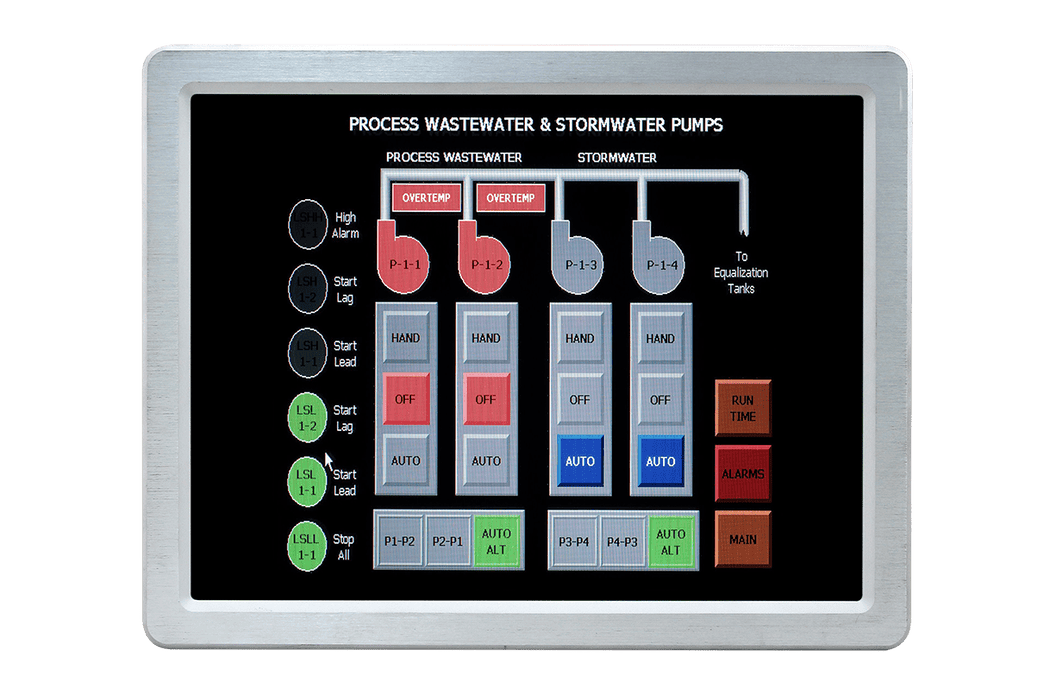

15" Intel Atom® x6413E Processor Fanless Rugged Touch Panel PC with IET Expansion

Get a Quote

Comparison

データシート

Get a Quote

Comparison

データシート

  • Intel Atom® x6413E Processor
  • One 260-pin SODIMM sockets supports up to 32GB DDR4 3200 SDRAM
  • 4 x USB3.2, 2 x COM
  • Dual Intel Gigabit LAN
  • 2 x M.2 slots (Key-B 2242/3042/3052, Key-E 2230)
  • Support Wi-Fi / BT / 4G / 5G (by option)
  • Wide voltage +12V ~ +24V input, ErP power
  • Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
  • IP65 compliant front panel, IP41 rear box
  • 5-wire resistive touch
  • TPM 2.0 function
  • Fanless operation wide temp. from -20°C ~ 55°C (-4°F ~ 131°F)
  • 紹介
  • 仕様
  • ドキュメント
  • FAQ

製品紹介

The ARC-1535 represents the second generation of Avalue's ARC series Panel PC, where ARC stands for Advanced Rugged Computing. Tailored for heavy industrial markets encompassing factory automation, rehabilitation equipment, KIOSK, and HMI applications, this fanless device boasts an aluminum casing with front IP65 and rear IP41 water and dust protection.

Powered by the Intel® Celeron® x6413E processor, the ARC-1535 supports up to 32GB DDR4 memory, delivering exceptional performance at ultra-low power consumption levels. Its design features optimized PCAP and resistive touchscreen technologies, a rich array of I/O options, and advanced wireless communication capabilities via the latest technologies such as Wi-Fi 6E and Bluetooth 5.2.

Adding to its versatility, the ARC-1535 supports a 5G module via M.2 key-B 3052 with a SIM slot, making it an ideal choice for IoT applications demanding high-speed connectivity, low latency, and minimal power consumption. The ARC series further enhances flexibility through Avalue's unique IET interface, allowing easy expansion of additional I/O components like isolation COM, LAN, GPIO, CAN Bus, etc., via various types of IET modules for seamless I/O upgrades.

製品仕様

System Information

  • Processor

    Intel Atom® x6413E Processor, 1.5M Cache, up to 3.00 GHz

  • System Memory

    1 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 32GB max (in-bend ECC supported)

  • I/O Chipset

    EC ITE IT5571

  • Watchdog Timer

    H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step

  • H/W Status Monitor

    Monitoring CPU & system temperature and voltage

  • TPM

    Onboard NuvoTon NPCT754AABYX support TPM 2.0

  • SBC

    ARC-EHL

  • CPU Cooler (Type)

    Fanless heatsink

  • Other

    7 x Knockouts for antenna mounting
    *5 from rear cover + 2 from IET bracket

Expansion

  • Expansion

    1 x M.2 Key-B 2242/3042/3052 with SIM card slot
    Support SATA3 (BOM option for USB or PCIe for LTE(4/5G))

    1 x M.2 Key-E 2230
    Support PCIe/USB Wi-Fi/BT module

    1 x 80-pin IET interface

Storage

  • Storage

    1 x 2.5" Drive bay (7mm HDD restricted)

Display

  • Graphic Chipset

    Intel® Elkhart Lake SoC integrated graphics
    supports optional dual display

  • Spec. & Resolution

    HDMI: Max. Resolution 4096x2160 @ 24Hz (optional by IET module)

Audio

  • Audio Codec

    Realtek ALC888S

  • Speaker Output

    2 x 2W

Ethernet

  • LAN Chipset

    2 x Intel® I225-IT 2.5 Gigabit Ethernet

  • Ethernet Interface

    10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

  • DC Input

    +12V ~ +24V

  • DC Input Connector

    Lockable DC Jack (default)
    Optional for phoenix connector

  • ACPI

    Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

  • OS

    Win10 / Win11 / Linux

Certification

  • Certification Information

    CE / FCC Class B / VCCI

Panel

  • LCD Size

    15", 4:3

  • Display Type

    XGA

  • Resolution

    1024 x 768

  • Pixel pitch

    0.297mm(H) x 0.297mm(V)

  • Luminance

    500 cd/m2

  • Contrast ratio

    2500

  • Viewing angle

    88 (U), 88 (D), 88 (L), 88 (R)

  • Response time

    16 ms

  • Backlight

    LED

  • Touch Type

    5 wires resistive

  • Touch Light Transmission

    80 %

  • Touch Controller

    Onboard USB touch (PenMount)

External I/O

  • USB

    4 x USB 3.0

  • LAN Port

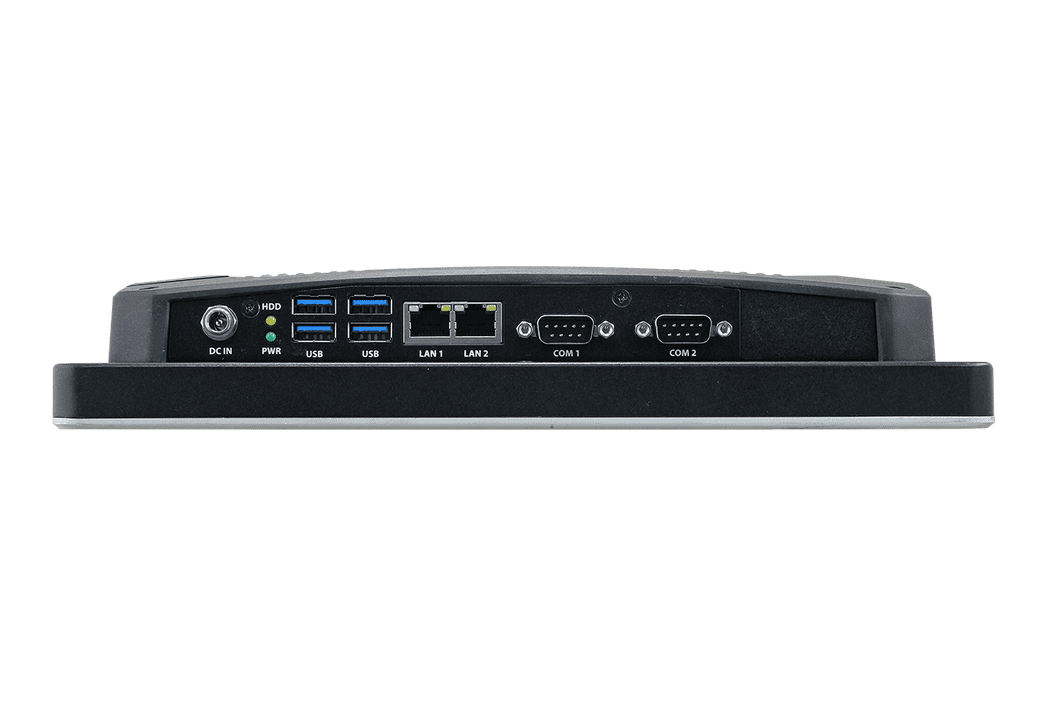

    2 x RJ-45

  • COM Port

    1 x RS-232/422/485
    1 x RS-232

Internal I/O

  • SATA

    1 x SATA III

System Control

  • LED Indicator

    HDD LED, power LED

Mechanical & Environmental

  • Operating Temp.

    Wide temp.-20°C ~ 55°C (-4°F ~ 131°F)

  • Storage Temp.

    Wide temp.-30°C ~ 70°C(-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative humidity, non-condensing

  • Dimension (W x L x H)

    350.51 x 274.51 x 54.5mm

  • Weight

    3.7 Kg

  • Vibration Test

    With SSD/M.2 SSD : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis

  • Shock Test

    Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test:Ed

  • IP Rating

    Front panel IP65
    Back cover IP41

  • Mounting Kit

    Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

  • Power Mode

    AT/ATX (ATX is default)

  • System Fan

    Fanless

  • Construction - Front

    Silver aluminum

  • Construction - Rear

    Black die casting

Component

  • Adapter

    Input: 100 ~ 240Vac/ 50 ~ 60Hz
    Output: 72W adapter (19V @ 3.78A adapter) AC-DC adapter

Ordering Information

  • Ordering Information

    ARC-1535-X13-A1R
    15" 1024x768 Industrial Touch Panel PC, ErP Design, Resistive Touch(ALC888S)
    Intel Atom SoC x6413E 1.50 GHz CPU/2GLAN/2COM/4USB/SPK/12~24V input/12V Adapter

    ARC-1535-WMB-A1R
    15" 1024x768 500nits Industrial Touch Panel PC, ErP Design/Back panel Mount (ALC888S)
    Intel Atom SoC x6413E 1.50 GHz CPU/4GB DDR4/2GLAN/2COM/4USB/SPK/12~24V input/12V Adapter

    Optional IET Module list:

    ACC-ARC-USB-01R
    4 x USB 3.0 IET module for ARC-1535/38

    ACC-ARC-AUDIO-01R
    HDMI + 5.1 CH audio IET module for ARC-1535/38

    ACC-ARC-MPCIE-02R
    HDMI + MPCIE w/SIM IET module for ARC-1535/38

    ACC-ARC-COM-01R
    2 x Isolated RS-232 IET module for ARC-1535/38

    ACC-ARC-COM-02R
    3 x RS-232 IET module for ARC-1535/38

    ACC-ARC-COM-03R
    2 x RS-232 + USB IET module for ARC-1535/38

    ACC-ARC-COM-04R
    2 x RS-232 + LAN IET module for ARC-1535/38

    ACC-ARC-GPIO-01R
    12-bit GPIO + 2-pin CAN bus IET module for ARC-1535/38

    ACC-ARC-OBDII-01R
    OBDII - CAN bus IET module for ARC-1535/38 (OBDII/EOBD for small vehicle)

    ACC-ARC-OBDII-02R
    OBDII - CAN bus IET module for ARC-1535/38 (J1939J1708 for large vehicle)

    ACC-ARC-OBDII-03R
    OBDII - CAN bus IET module for ARC-1535/38 (ISO15765-4 for special large vehicle)

    E1702031835R
    USA Power Cord

    E170203183DR
    EU Power Cord

    E170203183BR
    Japan Power Cord

    E170203183ER
    UK Power Cord

    E1702031800R
    Australia Power Cord

  • BIOS
    3
  • Design Document
    2
  • Manual
    1
  • Other Driver
    1
