ARC-21W33
Get a Quote
Comparison
E-Catalog
コンサルト
比較
データシート
AVAILABLE

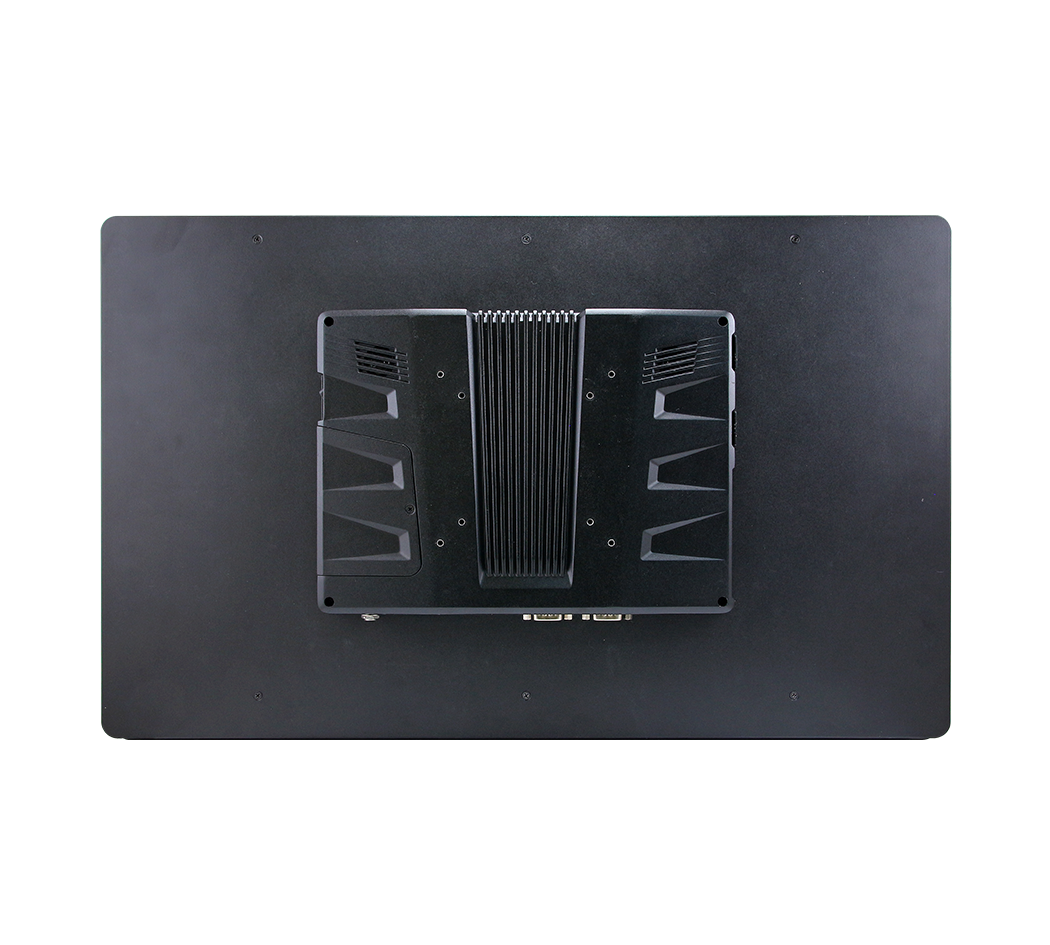

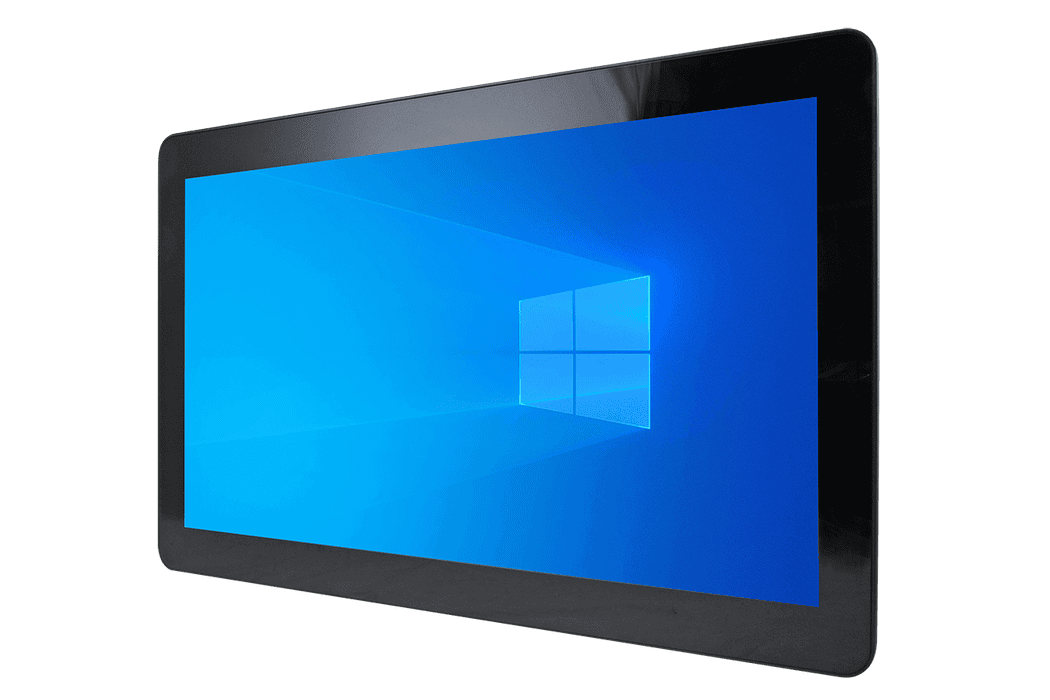

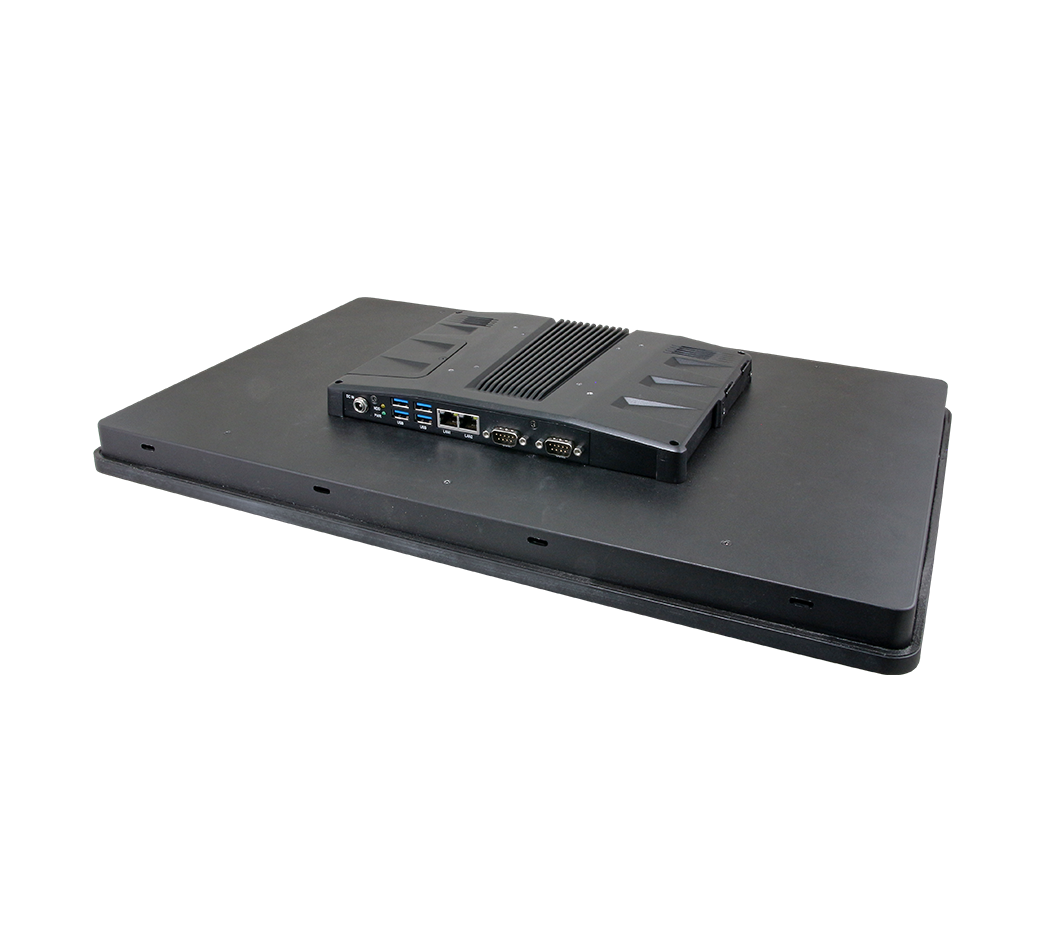

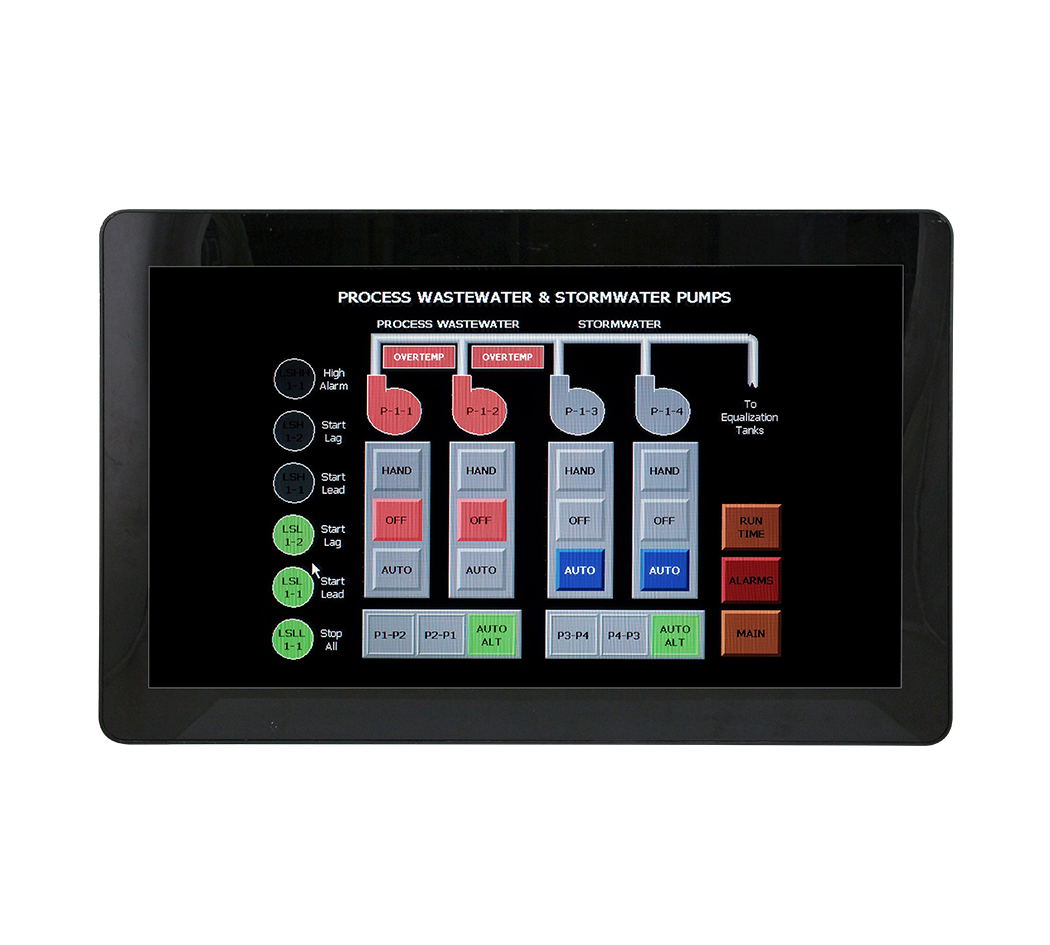

21.5”with Full-HD PCAP Multi-touch Intel® Celeron® Processor J3455 Rugged Touch Panel PC with IET Expansion
製品仕様
System Information
Processor
Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz
System Memory
One 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1600Mhz SDRAM (non-ECC)
Watchdog Timer
H/W reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor
Monitoring CPU & system temperature and voltage
SBC
ARC-APL
CPU Cooler (Type)
Fanless heatsink
Other
3 x Knockouts for antenna mounting
Expansion
1 x mSATA support on the 1st mini PCIe slot, auto switch for mSATA or mini PCIe 1 x 80-pin IET interface
Storage
1 x 2.5 Drive bay(7mm HDD restricted)
HDD/ SSD
1 x SATA3
Other Storage Device
1 x mSATA support on the 1st mini PCIe slot, auto switch for mSATA or mini PCIe
Audio
Audio Codec
Realtek ALC888S
Speaker Output
2 x 2W
Ethernet
LAN Chipset
2 x Intel I211AT for APL-M
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
DC Input
+9V ~ +36V
DC Input Connector
Lockable DC Jack (default) Optional for phoenix connector
ACPI
Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant
Software Support
OS
Win 10 / Linux
Certification
Certification Information
CE / FCC Class B
Panel
LCD Size
21.5" 16:9
Display Type
Full HD
Resolution
1920 x 1080
Pixel pitch
0.24795mm(H) x 0.24795mm(V)
Luminance
250 cd/m2
Contrast ratio
3000
Viewing angle
89 (U), 89 (D), 89 (L), 89 (R)
Response time
20 ms
Backlight
LED
Touch Type
Projective capacitive multi-touch up to 10 points
Touch Light Transmission
89%
Touch Controller
EETI

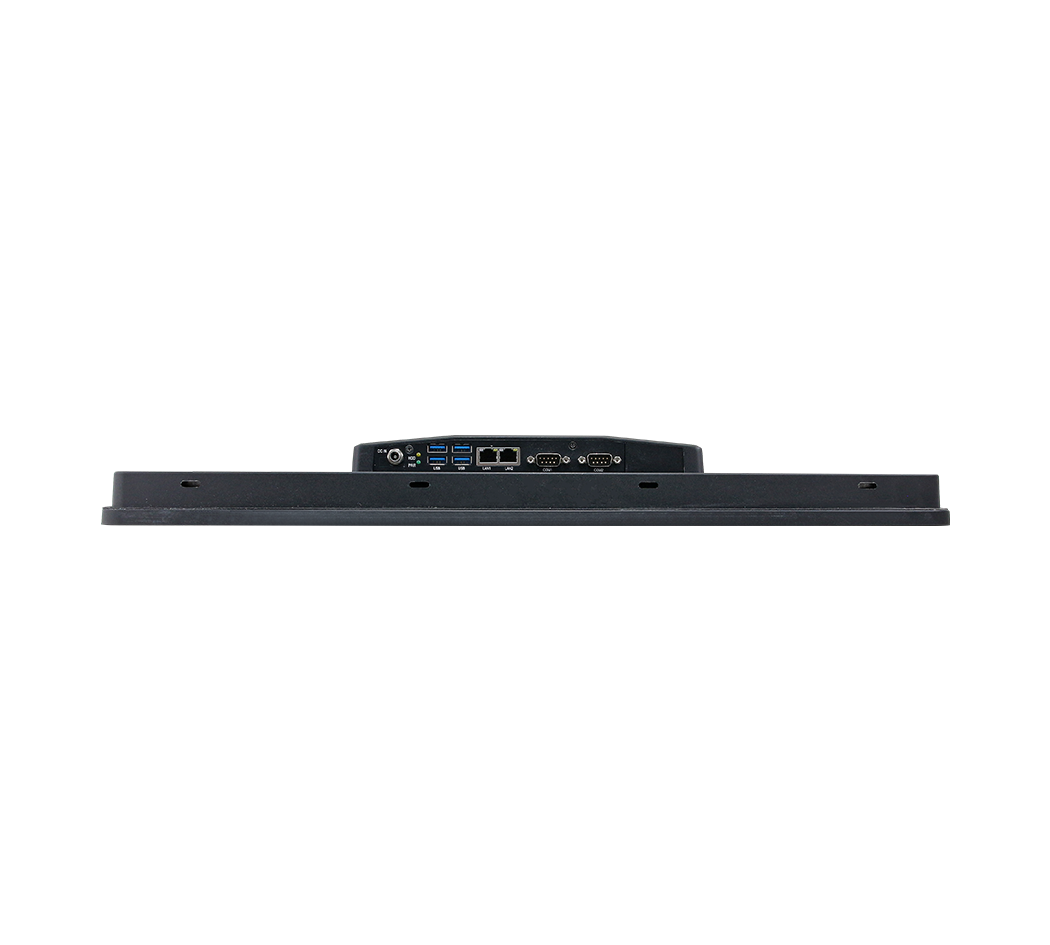

External I/O
USB
4 x USB3.0 (2 x double deck)
LAN Port
2 x RJ-45
COM Port
1 x RS-232/422/485, selectable by BIOS, RS-485 supports auto flow, pin-9 selected by ring/+5V/+12V) 1 x RS-232
Internal I/O
DIO
16-bit GPIO (option by IET DB)
System Control
LED Indicator
HDD LED, power LED
Mechanical & Environmental
Operating Temp.
-10°C ~ 50°C (14°F ~ 122°F)
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
40°C @ 95% Relative humidity, non-condensing
Dimension (W x L x H)
538.05 x 341.05 x 60.05mm
Weight
7.3 Kg
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock Test
Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating
Front panel IP65 Back cover IP41
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm Panel mount with mounting kits
Power Mode
AT/ATX (ATX is default)
System Fan
Fanless
Construction - Front
Die casting with cover lens
Construction - Rear
Black die casting
Component
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
Ordering Information
ARC-21W33-345-B2R 21.5 1920x1080 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch Intel Celeron SoC J3455 1.5GHz CPU/2GLAN/2COM/4USB/SPK/9~36V input/12V Adapter ACC-ARC-USB-1R 4 x USB 3.0 Kit for ARC Series ACC-ARC-AUDIO-1R HDMI + 5.1 CH Audio Kit for ARC Series ACC-ARC-MPCIE-1R HDMI + MPCIE w/SIM Kit for ARC Series ACC-ARC-COM-1R 2 x Isolated RS-232 Kit for ARC Series ACC-ARC-COM-2R 3 x RS-232 Kit for ARC Series ACC-ARC-COM-3R 2 x RS-232 + USB Kit for ARC Series ACC-ARC-COM-4R 2 x RS-232 + LAN Kit for ARC Series ACC-ARC-GPIO-1R 12-bit GPIO + 2-pin CAN Bus Kit for ARC Series ACC-ARC-OBDII-1R OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle) ACC-ARC-OBDII-2R OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle) ACC-ARC-OBDII-3R OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle) ACC-ADP-060N-08R AC/DC adapter 12V/5A 90 degree Screw Type E1702031833R USA Power Cord E1702031000R EU Power Cord E1702031834R Japan Power Cord E1702031830R UK Power Cord E1702031831R Australia Power Cord
