Processor

Intel Atom® Processor E3845, 2M Cache, 1.91 GHz

Platform Controller Hub

Intel® Valleyview SoC

System Memory

1 x 204-pin DDR3L 1333MHz SO-DIMMup to 8 GB

I/O Chipset

Nuvoton W83627DHG-P

Watchdog Timer

H/W reset, 1sec. ~ 65535sec and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

ECM-BYT

CPU Cooler (Type)

Fanless heatsink

Expansion

1 x Mini PCIe support mSATA

Storage

2.5 SSD/HDD

Graphic Chipset

Intel® Valleyview SoC integrated graphics
supports dual display

Spec. & Resolution

VGA:Max. Resolution 2560x1080@ 60Hz
HDMI:Max. Resolution 1920x1200@ 60Hz

Audio Codec

Realtek ALC888S

Audio Interface

Line-out
Mic-in

Speaker Output

2 x 2W

LAN Chipset

2 x Intel® I210AT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win 7 / Win 8 / Linux

Certification Information

CE / FCC Class B

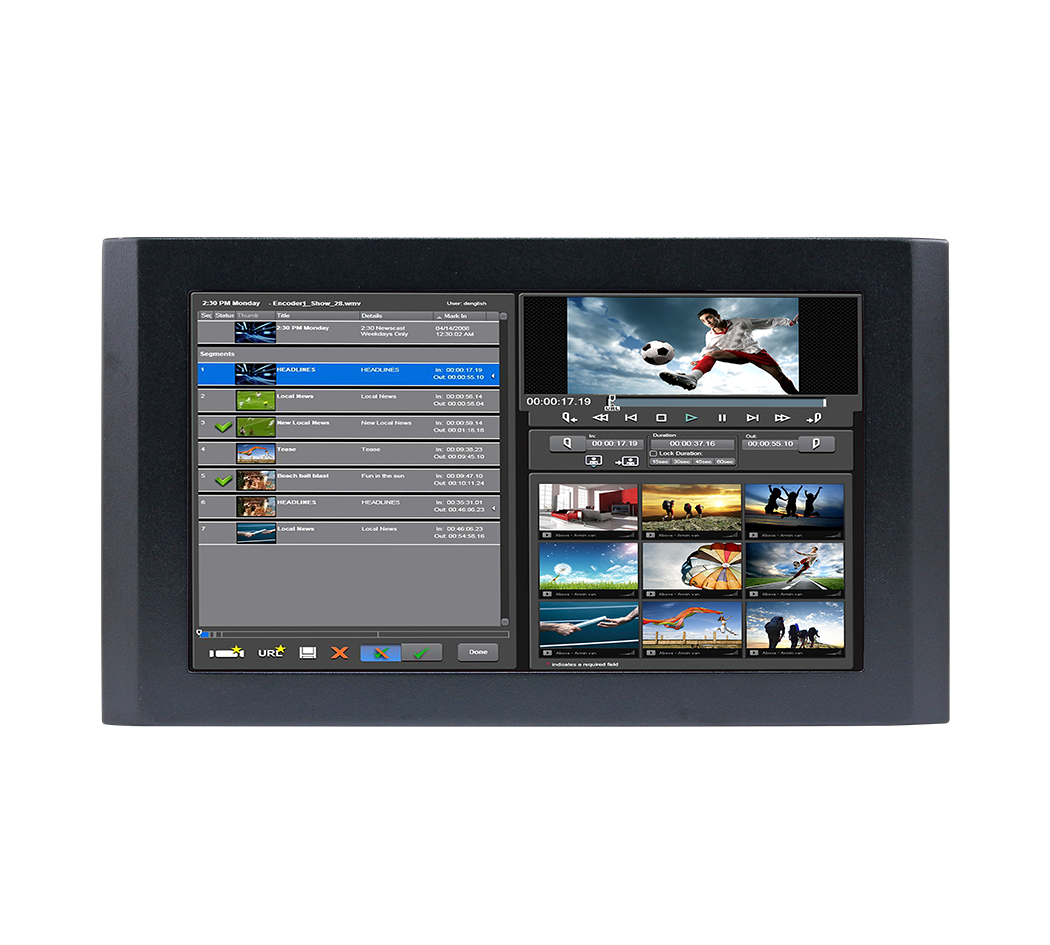

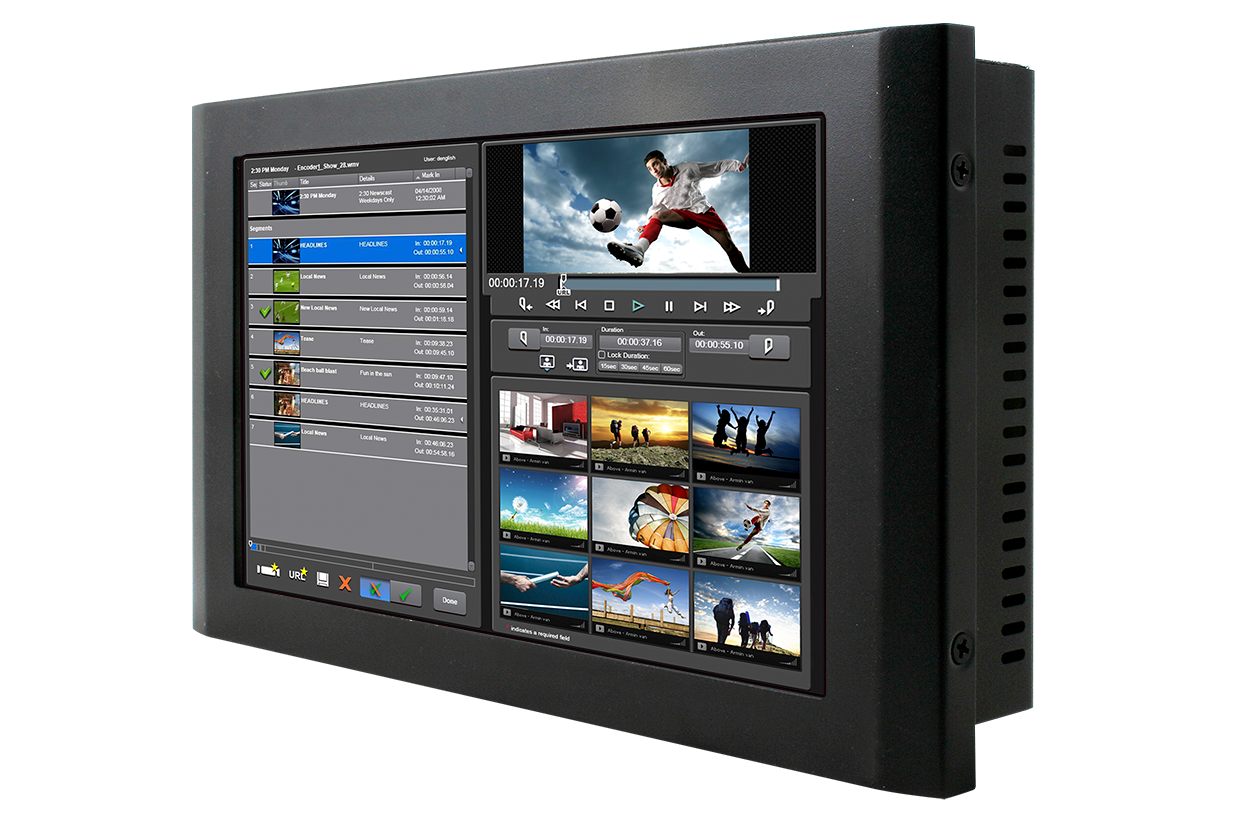

LCD Size

8" , 16:10

Display Type

WVGA

Resolution

1024 x 600

Pixel pitch

0.1725mm (W) x 0.1656mm (H)

Luminance

500 cd/m2

Contrast ratio

700

Viewing angle

70 (U), 75 (D), 75 (L), 75 (R)

Response time

20 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

Onboard USB touch (PenMount)

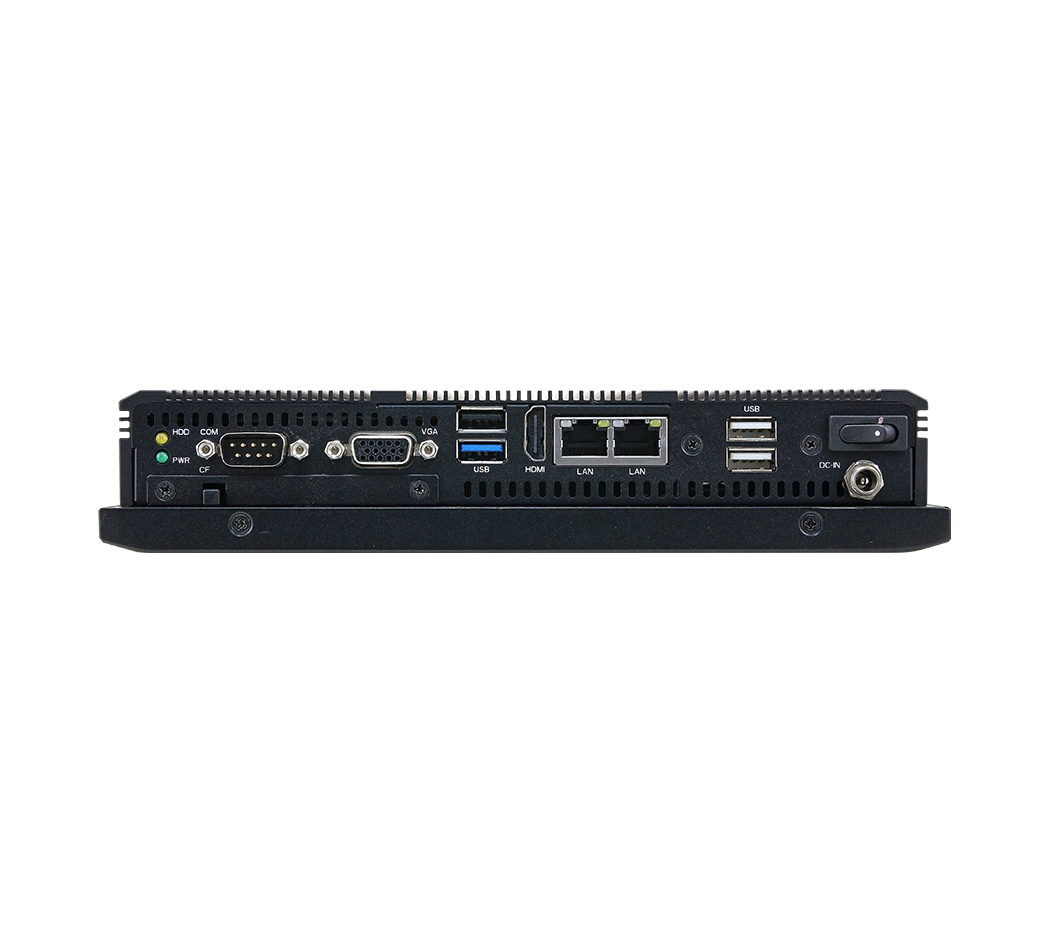

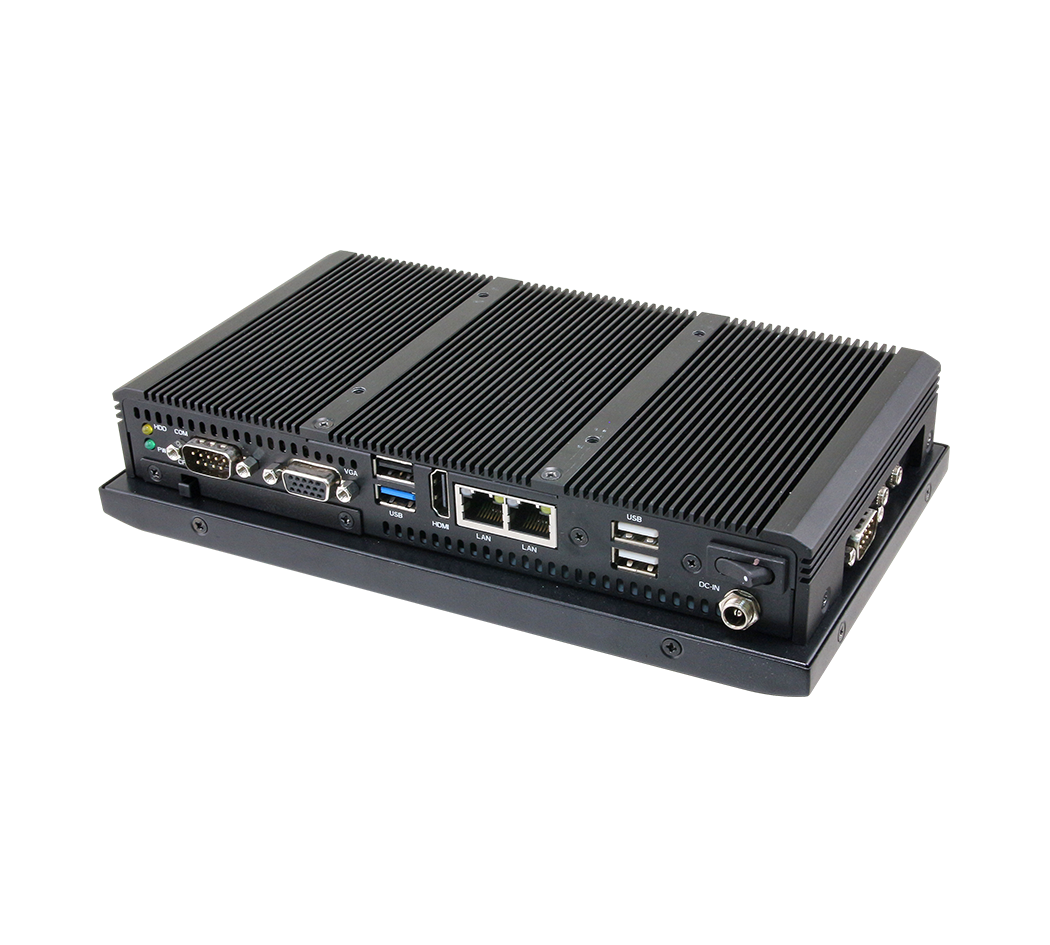

USB Port

1 x USB 3.0
3 x USB 2.0

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485
1 x RS-232

LED Indicator

HDD LED, power LED

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 50°C (14°F ~ 122°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

225 x 129 x 43.4mm

Weight

1.27 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Metal black

Construction - Rear

Metal black

Adapter

Input: 100 ~ 240Vdc/ 50 ~ 60Hz;
Output: 60W adapter (12V @ 5A adapter)

Ordering Information

FPC-08W29-00300-4R
Intel Atom SoC E3845 1.91GHz/2G DDR3L / 2xGLAN / 2xCOM / Audio / 12~26V in / 12V Adapter

ACC-FPC-WALLMT-07R
Wall Mount Bracket Kit for FPC-08W2x

ACC-FPC-08WPM-02R
Panel Mount Kit for FPC-08W2x Series

ACC-ARM-D22R
VESA STAND, 75x75 & 100x100 mm

ACC-CF-XX CompactFlash Card Series
(xx=Capacity, Capacity Option: 128, 256, 512MB, 1, 2, 4, 8GB)

E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
