Processor

Intel Atom® Processor E3845, 2M Cache, 1.91 GHz

Platform Controller Hub

Intel® Valleyview SoC

System Memory

1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

EBM-BYT

CPU Cooler (Type)

Fanless heatsink

Other

1 x HDMI
1 xKnockouts for antenna mounting

Expansion

1 x Mini PCIe support mSATA
1 x Mini PCIe supports SIM card

Storage

1 x CompactFlash type I/II socket
1 x 2.5 drive bay

Graphic Chipset

Intel® Valleyview SoC integrated graphics
supports dual display

Spec. & Resolution

HDMI:Max. Resolution 1920x1200@ 60Hz

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

Speaker Output

2 x 1W

LAN Chipset

2 x Intel® I210IT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win 7 / Win 8 / Linux

Certification Information

CE / FCC Class B

LCD Size

15", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

500 cd/m2

Contrast ratio

2500

Viewing angle

88 (U), 88 (D), 88 (L), 88 (R)

Response time

16 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

Onboard USB touch (EETI)

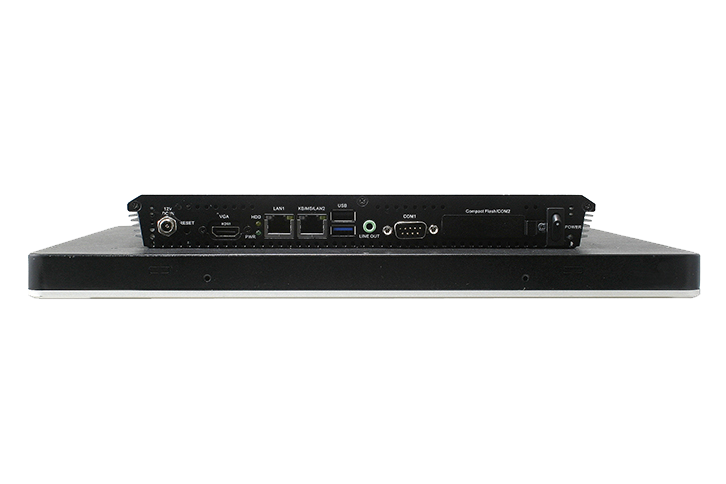

USB

1 x USB 3.0
1 x USB 2.0

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485 (BIOS)

SATA

1 x SATA II

LED Indicator

HDD LED, power LED

Operating Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

350 x 273.9 x 53.1mm

Weight

4.2 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Silver alloy

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter)

Ordering Information

LPC-1509-384-A4R
Intel Atom E3845 1.91GHz CPU/4G DDR3L/2GLAN/COM/12~26V input/12V Adaptor

LPC-1509-WMB-A4R
Intel Atom E3845 1.91GHz CPU/4G DDR3L/2GLAN/COM/ Back Panel Mount/ 12~26V input/12V Adaptor

ACC-LPC-WIFI-01R
MPCIE WIFI-Kit for LPC Series(half-card) Antenna/Cable/BT4.0/802.11a/b/g/n/ac

ACC-ARM-D1R
VESA STAND, 75mm & 100 mm

ACC-ARM-D19R
VESA STAND, 75mm & 100 mm

ACC-LPC-15-PMT-01R
Front Panel Mount Kit for LPC-15 Series, w/o IP-65

ACC-LPC-15-PMT-02R
Back Panel Mount Kit for LPC-15 Series, w/IP-65

E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
