Processor

Intel Atom® E3845/Celeron® J1900 Processors
Intel Atom® Processor E3845, 2M Cache, 1.91 GHz
Intel® Celeron® Processor J1900, 2M Cache, up to 2.0 GHz

System Memory

1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./Monitoring CPU & system temperature and voltage1sec.step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

EBM-BYT

CPU Cooler (Type)

Fanless heatsink

Expansion

1 x Mini PCIe support mSATA
1 x Mini PCIe support SIM card

Storage

1 x CompactFlash type I/II socket
1 x 2.5 dirve bay

Graphic Chipset

Intel® Valleyview SoC integrated graphics
supports dual display

Spec. & Resolution

HDMI: Max. Resolution 1920x1200@ 60Hz

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

Speaker Output

2 x 5W

LAN Chipset

1 x Intel® I210IT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +26V

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win 7 / Win 8 / Linux

Certification Information

CE / FCC Class A

LCD Size

17", 4:3

Display Type

SXGA

Resolution

1280 x 1024

Pixel pitch

0.264mm(H) x 0.264mm(V)

Luminance

350 cd/m2

Contrast ratio

800

Viewing angle

80 (U), 80 (D), 85 (L), 85 (R)

Response time

30 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

Onboard USB touch (EETI)

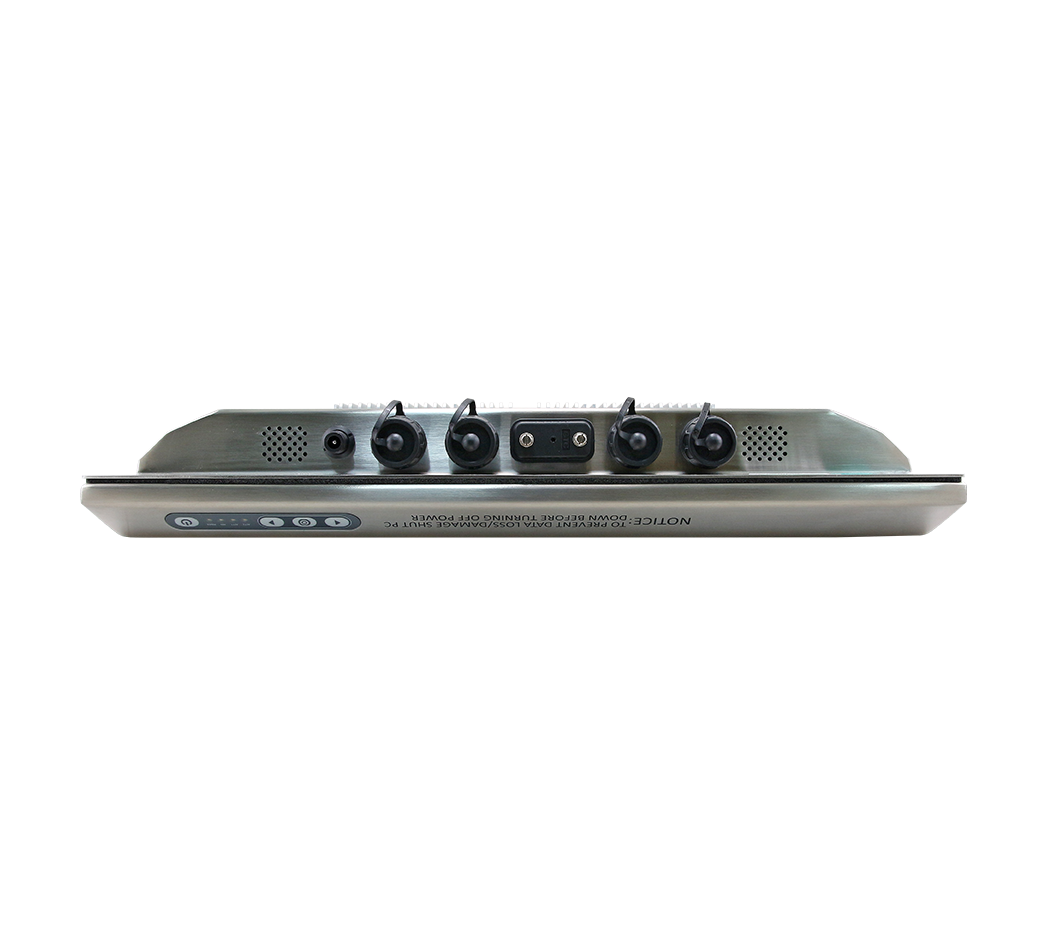

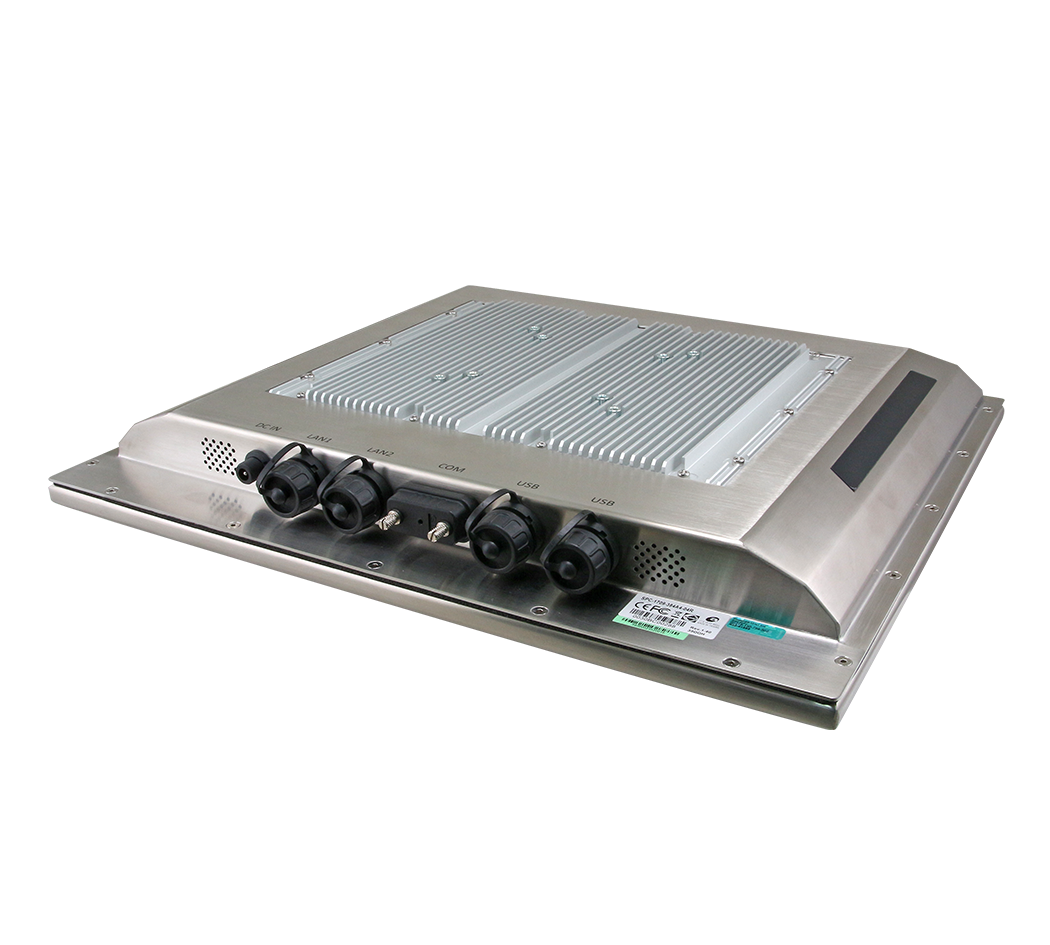

USB

3 x Waterproof USB 2.0

LAN Port

1 x RJ-45

COM Port

1 x Waterproof DB9

SATA

1 x SATA II

LED Indicator

HDD LED, power LED

WLAN

Optional WIFI module 802.11 ac/a/b/g/n/

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

405 x 353 x 66.6mm

Weight

7.5 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Whole system IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

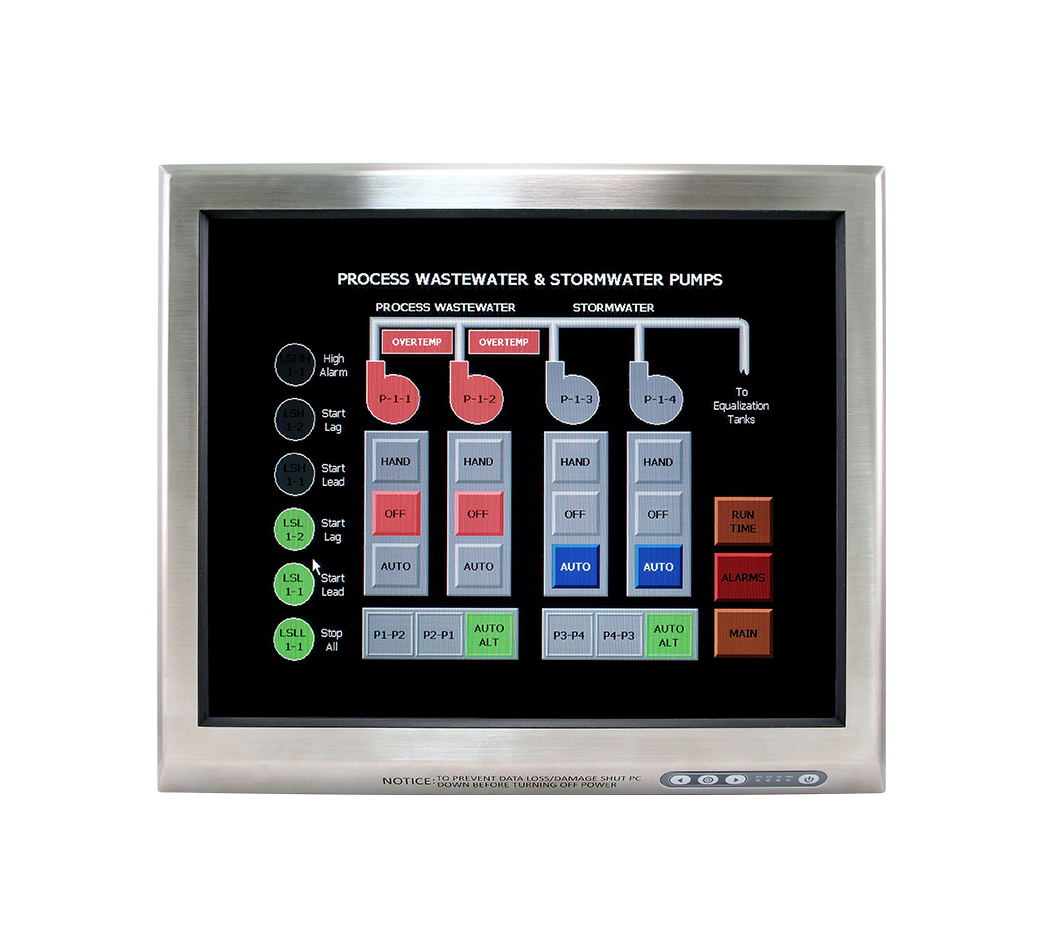

Construction - Front

Stainless steel

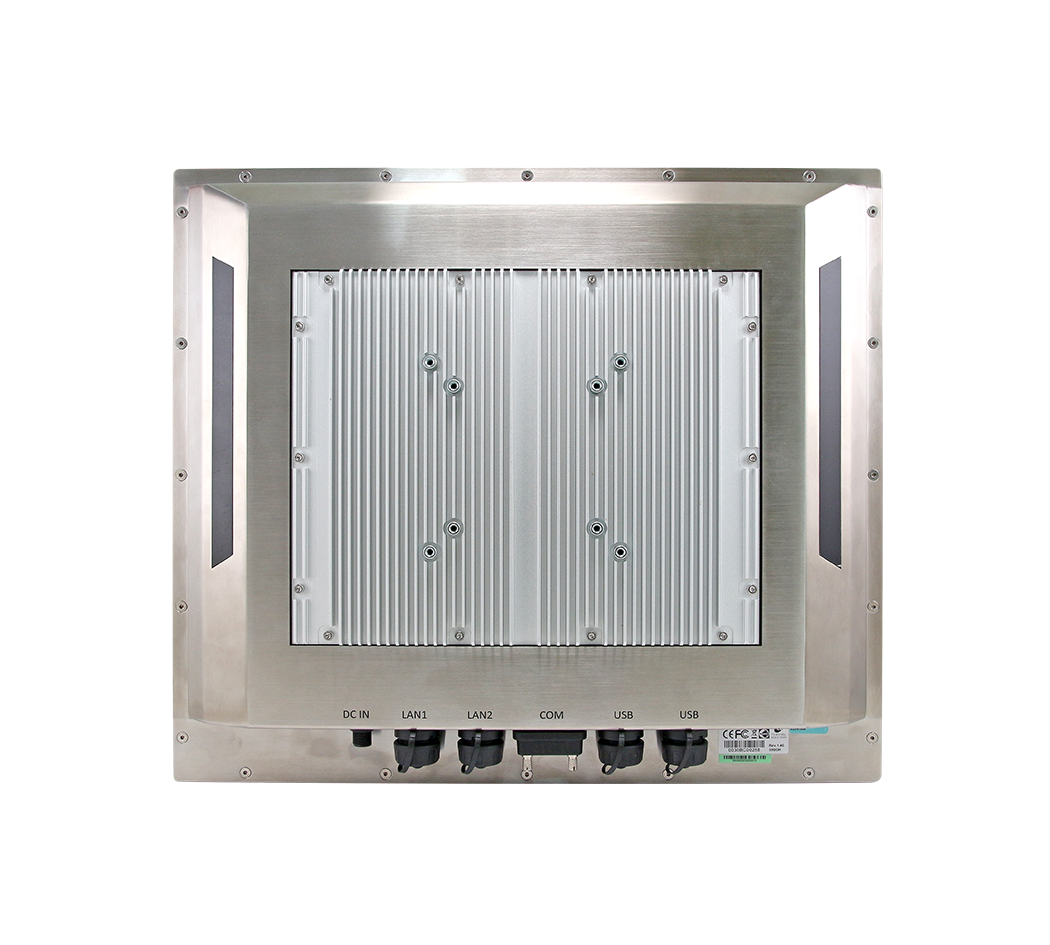

Construction - Rear

Stainless steel

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter AC-DC adapter

Ordering Information

SPC-1709-190-A4R
Intel Celeron SoC J1900 2.0GHz D1-CPU/4G DDR3L/32G SSD/1GLAN/COM/3USB/12~26V input/24V Adapter

SPC-1709-384-A4R
Intel E3845 D1-CPU/4G DDR3L/32G SSD/1GLAN/1COM/3USB/12~26V input/24V Adapter

ACC-ARM-D1R
VESA STAND, 75mm & 100 mm

ACC-ARM-D23R
VESA STAND, 75mm & 100 mm

ACC-SPC-WIFI-1R
Wifi Kits for SPC-15/17/22 802.11b/g/n MPCIe/2Antenna/Cable

E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
