Processor

Intel® 14th Gen Meteor Lake Ultra 5 125U Processor

System Memory

1 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 32GB

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring

TPM

TPM 2.0

SBC

EMX-MTLP

CPU Cooler (Type)

Passive

Expansion

1 x M.2 Key E 2230 support WiFi module

Storage

2.5” SATA3 SSD

Speaker Output

2 x 2W speaker

LAN Chipset

1 x Intel® i226LM 2.5 Gigabit Ethernet Controller
1 x Intel® i226V 2.5 Gigabit Ethernet Controller

DC Input

+12V~+24V

Power Connector Type

Mini Din 4-pin DC Jack

OS

Win10, Win11, Linux

Certification Information

CE, FCC Class B, VCCI

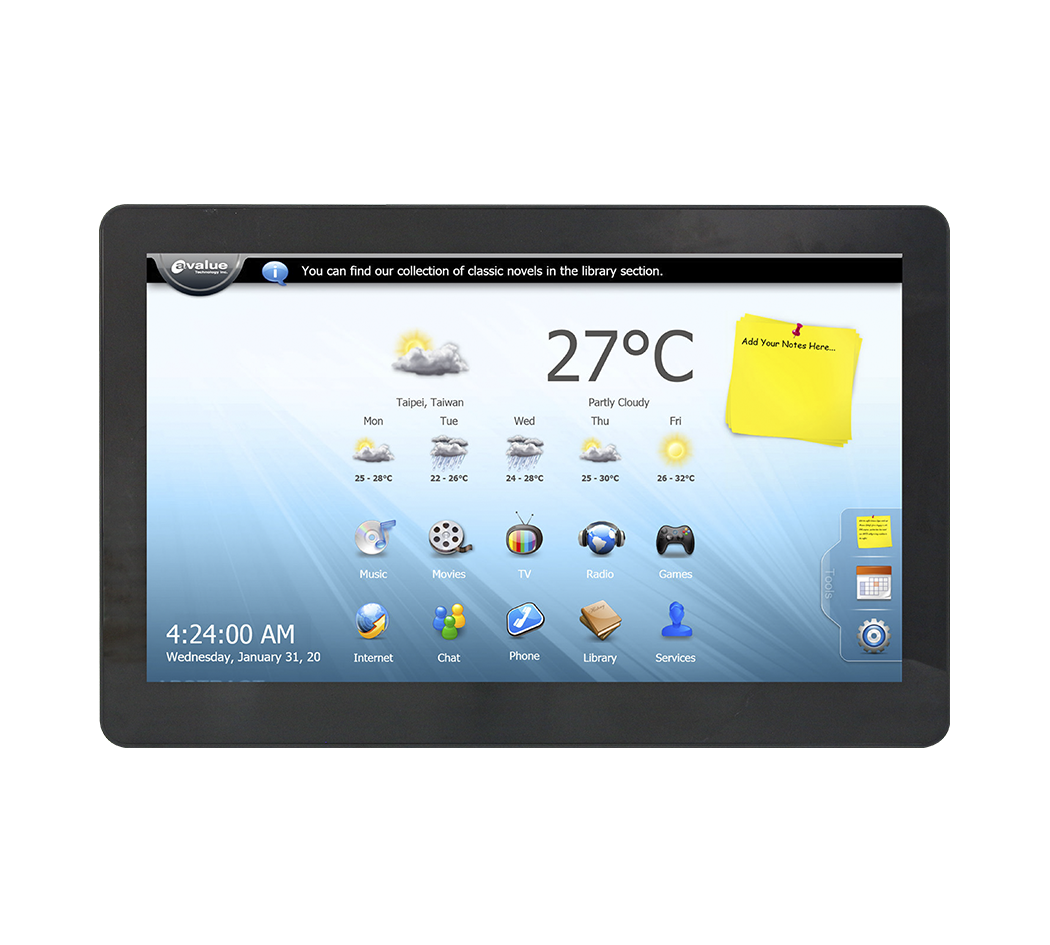

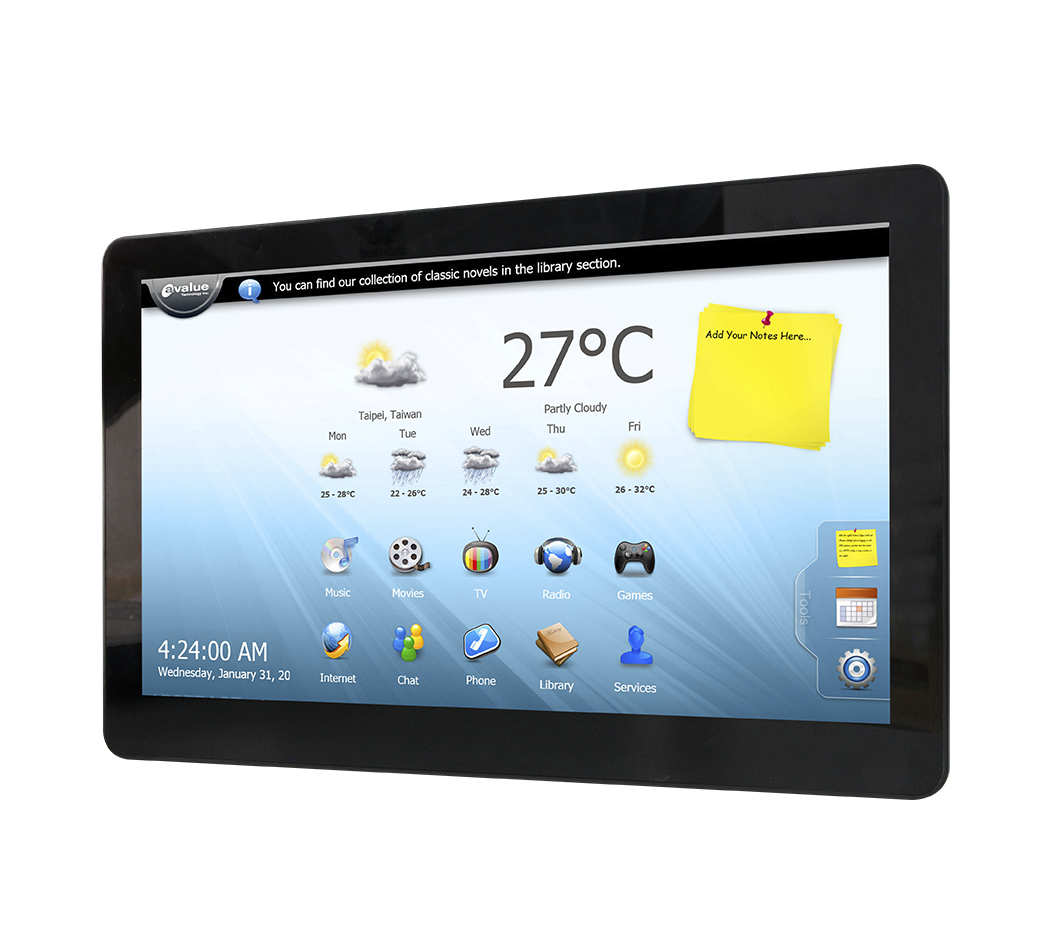

LCD Size

21.5"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

248.25um (H) x248.25um (V)

Luminance

250 cd/m2

Contrast ratio

3000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

18ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89%

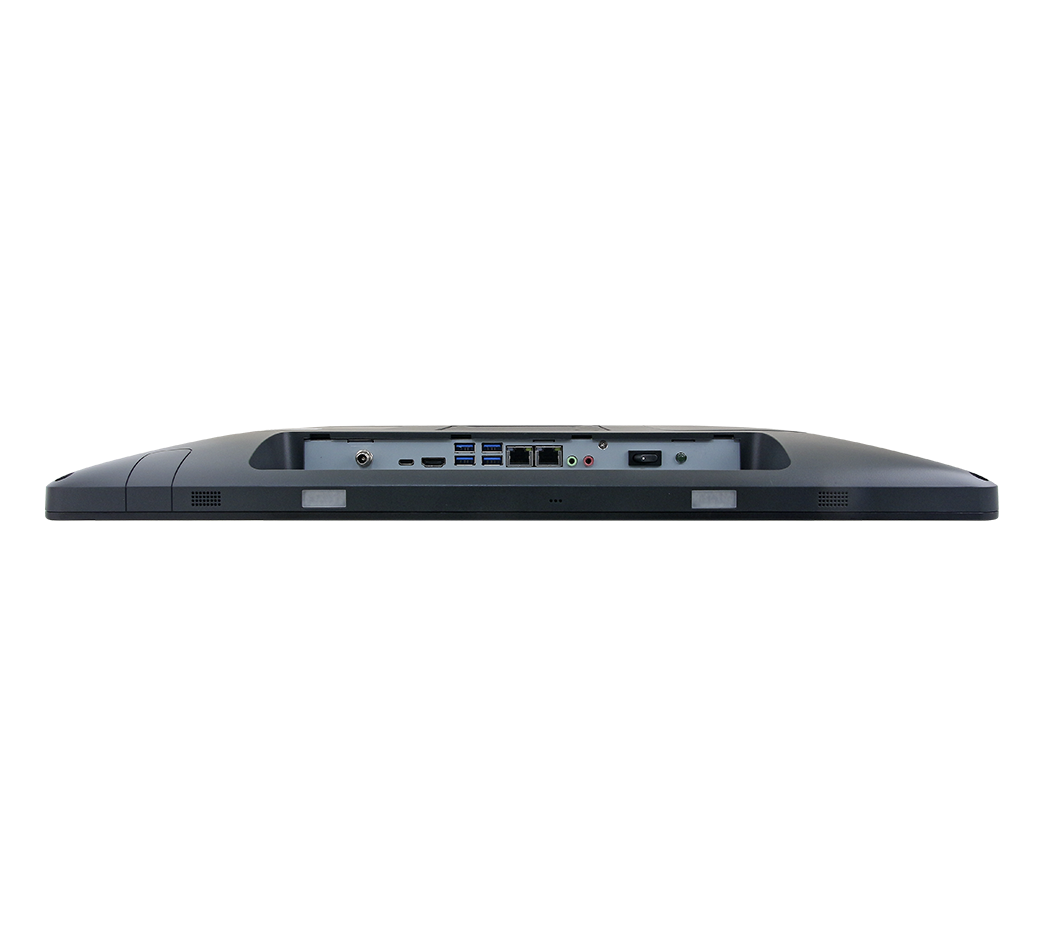

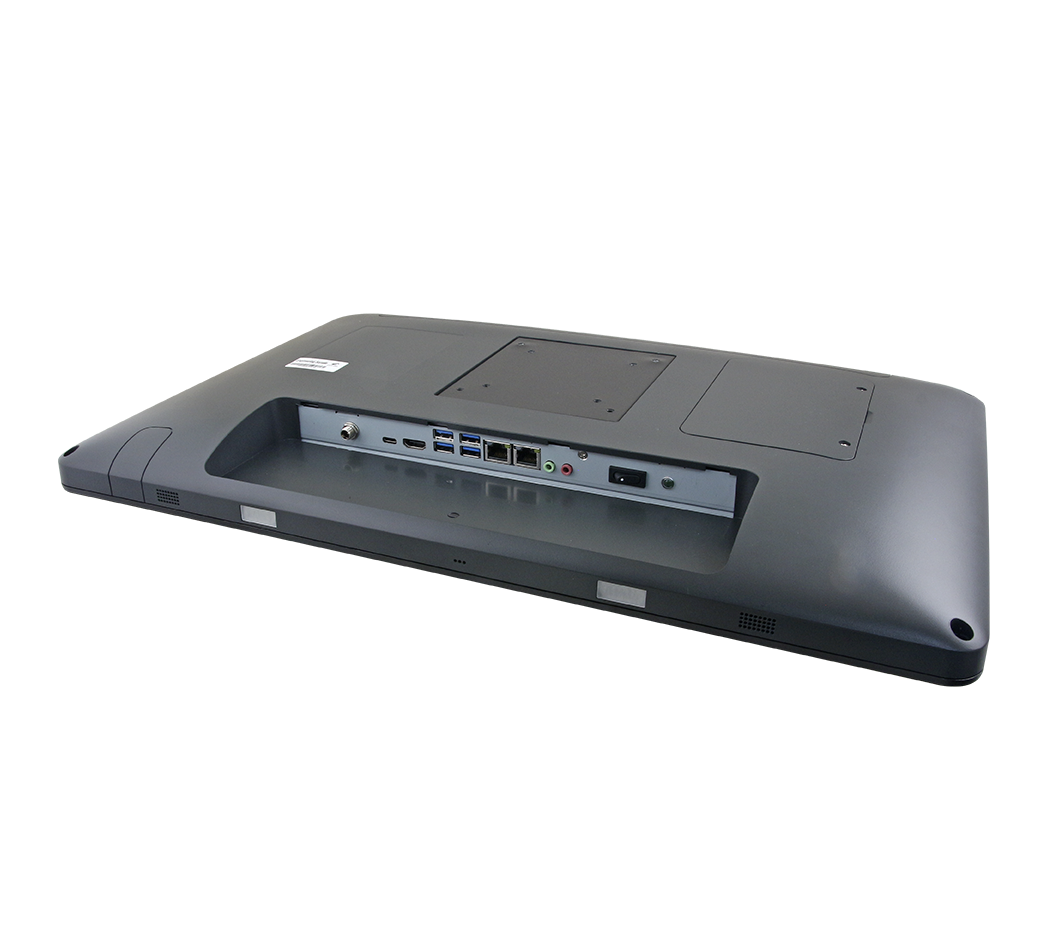

USB Port

2 x USB 3.2 Gen1
2 x USB 3.2 Gen2
1 x USB Type C

Video Port

MIC-in, Line-out

LAN Port

2 x LAN

HDMI

1 x HDMI

Switch

Power switch

DC input

DC in Jack

LED indicator

Power LED

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% @ 90% Relative humidity, non-condensing

Dimension (W x L x H)

539.6x324.6x45.5mm

Weight

TBD

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

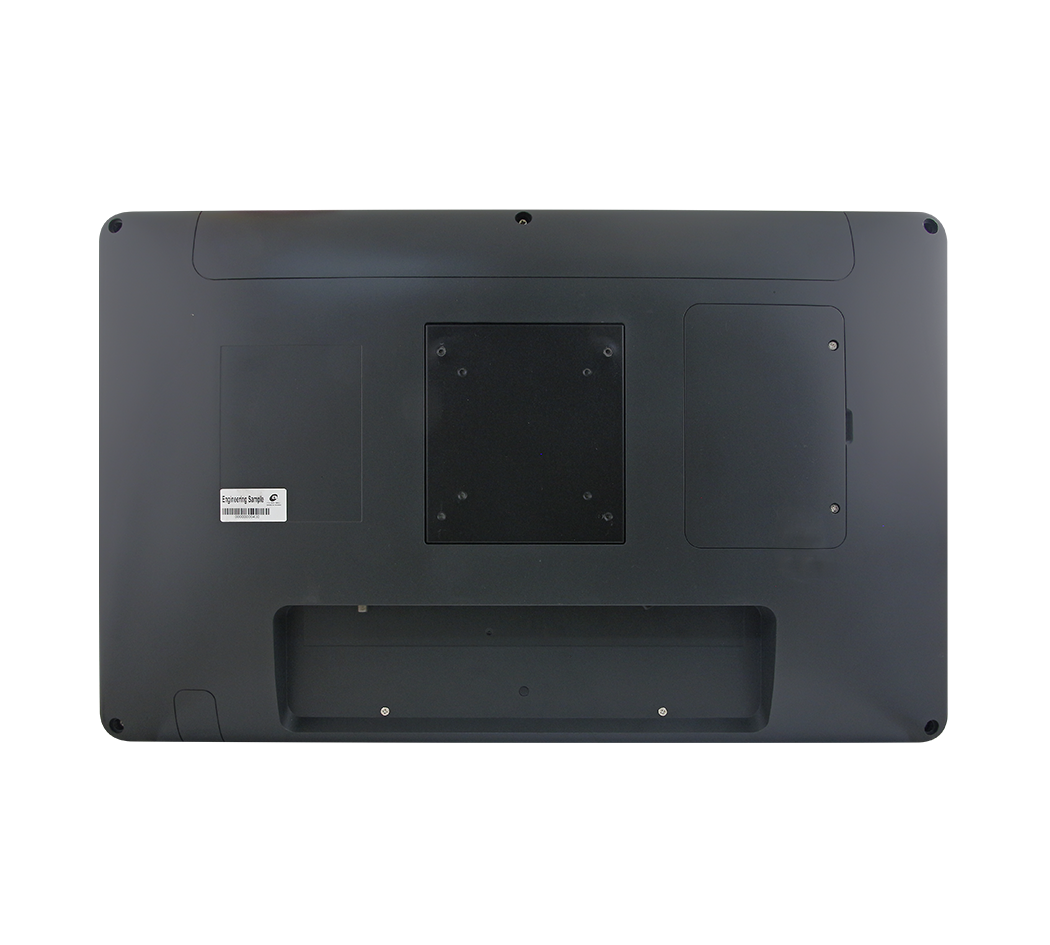

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX

System Fan

Fanless

Construction - Front

Plastic white/ black

Construction - Rear

Plastic white/ black

Adapter

Input:100 ~ 240Vac/ 50 ~ 60Hz
Output:90W adapter (24V @ 3.75A adapter) AC-DC adapter

Packing List

1 x APC-2146
1 x Power adapter

Ordering Information

E170203183DR
EU Power Cord

E1702031835R
US Power Cord

E17120318001R
JP Power Cord

E170P060370R
UK Power Cord
