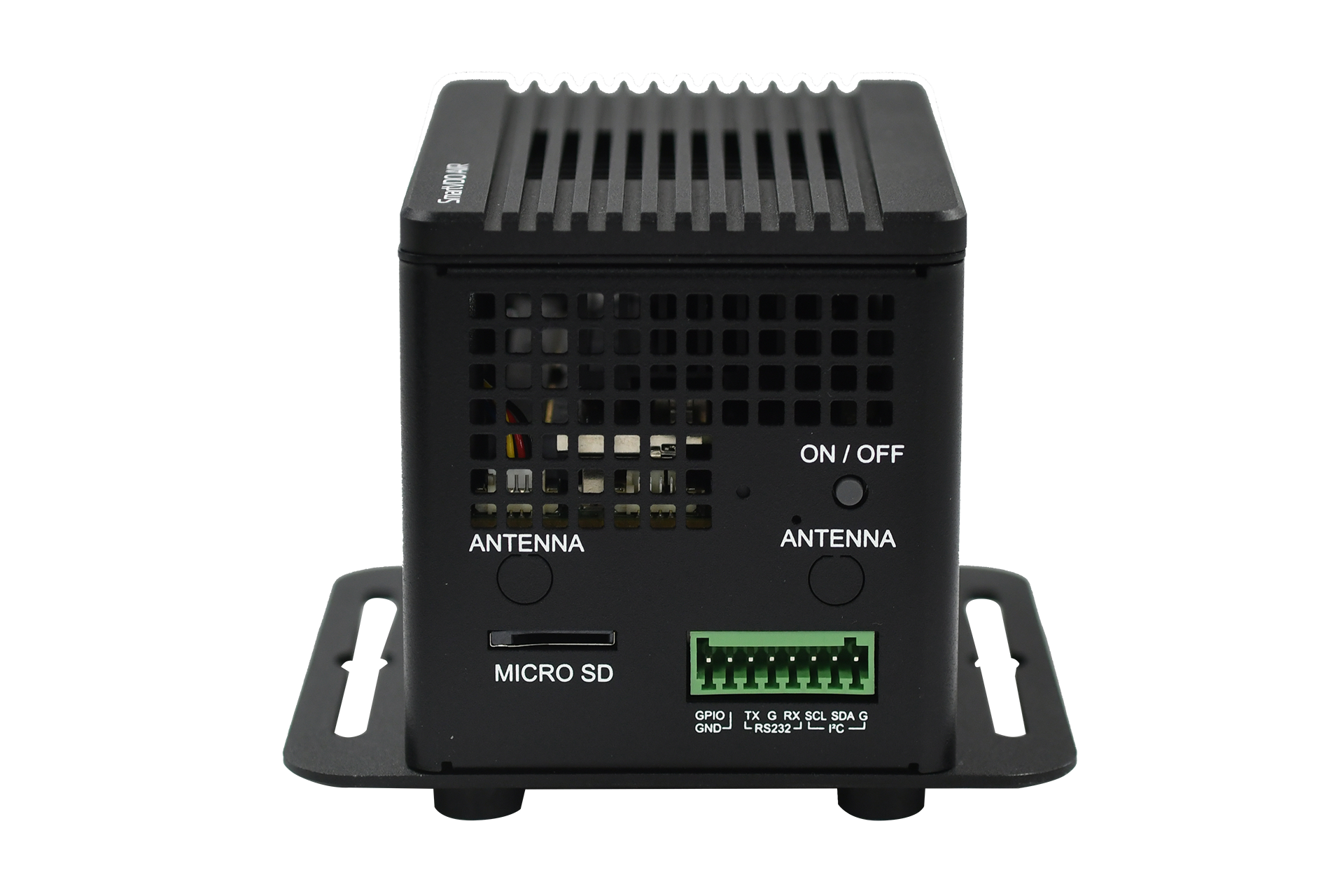

AIB-NINX-SC

Ultra Compact Business Card Size AI Edge Platform

Get a Quote

Comparison

資料表

Get a Quote

Comparison

資料表

Powered by NVIDIA® Jetson Orin™ NX up to 100 / 70 TOPS
Business Card Size ( 90mm×55mm )

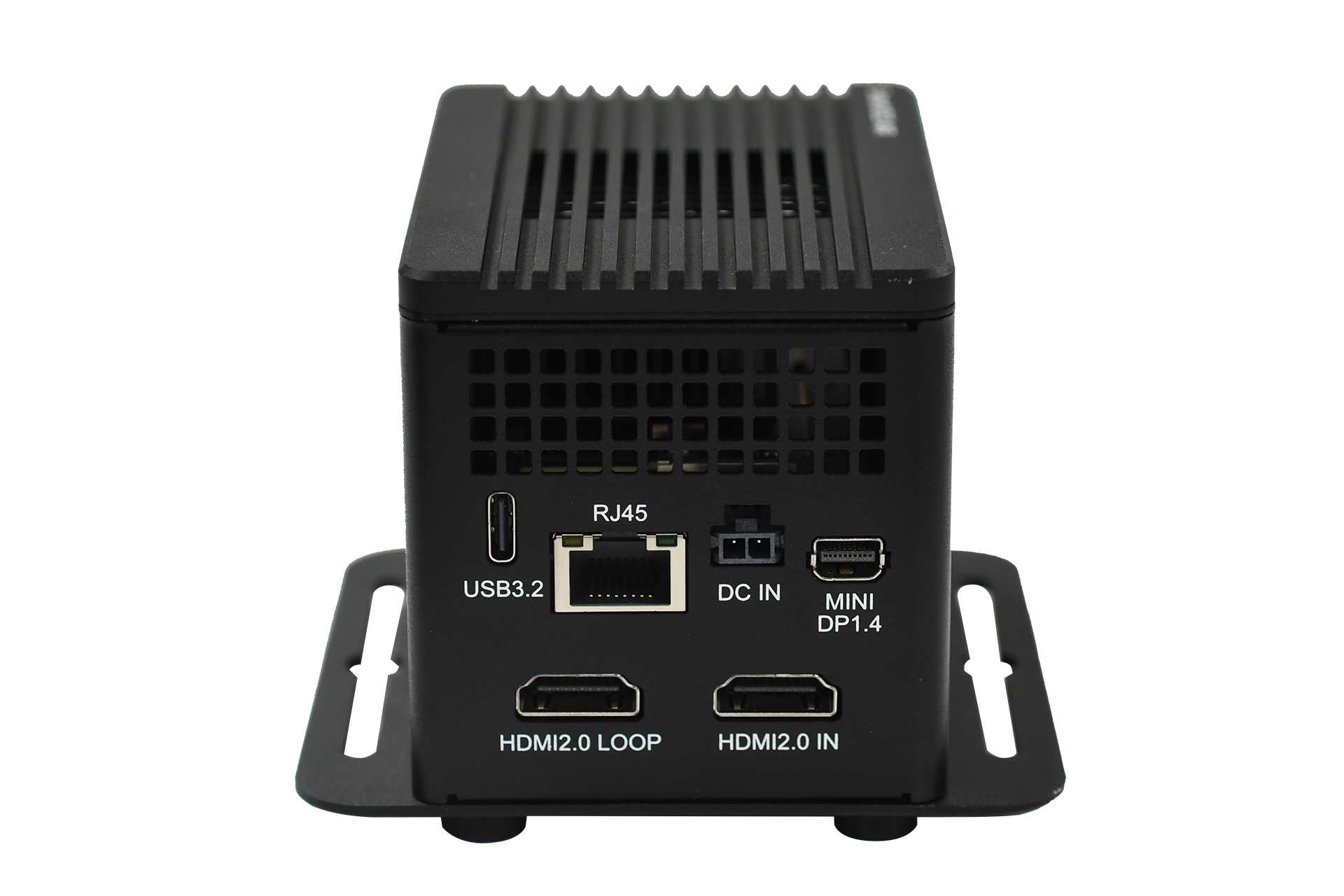

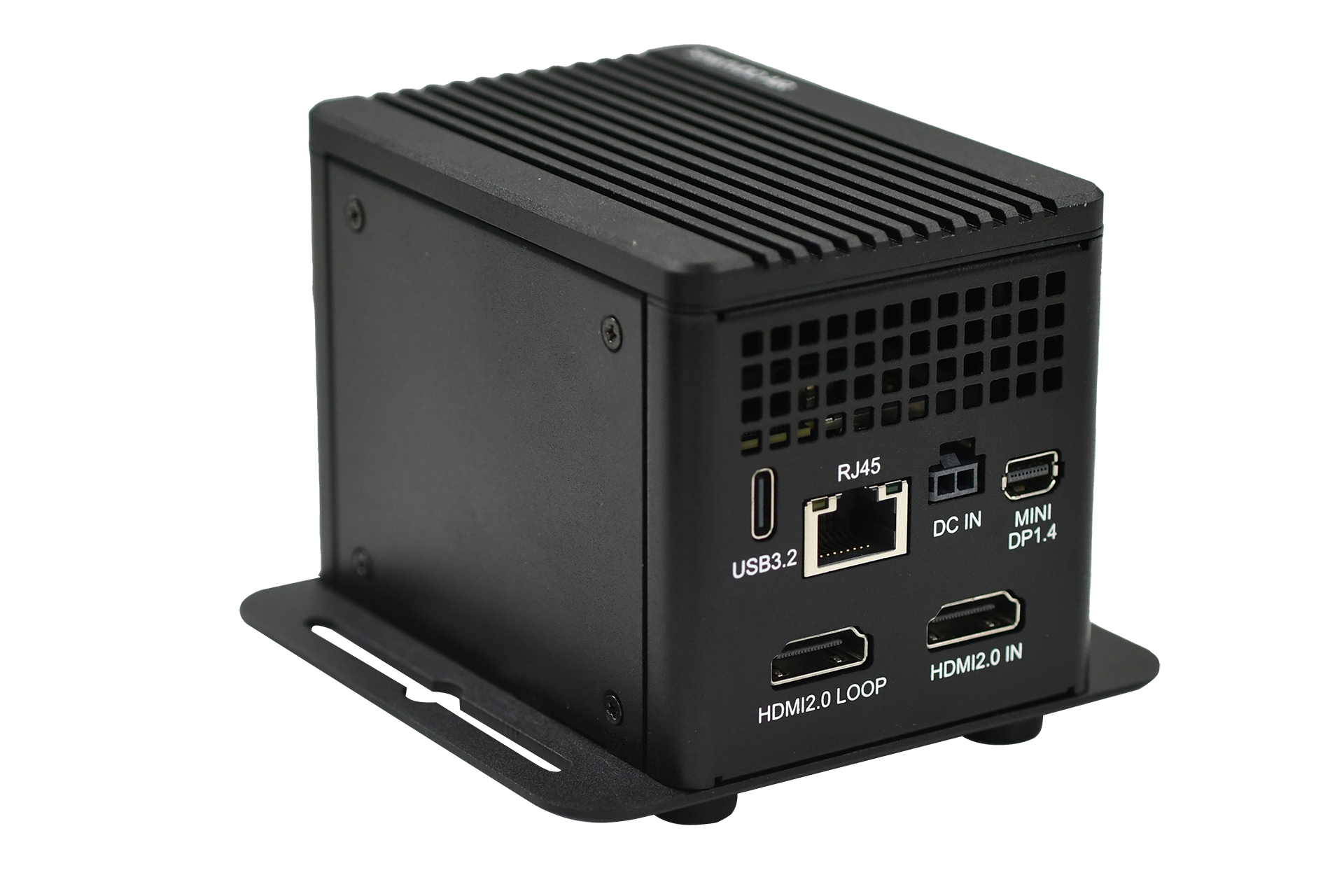

1×HDMI2.0 In&Loop
1×USB3.2 Gen2
1×Mini DisplayPort

規格
常見問題

產品規格

System Information

AI Performance

70/100 Tops
NVIDIA Platform

Jetson Orin™ NX
System Memory

8/16GB 128 bit LPDDR5 102.4GB/s
AI Performance

70/100 TOPS
NVIDIA Platform

NVIDIA Jetson Orin™ NX 8GB/16GB

Development Environment

AI SDK GitHub

https://github.com/Avalue-Technology/repositories.directory
SDK

JetPack 5.1.1 / JetPack 6.2 or Higher
BSP

Linux for Tegra(L4T) R35.3.1 or Higher
Kernal

5.10.104-tegra or Higher
OS

Ubuntu 20.04 / Ubuntu 22.04

Storage

Storage

1×Micro SD Card Slot
M.2

128GB

I/O

MIPI (Internal)

2×4MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card )
AC/DC Input

1 x DC Jack
DP

1×Mini DP1.4
Others

1 x CAN BUS
LAN Port

1 x RJ45
USB Port

1×USB3.2 Gen2 ( Type-C )

Expansion

M.2

1×M.2 2230 M Key PCIe Gen4×2 Slot ( Nano: Gen3×2 )
1×M.2 2230 E Key PCIe Gen4×1 Slot ( Nano: Gen3×1 )

Mechanical & Environmental

Power Requirement

DC 9~36V
Weight

530g
Storage Temperature

-20°C~80°C
Dimension (W x L x H)

94.4mm × 66mm × 69.8mm
Operating Temperature

Standard Version: 0~60°C with Airflow

Ordering Information

Ordering Information

AIB-NINX-SC08B-A1R:Orin NX 8GB/128GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16B-A1R:Orin NX 16GB/128GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC08G-A1R:Orin NX 8GB/128GB SSD/GMSL2 x 4 /Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16G-A1R:Orin NX 16GB/128GB SSD/GMSL2 x 4 /Ubuntu 20.04,Jetpack 5.1.1

AIB-NINX-SC08D-A1R:Orin NX 8GB/128GB SSD/HDMI2.1/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16D-A1R:Orin NX 16GB/128GB SSD/HDMI2.1/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC08A-A1R:Orin NX 8GB/128GB SSD/HDMI x 4/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16A-A1R:Orin NX 16GB/128GB SSD/HDMI x 4/Ubuntu 20.04,Jetpack 5.1.1

AIB-NINX-SC08U-A1R:Orin NX 8GB/128GB SSD/USB3.2 x 4/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16U-A1R:Orin NX 16GB/128GB SSD/USB3.2 x 4/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC08S-A1R:Orin NX 8GB/128GB SSD/12G-SDI/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16S-A1R:Orin NX 16GB/128GB SSD/12G-SDI/Ubuntu 20.04,Jetpack 5.1.1

AIB-NINX-SC08Q-A1R::Orin NX 8GB/128GB SSD/12G-SDI QL/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16Q-A1R:Orin NX 16GB/128GB SSD/12G-SDI QL/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC08T-A1R:Orin NX 8GB/128GB SSD/TVI x 4/Ubuntu 20.04,Jetpack 5.1.1
AIB-NINX-SC16T-A1R:Orin NX 16GB/128GB SSD/TVI x 4/Ubuntu 20.04,Jetpack 5.1.1

Optional Product Features Extension by Daughter Board

4×USB3.2-A

1×USB3.2 Gen2, 4×USB3.2 Gen1
HD60 4×HDMI

4×HDMI
4×TVI

4×TVI In
HD60 GMSL2 and CAN Bus

4×GMSL2 In
1×CAN Bus
4K60 HDMI2.0

1×HDMI2.0 In&Loop
4K60 HDMI2.1

1×HDMI2.1 In&Loop
12G-SDI QL 1×4K60 / 2×4K30 / 4×HD60

1×12G-SDI | 2×6G-SDI | 4×3G-SDI In
Single-Link, Dual-Link, Quad-Link Support
4K60 12G-SDI

1×12G-SDI In & Loop
SDK / Software

By request
