Processor

Intel® Celeron®J3455 Processor

System Memory

2 x 204-Pin DDR3L 1600MHz SO-DIMM Socket Supports Up to 16GB

I/O Chipset

EC iTE IT8528

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 128Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

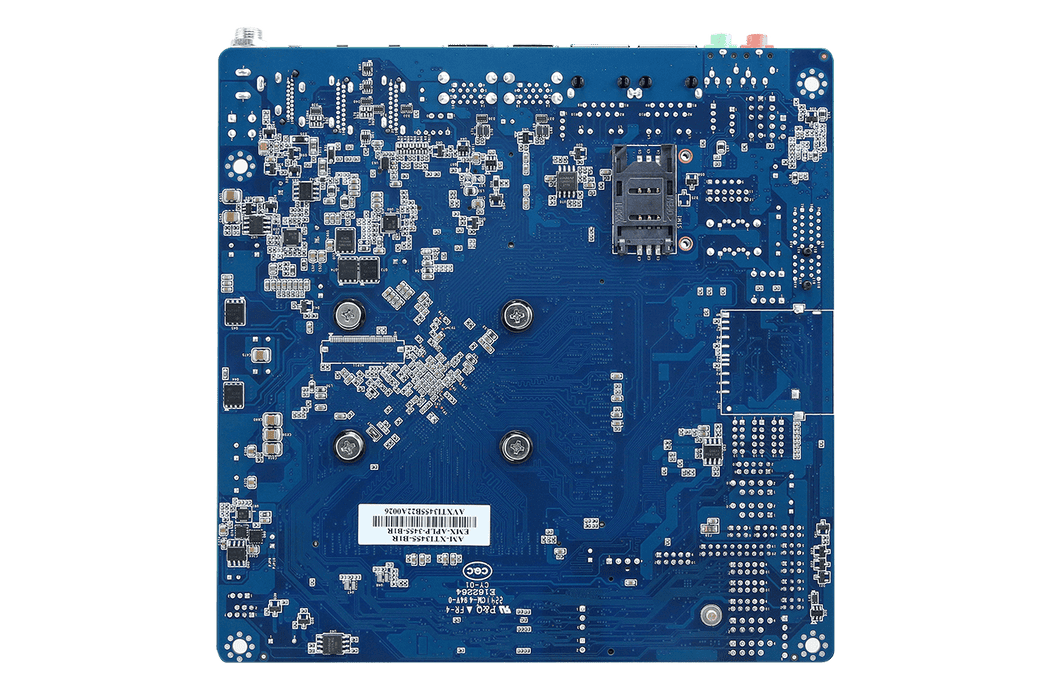

Board

Thin Mini ITX

Expansion

1 x Full size Mini PCIe Support mSATA (SATA III and mSATA by Auto Switch IC) with 1 x SIM Card Slot
1 x M.2 (2230) A-Key, Support WiFi Module (Default) or 1 x PCIe x1 By Control EC

Graphic Chipset

Intel® SoC Integrated Graphics

Spec. & Resolution

HDMI/DP: 3840 x 2160@30Hz, 4096x2160@60Hz
LVDS/eDP(Co-lay): 1920 x 1080@60Hz, 3840 x2160@60Hz

Multiple Display

Triple Display

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) eDP By BOM Option

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Mic-in, Line-out

Audio Amplifier

2 x 2W 4Ω Amplifier

LAN Chipset

2 x Intel I226LM 2.5 Gigabit Ethernet

Ethernet Interface

10/100/1000/2.5G Base-T compatible

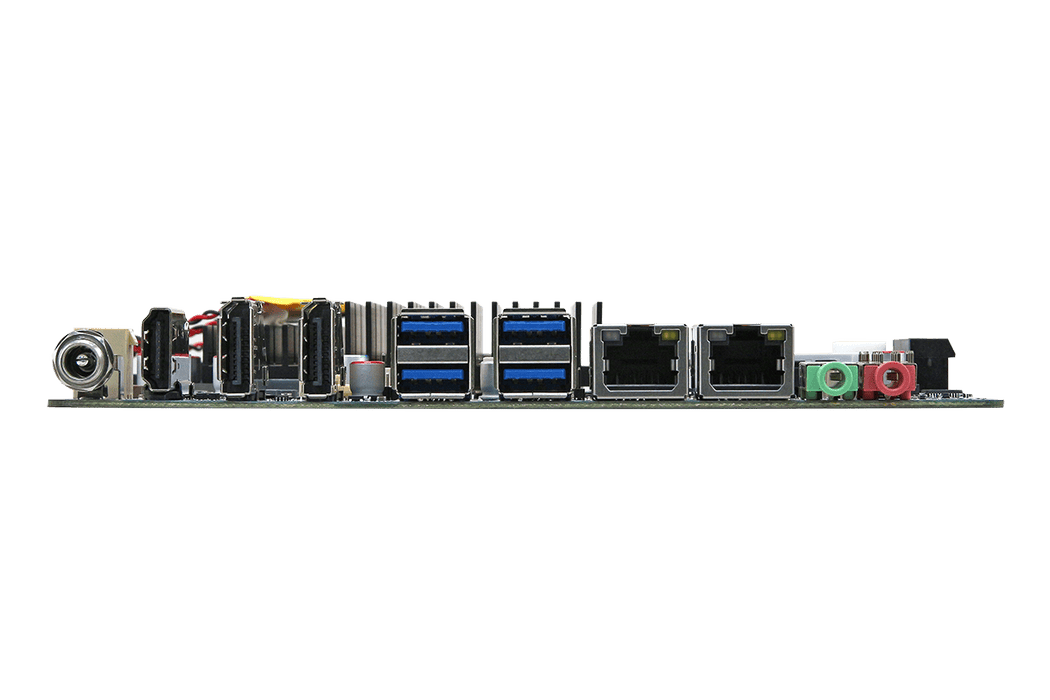

LAN Port

2 x RJ-45

OS

Windows 10, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.0
5 x USB 2.0

COM Port

5 x RS232(pin9 without power)
x RS232/RS422/485

SATA

2 x SATA III
2 x SATA Power

DIO

1 x 16-bit GPIO

Operating Temp.

0 ~ 60°C (32 ~ 140°F)with 0.5m/s air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.88lbs (0.4Kgs)

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

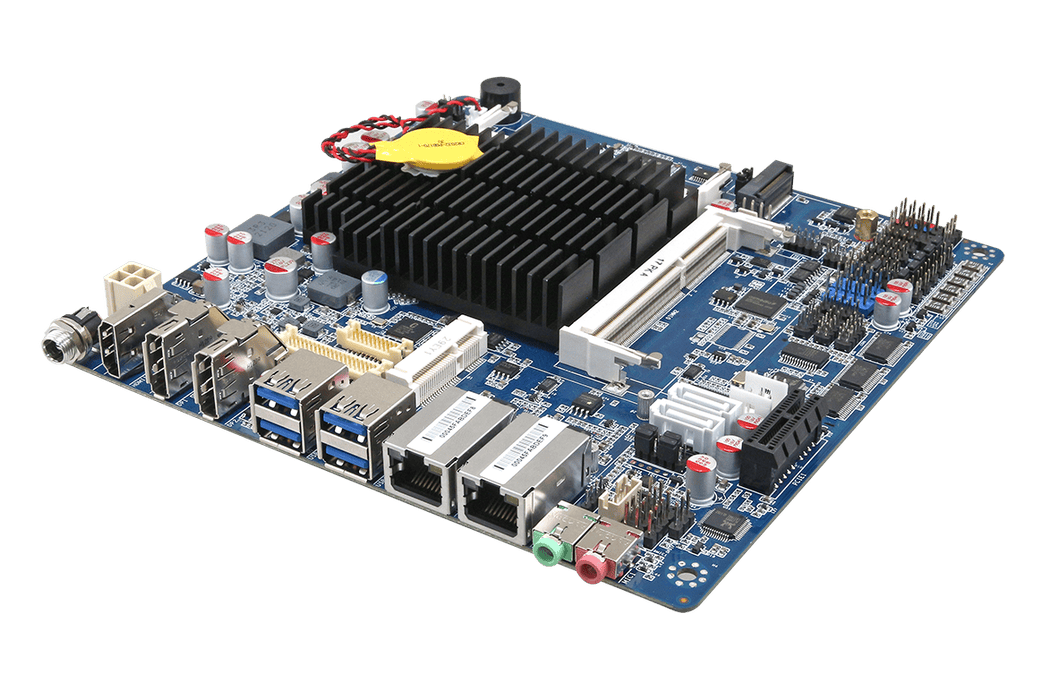

EMX-APLP-3455-B1R Intel® Celeron® J3455 Processor Thin Mini ITX Motherboard
