AVAILABLE

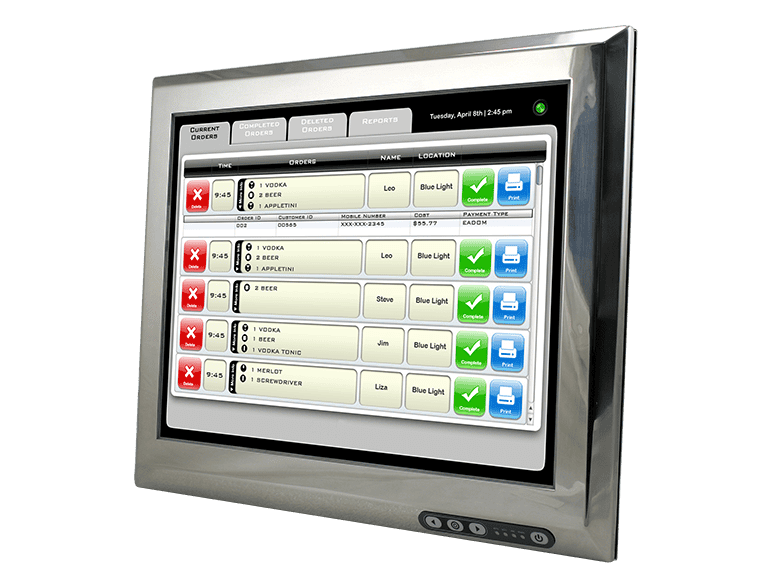

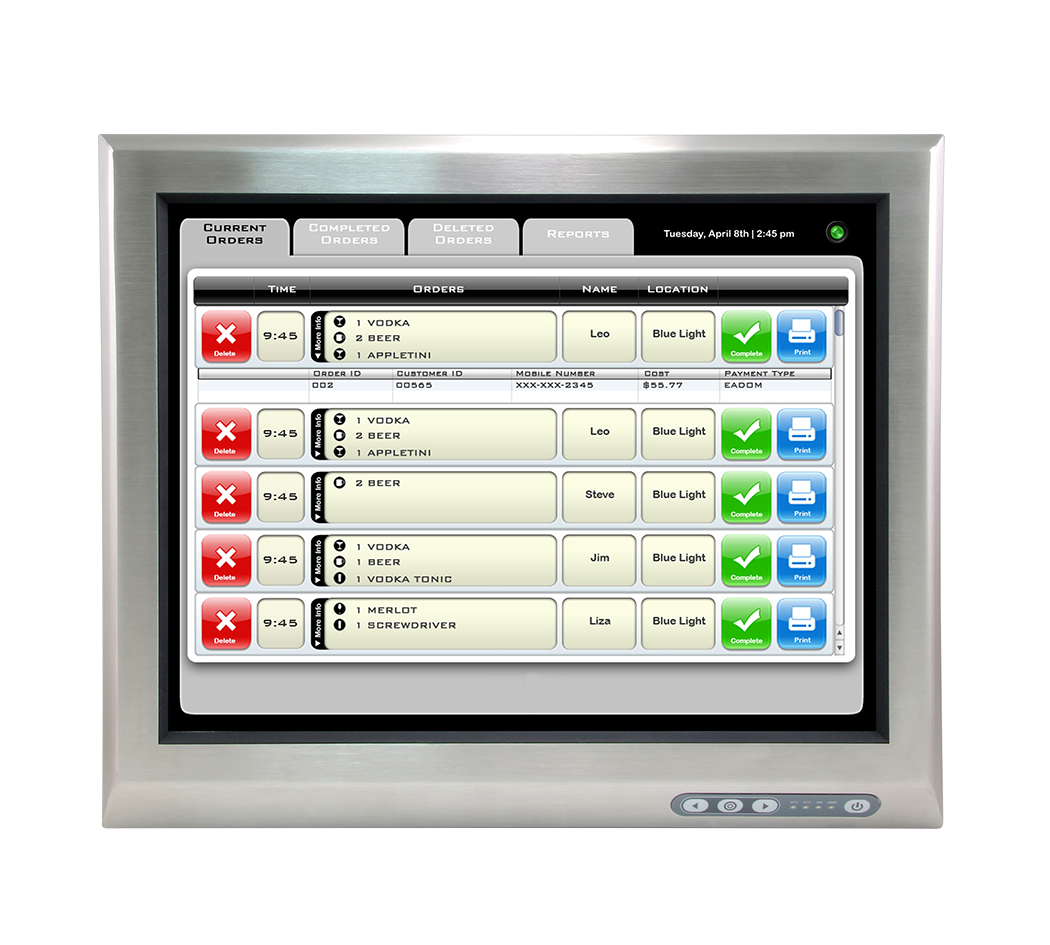

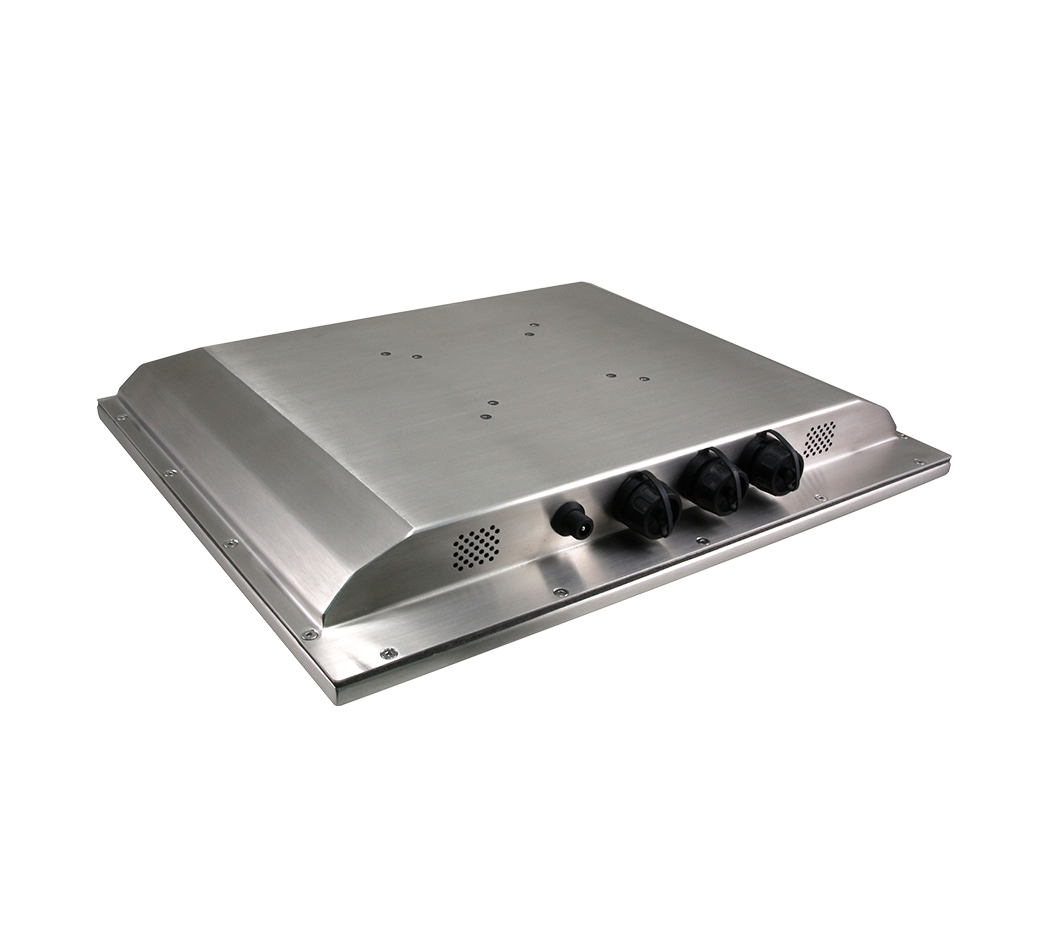

SPC-1509

15" Intel Atom® E3845/Celeron® J1900 Processors Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65

Get a Quote

Comparison

資料表

Get a Quote

Comparison

資料表

  • 功能
  • 規格
  • 檔案

產品功能

  • Intel Atom® E3845/Celeron® J1900 Processors
  • One 204-pin DDR3L SODIMM socket supports up to 8GB DDR3L 1333 SDRAM
  • 1 LAN, 3 USB, 1 COM
  • Dual Intel I210IT Gigabit LAN
  • Wide voltage +12V ~ +26V input, ErP power
  • Backlight controlled by PWM
  • Full system IP65
  • Timer-power-on

產品規格

System Information

  • Processor

    Intel Atom® E3845/Celeron® J1900 Processors
    Intel Atom® Processor E3845, 2M Cache, 1.91 GHz
    Intel® Celeron® Processor J1900, 2M Cache, up to 2.0 GHz

  • System Memory

    1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB

  • I/O Chipset

    EC ITE IT8528E

  • Watchdog Timer

    H/W reset, 1sec. ~ 65535sec./1sec.step

  • H/W Status Monitor

    Monitoring CPU & system temperature and voltage

  • SBC

    EBM-BYT

  • CPU Cooler (Type)

    Fanless heatsink

Expansion

  • Expansion

    1 x Mini PCIe support mSATA
    1 x Mini PCIe support SIM card

Storage

  • Storage

    1 x CompactFlash type I/II socket
    1 x 2.5 dirve bay

Display

  • Graphic Chipset

    Intel® Valleyview SoC integrated graphics
    supports dual display

  • Spec. & Resolution

    HDMI: Max. Resolution 1920x1200@ 60Hz

Audio

  • Audio Codec

    Realtek ALC888S

  • Audio Interface

    Line-out

  • Speaker Output

    2 x 5W

Ethernet

  • LAN Chipset

    1 x Intel® I210IT

  • Ethernet Interface

    10/100/1000 Base-Tx GbE compatible

Power Requirement

  • DC Input

    +12V ~ +26V

  • ACPI

    Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

  • OS

    Win 7 / Win 8 / Linux

Certification

  • Certification Information

    CE / FCC Class A

Panel

  • LCD Size

    15", 4:3

  • Display Type

    XGA

  • Resolution

    1024 x 768

  • Pixel pitch

    0.297mm(H) x 0.297mm(V)

  • Luminance

    500 cd/m2

  • Contrast ratio

    2500

  • Viewing angle

    88 (U), 88 (D), 88 (L), 88 (R)

  • Response time

    16 ms

  • Backlight

    LED

  • Touch Type

    5 wires resistive

  • Touch Light Transmission

    80%

  • Touch Controller

    Onboard USB touch (EETI)

External I/O

  • USB

    3 x USB 2.0

  • LAN Port

    2 x RJ-45

  • COM Port

    1 x RS-232

Internal I/O

  • SATA

    1 x SATA II

System Control

  • LED Indicator

    HDD LED, power LED

Data Communication

  • WLAN

    Optional WIFI module 802.11 ac/a/b/g/n/

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Operating Humidity

    20% ~ 80% Relative humidity, non-condensing

  • Dimension (W x L x H)

    371 x 308 x59mm

  • Weight

    6.42 Kg

  • Vibration Test

    With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

  • Shock Test

    With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

  • Drop Test

    ISTA 2A, IEC-60068-2-32 Test:Ed

  • IP Rating

    Whole system IP65

  • Mounting Kit

    Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

  • Power Mode

    AT/ATX (ATX is default)

  • System Fan

    Fanless

  • Construction - Front

    Stainless steel

  • Construction - Rear

    Stainless steel

Component

  • Adapter

    Input: 100 ~ 240Vac/ 50 ~ 60Hz
    Output: 60W adapter (12V @ 5A adapter) AC-DC adapter AC-DC adapter

Ordering Information

  • Ordering Information

    SPC-1509-384-A4R
    15 XGA Waterproof Stainless Panel PC with Intel® Atom Quad-Core E3845 1.91GHz D1-CPU/4GR/32GSSD/1LAN/1COM/3USB/True Flat Rear Case/No Speakers

    SPC-1509-190-A4R
    15 XGA Waterproof Stainless Panel PC with Intel® J1900 2.00 GHz D1-CPU/4GR/32GSSD/1LAN/2USB/True Flat Rear Case/No Speakers

    ACC-ARM-D1R
    VESA STAND, 75mm & 100 mm

    ACC-ARM-D23R
    VESA STAND, 75mm & 100 mm

    ACC-SPC-WIFI-1R
    Wifi Kits for SPC-15/17/22 802.11b/g/n MPCIe/2Antenna/Cable

    E1702031833R
    USA Power Cord

    E1702031000R
    EU Power Cord

    E1702031834R
    Japan Power Cord

    E1702031830R
    UK Power Cord

    E1702031831R
    Australia Power Cord

相關檔案

  • BIOS (7)
  • Chipset (2)
  • Audio (1)
  • Graphics (5)
  • LAN (2)
  • Drawing (1)
  • Manual (2)
  • Other Driver (9)
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
SPC159DE)SPC-1509(M/D) BIOS 1.3 CS:5792H,P/N:E1512S59002R
2023-11-01
(LPC159IE)LPC/SPC-1509(I) 1.5 CS:19CAH,P/N:E1512L59006R
2023-11-01
SPC159DD)SPC-1509(M/D) BIOS 1.2 CS:140DH,P/N:E1512S59001R
2023-11-01
(LPC159ID)LPC/SPC-1509(I) 1.4 CS:D754H,P/N:E1512L59005R
2023-11-01
LPC159DB) LPC/SPC-1509(M/D) 1.00CS:487BH,P/N:E1512L59003R
2023-11-01
(LPC159IB)LPC/SPC-1509(I) 1.20 CS:2456H,P/N:E1512L59002R.
2023-11-01
(LPC159I7)LPC/SPC-1509(I) 1.10 CS:9177H,P/N:E1512L59001R
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
Intel_BYT_D1_Chipset_Win10_64_10.1.17570.8068
2023-11-01
Intel_BYT_Chipset_Win 7 8 3264_10.0.14
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
Realtek_ALC892_Audio_Win7_8.1_3264_R273
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
Intel_BYT_D1_Video_Win10_64_10.18.10.4885
2023-11-01
Intel_BYT_VGA_Win7_8.1_32_15.33.28.3925
2023-11-01
Intel_BYT_VGA_Win7_8.1_64_15.33.28.64.3925
2023-11-01
Intel_EMGD.Win 7_32_36_15_0_1097
2023-11-01
Intel_EMGD.Win 7_64_36_15_0_1097
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
Intel_I211_LAN_Win7_64_18.7
2023-11-01
Intel_I211_LAN_Win7_32_18.7
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
SPC-1509 system drawing
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
SPC-1509 A2 1st Quick Reference Guide
2023-11-01
SPC-1509 A1 5th Quick Reference Guide
編號
發佈日期
型號
說明
檔案
下載
2023-11-01
Intel_BYT_D1_TXE_Win10_64_1.1.5.2162
2023-11-01
Intel_BYT_D1_MBI_Win10_64_1.70.304.16316
2023-11-01
eGalaxTouch_5.13.0.12628
2023-11-01
MBI_PV_Win8_1_WW51-1.70.305.16316
2023-11-01
Intel_USB_3.0_xHC_Driver
2023-11-01
kmdf-1.11-Win-6.1-x64
2023-11-01
kmdf-1.11-Win-6.1-x86
2023-11-01
SMSC_hub driver_4.1.3.0_Setup
2023-11-01
Intel TXE_Win 7 8 3264_FW 1.04.1089 HF4
