System Memory

32GM/64GB LPDDR4

Processor

Jetson AGX Orin 32GB /
Jetson AGX Orin 64GB

GPU

NVIDIA Ampere 1792-CUDA® Core /
NVIDIA Ampere 2048-CUDA® Core

AI Performance

200 TOPS/
275 TOPS

PCIe

2x Mini PCIe

M.2

1×M.2 M Key
1×M.2 B Key

Expansion

1xmicro SD Slot
4xNano SIM Socket

Storage

64GB eMMC 5.1

OS

Ubuntu 20.04

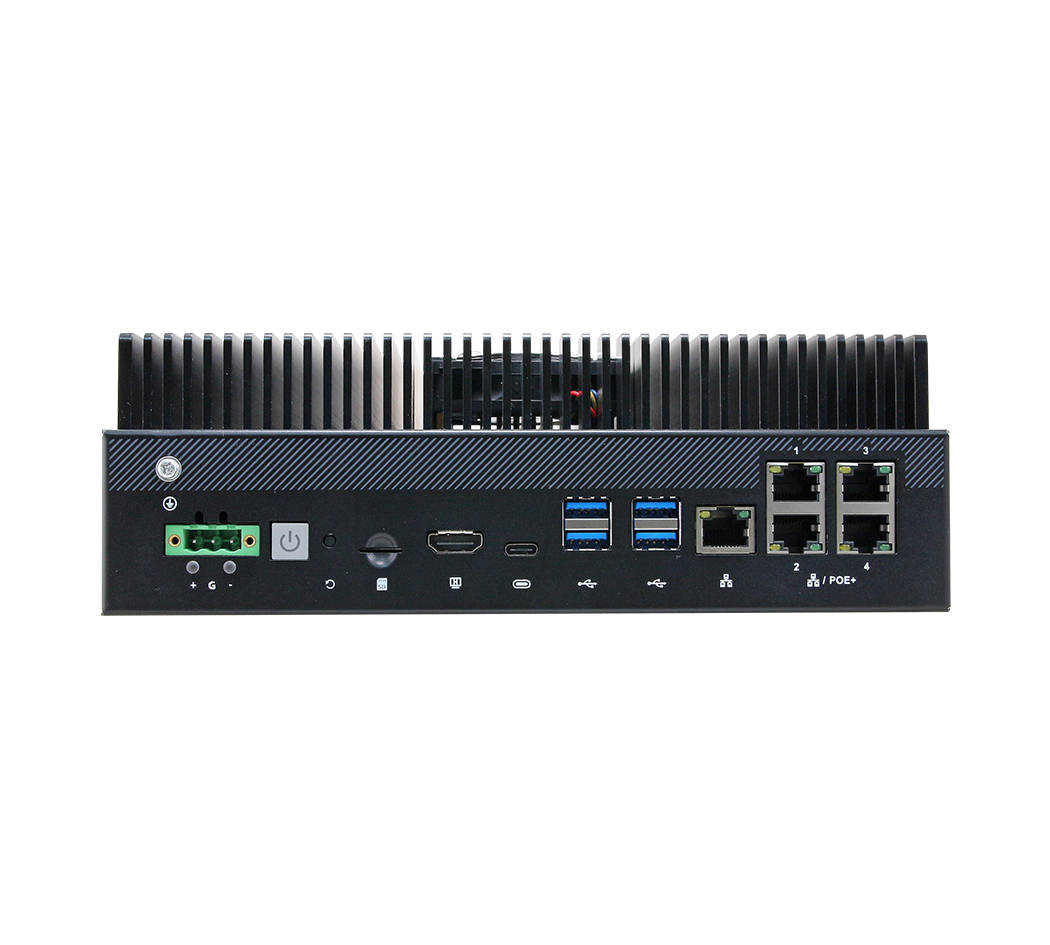

USB

4 x USB3.0 (type-A)
1 x USB2.0 (type-C)

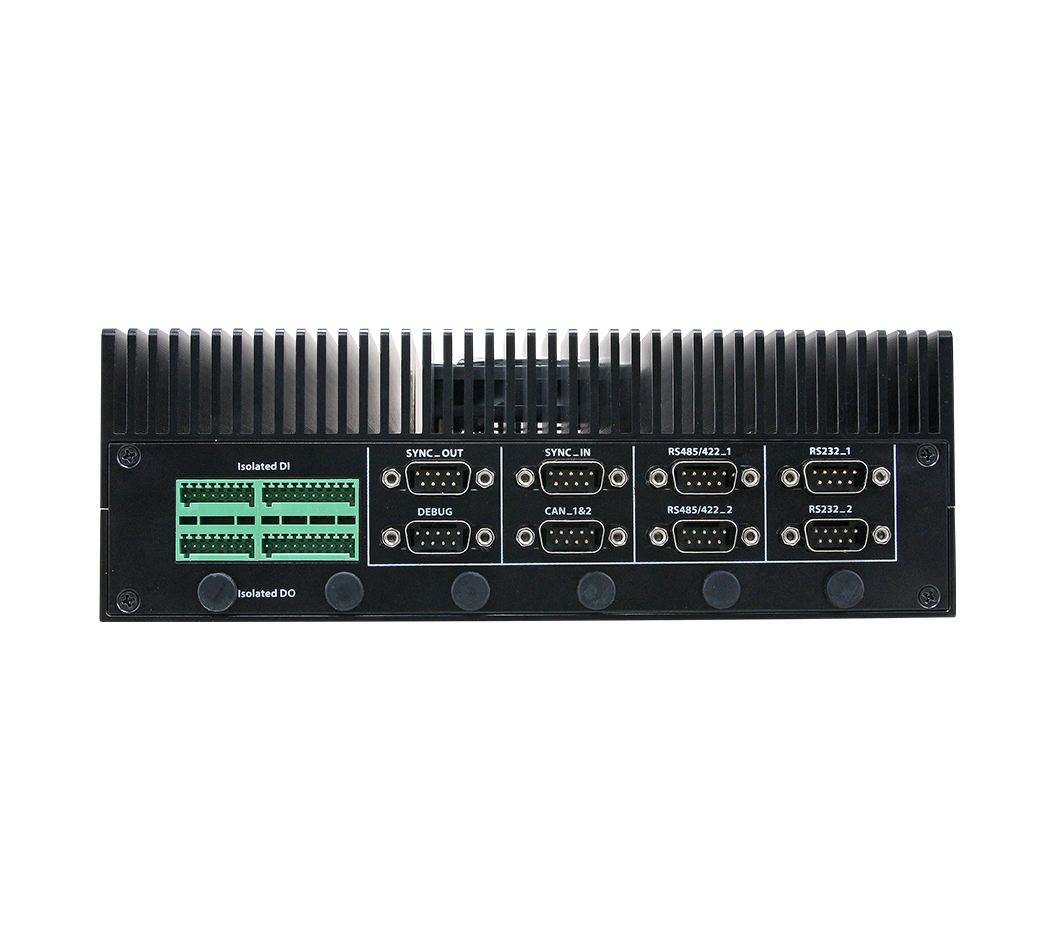

COM

2 x CAN FD
16 x GPIO (8x In, 8xOut)
3 x RS232
2 x RS485/422
1 x Debug
4 x SYNC I/O (SYNC_IN/SYNC_OUT/SYNC_PPS)

Network

5ｘ10/100/1000 RJ45 Powered LAN

Display

1 x HDMI 2.0 (typeA)

Function key

1 × Power KEY
1× Recovery KEY

User Expansion

1 x M.2 M Key 2280 size NVMe SSD
1× M.2 B Key for 5G

Video Encode

H.265
1x 4K60，3x4k30，6x 1080p60，12x 1080p30
H.264
1x 4K60，2x 4K30，5x 1080p60，11x 1080p30/

H.265
2x 4K60，4x4k30，8x 1080p60，16x 1080p30
H.264
2x 4K60，4x 4K30，7x 1080p60，15x 1080p3

Video Decode

H.265
1x 8K30，2x 4K60，4x4k30，9x 1080p60，18x 1080p30
H.264
1x 4K60，2x 4K30，5x 1080p60，11x 1080p30 /

H.265
1x 8K30，3x 4K60，6x4k30，12x 1080p60，24x 1080p30
H.264
1x 4K60，3x 4K30，7x 1080p60，14x 1080p30

Vibration Test

3 Grms,10Hz~500Hz,1h/axis

Power Requirement

DC 12V-48V

Dimension (W x L x H)

233 x 144x 80 mm

Weight

2.3 kg

Operating Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Temp.

-40°C ~ 80°C (-40°F ~ 176°F)

Storage Humidity

0%-90% non-condensing
