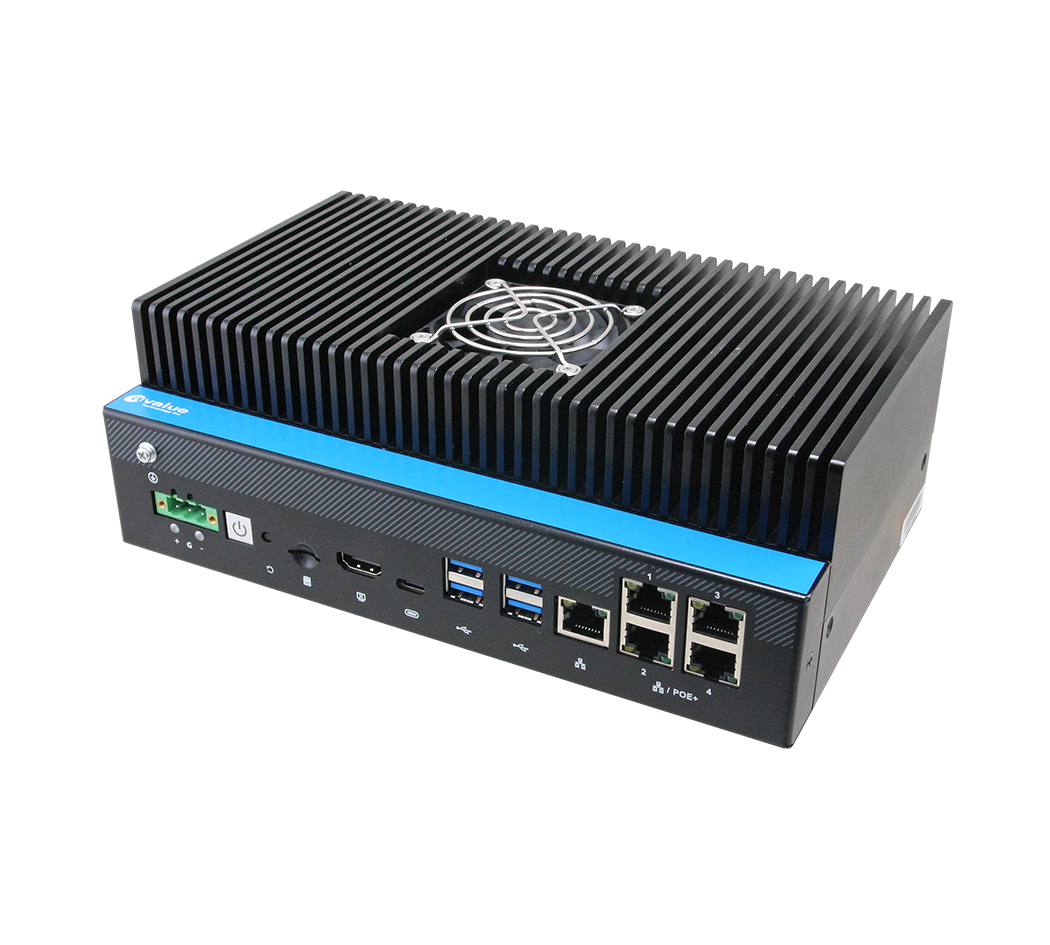

Avalue Technology - Industrial Computer

AIB-NIAO

AI box pc NVIDIA AGX Orin 270/275 TOPS

/upload/2024_04_25/11_20240425130940jjuxs8yhs5.png
ProductFeatures
  • Jetson AGX Orin 32GB , Jetson AGX Orin 64GB
  • 32GM/64GB LPDDR4
  • 5ch Gigabit LAN port
  • Operating Temp. -25°C ~ 70°C (-13°F ~ 158°F)
  • 4 x USB 3.0

Specification

System Information

  • System Memory

    32GM/64GB LPDDR4

  • System Memory

    32GM/64GB LPDDR4

  • Processor

    Jetson AGX Orin 32GB /
    Jetson AGX Orin 64GB

  • GPU

    NVIDIA Ampere 1792-CUDA® Core /
    NVIDIA Ampere 2048-CUDA® Core

AI Performance

  • AI Performance

    200 TOPS/
    275 TOPS

  • AI Performance

    200 TOPS/
    275 TOPS

Expansion

  • PCIe

    2x Mini PCIe

  • PCIe

    2x Mini PCIe

  • M.2

    1×M.2 M Key
    1×M.2 B Key

  • Expansion

    1xmicro SD Slot
    4xNano SIM Socket

Storage

  • Storage

    64GB eMMC 5.1

  • Storage

    64GB eMMC 5.1

Development Environment

  • OS

    Ubuntu 20.04

  • OS

    Ubuntu 20.04

External I/O connector

  • USB

    4 x USB3.0 (type-A)
    1 x USB2.0 (type-C)

  • USB

    4 x USB3.0 (type-A)
    1 x USB2.0 (type-C)

  • COM

    2 x CAN FD
    16 x GPIO (8x In, 8xOut)
    3 x RS232
    2 x RS485/422
    1 x Debug
    4 x SYNC I/O (SYNC_IN/SYNC_OUT/SYNC_PPS)

  • Network

    5x10/100/1000 RJ45 Powered LAN

  • Display

    1 x HDMI 2.0 (typeA)

  • Function key

    1 × Power KEY
    1× Recovery KEY

  • User Expansion

    1 x M.2 M Key 2280 size NVMe SSD
    1× M.2 B Key for 5G

  • Video Encode

    H.265
    1x 4K60,3x4k30,6x 1080p60,12x 1080p30
    H.264
    1x 4K60,2x 4K30,5x 1080p60,11x 1080p30/

    H.265
    2x 4K60,4x4k30,8x 1080p60,16x 1080p30
    H.264
    2x 4K60,4x 4K30,7x 1080p60,15x 1080p3

  • Video Decode

    H.265
    1x 8K30,2x 4K60,4x4k30,9x 1080p60,18x 1080p30
    H.264
    1x 4K60,2x 4K30,5x 1080p60,11x 1080p30 /

    H.265
    1x 8K30,3x 4K60,6x4k30,12x 1080p60,24x 1080p30
    H.264
    1x 4K60,3x 4K30,7x 1080p60,14x 1080p30

Mechanical & Environmental

  • Vibration Test

    3 Grms,10Hz~500Hz,1h/axis

  • Vibration Test

    3 Grms,10Hz~500Hz,1h/axis

  • Power Requirement

    DC 12V-48V

  • Dimension (W x L x H)

    233 x 144x 80 mm

  • Weight

    2.3 kg

  • Operating Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Storage Temp.

    -40°C ~ 80°C (-40°F ~ 176°F)

  • Storage Humidity

    0%-90% non-condensing
