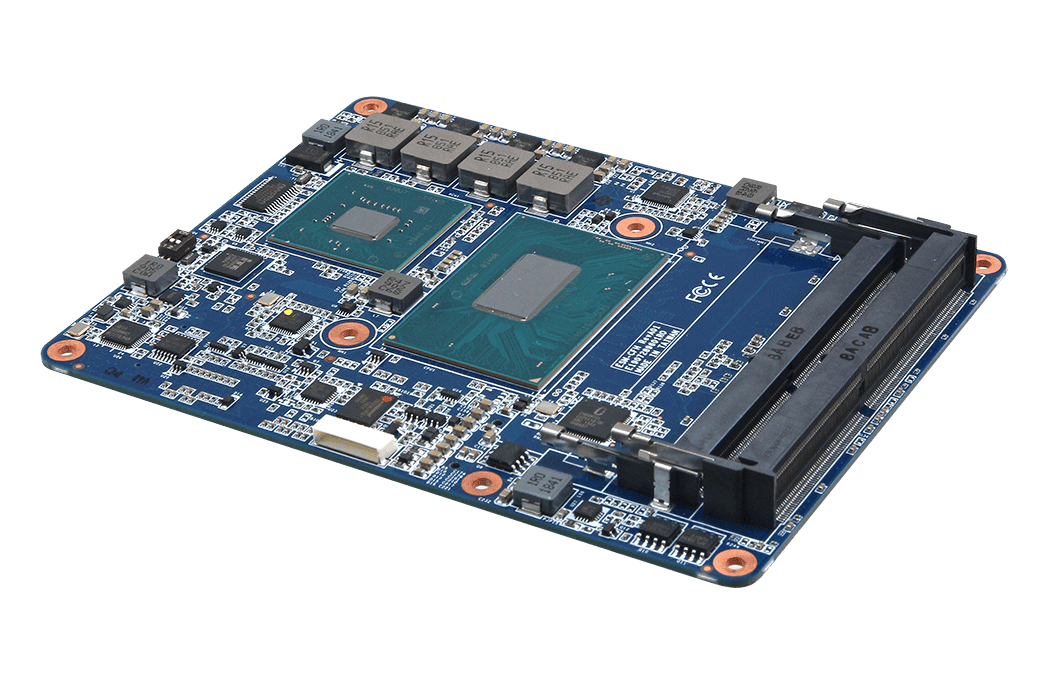

ESM-CFH

PICMG COM R3.0 Type 6 module with Intel® 9th/8th Generation Xeon®/Core™ i7/i5/i3 Processors with CM246/QM370 Chipset Type6 COMe Basic Module

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • PICMG COM R3.0 Type 6 Module with Intel® 9th/8th Generation Xeon®/Core™ i7 / i5 / i3 Processor
  • 3 x 260-Pin DDR4-2400/2133MHz SO-DIMM Up to 96 GByte Note: ECC Supported Only on Specific Models with Xeon & i3 CPU Paired with CM246 Supports Both ECC and Non-ECC Memory)
  • 1 x Intel® I219LM
  • Intel® HD Audio Integrated on CPU
  • Onboard TPM 2.0 Optional
  • COMe Type 6 Basic Size: 3.74" x 4.92" (125*95 mm)
  • DC in +9V ~ +19V
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    9th Gen. Intel® Xeon®, Core™, Pentium® and Celeron® Processor
    Xeon® E-2276ME 45W (35W cTDP), 6C/GT2 (ECC/non-ECC)
    Xeon® E-2276ML* 25W, 6C/GT2 (ECC/non-ECC)
    Xeon® E-2254ME* 45W (35W cTDP), 4C/GT2 (ECC/non-ECC)
    Xeon® E-2254ML* 25W, 4C/GT2 (ECC/non-ECC)
    Core™ i7-9850HE 45W (35W cTDP), 6C/GT2 (non-ECC)
    Core™ i7-9850HL* 25W, 6C/GT2 (non-ECC)
    Core™ i3-9100HL 25W, 4C/GT2 (ECC/non-ECC)
    Celeron® G4930E* 35W, 2C/GT1 (ECC/non-ECC)
    Celeron® G4932E* 25W, 2C/GT1 (ECC/non-ECC)
    Mobile 8th Generation Intel Xeon® and Core™ Processor
    Xeon® E-2176M* 45W (35W cTDP), 6C/GT2 (ECC/non-ECC)
    Core™ i7-8850H* 45W (35W cTDP), 6C/GT2 (non-ECC)
    Core™ i5-8400H 45W (35W cTDP), 4C/GT2 (non-ECC)
    Core™ i3-8100H* 45W (35W cTDP), 4C/GT2 (ECC/non-ECC)
    *SKU is project based support. Please contact sales for details

  • Platform Controller Hub

    Intel® CM246 Chipset (Supports ECC Memory, Intel® AMT and PEG Configuration)
    Intel® QM370 Chipset (Supports Intel® AMT and PEG Configuration)

  • System Memory

    3 x 260-Pin DDR4-2400/2133MHz SO-DIMM Up to 96 GByte
    Note: ECC Supported Only on Specific Models with Xeon & i3 CPU Paired with CM246 Supports Both ECC and Non-ECC Memory)

  • I/O Chipset

    EC iTE IT8528E

  • Watchdog Timer

    H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

  • BIOS

    AMI uEFI BIOS, 128 Mbit SPI Flash ROM

  • H/W Status Monitor

    Monitoring System Temperature
    Voltage and FAN Status with Auto Throttling Control

  • TPM

    Onboard TPM 2.0 Optional

Expansion

  • Expansion

    1 x PCIe x16 (Gen3), (Configurable to 1 x PCIe x16, 2 x PCIe x8 or 1 x PCIe x8+2 PCIe x4)
    8 x PCIe x1 (Configurable to x4 or x2)
    6 x PCIe x1 (PCIe0~3 w/RST , PCIe4, 5)
    2 x PCIe x1 (PCIe6, PCIe7)

Display

  • Graphic Chipset

    Intel® Processor Integrated Graphics

  • Spec. & Resolution

    eDP 1.4 (Optional): 4096x2304@60Hz Optional (Only One Display Output)
    HDMI 1.4: 4096x2160@30Hz (Only One Display Output)
    DP 1.2: 4096x2304@60Hz (Only One Display Output)
    LVDS (Via eDP-to-LVDS IC): 1920x1080@60Hz
    VGA (Via DP-to-VGA IC): 1920x1080@60Hz

  • Multiple Display

    Triple Independent Support and Simultaneous Display LVDS (eDP)+ VGA (HDMI)+DDI (HDMI or DP)

  • LVDS

    CH7511B(eDP to LVDS)

  • DDI

    HDMI or DP

Audio

  • Audio Interface

    Intel® HD Audio Integrated on CPU

Ethernet

  • LAN Chipset

    1 x Intel® I219LM

  • Ethernet Interface

    10/100/1000 Base-Tx Gigabit Ethernet Compatible

Software Support

  • OS

    Windows 10 64-bit
    Linux

Certification

  • Certification Information

    CE, FCC Class, RoHS Compliant

I/O

  • USB

    4 x USB 3.2 Gen.2
    8 x USB 2.0

  • COM Port

    2 x UART (RX/TX Only)

  • SATA

    4 x SATA III

  • DIO

    1 x 8-bit GPIO

  • MIO

    1 x SMBus
    1 x LPC
    1 x I2C
    1 x SPI
    1 x SDIO (Optional)

Mechanical & Environmental

  • Operating Temp.

    Standard 0°C ~ 60°C (32°F ~ 140°F)

  • Storage Temp.

    -40°C ~ 75°C (-40°F ~ 167°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    0.44lbs(0.2Kg)

  • Power Requirement

    +9V ~ +19V

  • Power Mode

    AT/ATX

  • Dimension (L x W)

    3.74" x 4.92" (125*95 mm)

Ordering Information

  • Ordering Information

    ESM-CFH-2276ME-A1R
    Intel® Xeon® 2276ME with CM246 chipset Type6 COMe Basic Module

    ESM-CFH-9850HE-A1R
    Intel® Core™ i7--9850HE with QM370 chipset Type6 COMe Basic Module

    ESM-CFH-8400H-A1R
    Intel® Core™ i5-8400H with QM370 chipset Type6 COMe Basic Module

    ESM-CFH-9100HL-A1R
    Intel® Core™ i3-9100HL with QM370 chipset Type6 COMe Basic Module

    EEV-EX14-B1R
    mATX Ev. Board for COMe Type 6 A2

    ACC-ESMCFH-CL-1R

    Cooler for ESM-CFH W/FAN H=44.6m

    ACC-ESMCFH-SD-1R

    Heatspreader for ESM-CFH H=8.0m

  • BIOS
    1
  • Chipset
    1
  • Graphics
    1
  • LAN
    1
  • Design Document
    5
  • Manual
    1
  • Other Driver
    3
  • All
  • Windows 10 64bit
  • BIOS

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    (SCFH1R10)ESM-CFH BIOS 1.00 CS:5485H,P/N:E1512289600R
    • N/A

    Chipset

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Intel Chipset-10.1.17854.8100-Public-MUP
    • Windows 10 64bit

    Graphics

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Intel Graphics_26.20.100.6813_win64
    • Windows 10 64bit

    LAN

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    23.5.2_PROWinx64
    • Windows 10 64bit

    Design Document

    Total 5 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Carrier Board Schematic Check List 20190620
    • N/A
    2023-11-01
    Carrier board Layout Guide _R3.0_ESM-CFH
    • N/A
    2023-11-01
    3D_Heat-spreader_ESM-CFH.zip
    • N/A
    2023-11-01
    3D_Cooler_ESM-CFH.zip
    • N/A
    2023-11-01
    3D_Board_ESM-CFH.zip
    • N/A

    OPEN ALL FILES

    Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    ESM-CFH 2nd Manual
    • N/A

    Other Driver

    Total 3 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Intel serialio_30.100.1915.1_cnl_19h1
    • N/A
    2023-11-01
    Intel RST_17.5.0.1011
    • Windows 10 64bit
    2023-11-01
    Intel ME_corporate_12.0.38.1430
    • Windows 10 64bit
