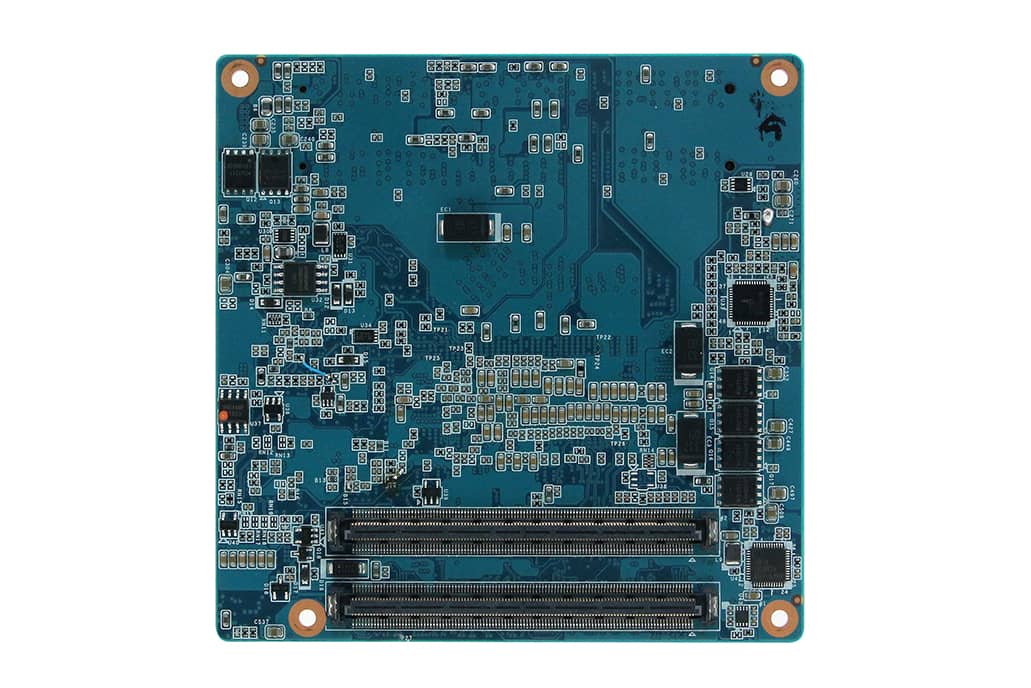

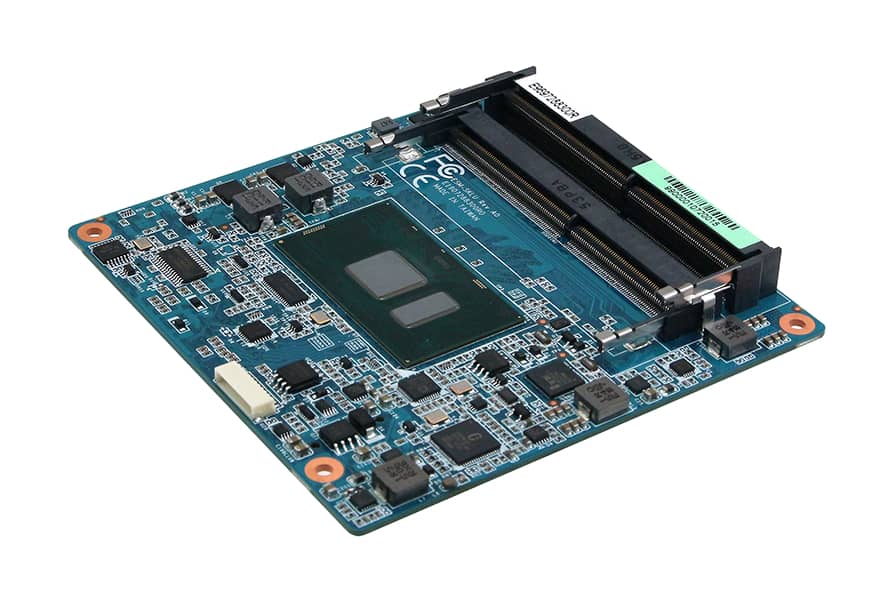

ESM-KBLU

7th Gen Intel® Core™ SoC ULT Processor i7/i5/i3 COMe Type6 Compact Module

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • Onboard 7th Gen. Intel® Core™ SoC ULT i7/i5/i3 BGA Processor
  • 2 x 260-Pin DDR4 2133MHz SO-DIMM SDRAM Slot Up to 32 GB
  • 1 x Intel® I219LM
  • Intel® HD Audio Integrated on CPU
  • Onboard TPM 2.0 Optional
  • COMe Type 6 Compact Size: 3.74” x 3.74” (95 x 95 mm)
  • Type 6 Rev 2.1 Pin-out
  • DC in +9V ~ +19V
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    7th Gen. Intel® Core™ i7-7600U, 2-Core, 2.8GHz Processor
    7th Gen. Intel® Core™ i5-7300U, 2-Core, 2.6GHz Processor
    7th Gen. Intel® Core™ i3-7100U, 2-Core, 2.4GHz Processor
    7th Gen. Intel® Celeron® 3965U, 2-Core, 2.2GHz Processor

  • System Memory

    2 x 260-Pin DDR4 2133MHz SO-DIMM SDRAM Slot Up to 32 GB

  • I/O Chipset

    EC iTE IT8528E

  • Watchdog Timer

    H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

  • BIOS

    AMI uEFI BIOS, 128Mbit SPI Flash ROM

  • H/W Status Monitor

    Monitoring System Temperature
    Voltage and FAN Status with Auto Throttling Control

  • TPM

    Onboard TPM 2.0 Optional

Expansion

  • Expansion

    8 x PCIe x1

Display

  • Graphic Chipset

    Intel® Processor Integrated Graphics

  • Spec. & Resolution

    HDMI: Max. Resolution 4096x2160@24Hz
    LVDS: Max. Resolution 1920x1200@60Hz
    VGA: Max. Resolution 1920x1200@60Hz
    DP: Max. Resolution 4096x2304@60Hz

  • Multiple Display

    Triple Display Support, LVDS(eDP) + VGA(HDMI) + DDI (HDMI or DP)

  • LVDS

    CH7511B(eDP to LVDS)

  • DDI

    HDMI
    DVI
    DisplayPort

Audio

  • Audio Interface

    Intel® HD Audio Integrated on CPU

Ethernet

  • LAN Chipset

    1 x Intel® I219LM

  • Ethernet Interface

    10/100/1000 Base-Tx Gigabit Ethernet Compatible

Software Support

  • OS

    Windows 10

Certification

  • Certification Information

    CE, FCC Class, RoHS Compliant

I/O

  • USB

    4 x USB 3.0
    8 x USB 2.0

  • COM Port

    2 x UART (RX/TX Only)

  • SATA

    3 x SATA III

  • DIO

    1 x 8-bit GPIO

  • MIO

    1 x SMBus
    1 x LPC
    1 x I2C
    1 x SPI

Mechanical & Environmental

  • Operating Temp.

    Standard 0°C ~ 60°C (32°F ~ 140°F)
    Extend -20°C ~ 70°C (-4°F ~ 158°F) on Request

  • Storage Temp.

    -40°C ~ 75°C (-40°F ~ 167°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    0.44lbs (0.2Kg)

  • Power Requirement

    +9V ~ +19V

  • Power Mode

    AT/ATX

  • Dimension (L x W)

    3.74” x 3.74” (95 x 95 mm)

Ordering Information

  • Ordering Information

    ESM-KBLU-7600-A1R
    Intel® Core™ i7-7600U Type6 COMe Compact Module

    ESM-KBLU-7300-A1R
    Intel® Core™ i5-7300U Type6 COMe Compact Module

    ESM-KBLU-7100-A1R
    Intel® Core™ i3-7100U Type6 COMe Compact Module

    EEV-EX14-B1R
    mATX Ev. Board for COMe Type 6 A2

    ACC-ESMSKLU-CL-1R
    Cooler for ESM-SKLU & ESM-KBLU W/FAN H=50.5mm

    ACC-ESMSKLU-SK-1R
    Heatsink for ESM-SKLU & ESM-KBLU H=35.5mm

    ACC-ESMSKLU-SD-1R
