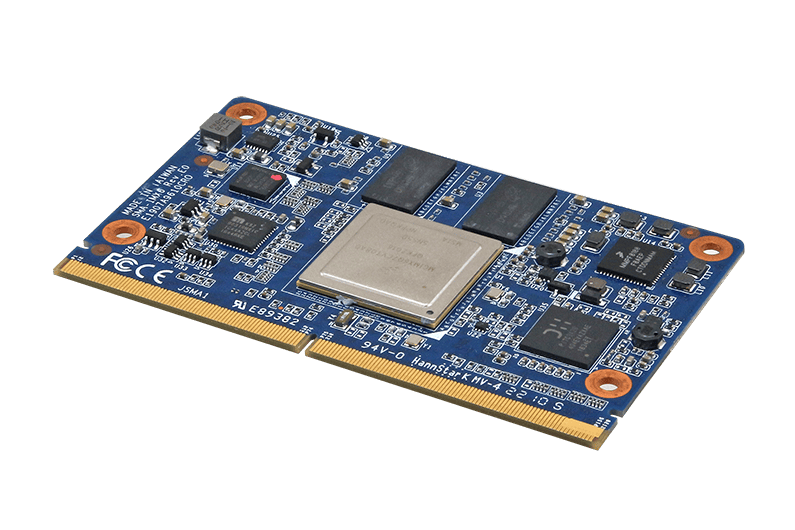

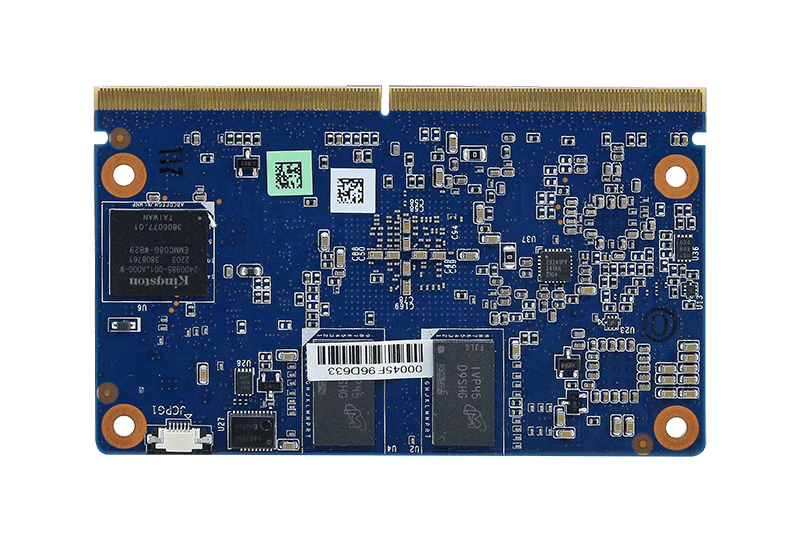

SMA-IMX6 E1

NXP i.MX6 SMARC Module Ver. E1

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • Feature
  • Specification

ProductFeatures

  • Onboard NXP i.MX 6 Dual/Quad CPU 800MHz
  • New NXP MMPF0100 PMIC
  • New Microchip KSZ9031 LAN IC
  • DDR3L 2GB / 1GB(by option)

ProductSpecification

System Information

  • Processor

    NXP i.MX 6 Dual 800M Hz
    NXP i.MX 6 Quad Core 1.0G Hz

  • System Memory

    4GB DDR3L

Storage

  • Storage

    8GB eMMC

Software Support

  • OS

    Android 4.4.2
    Ubuntu 12.04
    Yocto 1.5.1

Certification

  • Certification Information

    CE, FCC Class B

I/O

  • External I/O Connector

    2 x CAN
    12 x GPIO
    3 x I2C
    3 x I2S
    1 x JTA
    1 x MLB150
    3 x PCIex1
    1 x SATA
    1 x SDIO
    1 x SPDIF
    2 x SPI
    1 x WDT

Mechanical & Environmental

  • Operating Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Storage Temp.

    -40°C ~ 85°C (-40°F ~ 185°F)

  • Operating Humidity

    0% ~ 90% Relative Humidity, Non-condensing

  • Weight

    0.06kg

  • Power Requirement

    DC 3~5V

  • Dimension (L x W)

    82 x 50 mm

Ordering Information

  • Ordering Information

    SMA-X6DI3EH-E3R00 : SMA-X6DI3EH-E3R00
    SMA-X6QI3EH-E3R00 : SMA-X6QI3EH-E3R00
    SMA-X6QI3EJ-E3R00 : SMA-X6QI3EJ-E3R00
