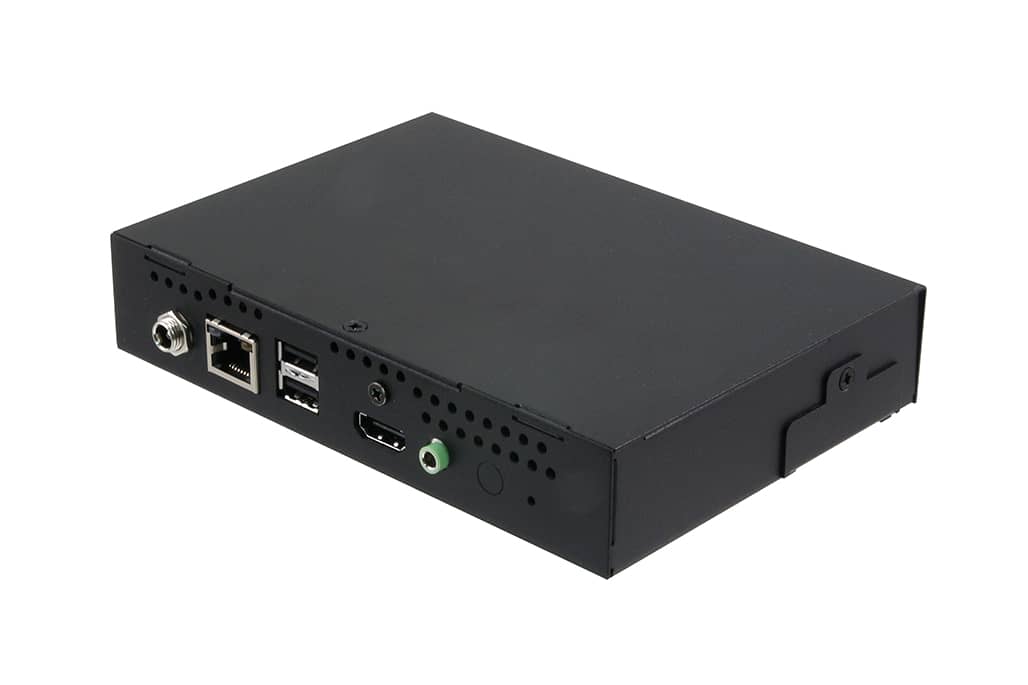

AIB-IMX6

BOX System with NXP i.MX6

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • NXP i.MX6 Cortex-A9 Dual Lite/Quad 1GHz CPU
  • 1GB DDR3
  • 4GB eMMC
  • -20°C ~ 70°C (-4°F ~ 158°F)
  • CE, FCC Class B
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    NXP i.MX6 Cortex-A9 Dual Lite/ Quad 1GHz CPU

  • Platform Controller Hub

    i.MX6

  • System Memory

    1GB DDR3

  • SBC

    RSC-IMX61

Storage

  • eMMC

    4GB eMMC

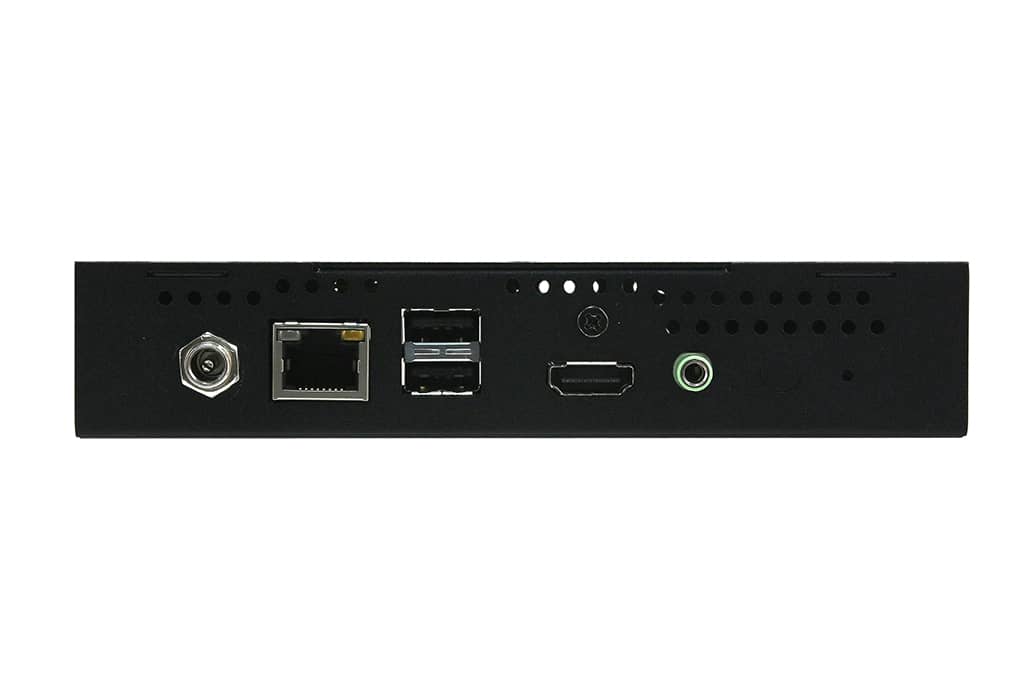

External I/O Connector

  • External I/O Connector

    1 x 10/100/1000 RJ45 Powered LAN
    1 x USB 2.0 Type A
    1 x Jack for I/R extender cable, co-design (Optional)
    with on board I/R sensor (Optional)

Power Requirement

  • Power Requirement

    DC 12~26V

Software Support

  • OS

    Android 4.4 or 6.0
    Yocto 2.1

Certification

  • Certification Information

    CE, FCC Class B

Mechanical & Environmental

  • Operating Temp.

    -20°C ~ 70°C (-4°F ~ 158°F)

  • Storage Temp.

    -40°C ~ 70°C (-40°F ~ 158°F)

  • Dimension (W x L x H)

    153 mm x 107.8 mm x 30 mm

  • Weight

    1.5 kg

Ordering Information

  • Ordering Information

    AIB-IMX6LB-A1R-00 : AIB-IMX6LB-A1R-00

  • Design Document
    2
  • Manual
    1
  • All
  • Design Document

    Total 2 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    AIB-IMX6_3D
    2023-11-01
    AIB-IMX6_2D

    Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    AIB-IMX6 2nd Quick Reference Guide
