AIB-IMX6A

BOX System with NXP i.MX6

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • NXP i.MX6 Cortex-A9 Quad 1GHz CPU
  • 2GB DDR
  • 8GB eMMC
  • -20°C ~ 70°C (-4°F ~ 158°F)
  • CE, FCC Class B
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    NXP i.MX6 Cortex-A9 Quad 1GHz CPU

  • Platform Controller Hub

    i.MX6

  • System Memory

    1GB DDR3

  • SBC

    ACP-IMX6POS-B1

Storage

  • eMMC

    8GB eMMC

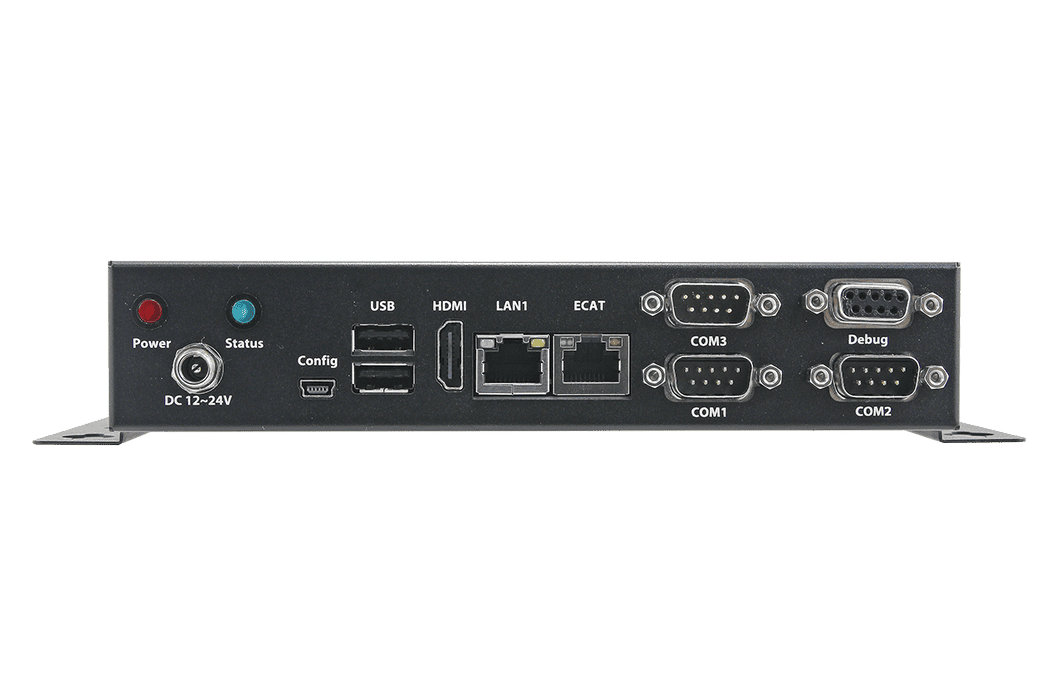

External I/O Connector

  • External I/O Connector

    2 x 10/100/1000 RJ45 Powered LAN
    1 x Mini USB
    2 x USB 2.0 Type A
    1 x Jack for I/R extender cable, co-design (Optional)
    with on board I/R sensor (Optional)

Power Requirement

  • Power Requirement

    DC 12~24V

Software Support

  • OS

    Yocto 1.7 / 2.5

Certification

  • Certification Information

    CE, FCC Class B

Mechanical & Environmental

  • Operating Temp.

    -20°C ~ 50°C (-4°F ~ 122°F)

  • Storage Temp.

    -20°C ~ 70°C (-4°F ~ 158°F)

  • Dimension (W x L x H)

    186 mm x 121.35 mm x 37 mm

  • Weight

    1.0 kg

Ordering Information

  • Ordering Information

    AIB-IMX6AQ-A1R : AIB-IMX6AQ-A1R

  • Manual
    1
  • All
    •

    Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    AIB-IMX6A 1st Quick Reference Guide
    • N/A

    RelatedFAQ

    Update Date
    Category
    Title
    More
    2023-10-26
    SoftwareApplication

    To use RU and RW tool check RTC function
    2023-10-26
    SoftwareOS

    How addition SNMP in Windows 10
    2023-09-20
    SoftwareBIOS

    Update BIOS on Windows OS
    2023-09-20
    SoftwareDriver

    How to make Avalue Board support Wake On LAN (WOL) Function
    2023-09-20
    GeneralPower

    How to use “Power ON after power failure function” to boot system without press Power button.
