EMS-SKLU-Marine

6th Gen Intel®Core™ Processor i7/i5/i3/Celeron, Marine Fanless Rugged Embedded System with 4 COM Isolations

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • 6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
  • One 260-pin SODIMM Socket Up to 16GB DDR4 2133MHz SDRAM
  • 4 COM port support 2.5KV Isolation Protection
  • Expansion Slot Supports 1 Mini PCIe Slot, 1 M.2, 1 IET Interface
  • Fanless Operating from -20 ~ 60°C, Support IP50
  • Power Input :Typical 12/24Vdc ( +9 ~ +36V )
  • Supports Intel® iAMT 11.0, TPM2.0, Turbo Boost Technology, vPro, Wake on LAN, RAID 0/1
  • Service Window, Easy to Install M.2, Memory and Mini PCIe Module
  • IEC EN60945 Certified
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Core™ i7-6600U, 2-Core, 2.6GHz processor
    Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor
    Intel® Core™ i3-6100U, 2-Core, 2.3GHz processor
    Intel® Celeron® 3955U, 2-Core, 2.0GHz processor

  • System Memory

    1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec.

  • H/W Status Monitor

    Monitoring CPU & System Temperature and Voltage

  • SBC

    EBM-SKLUS + AUX-M07 + EBM-CDVS DB-B

Expansion

  • M.2

    1 x M.2 (2242/3042) B-Key

  • PCIe

    1 x Mini PCIe

  • IET

    1 x Avalue 80-Pin IET Interface

Storage

  • M.2

    1 x M.2 (SATA)

  • 2.5 Drive Bay

    1 x 2.5" Drive Bay

Front I/O

  • USB

    2 x USB 3.0

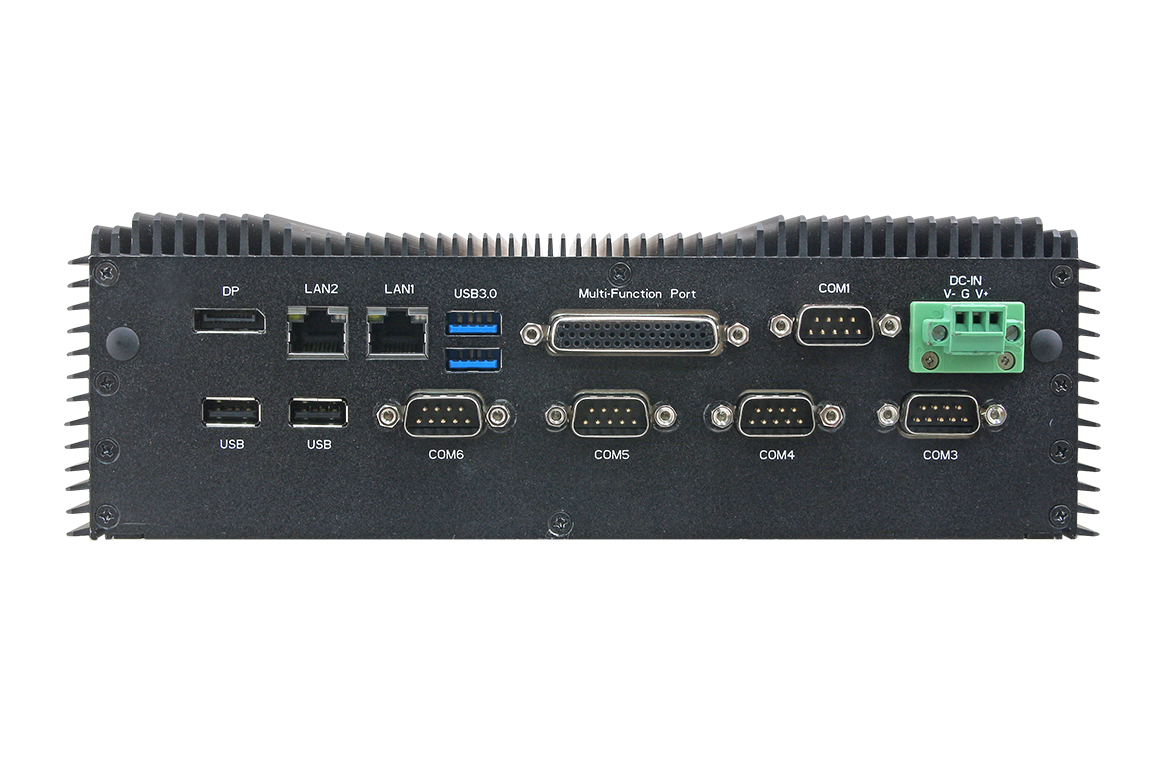

Rear I/O

  • USB

    2 x USB 3.0
    2 x USB 2.0

  • COM Port

    2 x RS-232/422/485 (Jumper)
    4 x RS232/422/485 (BIOS) supports 2.5KV Isolation Protection

  • LAN Port

    2 x RJ-45

  • SMBus

    1 x SMBus

  • SIM Slot

    2 x SIM Card Slot

  • Audio

    Mic-In, Line-In and Line-Out

  • Digital I/O

    1 x 12bit GPIO

  • Antenna

    2 x Knockouts for Antenna Mounting

  • AC/DC Input

    3-Pin Terminal Block

Display

  • Graphic Chipset

    Intel® Skylake SoC integrated Graphics

  • Resolution

    DP: Max. resolution 4096x2304 @ 60Hz

Audio

  • Audio Codec

    Realtek ALC888S
    supports 2.1-CH

Ethernet

  • LAN Chipset

    1 x Intel® I211AT
    1 x Intel® I219LM

  • Specification

    10/100/1000 Base-Tx GbE compatible

Power Requirement

  • ACPI

    Single Power ATX Support S0, S3, S4, S5
    ACPI 5.0 Compliant

  • Power Mode

    AT/ATX (ATX is default setting)

  • Adapter

    Optional AC-DC Adapter

Software Support

  • OS

    Win 10 / Win 8.1 / Win 7 / Linux

Certification

  • Certification Information

    CE , FCC Class A, IEC EN60945 Certified

Mechanical & Environmental

  • Operating Temp.

    (w/SSD), ambient w/ air flow
    -20°C ~ 60°C (-4°F ~ 140°F)
    (w/HDD), ambient w/ air flow
    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -30°C ~ 70°C (-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    9.45" x 5.96" x 2.95" (240mm x 151.5mm x 75mm)

  • Vibration Test

    IEC60945,Clause 8.7
    IEC60068-2-6

  • Shock Test

    With SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms

  • Mounting Kit

    Wall Mount kit (Standard)

Ordering Information

  • Ordering Information

    Intel® 6th Skylake Core™ Processor i7/i5/i3/Celeron, Marine Fanless Rugged Embedded System with 4 COM Isolations

    EMS-SKLU-66-B1-9R (i7-6600U)
    EMS-SKLU-63-B1-9R (i5-6300U)
    EMS-SKLU-61-B1-9R (i3-6100U)
    EMS-SKLU-39-B1-9R (3955U)
