EPM-1721

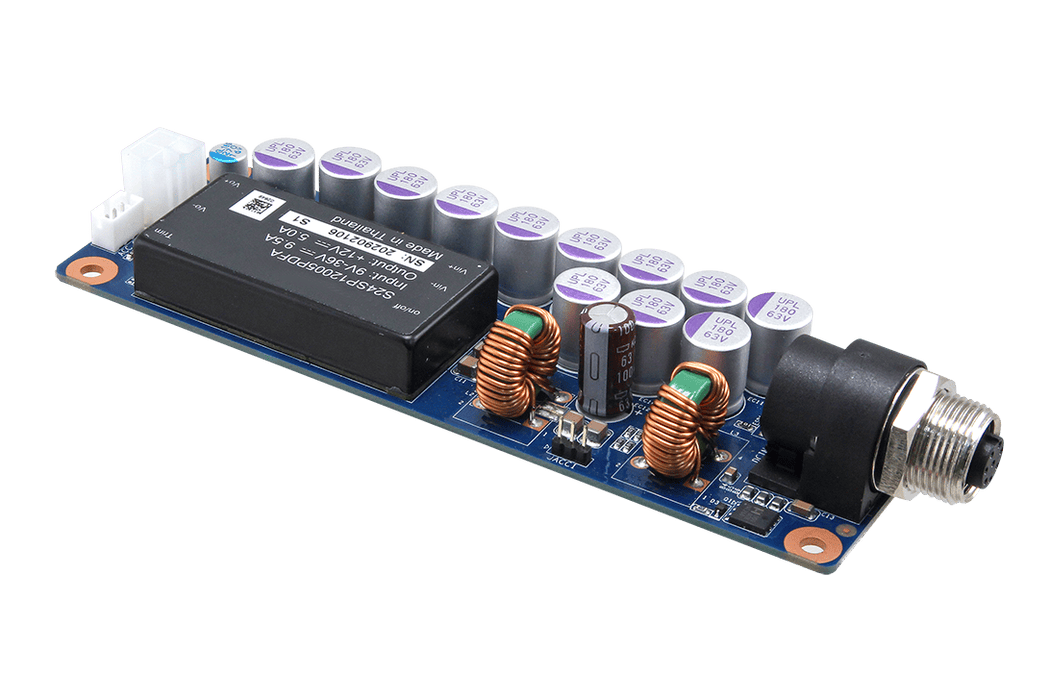

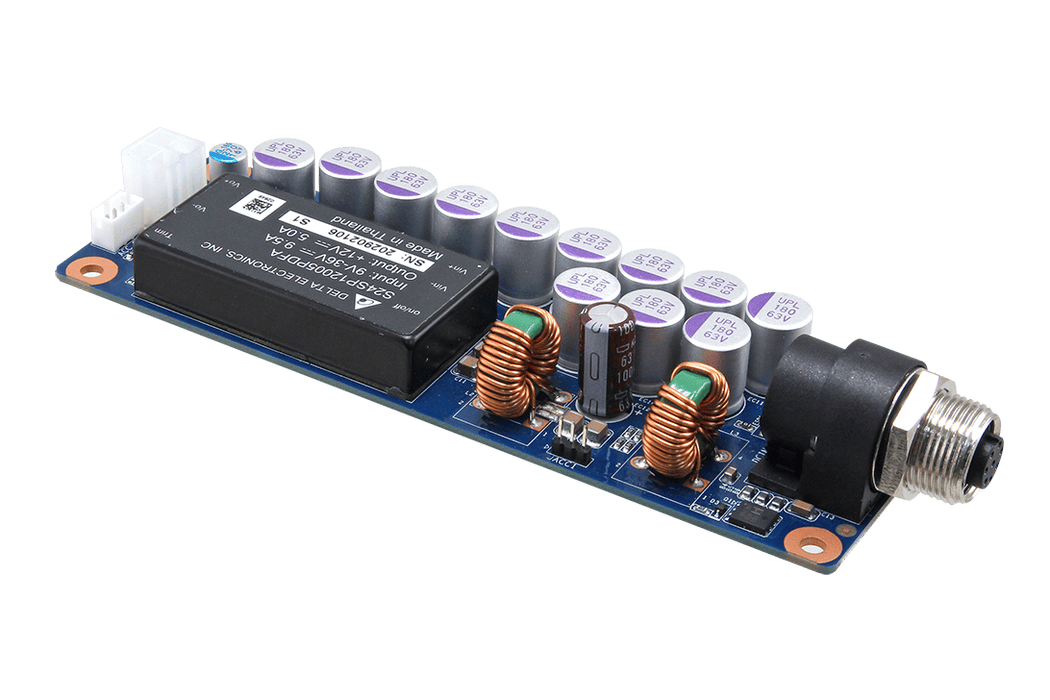

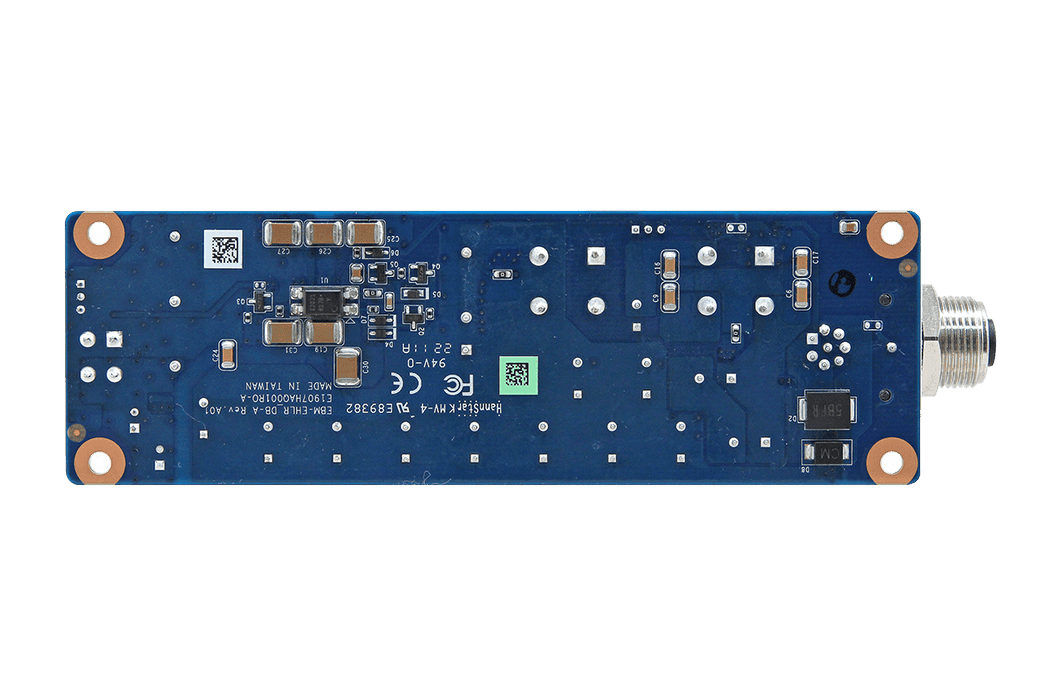

DC to DC 60W Railway Power Module

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • Specification
  • FAQ

ProductSpecification

DC In / Out Connector

  • Input Power Connector

    M12 connector

  • Output Power Connector (DC-12V)

    AT 2Px2 connector

DC In / Out Characteristics

  • Working Voltage

    24Vdc w/ Isolation

  • Maximum Output Power

    60W

  • Input Voltage Range

    +9~ 36Vdc

  • Output Voltage Range

    12V

  • Maximum Output Current (DC-12V)

    5000mA

Mechanical & Environmental

  • Operating Temp.

    Wide temperature -40°C ~ 85°C.

  • Storage Temp.

    -40°C ~ +85°C

  • Vibration Test

    5G @5~500Hz

  • Shock Test

    10G @ 11ms

  • Dimension

    148*43mm

  • Form-Factor

    Customized

Certification

  • IEC Protection

    IEC 60068-2-64
    IEC 60068-2-27

  • Certification Information

    EN 50155
    EN 50121-3-2
    EN 45545

Ordering Information

  • Ordering Information

    PN:
    -EPM-1721-A1R
