APC-2132

21.5" 6th Gen Intel® Core™ Processor i7/i5/i3/Celeron Expandable Ultra light Multi-Touch Fanless Panel PC

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • 10 points PCAP multi-touch support
  • 4 USB3.0, 2 COM, 2 GLAN
  • HDMI, 2 USB2.0, Line out, mic in, half size mini PCIe by IET board
  • Front IP65

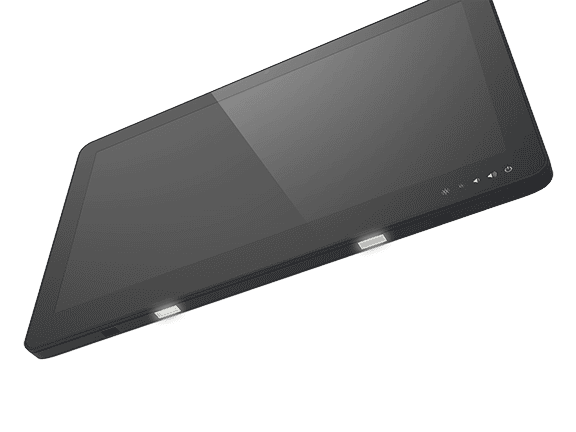

  • LED reading light bar
  • Optional expansion I/O port by IET module
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Core™ i7/ i5/ i3 / Celeron Processor

  • Platform Controller Hub

    Intel® Skylake U SoC integrated

  • System Memory

    1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB

  • I/O Chipset

    EC ITE IT8528VG/FX

  • Watchdog Timer

    H/W reset: 1sec.~255min. and 1sec. or 1min./step

  • H/W Status Monitor

    Monitoring system temperature and voltage with auto throttling control

  • TPM

    Infineon TPM 2.0 (SLB 9665 TT2.0)

  • SBC

    ARC-SKLU

Expansion

  • Expansion

    1 x Full size mini PCIe supports mSATA, PCIe & USB signal
    1 x Half size mini PCIe supports PCIe & USB signal by IET module

Storage

  • Storage

    1 x 2.5 Drive bay
    1 x mSATA (by mini PCIe)

Display

  • Graphic Chipset

    Intel® Skylake SoC integrated Graphics
    Supports dual display

  • Spec. & Resolution

    HDMI: Max. resolution 3840x2160 @ 24Hz
    LVDS: Max. resolution 1920x1080 @ 60Hz

Audio

  • Audio Codec

    Realtek ALC888S
    supports 5.1-CH

  • Audio Interface

    1 x Line out
    1 x Mic in
    (by IET module)

  • Speaker Output

    2 x 2W

Ethernet

  • LAN Chipset

    1 x Intel® I211AT
    1 x Intel® I219LM

  • Ethernet Interface

    10/100/1000 Base-Tx GbE compatible

Power Requirement

  • DC Input

    +19V

  • DC Input Connector

    Lockable DC Jack

Software Support

  • OS

    Win 7 / Win 8 / Win 10 / Linux

Certification

  • Certification Information

    CE
    FCC Class B

Specification

  • Dimension

    539.6 * 342.6 * 45.2 mm

Panel

  • LCD Size

    21.5"

  • Display Type

    Full HD

  • Resolution

    1920 x 1080

  • Pixel pitch

    248.25um (H) x248.25um (V)

  • Luminance

    250 cd/m2

  • Contrast ratio

    3000

  • Viewing angle

    89 (U), 89 (D), 89 (L), 89 (R)

  • Response time

    18ms

  • Backlight

    LED

  • Touch Type

    Projective capacitive multi-touch up to 10 points

  • Touch Light Transmission

    89%

  • Touch Controller

    USB touch (EETI)

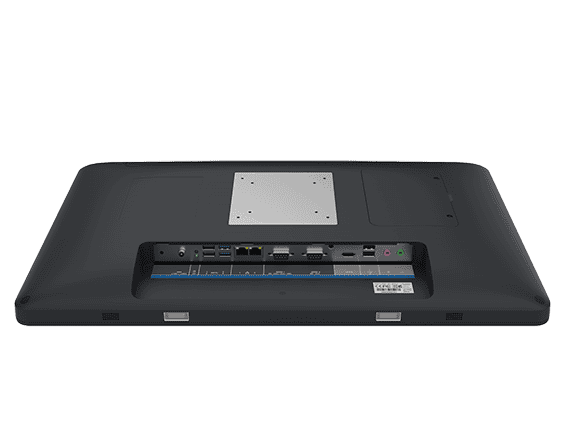

External I/O

  • USB Port

    4 x USB 3.0
    2 x USB 2.0 (by IET module)

  • LAN Port

    2 x RJ-45

  • COM Port

    1 x RS-232/422/485
    1 x RS-232

Internal I/O

  • SATA

    1 x SATA3

  • HDMI

    1 x HDMI (by IET board)

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -10°C ~ 60°C (14°F ~ 140°F)

  • Operating Humidity

    0% ~ 90% Relative humidity, non-condensing

  • Weight

    6.3 Kg

  • Vibration Test

    With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

  • Shock Test

    With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

  • IP Rating

    Front IP65

  • Mounting Kit

    Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

  • Power Mode

    AT/ATX

  • System Fan

    Fanless

  • Construction - Front

    Plastic- black

  • Construction - Rear

    Plastic- black

Component

  • Adapter

    Input:100 ~ 240Vac/ 50 ~ 60Hz
    Output:72W adapter (19V @ 3.78A adapter) AC-DC adapter

Ordering Information

  • Ordering Information

    APC-2132-660-A2R
    PCAP Touch/Intel® Core™ i7-6600U Processor/4GB DDR4 2*GLAN/ 4*USB3.0/2*COM/HDMI/19V Adapter

    APC-2132-630-A2R
    PCAP Touch/Intel® Core™ i5-6300U Processor/4GB DDR4 2*GLAN/ 4*USB3.0/2*COM/HDMI/19V Adapter

    APC-2132-610-A2R
    PCAP Touch/Intel® Core™ i3-6100U Processor/4GB DDR4 2*GLAN/ 4*USB3.0/2*COM/HDMI/19V Adapter

    APC-2132-395-A2R
    PCAP Touch/Intel® Celeron™ 3955U Processor/4GB DDR4 2*GLAN/ 4*USB3.0/2*COM/HDMI/19V Adapter


    EU Power Cord E170203183DR
    US Power Cord E1702031835R
    JP Power Cord E17120318001R
    UK Power Cord E170P060370R
