APC-2334

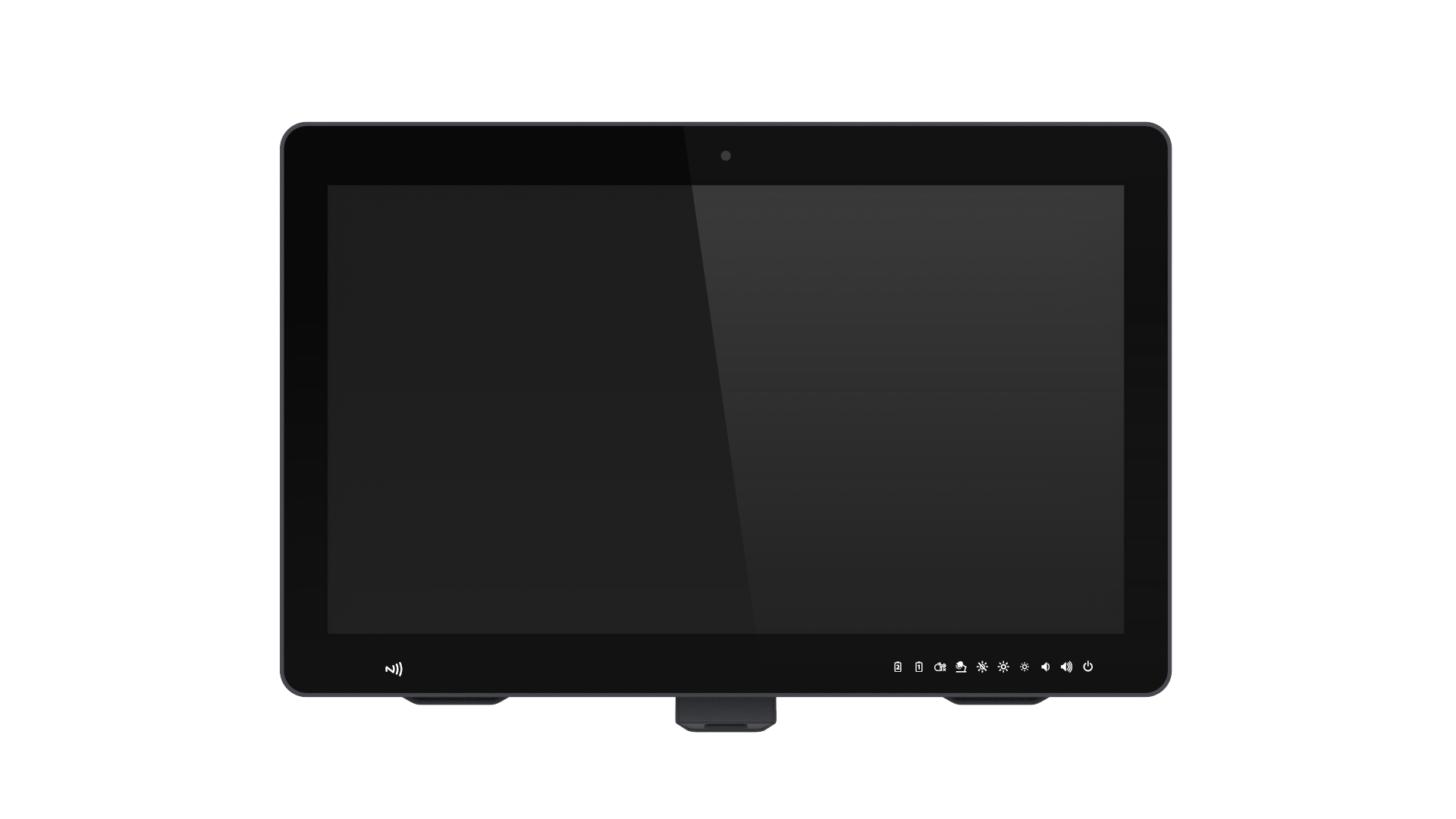

23.8" Ultra Light Panel PC with Multi-touch Function

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • 23.8” Full HD PCAP multi touch
  • LED reading light bar
  • Optional barcode scanner
  • IP65 front panel protection
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    7th Generation Intel® Core Kaby Lake i5-7300U Processor

  • Platform Controller Hub

    Integrated in Processor (SOC)

  • System Memory

    2 x 260-pin SODIMM socket up to 32GB per slot DDR4 2400 SDRAM

  • Watchdog Timer

    H/W reset, 1sec. ~ 65535sec. and 1sec./step

  • H/W Status Monitor

    Monitoring system temperature & voltage

  • SBC

    HID-2334 M/B

Expansion

  • Expansion

    1 x M.2 2230
    1 x mPCIe with SATA or PCIE x1 mSATA

Storage

  • Storage

    1 x 2.5 Drive bay

Audio

  • Audio Codec

    Realtek ALC888S

  • Speaker Output

    2 x 2W

Ethernet

  • LAN Chipset

    1 x Intel® I211AT, 1 x Intel® I219LM

  • Ethernet Interface

    10/100/1000 Base-Tx GbE compatible

Power Requirement

  • DC Input

    +19V ~ +24V

  • DC Input Connector

    Lockable DC Jack

Software Support

  • OS

    Win10 / Linux

Certification

  • Certification Information

    CE/ FCC class B EN 300 330 EN 62368-1 (LVD)

Panel

  • LCD Size

    23.8"

  • Display Type

    Full HD

  • Resolution

    1920 x 1080

  • Pixel pitch

    274.5×274.5

  • Luminance

    250 cd/m²

  • Contrast ratio

    3000

  • Viewing angle

    89(U), 89(D), 89(L), 89(R)

  • Response time

    16ms

  • Backlight

    LED

  • Touch Type

    Projective capacitive multi-touch up to 10 points

  • Touch Controller

    EETI EXC84H5680

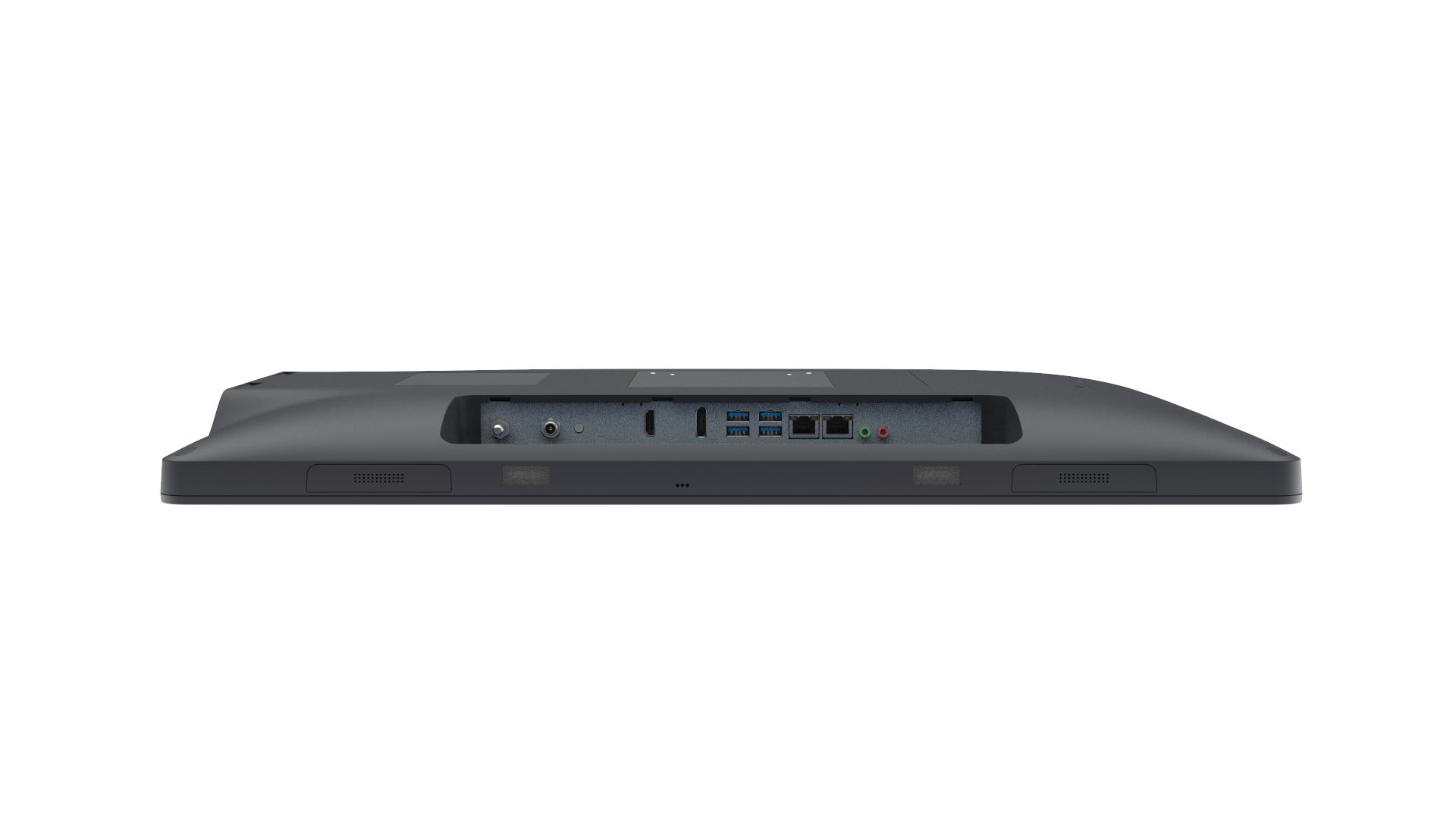

External I/O

  • USB

    4 x USB 3.0

  • LAN Port

    2 x RJ-45

Internal I/O

  • SATA

    1 x SATA III

  • HDMI

    1 x HDMI

  • Display Port

    1 x DP

  • Camera

    2.0M webcam

Data Collection

  • NFC

    NFC RFID module built in

Data Communication

  • WLAN

    Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -30°C ~ 70°C (-22°F ~ 158°F)

  • Operating Humidity

    0% ~ 90% Relative humidity, non-condensing

  • Dimension (W x L x H)

    592 x 382 x 49.5mm

  • Weight

    6.9 kg (without adapter)

  • Vibration Test

    With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

  • Shock Test

    With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

  • IP Rating

    Front IP65

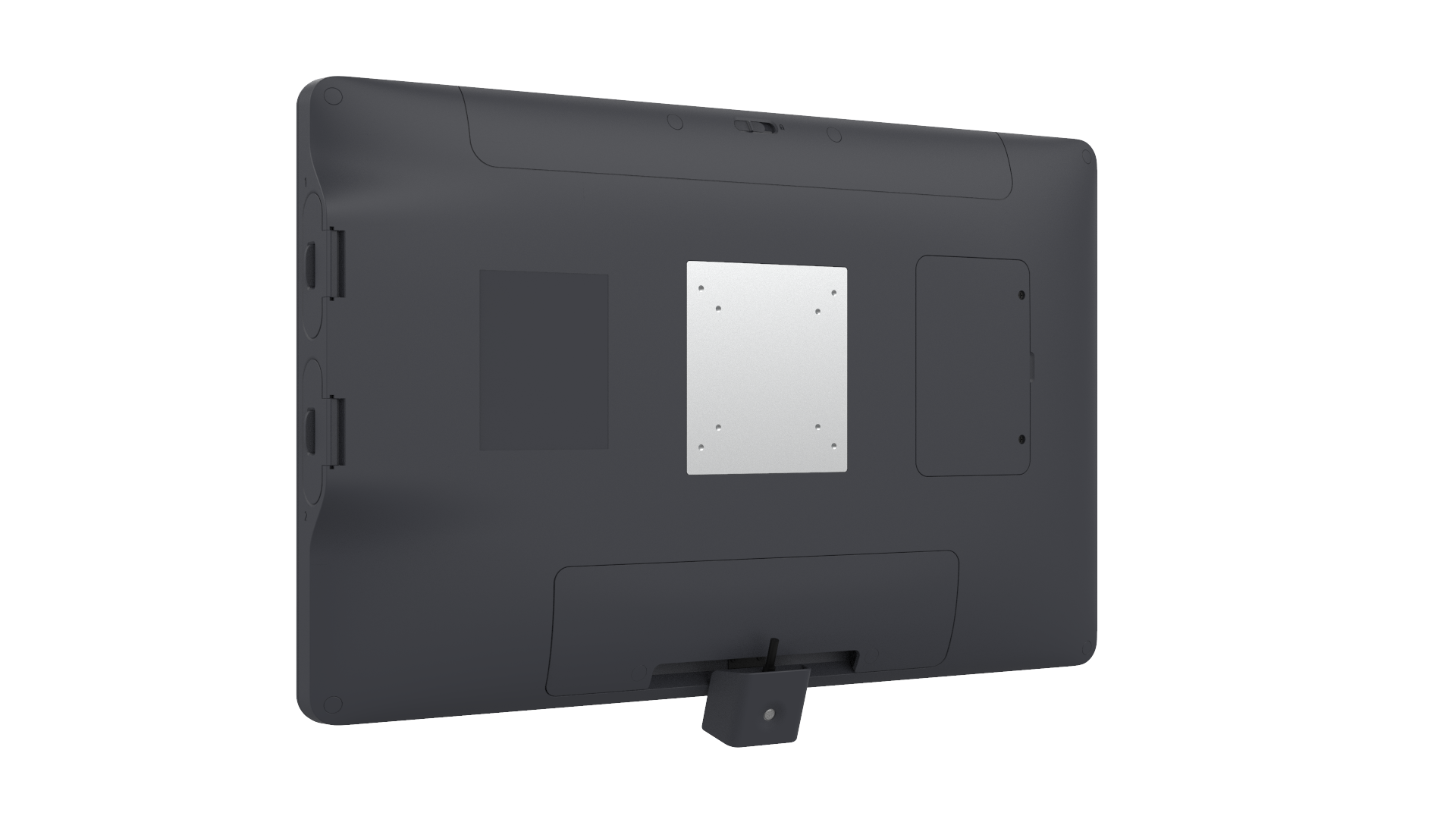

  • Mounting Kit

    VESA 75 x 75, 100 x 100

  • System Fan

    Fanless

  • Construction - Front

    Plastic- black

  • Construction - Rear

    Plastic- black

Component

  • Adapter

    19V/72W

Ordering Information

  • Ordering Information

    APC-2334-730-A2R
    APC 23.8 w/i5-7300U/4GB memory/LED/NFC/4USB3.0/2LAN/HDMI/DP/SPK/19VADAPTER


    Optional barcode scanner

    Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0

  • BIOS
    2
  • Chipset
    1
  • Audio
    1
  • Graphics
    1
  • LAN
    1
  • Design Document
    1
  • Manual
    1
  • Other Driver
    2
  • All
  • Windows 10 64bit
  • BIOS

    Total 2 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    (APC23344)APC-2334 BIOS 1.10 CS:32EFH,P/N:E1512A34001R
    • N/A
    2023-11-01
    (APC23343)APC-2334 BIOS 1.00 CS:3A77H,P/N:E1512A34000R
    • N/A

    Chipset

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    chip_set 10.1.1.45
    • Windows 10 64bit

    Audio

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Realtek_ALC892_Audio_64bit_Win10_R282
    • Windows 10 64bit

    Graphics

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Intel Graphics V26.20.100.7872
    • Windows 10 64bit

    LAN

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Intel LAN Win10_23_1
    • Windows 10 64bit

    Design Document

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2024-01-29
    APC-2334 system drawing
    -
    • N/A

    Manual

    Total 1 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    APC-2334 2nd Quick Reference Guide
    • N/A

    Other Driver

    Total 2 Files

    No.
    Release Date
    Title、Description
    Operating System
    Document
    Download
    2023-11-01
    Intel SerialIO_Win10_30.63.1603.05
    • Windows 10 64bit
    2023-11-01
    Intel ME V1914.12.0.1256
    • Windows 10 64bit
