RiVar-1501

Avalue Versatile All-in-One POS Terminal

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • Intel® Celeron® Processor J3455
  • IP65 for panel, IP41 for back

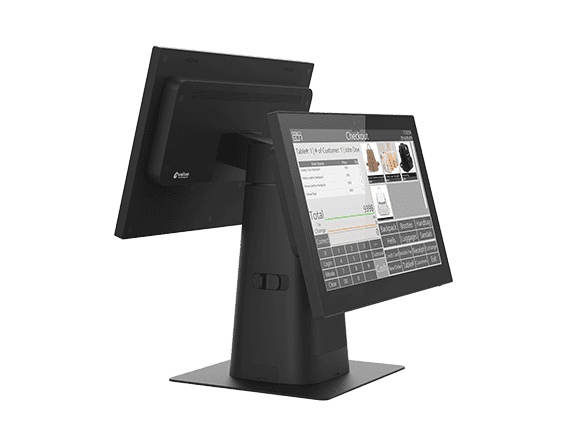

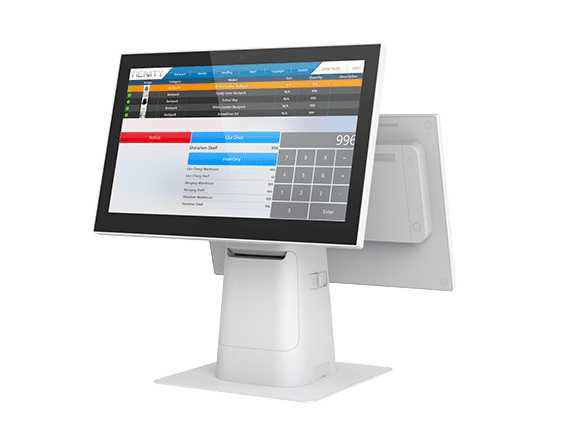

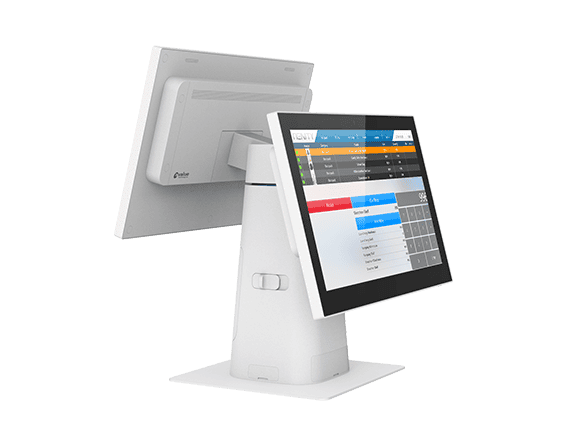

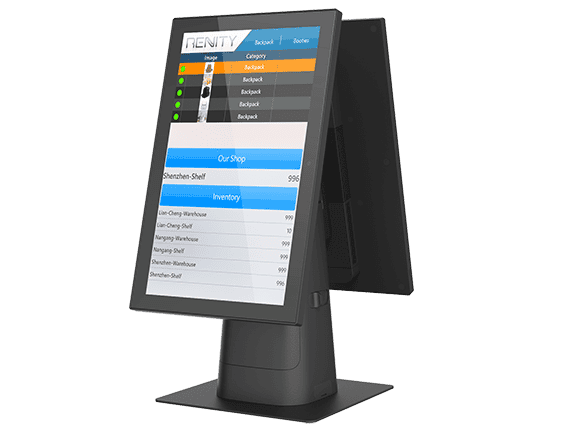

  • Dual display
  • 1 x Gigabit Ethernet
  • 2 x M.2 slot for (WiFi/mSATA)

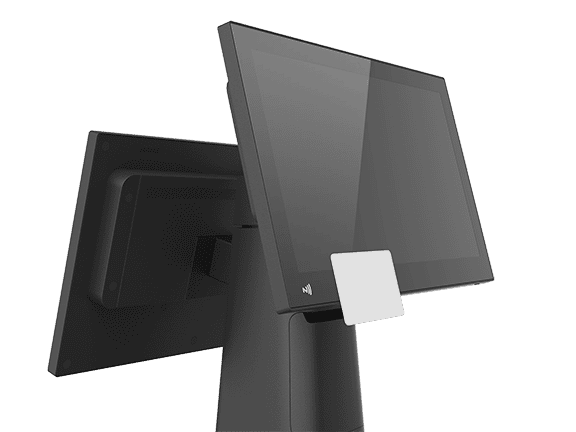

  • Optional for MSR / camera / RFID
  • Optional for stand / thermal printer / 2nd display
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Celeron® Processor J3455

  • System Memory

    1 x 204-pin DDR3L SODIMM socket up to 8GB DDR3L 1600MTs SDRAM

  • I/O Chipset

    EC ITE IT8528E

  • SBC

    Intel® Celeron® Apollo Lake Platform

  • Other

    RJ-11 for cash drawer 24V (optional for camera/ NFC/ MSR)

Expansion

  • Expansion

    1 x M.2 B Key slot for mSATA module 1 x M.2 E Key slot for .2.4/5G WiFi module

Storage

  • Storage

    M.2 2242 SATA 32GB (option) 1 x SD card slot

Display

  • Graphic Chipset

    Intel® HD Graphics 500

Audio

  • Audio Codec

    Realtek ALC888S

  • Audio Interface

    2 x 2W

Ethernet

  • LAN Chipset

    1 x RJ45 with Intel® I211AT

Power Requirement

  • DC Input

    +24V

  • DC Input Connector

    Lockable DC Jack

Software Support

  • OS

    Win 10 / Android 8.1

Certification

  • Certification Information

    CE/FCC/UKCA/VCCI : Class A

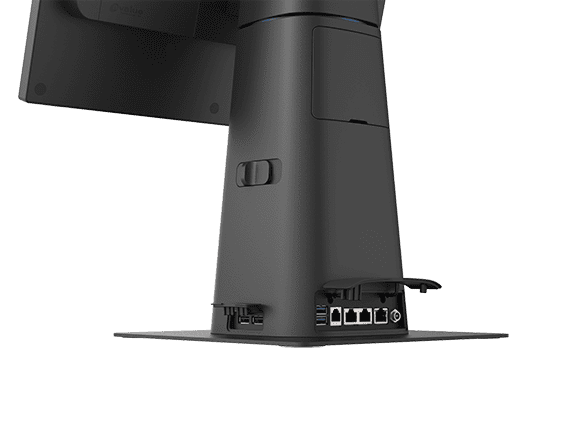

External I/O

  • USB Port

    2 x USB 3.0 on bottom side of panel 4 x USB 3.0 on bottom side of stand

Panel

  • LCD Size

    15.6"

  • LCD Panel

    Main LCD panel: 15.6 1920 x 1080 full HD
    2nd LCD panel: 15.6 1920 x 1080 full HD (option)

  • Display Type

    Full HD

  • Resolution

    1920 x 1080

  • Pixel pitch

    0.179 x 0.179

  • Luminance

    300 cd/m2

  • Contrast ratio

    700

  • Viewing angle

    89 (U), 89 (D), 89 (L), 89 (R)

  • Response time

    14ms

  • Backlight

    LED

  • Touch Type

    Projective capacitive

  • Touch Light Transmission

    85%

  • Touch Controller

    USB interface, EETI

I/O

  • COM Port

    2 x COM ports supported all pin 9 supported 5V/12V 1A max output

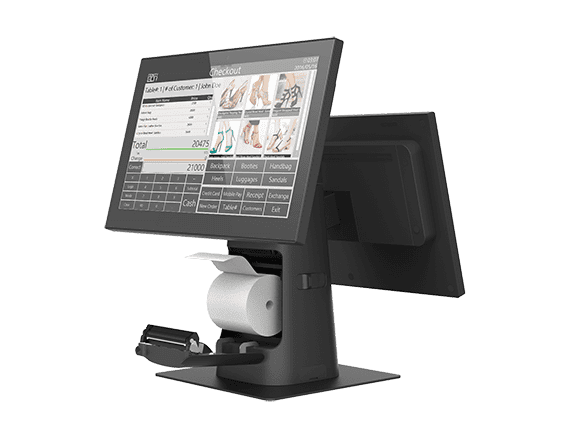

Thermal Printer

  • Printing Method

    SEIKO thermal printer CAPD347D-E

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    -20°C ~ 60°C (-4°F ~ 140°F)

  • Dimension (W x L x H)

    253 x 390 x 431mm

  • Weight

    10 kg (dual display mode)

  • IP Rating

    IP65 for front panel, IP41 for rear

  • Power Mode

    ATX

  • System Fan

    Fanless

  • Construction - Front

    Black/white

  • Construction - Rear

    Black/white

  • Construction

    Plastic

Component

  • Adapter

    24V DC in 60W or 120W (printer SKU)

Ordering Information

  • Ordering Information

    RIVAR-1501-A1400R
    15.6"/1920x1080/PCT/4G RAM/130W Adapter/5 USB/1 RJ45/1 SD Slot/Stand/2 Powered COM/1 RJ11 for Cash Drawer/Thermal Printer

    RIVAR-1501-A1800R
    15.6"/1920x1080/PCT/4G RAM/130W Adapter/5 USB/1 RJ45/1 SD Slot/Stand/2 Powered COM/1 RJ11 for Cash Drawer/Thermal Printer/15.6" PCT 2nd display

    ACC-RIVAR-MSR-01R
    Magstripe Card Reader for RIVAR-1501

    EU Power Cord E1702031000R
    US Power Cord E1702031833R
    JP Power Cord E1702031834R
    UK Power Cord E170P060380R
