Processor

Intel Atom® x6425E Processor
1.5M Cache, up to 3.00 GHz

System Memory

1 x 260-Pin SODIMM DDR4 3200MHz up to 32GB

I/O Chipset

AMI uEFI lBIOS 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

Horizontal battery socket

Supports wide operating temperature

Supports no RTC battery mode

TPM

TPM 2.0 (Default)

SBC

EBM-EHLR + EBM-EHLR DB-A

M.2

1 x M.2 Key-B 2242/3042/3052 support PCIeIII x1/ USB3.1 Gen.2 and SIM slot1 (external)
1 x M.2 Key-E 2230 for Wi-Fi & BT Module (PCIeIII x 1/ USB2.0 )

mPCIe

1 x mPCIe support PCIeIII x1/ USB2.0 and SIM slot2 (external)

M.2

1 x M.2 key-B 2242 support SATA III (share with expansion slot)

2.5 Drive Bay

1 x 2.5” drive Bay (SATA III)

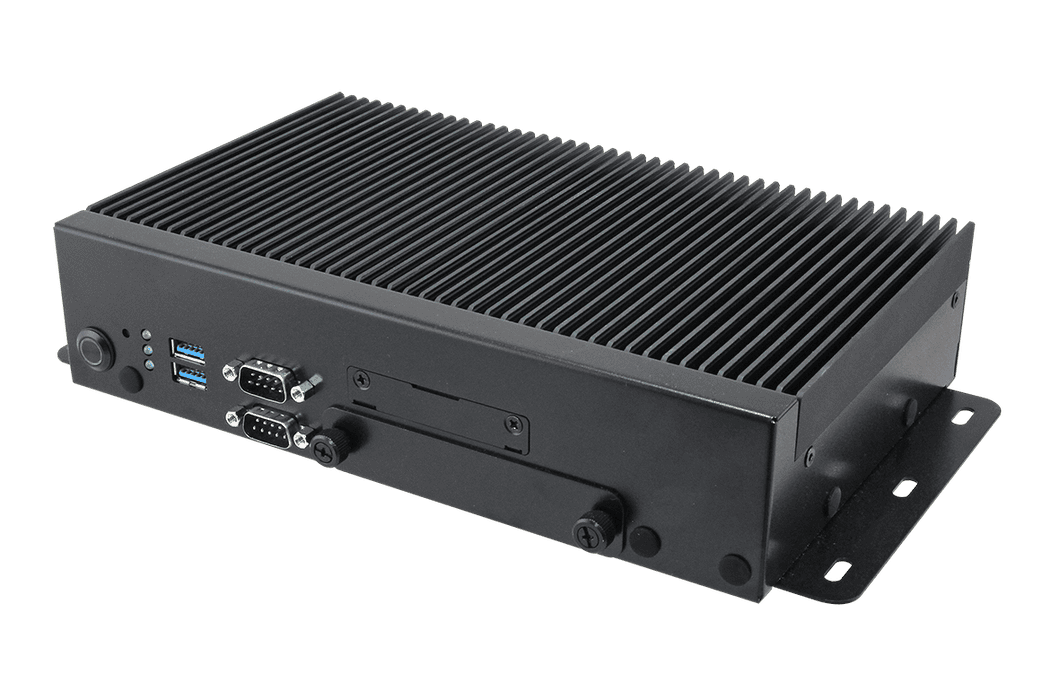

USB

2 x USB 3.2 Gen.2 (10Gbp/s)

Power Button

Push Button for Power on/off (w/LED)

Reset Button

Push Button for Reset (Hidden)

LED Indicator

1 x Power LED (Blue)
1 x Storage LED (Yellow)- M.2 B-key SATA/2.5’’SSD Storage
1 x LTE LED (Green)- M.2 B-key PCIe/USB3
1 x Wifi LED (Green)- M.2 E key

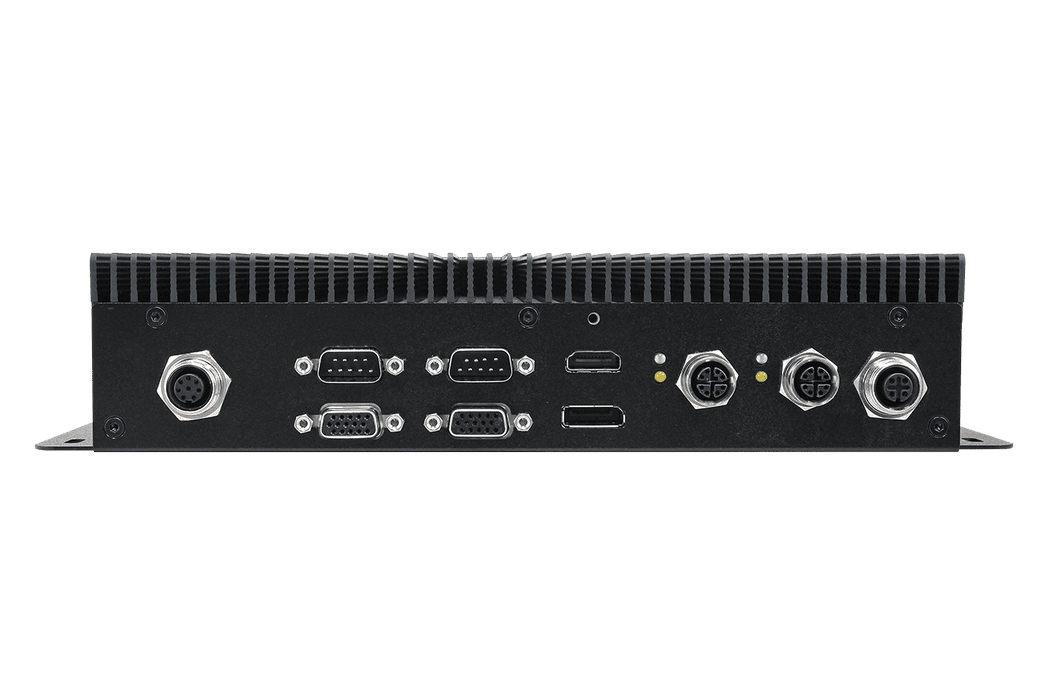

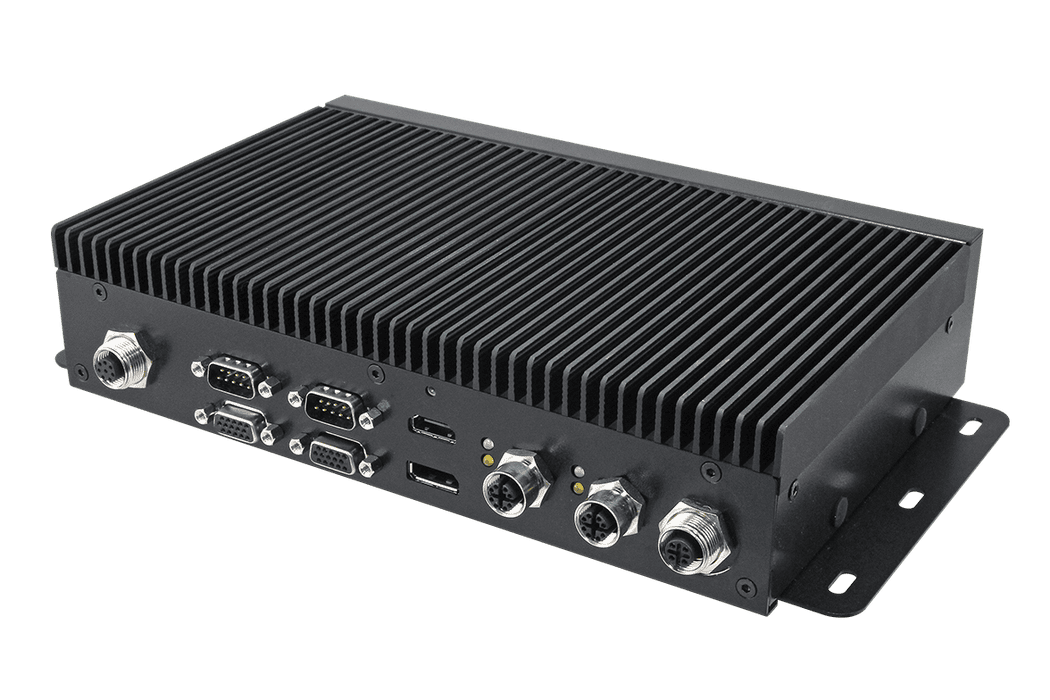

CAN Bus

1 x 4-Pin CAN Bus H/L in DB-9

SIM Slot

2 x Front Access SIM Slot

Digital I/O

1 x 8-Bit 2.5KV Isolated GPIO in DB-9

Antenna

3 x Antenna Mount

USB

1 x USB 2.0 in M12-A code connector

COM Port

2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

LAN Port

2 x LAN Port in M12-X code connector

Audio

1 x Line-In, Line-Out and Mic-In in DB-15

DP

1 x DP 1.4

HDMI

1 x HDMI 2.0

VGA

1 x VGA

AC/DC Input

M12-A code (4 Poles: V+. V-, GND, IGN)

Antenna

2 x Antenna Mount

Antenna

2 x Antenna Mount

Chipset

u-blox NEO-M9N GNSS LCC module with Untethered Dead Reckoning and onboard sensors

Protocol

BeiDou, Galileo, GLONASS, GPS / QZSS

Graphic Chipset

Intel® UHD Graphics

Resolution

DP++ 1.4: 4096x2304 @ 60Hz
HDMI 2.0 : Max. resolution 4096 x 2304 @ 60Hz
VGA: 1920 x 1080 @ 60Hz

Audio Codec

Realtek ALC888S

LAN Chipset

2 x Intel® I210-IT

Specification

10/100/1000Base-T

LED Indicator

4 x LED indicator (LAN for active, speed)

Voltage Input Spec.

Typical 24Vdc ( +9~ 36Vdc ) w/ Isolation
TVS component for surge protection
Reverse current/voltage protection

ACPI

Single power ATX Support S0,S3, S4, S5
ACPI 5.0 Complian

Power Mode

AT/ATX (AT default), w/ignition control and power management

OS

Win 10 64bit / Linux

Certification Information

CE, FCC Class A, UKCA, EN50155, EN50121, EN45545

Operating Temp.

-40°C ~ 70°C (w/SSD) ambient w/ air flow. Follow EN50155, Class OT4

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

240*150*55 mm

Weight

2.2kg

Vibration Test

Operating with SSD : MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure

Shock Test

Operating with SSD: MIL-STD-810H, Method 516.8, Procedure I, functional shock=20G

IP Rating

IP50

Mounting Kit

Wall Mount Kit (standard)
DIN RAIL (optional)

Ordering Information

VMS-EHLR-A1-1R
Intel® Elkhart Lake Atom® x6425E Processor Rugged Fanless Railway System
