VMS-EHLR

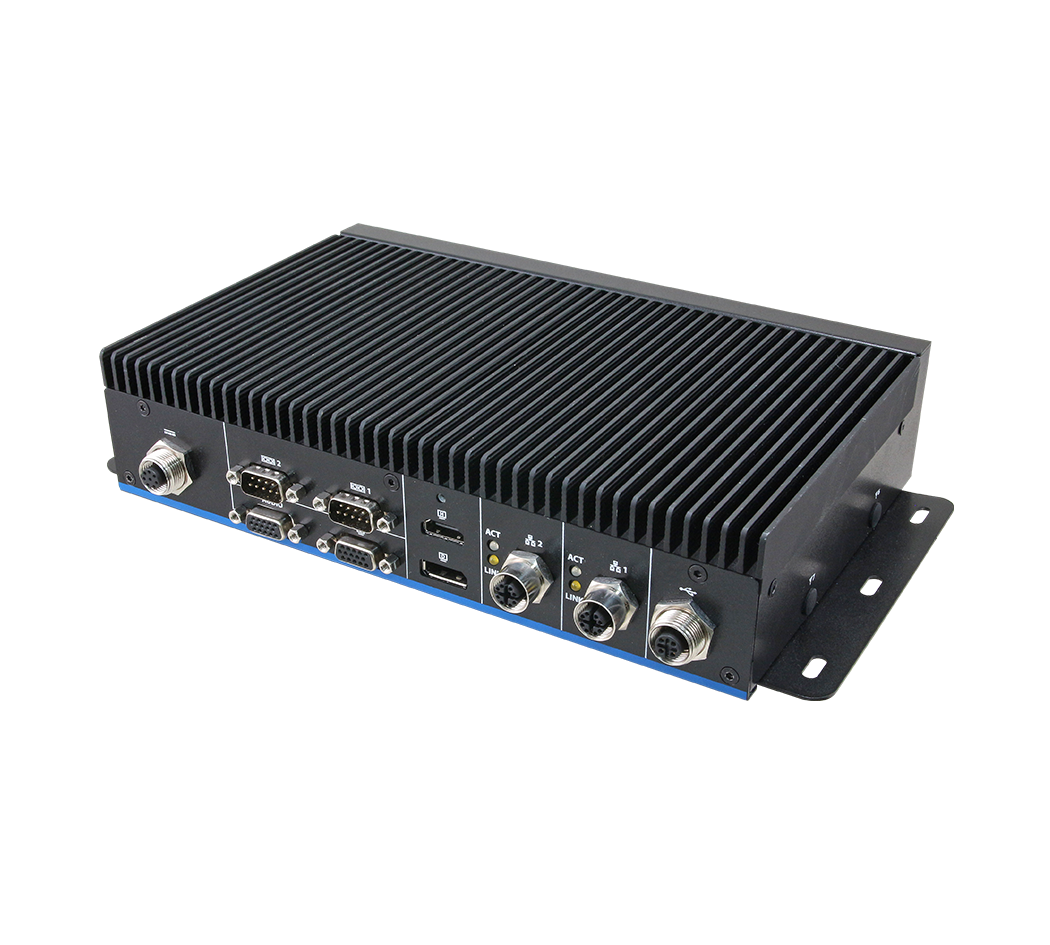

Intel® Atom® x6425E Processor Rugged Fanless Railway System

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

  • Intel Atom® x6425E Processor
  • Intel® UHD Graphic for 10th Gen Intel® Processor
  • 1-Memory Socket, Max. Up to 32GB DDR4 3200
  • 2-COM Port (RS-232/422/485 by BIOS & Jumper)
  • 2-Storage (Front Access 2.5” & M.2 Key-B SSD)
  • 3-Disaply (DP 1.4 & HDMI 2.0 & VGA)
  • 3-Expansion (mPCIe & M.2 Key-E/B)

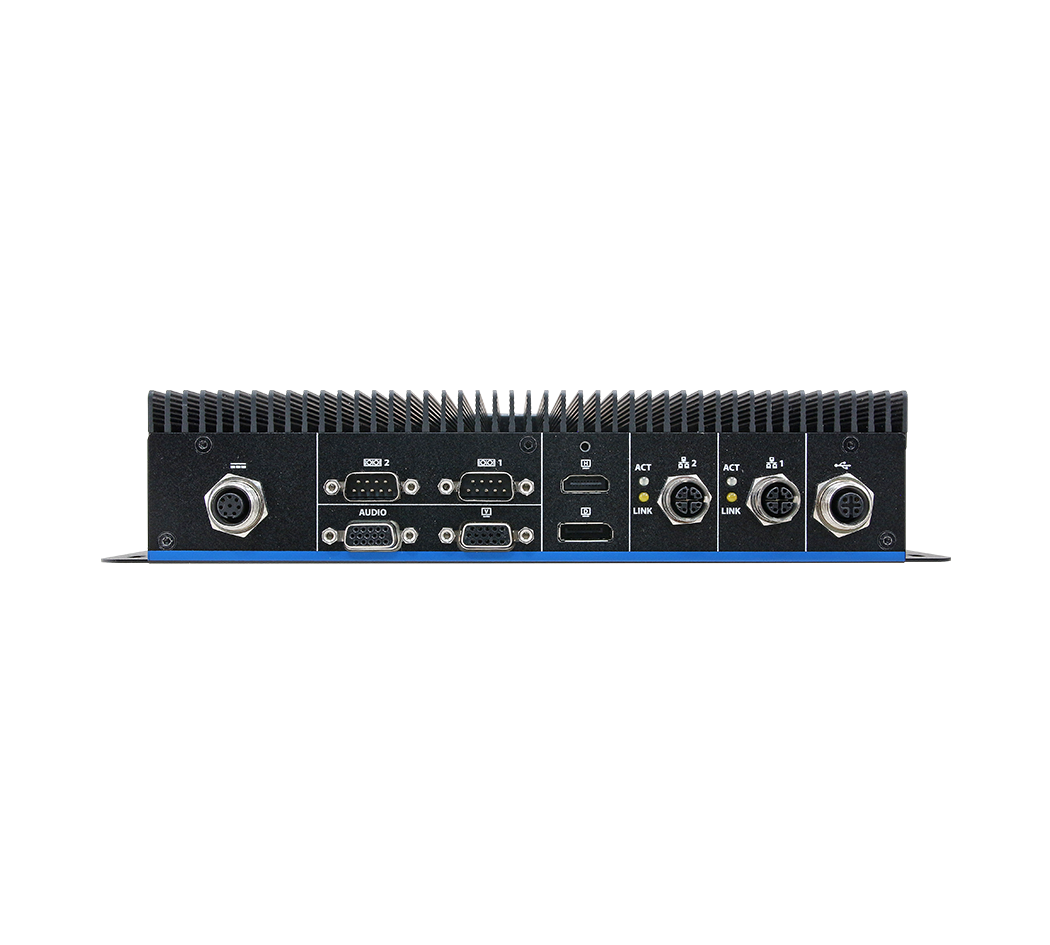

  • 4-M12 (DC-Input, USB 2.0, 2-LAN Port)
  • 8-Bit Programable GPIO with 2.5KV Isolated
  • Default Wall Mount Kit, dTPM 2.0 onboard
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel Atom® x6425E Processor
    1.5M Cache, up to 3.00 GHz

  • System Memory

    1 x 260-Pin SODIMM DDR4 3200MHz up to 32GB

  • I/O Chipset

    AMI uEFI lBIOS 256 Mbit SPI Flash ROM

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec.

  • H/W Status Monitor

    Horizontal battery socket

    Supports wide operating temperature

    Supports no RTC battery mode

  • TPM

    TPM 2.0 (Default)

  • SBC

    EBM-EHLR + EBM-EHLR DB-A

Expansion

  • M.2

    1 x M.2 Key-B 2242/3042/3052 support PCIeIII x1/ USB3.1 Gen.2 and SIM slot1 (external)
    1 x M.2 Key-E 2230 for Wi-Fi & BT Module (PCIeIII x 1/ USB2.0 )

  • mPCIe

    1 x mPCIe support PCIeIII x1/ USB2.0 and SIM slot2 (external)

Storage

  • M.2

    1 x M.2 key-B 2242 support SATA III (share with expansion slot)

  • 2.5 Drive Bay

    1 x 2.5” drive Bay (SATA III)

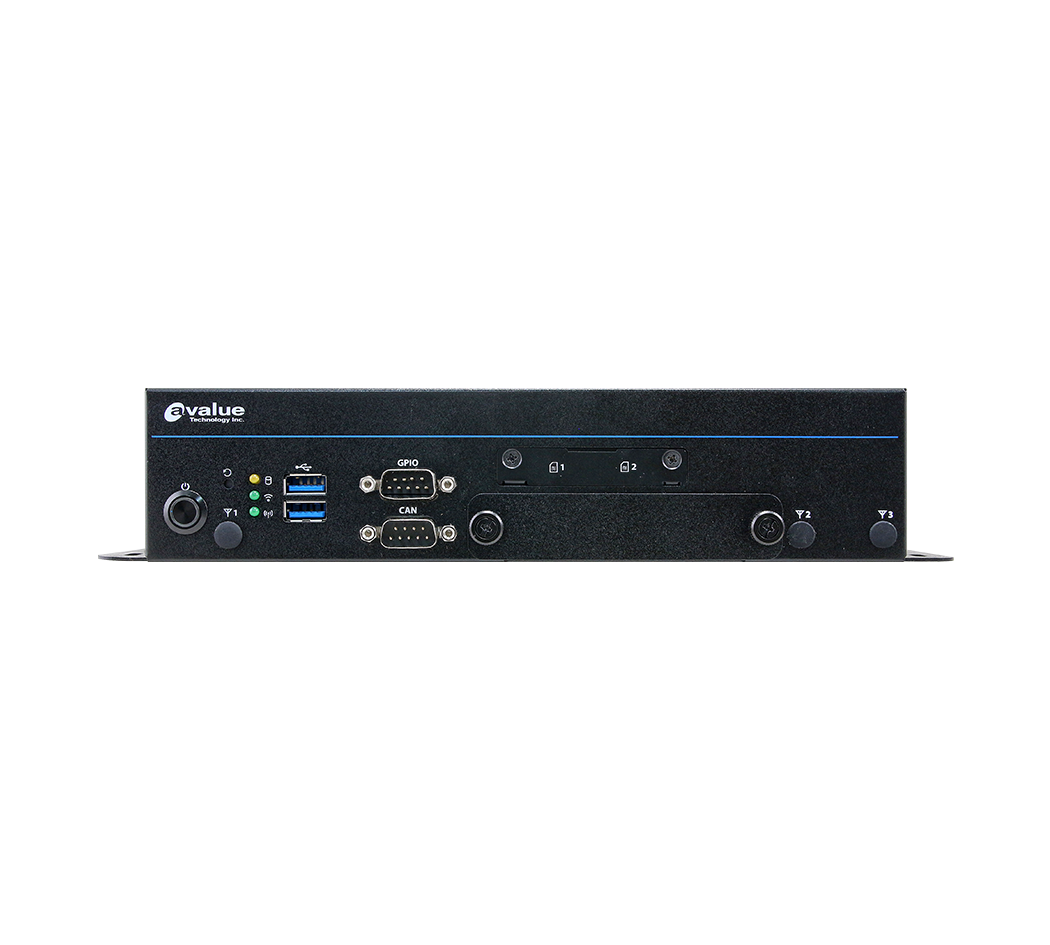

Front I/O

  • USB

    2 x USB 3.2 Gen.2 (10Gbp/s)

  • Power Button

    Push Button for Power on/off (w/LED)

  • Reset Button

    Push Button for Reset (Hidden)

  • LED Indicator

    1 x Power LED (Blue)
    1 x Storage LED (Yellow)- M.2 B-key SATA/2.5’’SSD Storage
    1 x LTE LED (Green)- M.2 B-key PCIe/USB3
    1 x Wifi LED (Green)- M.2 E key

  • CAN Bus

    1 x 4-Pin CAN Bus H/L in DB-9

  • SIM Slot

    2 x Front Access SIM Slot

  • Digital I/O

    1 x 8-Bit 2.5KV Isolated GPIO in DB-9

  • Antenna

    3 x Antenna Mount

Rear I/O

  • USB

    1 x USB 2.0 in M12-A code connector

  • COM Port

    2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

  • LAN Port

    2 x LAN Port in M12-X code connector

  • Audio

    1 x Line-In, Line-Out and Mic-In in DB-15

  • DP

    1 x DP 1.4

  • HDMI

    1 x HDMI 2.0

  • VGA

    1 x VGA

  • AC/DC Input

    M12-A code (4 Poles: V+. V-, GND, IGN)

Right I/O

  • Antenna

    2 x Antenna Mount

Left I/O

  • Antenna

    2 x Antenna Mount

GPS

  • Chipset

    u-blox NEO-M9N GNSS LCC module with Untethered Dead Reckoning and onboard sensors

  • Protocol

    BeiDou, Galileo, GLONASS, GPS / QZSS

Display

  • Graphic Chipset

    Intel® UHD Graphics

  • Resolution

    DP++ 1.4: 4096x2304 @ 60Hz
    HDMI 2.0 : Max. resolution 4096 x 2304 @ 60Hz
    VGA: 1920 x 1080 @ 60Hz

Audio

  • Audio Codec

    Realtek ALC888S

Ethernet

  • LAN Chipset

    2 x Intel® I210-IT

  • Specification

    10/100/1000Base-T

  • LED Indicator

    4 x LED indicator (LAN for active, speed)

Power Requirement

  • Voltage Input Spec.

    Typical 24Vdc ( +9~ 36Vdc ) w/ Isolation
    TVS component for surge protection
    Reverse current/voltage protection

  • ACPI

    Single power ATX Support S0,S3, S4, S5
    ACPI 5.0 Complian

  • Power Mode

    AT/ATX (AT default), w/ignition control and power management

Software Support

  • OS

    Win 10 64bit / Linux

Certification

  • Certification Information

    CE, FCC Class A, UKCA, EN50155, EN50121, EN45545

Mechanical & Environmental

  • Operating Temp.

    -40°C ~ 70°C (w/SSD) ambient w/ air flow. Follow EN50155, Class OT4

  • Storage Temp.

    -30°C ~ 70°C (-22°F ~ 158°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    240*150*55 mm

  • Weight

    2.2kg

  • Vibration Test

    Operating with SSD : MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure

  • Shock Test

    Operating with SSD: MIL-STD-810H, Method 516.8, Procedure I, functional shock=20G

  • IP Rating

    IP50

  • Mounting Kit

    Wall Mount Kit (standard)
    DIN RAIL (optional)

Ordering Information

  • Ordering Information

    VMS-EHLR-A1-1R
    Intel® Elkhart Lake Atom® x6425E Processor Rugged Fanless Railway System

  • BIOS
    1
  • Manual
    1
