Avalue Technology - Industrial Computer

Processor

Rockchip RK3572 Hexa-core Cortex-A53 + Dual-core Cortex-A73

System Memory

Onboard 6GB RAM

Storage

Onboard 128GB eMMC

Other Storage Device

1 x Marco SD Socket

Graphic Chipset

Mali-G310 GPU

Speaker Output

Yes

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

24V

DC Input Connector

DC Jack

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz​
Output: 50W (24V@2.5A) AC-DC adapter

OS

Android 16

LCD Size

11" HD Main Screen + 4.3" Customer Facing Display

LCD Panel

IPS

Display Type

LED

Resolution

800 x 1280

Luminance

350 cd/m2

Contrast ratio

1,300

Viewing angle

85/85/85/85 (L/R/U/D)

Response time

25ms

Touch Type

Projective capacitive multi-touch

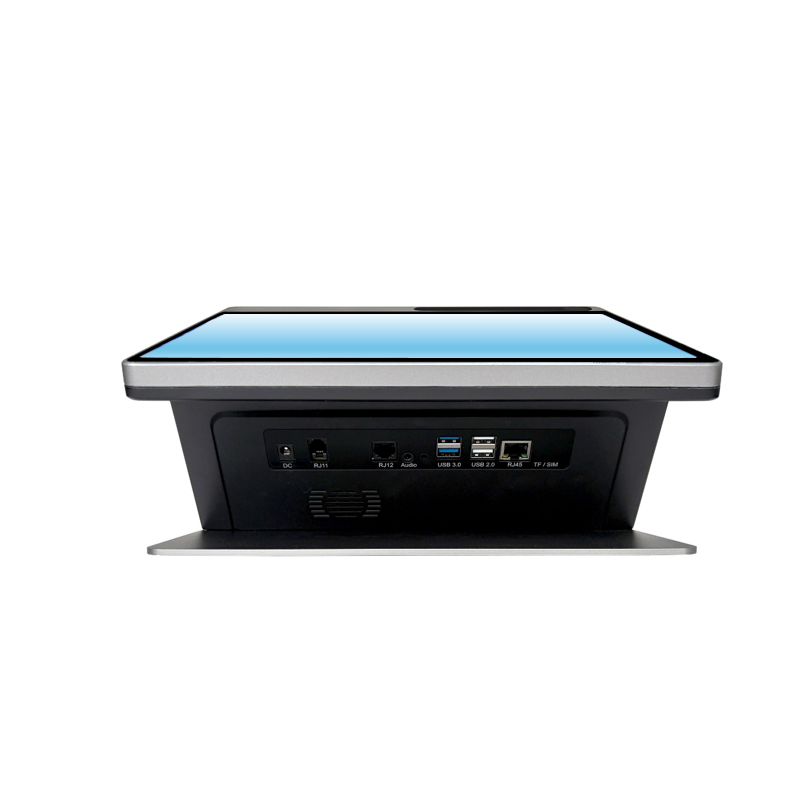

USB Port

2 x USB 3.0
2 x USB 2.0

LAN Port

1 x RJ45

Cash Drawer

1 x RJ11
1 x RJ12 (24V/12V)

Other

1 x SIM Card Slot

Control Buttons

Power / Volume+ / Volume- / Scan

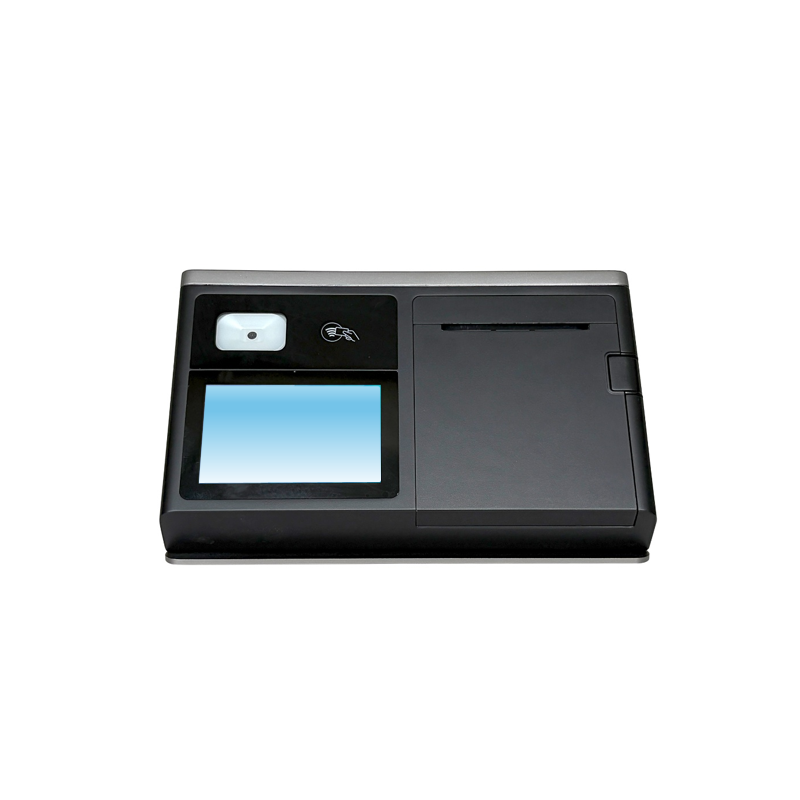

Printing Method

Direct Thermal

Total Dots Per Line

576 dots/line

Max. Print Speed

90 mm/s

Max. Print Width

72mm

Max. Paper Width

80mm / 58mm

Resolution

203 dpi

Type of Paper Cutting

Metal Cutter

Media Dimension

Max. Roll Diameter: Ø 60mm).

NFC

Support ISO/IEC 14443 Type A/B, Mifare1, SL3, Felica

Barcode Scanner

1D/2D IR

WLAN

Optional Wi-Fi 802.11b/g/n/ac

Bluetooth

Optional BT 5.0

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

20~80%RH

Dimension (W x L x H)

259,1 x 195.5 x 168.6mm

Weight

2.5kg

Packing List

1 x RPC-11DP
1 x 24V/2.5A Adapter
1 x roll 80mm thermal paper
