Processor

Intel® Twin Lake N150

System Memory

DDR5 4800MHz 8GB 262pin SO-DIMM

Watchdog Timer

System reset, programmable 1-255 sec or min

H/W Status Monitor

System-temp, CPU-temp, Voltage-12V,5V,3.3V, Vcpu, Vddr

TPM

fTPM2.0

Other

Front Touch/OSD board: 6 buttons, 1 x Power on/off, 5 x program keys

Expansion

1 x M.2 E-Key 2230, PCIE+USB2.0, support WiFi +Bluetooth Module

Storage

1 x 64GB SSD

Audio Codec

Realtek Audio HDA codec

Audio Interface

Line-Out

Speaker Output

2 x L/R Amplifier, 2W4Ω/CH

DC Input

+12V

DC Input Connector

DC Jack with Lock

OS

Win11

Certification Information

CE/FCC/ClassA/UKCA/VCCI

LCD Size

15"

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.297 x 0.297

Luminance

300 cd/m2

Contrast ratio

2500

Viewing angle

88/88/88/88

Backlight

LED

Touch Type

PCAP

Touch Controller

EXC81H60

Touch Interface

USB

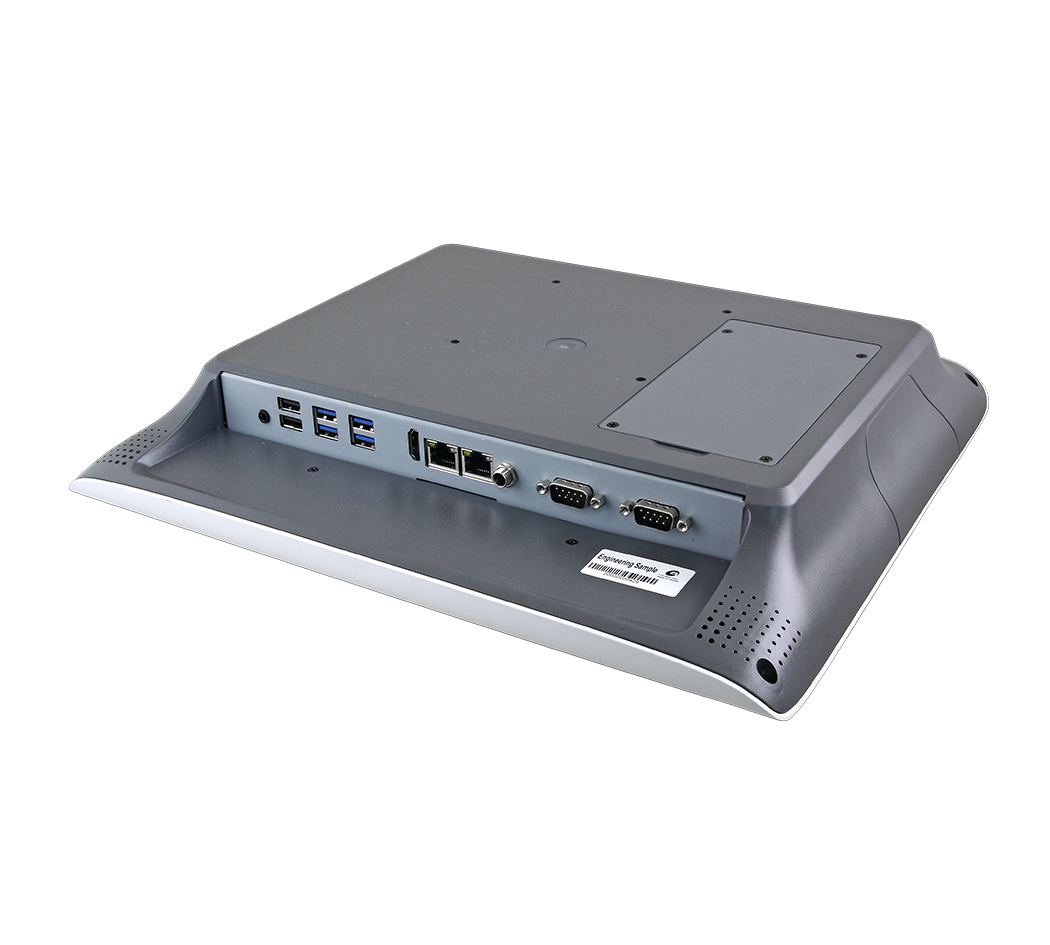

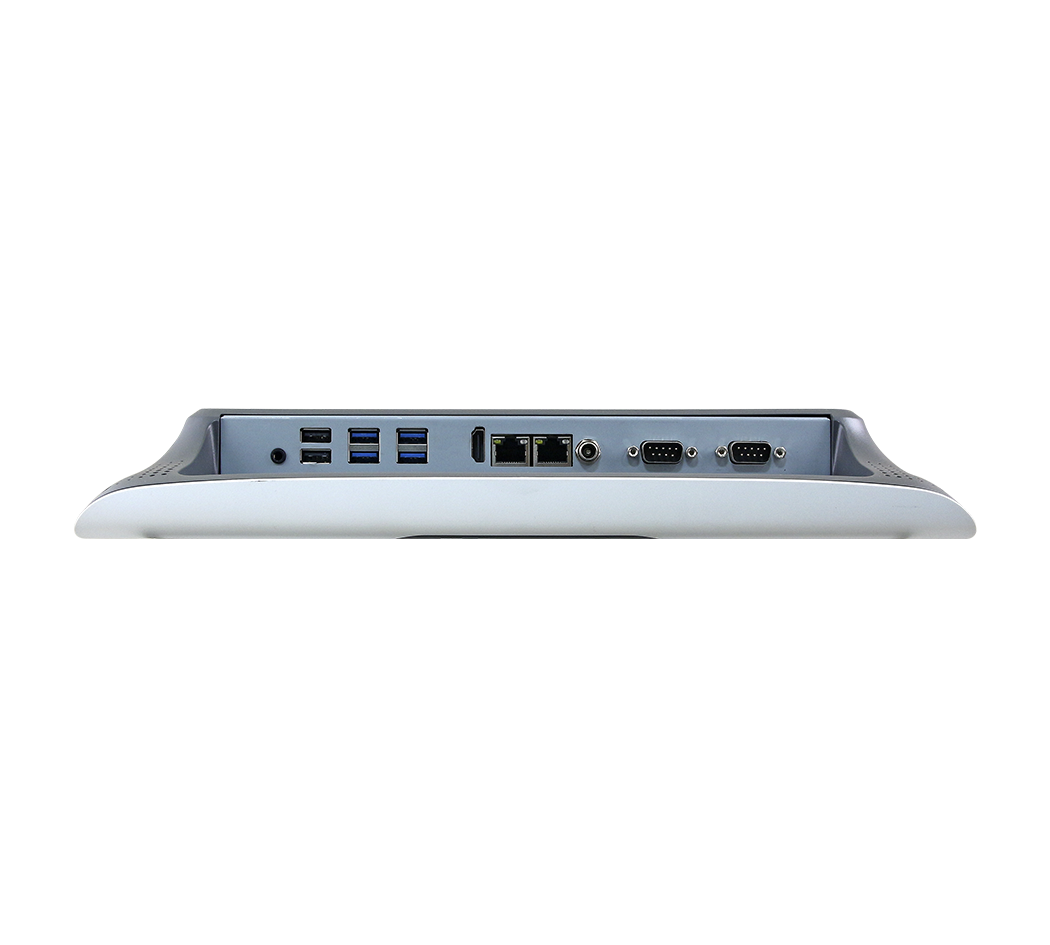

USB Port

4 x USB3.0
2 x USB2.0

Audio Port

1 x Line-Out + MIC, CTIA

LAN Port

2 x RJ45

COM Port

2 x RS232

HDMI

1 x HDMI

WLAN

Optional Intel M.2 2230 AX210 802.11ax Dual-band ,-40° to 85°

Bluetooth

Optional Intel M.2 2230 AX210 BT5.3

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

0°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

3.5 Kg

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

White+ Gray Plastic

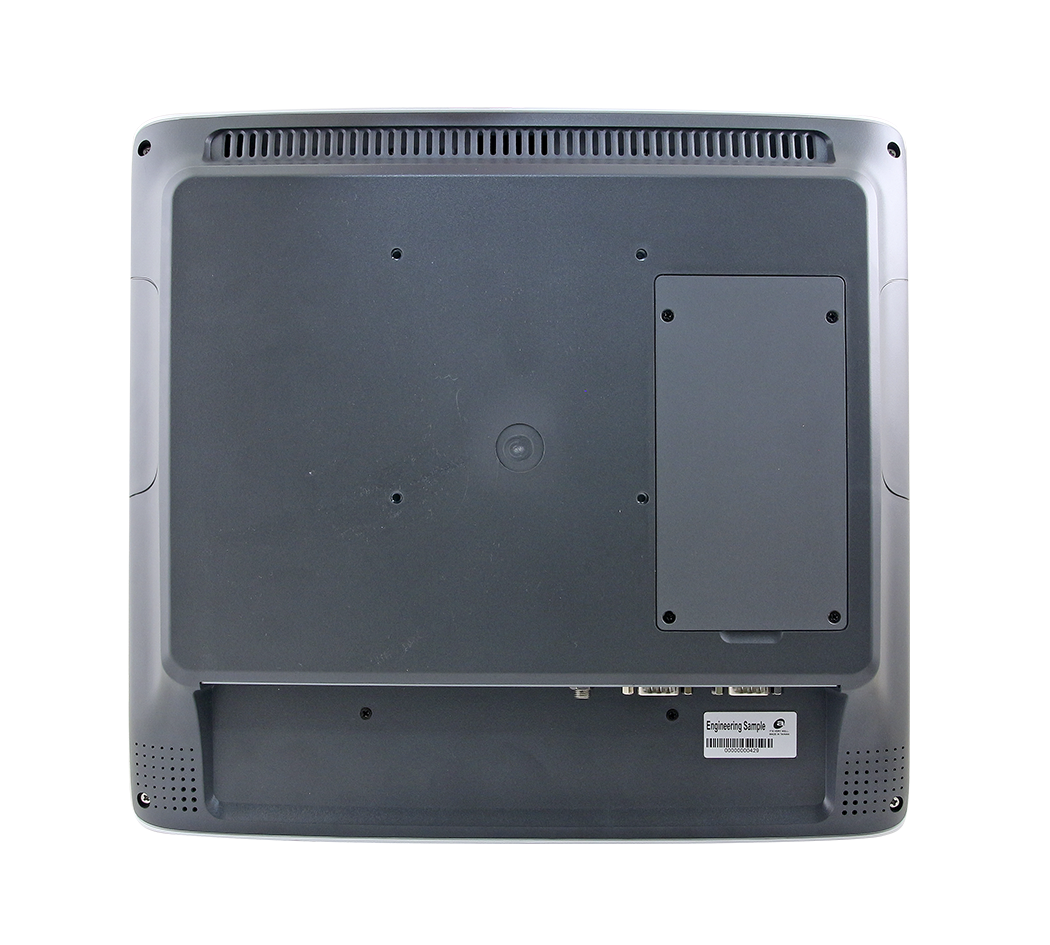

Construction - Rear

White+ Gray Plastic

Dimension

351mm x 319mm x 54mm

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter)

Packing List

1x PPC-1539
1x 60W Power Adapter
4x M4*6 Black for VESA

Ordering Information

PPC-1539-150-A1R
15"1024 x 768 PCAP with Intel N150/8G DDR5/HDMI/2COM/6USB/2LAN/Audio/60W Adapter


USA Power Cord E1702031833R
EU Power Cord E1702031000R
Japan Power Cord E1702031834R
UK Power Cord E170P060380R
