Processor

Intel® Alder Lake-N x7211E

System Memory

DDR5 4800MHz 8GB 262pin SO-DIMM

Watchdog Timer

System reset, programmable 1-255 sec or min

TPM

2.0

Expansion

1, M.2 E-Key 2230, PCIE+USB2.0, support WiFi +Bluetooth Module

Storage

1 x 2.5" SSD

Audio Codec

Realtek Audio HDA codec

Audio Interface

Line-out

Speaker Output

2 x 2W

DC Input

+12V

DC Input Connector

DC Jack screw type

OS

Win 10 / Win 11 / Linux

Certification Information

CE/FCC Class A/VCCI/UKCA/LVD

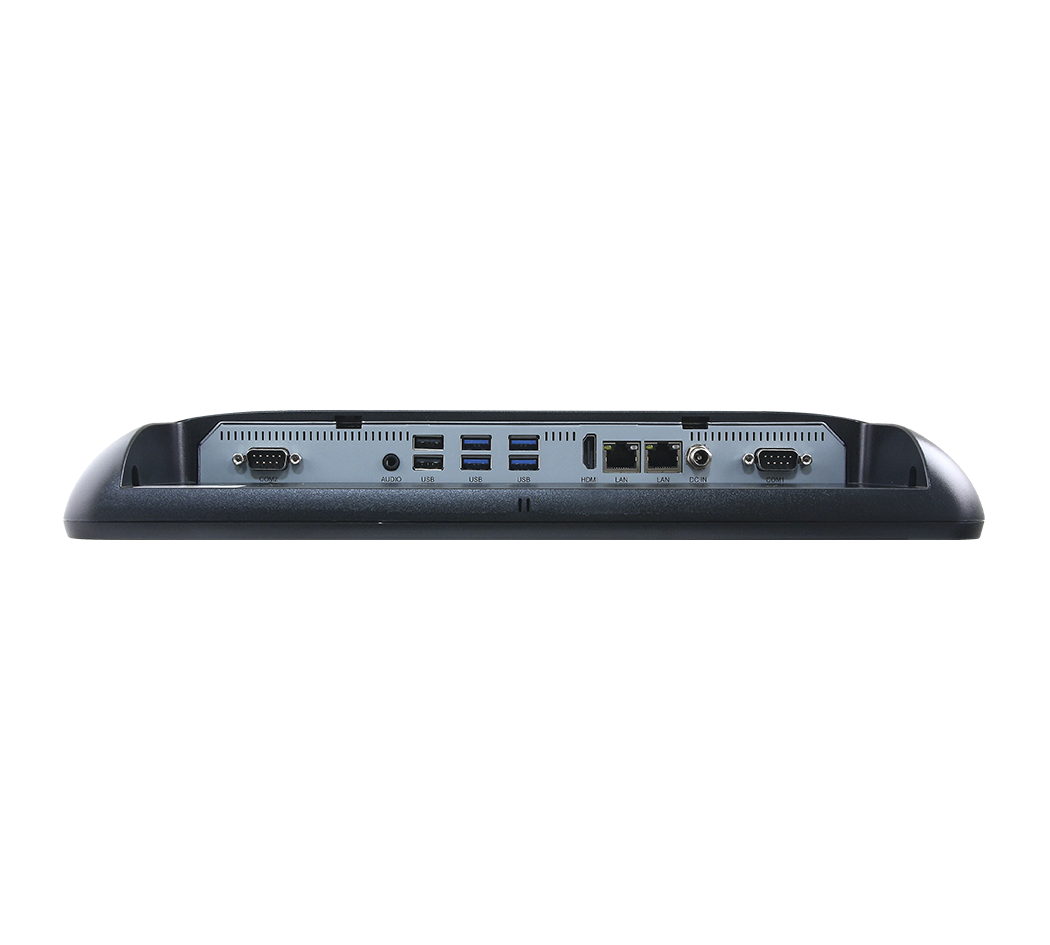

USB Port

4 x USB 3.0/ 2x USB 2.0

Audio Port

1 x MIC + LINE out

LAN Port

2 x RJ-45

COM Port

2 x COM

HDMI Port

1 x HDMI

LCD Size

15", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.297(H) x 0.297(W)

Luminance

300 cd/m2

Contrast ratio

2500

Viewing angle

88/88/88/88

Backlight

LED

Touch Type

5 wire resistive

Touch Interface

USB

COM Port

2 x RS-232/422/485 (BIOS)
1 x RS-232

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

0°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

362.1 X 290.08 X 51 mm

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

IP 65 for front panel, IP 41 for back

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Black/ White plastic

Construction - Rear

Black/ White plastic

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter)

Ordering Information

RITY-1539-A1-01R
15"1024 x 768 POS Terminal with Intel x7211E/8G DDR5/5 Wire Resistive Touch/HDMI/2COM/6USB/2LAN/Audio/60W Adapter/Stand/Black

RITY-1539-A1-02R
15"1024 x 768 POS Terminal with Intel x7211E/8G DDR5/5 Wire Resistive Touch/HDMI/2COM/6USB/2LAN/Audio/60W Adapter/VESA Mount/Black

USA Power Cord E1702031833R
EU Power Cord E1702031000R
Japan Power Cord E1702031834R
UK Power Cord E170P060380R
