Processor

Intel® Alder lake N97 /I3-N305 Processor

System Memory

1 x SO-DIMM DDR4 3200MHz up to 16GB

I/O Chipset

Super IO-ITE: IT8786E-I

BIOS Information

AMI uEFI BIOS, 128Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

H/W Status Monitor

CPU temperature monitoring
Voltages monitoring
CPU fan speed control

M.2

1 x M.2 Key-E 2230 (PCIE+USB2.0)
1 x M.2 Key-B 2242/3052 (USB2.0+USB3.0)
1 x M.2 Key-M 2280 (PCIE+SATA)

M.2

1 x M.2 Key-M 2280 (PCIe) slot for storage NVMe SSD

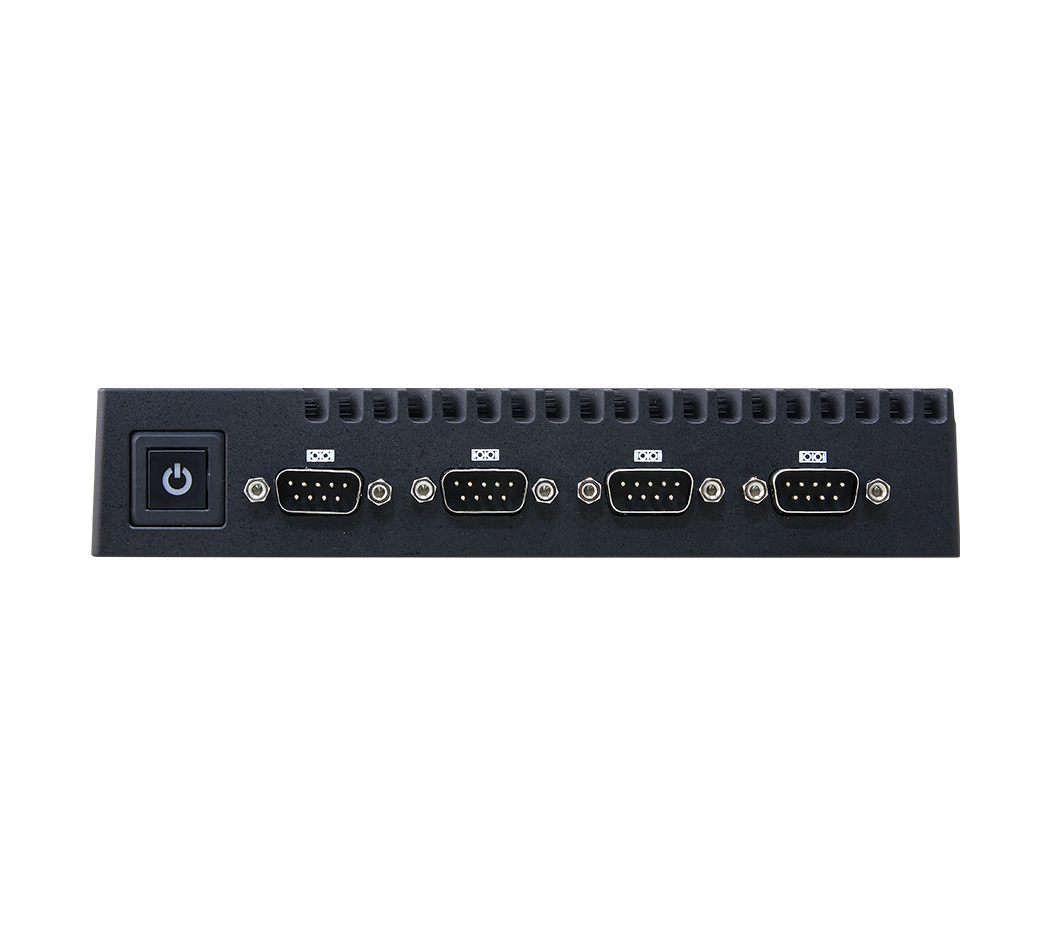

Power Button

1 x PWR BTN with LED

COM Port

4 x RS232(DB9)

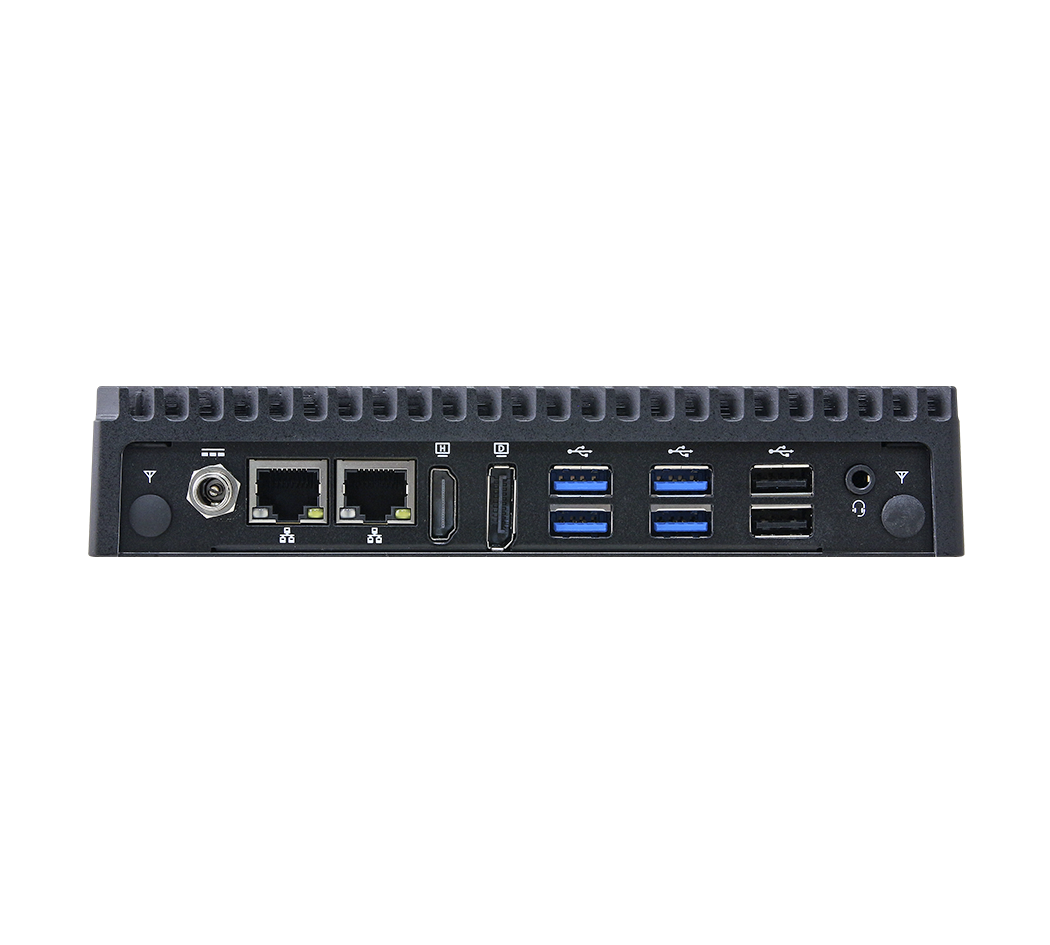

USB

4 x USB 3.2 Gen1x1 Type A
2 x USB 2.0 Type A

LAN Port

2 x RJ45

Audio

1 x Mic-in, Line-out, 2 in1 3.5mm Jack

DP

1 x DP++

HDMI

1 x HDMI 2.0b

Antenna

2 x Antenna Mounting

Antenna

2 x Covered antenna hole

Antenna

2 x Covered antenna hole

Graphic Chipset

Intel® UHD Graphics for Intel® Processors

Resolution

HDMI 2.0 2048x 1080@60Hz
DP++: Max 4096 x 2340@60Hz

Audio Codec

RealTek ALC897 audio codec

LAN Chipset

1 x Intel® i226V 2.5 Gigabit Ethernet Controller
1 x Intel® WGI210AT Gigabit Ethernet Controller

Specification

10/100/1000 GbE (I210-AT)
10/100/1000 GbE (I226-V)

LED Indicator

1 x I210AT 1GbE
1 x I226V 1GbE

Voltage Input Spec.

DC 12V

Voltage Input Connector

Lockable DC Jack

ACPI

Single power ATX support S0, S3, S4, S5

Power Mode

AT/ATX (ATX is default setting)

Adapter

AC to DC adapter

OS

Win10, Win11, Linux

Operating Temp.

-10~55°C (14°F ~ 104°F) with 0.5m/s air flow

Storage Temp.

-30~70C° (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

180mm x 136mm x 40mm

Vibration Test

with SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis

Shock Test

IEC 60068-2-27, Half Sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

Mounting Kit

Table Stand/Din Rail/VESA

Kensington Lock

Kensington Lock

Ordering Information

ACS-ADNC-A1-1R ACS-ADNC w/N97,Barebone Compact System
ACS-ADNC-A1-2R ACS-ADNC w/N97,DDR4 8GB,M.2 2280 128GB Compact System
