Processor

Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W )

System Memory

8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-GNRUA

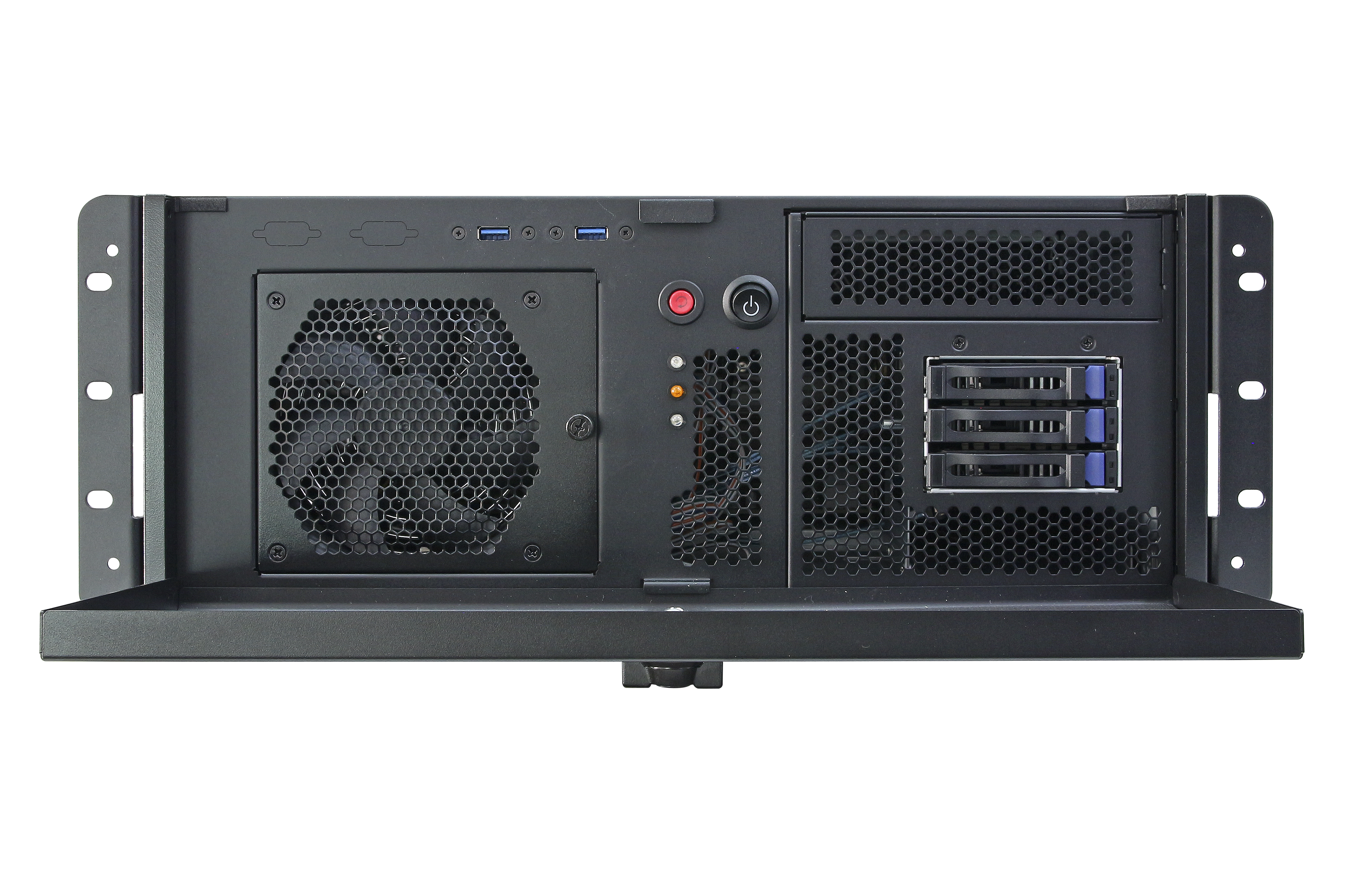

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator
1 x Disk activity indicator
1 x Network activity indicator

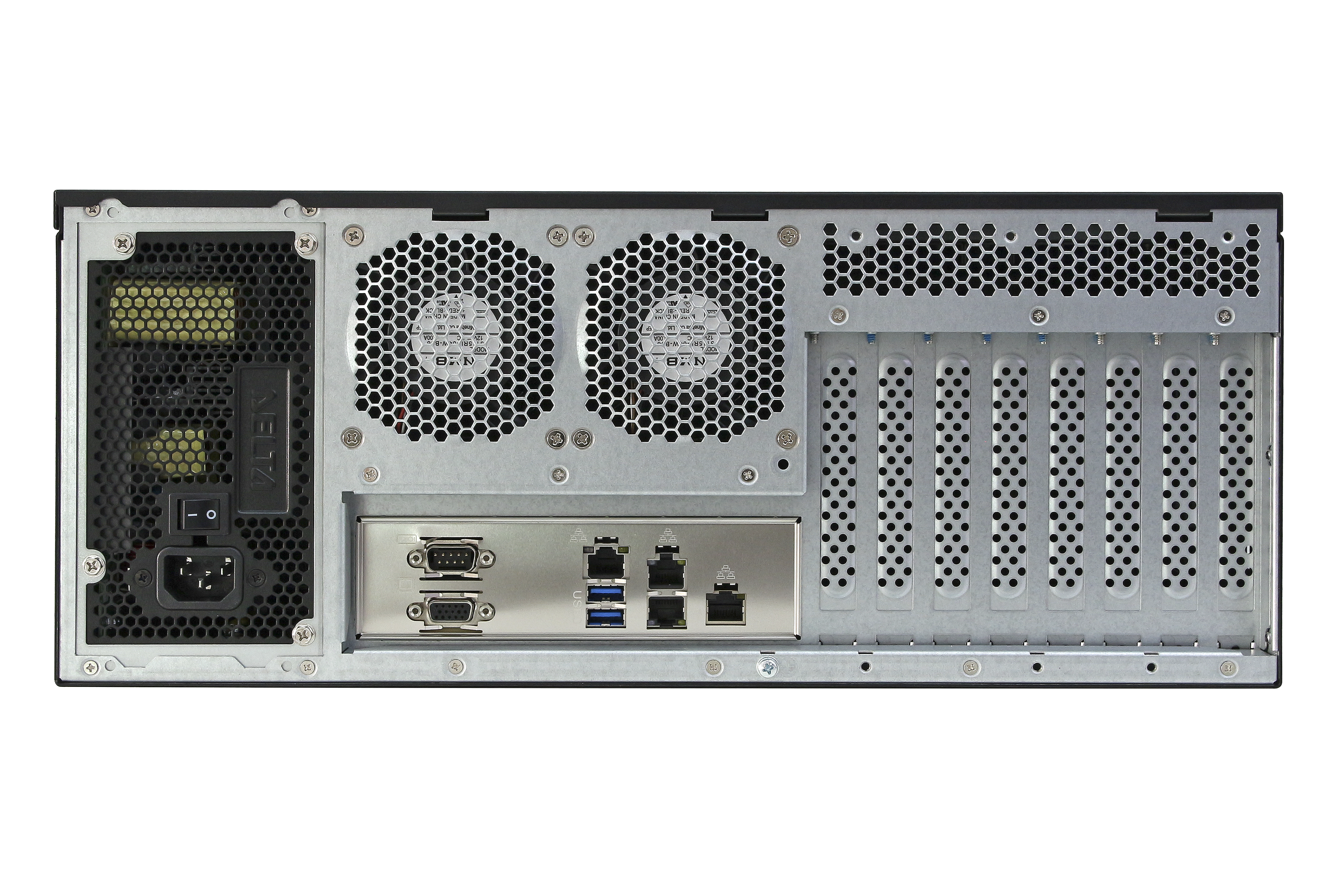

USB

2 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

VGA

1 x VGA port

RJ-45

4 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 and 3 ports for 10GbE

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

4 x PCIe Gen5 x16 slots
Slot 1, PCIe Gen5 x16
Slot 2, NA
Slot 3, PCIe Gen5 x16
Slot 4, NA
Slot 5, PCIe Gen5 x16
Slot 6, NA
Slot 7, PCIe Gen5 x16(This Slot is closest to the CPU)

M.2

2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2260/2280/22110 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

1 x Intel I210AT 1GbE controller
1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

4 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 and 3 ports for 10GbE

Operating Temp.

0 ~ 35°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @95% Relative Humidity, Non-condensing

Weight

19.5KG

Dimension (W x L x D)

19" 4U Chassis
430mm(W) x 174.8mm(H) x 528mm(D)
482.6mm(W) x 174.8mm(H) x 528mm(D) with ear mount

OS

Windows 11 SAC and LTSC
Windows Server 2025
Ubuntu 24.04 LTS or later
Red Hat Enterprise Linux (RHEL)

Ordering Information

HPS-GNRU4AD-A1R
L6 19" 4U Rackmount w/HPM-GNRUAA/1300W/1x5.25"/3x2.5"
